Description

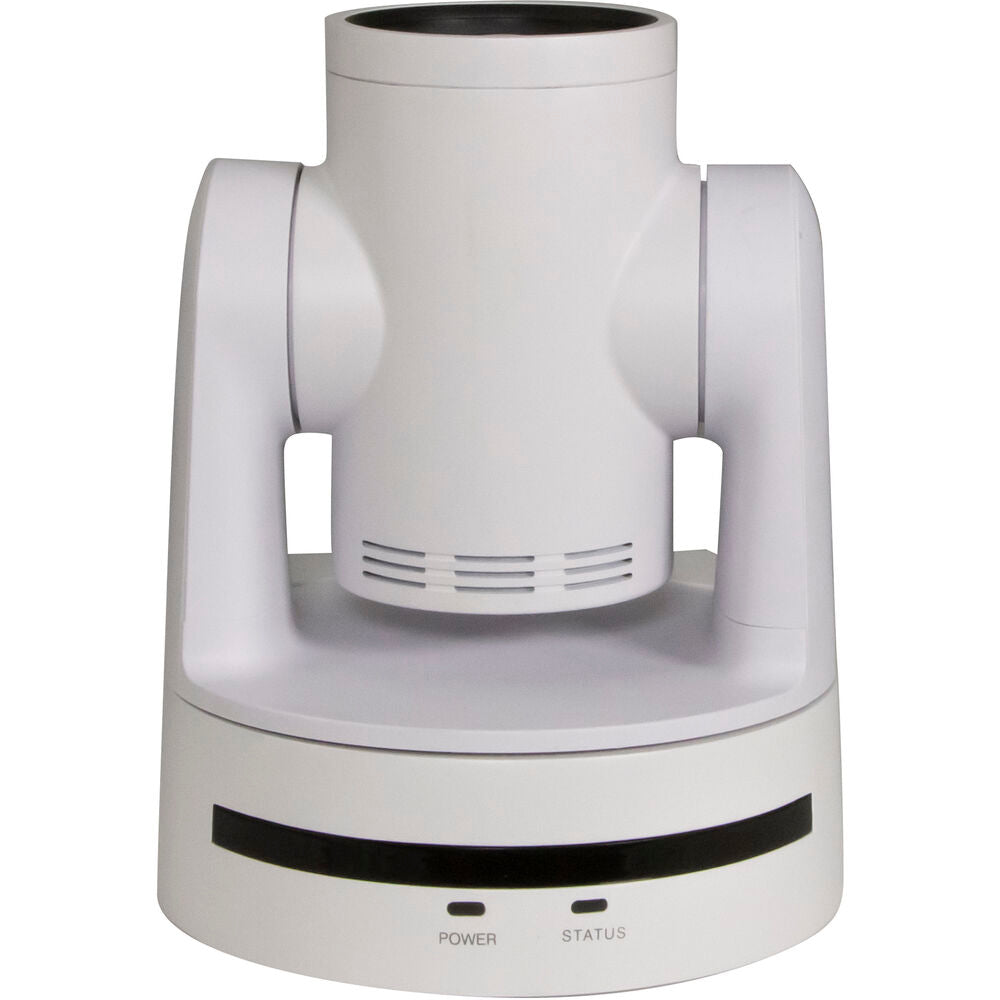

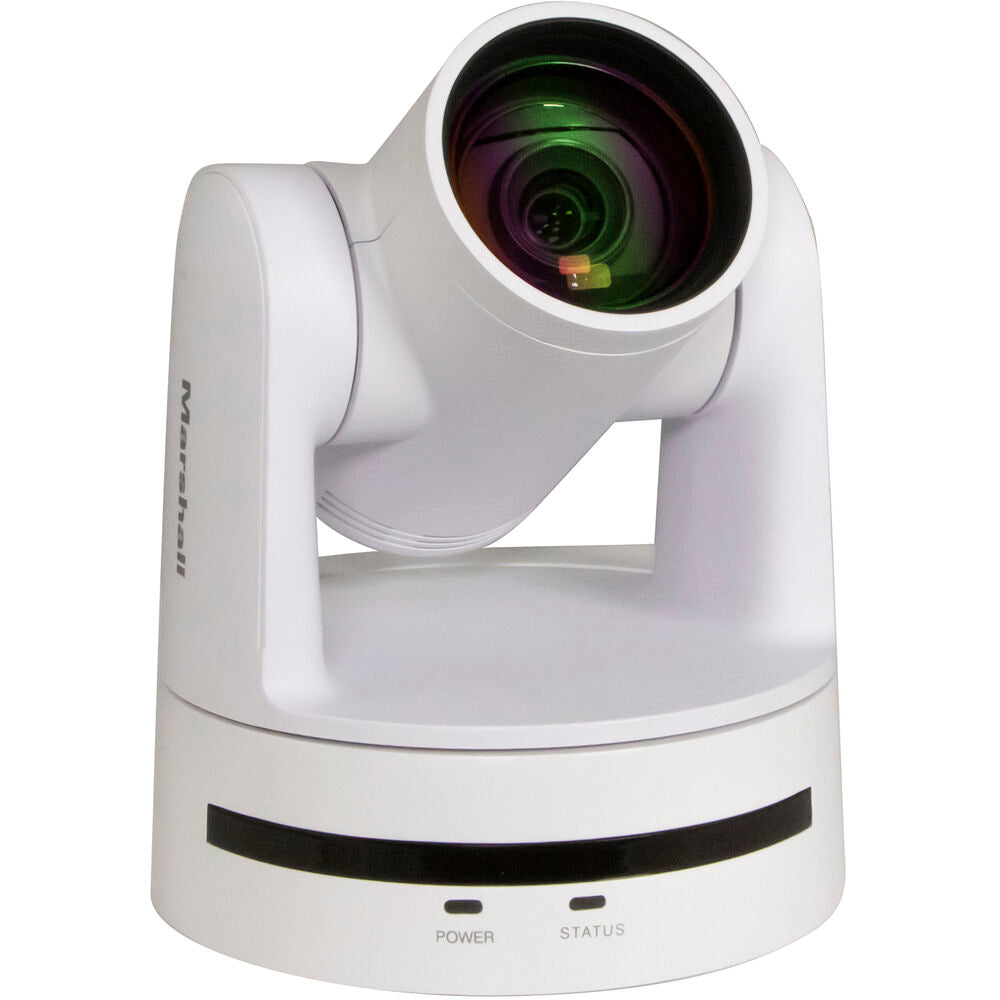

Marshall Electronics CV612-TWI Compact 12x Auto-Track PTZ Camera White
FEATURES
- Accurate auto-track, follow and frame subjects using AI facial learning technology
- 2.07 Megapixel 1/2.8-inch high quality HD CMOS sensor
- Format Resolutions 1920×1080, 1280×720, 640×480
- 3GSDI, HDMI and USB3.0
- 12x optical zoom (4.1~49.2mm)
- H.AOV 6.6°- 70.3°
- Pan rotation of 170°, Tilt rotation of -90°-+90°
- Video Interfaces: USB3.0 TYPE-C, 3G-SDI, HDMI, LAN)
HDMI and SDI:
1080p 60/59.94/50/30/29.97/25 / 1080i 60/59.94/50 / 720p 60/59.94/50
To USB3.0 port on PC – YUY2:
1920*1080 @60/50/30/25fps / 1280*720 @60/50/30/25fps / 960*540 @30fps / 800*600 @30fps / 640*480 @30fps
To USB2.0 port on PC – YUY2:
960*540 @30fps / 800*600 @30fps / 720*576 @50fps / 720*480 @60fps / 640*480 @30fps
The CV612-TBI/CV612-TWI 12X optical zoom 3GSDI camera utilizes a professional-grade 2.07-megapixel sensor to capture crisp HD video starting at a Pan rotation of 170° and a tilt rotation of -90°-+90°, all in a 1920x1080p resolution. Multiple available outputs include 3GSDI, USB 3.0 and HDMI. Marshall’s straight forward design and ease-of-use make this camera an affordable camera for a wide variety of live streams, broadcast, and professional A/V applications for all your streaming applications.
AI Auto Track Technology
The CV612 models have the ability to automatically track, follow and frame presenters using AI facial learning for accurate and smooth self-adjusting maneuvers. With advanced AI tracking, the PTZ camera “learns” who is the prime subject and won’t “lose” the presenter when other persons or objects enter the shot.
Live Streaming Made Simple
It can stream HEVC directly from the camera over IP (RTSP) or USB C while simultaneously outputting via SDI and HDMI, making it an ideal solution to stream live to YouTube, Livestream, Facebook (Meta), or Twitch while capturing local HDMI content.
Flexibility Workflow
The CV612 has a flexible interface with simultaneous 3GSDI, HDMI, RTSP streaming and USB 3.0 Type C outputs for ease of connection for various applications. including live events, houses of worship, indoor, and other dynamic lighting environments.
Easy to Handle
Setup and manual control (if desired) is available via Ethernet Network, RS232 3-wire and USB C interfaces One Ethernet (CAT) cable installation with PoE+ simplifies setup and operation. The control interface includes RS232, Visca, Pelco, Visca-over-IP and Onvif protocols as well as LAN control. Also included is a handheld IR remote control.
WHAT'S IN THE BOX
- 1x Marshall CV612-TBI PTZ Camera Body
- 1x IR Remote Control
- 1x Power Supply Unit (PSU)
- 1x US Power Cable, 1x EU Power Cable, 1x UK Power Cable
- 1x RS-422 Connector
- 1x Metal Plate A
- 1x Metal Plate B
- 1x M3 Screws Set
SPECIFICATIONS
| Optical Zoom | >12X, f=4.1～49.2mm |
| Sensor | >1/2.8-inch-high quality HD CMOS sensor, 2.07 megapixel |
| Video Output Format | HDMI and SDI: 1080p 60/59.94/50/30/29.97/25 1080i 60/59.94/50 720p 60/59.94/50
To USB3.0 port on PC: To USB2.0 port on PC: |
| Viewing Angle | >6.6°- 70.3° |
| Digital Zoom | >8X |
| Minimum Illumination | 0.5Lux (F1.8) |
| White Balance | Auto / Manual/ One Push/ VAR |
| Focus | >Auto/Manual/One Push |
| Iris | >Close/F11/9.6/8.0/6.8/5.6/4.8/4.0/3.4/2.8/2.4/2.0/1.8 |
| Electronic Shutter | Auto/Manual (1/60, 1/90, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000) |
| BLC | >ON/OFF |
| Video Adjustment | Brightness, Hue, Saturation, Contrast, Sharpness, B/W mode |
| SNR | ≥50dB |

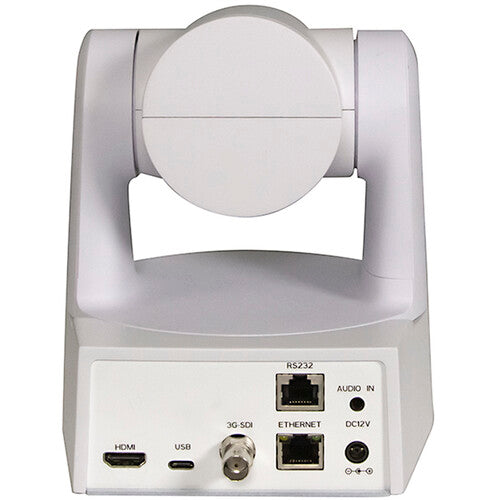

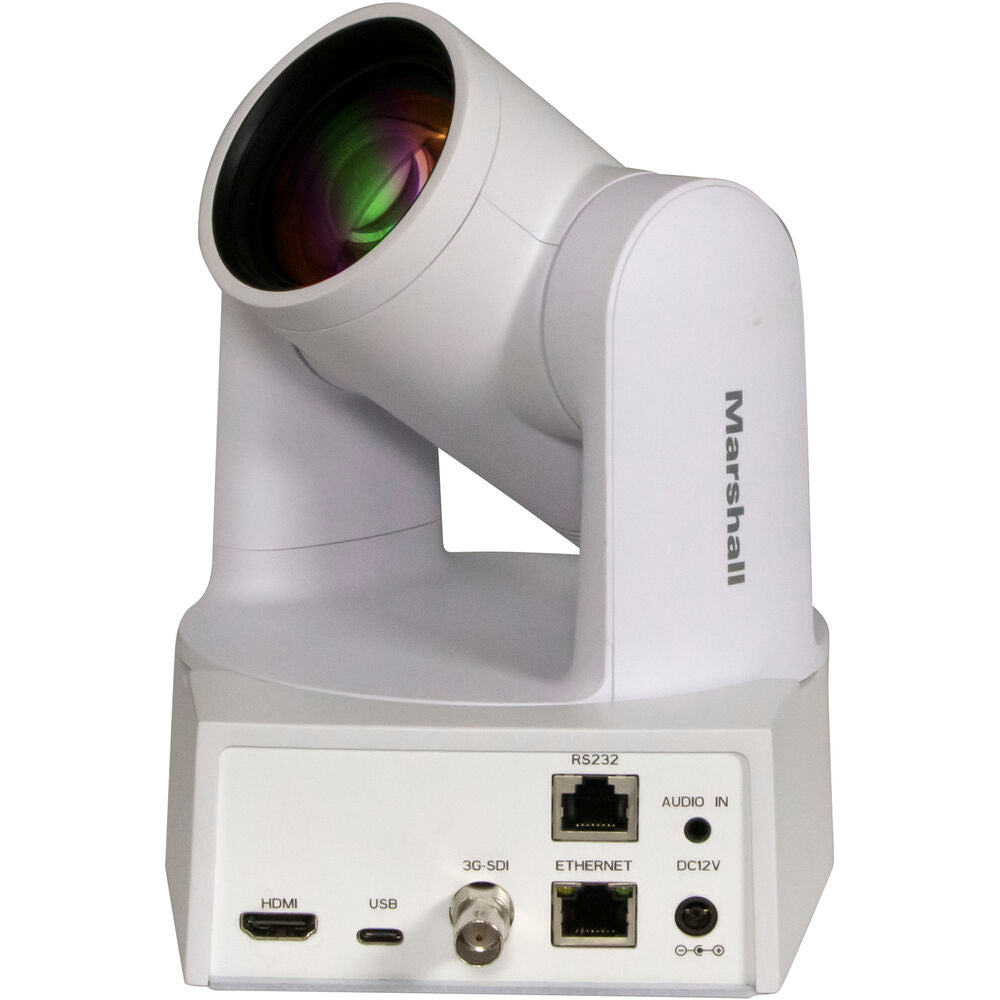

| Input/ Output Interface | |
| Video Interfaces | USB3.0 TYPE-C, 3G-SDI, HDMI, LAN |
| Video Compression Format | USB3.0: YUY2 LAN: MJPEG, H264, H265/td> |
| Audio Input | Two-channel 3.5mm line input |
| Network Protocol | RTSP, RTMP, SRT, ONVIF; VISCA over IP control |
| Control Interface | RS232 |
| Control Protocol | VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/38400/9600/4800/2400 |
| Power Interface | HEC3800 outlet (DC12V) |
| Supply Adapter | AC110V-AC220V to DC12V/2A |
| Input Voltage | DC12V±10% |
| Input Current | 1.25A |
| Consumption | 15W (12V, 1.25A Max) |
| PTZ Parameter | |
| Pan Rotation | >±170° |
| Tilt Rotation | >-90°～+90° |
| Pan Control Speed | 0.1 -65°/sec |
| Tilt Control Speed | 0.1-35°/sec |
| Preset Speed | >Pan: 60°/sec, Tilt: 30°/sec |
| Preset Number | >255 presets (10 presets by remote controller) |
| AI Tracking | |
| Real Time and Regional tracking up to 8m. Regional tracking can be set up to 4 continuous regions to track. | |
| Other Parameter | |
| Store Temperature | -10° C～+70° C |
| Store Humidity | 20%～90% |
| Working Temperature | -10° C～+50° C |
| Working Humidity | 20%～80% |
| Dimension | 162.3mm (height) x 146.2mm (width) x 164.9mm (length) |
| Weight | 1.49 kg (3.30 lbs) |
| Using Environment | Indoor |
| Accessory | >Power supply, IR remote controller, USB3.0 Type-C cable |
