AJA DRM2-Plus Mini-Converter Frame

3RU Rack Frame for AJA Mini-Converters with Redundant Power Supply

The AJA DRM2-Plus is a 3RU rackmount frame for professionally mounting and powering your AJA Mini-Converters. It streamlines broadcast, production, and pro AV workflows by enabling rack mounting and simplifying power management of multiple AJA Mini-Converters for signal conversion and distribution needs.

This rackmount frame can hold 12 standard size Mini-Converters, with an option to install up to 24 smaller form factor converters, such as the AJA FiDO fiber, HA5-Plus, Hi5-Plus, and V2Analog and V2Digital converters. The DRM2-Plus also supports up to 6 next-generation AJA Mini-Converters, such as the DANTE-12GAM.

The DRM2-Plus offers an optional redundant power supply, perfect for mission critical applications such as broadcasting and live events. The DRM2-Plus also has an optional active cooling faceplate for higher ambient temperature environments such as on location or on-set.

The DRM2-Plus is available in four configurations:

Passive Faceplate, Single Power Supply - DRM2-PLUS-P1

Passive Faceplate, Redundant Power Supply - DRM2-PLUS-P2

Active Faceplate, Single Power Supply - DRM2-PLUS-A1

Active Faceplate, Redundant Power Supply - DRM2-PLUS-A2

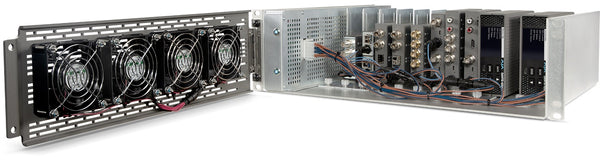

The DRM2-Plus has a hinged front panel for easy access to the converters without the need to remove the DRM2-Plus from a rack. The DRM2-Plus is the best solution to house, power, and manage your AJA Mini-Converters.

FEATURES

2x mounting slots for any AJA Mini-Converters.
12x modular carriers are included with the DRM2-Plus.
Up to 24 smaller converters can be installed, 2 per carrier, with the optional DRM2-YC Y-Cable.
Standout industrial design with a hinged front panel for ease of access.
Mini-Converters may be installed or removed without removing the frame from a rack.
Optional active faceplate includes four fans for maximum cooling in high temperature environments.
13x +12V DC regulated outputs (hardwired to power supply) - twelve connectors for the converters, one reserved for the active faceplate.

Power and Space for AJA Mini-Converters

The 3RU form factor allows all AJA Mini-Converters to fit cleanly in the rack mount chassis. Modular carrier Mini-Converter mounts are rugged, simple to use, and easy to access from the front or rear of the chassis. 12 carriers are included with the DRM2-Plus, and additional carriers can be purchased individually or in 12-pack bundles.

The Power to Do More

Here are a number of exciting use cases for the DRM2-Plus:

Up to 384 Channels of Dante Audio embedding/disembedding
48 channels of 3G or 12G-SDI to Fiber or Fiber to SDI conversion
Up to 60 channels of HD or SD sync distribution utilizing 2x GEN10s and 10x 3GDAs or C10DAs
12 independent channels of 4K HDMI to 12G-SDI or 12G-SDI to 4K HDMI conversion
24 independent channels of HDMI to 3G-SDI or 3G-SDI to HDMI conversion.
12 independent scan conversion channels
12 independent Up/Down/Cross conversion channels

DRM2-Plus Accessories

Faceplate Option

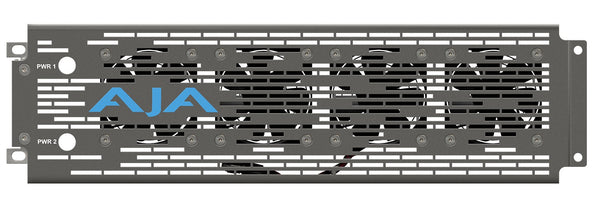

DRM2-Plus is available with either a passive cooling faceplate or an active cooling faceplate. The active fan-cooled faceplate is perfect for use with higher wattage-consuming converters or in higher ambient temperature operating environments. We offer the opportunity to upgrade a passive faceplate to the active version ($200 US MSRP* DRM2-PLUS-AF) should your production requirements change.

*International pricing will vary.

Redundant Power Options

The DRM2-Plus can be ordered with a single power supply or redundant power supplies. The redundant power supply is often required for mission critical broadcasts and live productions.

FiDO and other Small Converter Power Options for the DRM2-Plus

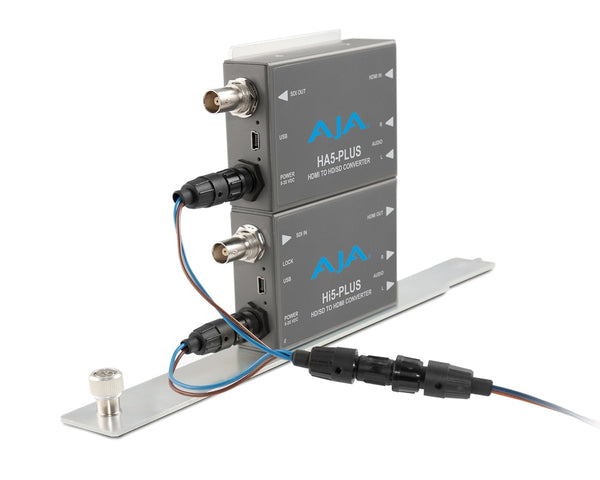

Because the DRM2-Plus can deliver up to 288 watts of power, the smaller form factor of the single and dual channel FiDO’s, HA5-Plus, Hi5-Plus, and V2Analog and V2Digital converters, with their low power consumption and smaller size, makes it possible to support up to 24 smaller-sized converters in one DRM2-Plus. This configuration requires the purchase of the optional AJA DRM2 Y-Cable, the DRM2-YC.

One Y-Cable is required per pair, sold separately, to achieve this converter density.

Y-Cable pricing:

DRM2-YC (1 cable) $45 US MSRP*

DRM2-YC12 (12 cables) $450 US MSRP*

*International pricing will vary.

Power Options for Next Generation Mini-Converters

The next generation AJA Mini-Converters, such as DANTE-12GAM, use a Mini-XLR power connector instead of the standard Mini-Con-X® connector. We offer an adapter cable (DRM2-PLUS-CX) to convert from the Mini-XLR power on the device to the Mini-Con-X connections on the DRM2-Plus. When using six AJA next-generation Mini-Converters, customers should order a Mini-XLR harness which includes (6) Mini-XLR Connectors and (1) Mini-Con-X Connectors to power the active faceplate.

When using the Mini-XLR harness, a DRM2-PLUS-XC adapter cable is available if needing to add a Mini-Converter that utilizes the Mini-Con-X connector.

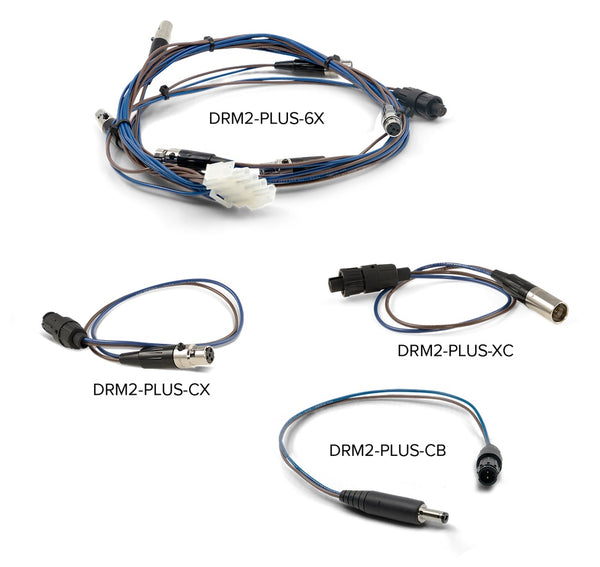

DRM2-PLUS-CX (Male-Mini-Con-X-to-Female-Mini-XLR power adapter cable 12") $75 US MSRP*

DRM2-PLUS-XC- (Male-Mini-XLR-to-Female-Mini-Con-X adapter cable, 12") $75 US MSRP*

DRM2-PLUS-CB (Male-Mini-Con-X-to-Male-Barrel adapter cable, 12”) $75 US MSRP*

DRM2-PLUS-6X (Mini-XLR Harness) $300 US MSRP*

*International pricing will vary.

Mini-Converter Carriers for the DRM2-Plus

The DRM2-Plus ships with 12x carriers, and additional carriers are sold separately as single items or twelve packs. They offer flexible mounting points on the side or bottom of the sled and accommodate a wide range of sizes from the largest next-generation converter to the smallest FiDO.

DRM2-PLUS-CH Carrier and Mounting Hardware (1) - $25 US MSRP*

DRM2-PLUS-CM Carrier and Mounting Hardware (12 Pack Bundle) - $250 US MSRP*

*International pricing will vary.

AJA Mini-Matrix

Information on the complete line of AJA converters, routers, frame synchronizers, and openGear cards are available in Mini-Matrix. AJA products are extensive and this resource helps you find the right converter for any situation, wherever you are. Individual products have links back to the main AJA website for more details.

Launch Mini-Matrix

Industry Leading Support

AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.

Mini-Converter products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.

SPECIFICATIONS

User Interface

12x mounting slots for any AJA Mini-Converters
Converters may be installed without removing the frame from the rack

Size (w x d x h)

19.0" x 17.9" x 5.22" (48.26 x 45.47 x 13.26 cm)

Weight

DRM2-Plus with 12x carriers, hardware, power harness, and power cord: 9.3 lbs (4.2 kg)
DRM2-Plus faceplate without fans 0.9 lbs (0.4 kg)
DRM2-Plus faceplate with fans 2.1 lbs (0.9 kg)

Power

Universal 100-240V, 50/60Hz power input
13x +12V DC regulated outputs (hardwired to power supply)
Power Consumption: 288 Watts maximum

Note: If the ambient temperature is under 30C, an active faceplate is recommended if power consumption exceeds 100W. If the ambient temperature is over 30C, then an active faceplate is recommended if power consumption exceeds 75W. Please consult the Tech Specs of your Mini-Converters to calculate expected power consumption.

Environment

Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <2,500 meters (<8,000 feet)
