Blackmagic Design URSA Cine EVF - CINEURSAB/EVF

FEATURES
High-Resolution Viewfinder for URSA Cine 12K
Makes outdoor and handheld shooting accurate and easy
Integrated high-quality 1920 x 1080 colour OLED display
Built-in proximity sensor, 4-element glass diopter for incredible accuracy with a wide focus adjustment
Built-in digital focus chart ensures you get the perfect viewfinder focus setup
View critical status information such as frame guides
Easy to connect as it simply mounts to the included viewfinder bracket and connects to the camera using a single USB-C cable
Can be positioned in multiple ways and comes with 2 different types of eyecups

Connections

Video Inputs

USB-C

Power Input

USB-C

Data Input / Output

USB-C

Computer Interface

USB-C for software updates.

FEATURES

Display Resolution
Full 1920 x 1080.

Frame Rates
Up to 60fps

Display Type
OLED

Display Pixels
6.22 Million Pixels

Color Precision
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084.

Focus
4 Element diopter.

Diopter Range
-5 to +5

Controls
Record button, Exposure Button, Zoom Button, 3 x assignable VF buttons.

Overlays
Built in overlay display processor and top mounted buttons.

Eyepiece
Can be tilted vertically and extended for left or right eye use.

Tally
LED tally light.

Mounting Options
Fully adjustable EVF mounting kit included. Blackmagic URSA Cine Handle is required for mounting to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras. Blackmagic URSA Cine EVF Extension compatible with standard extended viewfinder supports.

Metadata Support
Displays and sends camera data and settings over USB to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras.

SPECIFICATIONS

Connections
Video Inputs	USB-C
Power Input	USB-C
Data Input / Output	USB-C
Computer Interface	USB-C for software updates.
Features
Display Resolution	Full 1920 x 1080.
Frame Rates	Up to 60fps
Display Type	OLED
Display Pixels	6.22 Million Pixels
Color Precision	SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084.
Focus	4 Element diopter.
Diopter Range	-5 to +5
Controls	Record button, Exposure Button, Zoom Button, 3 x assignable VF buttons.
Overlays	Built in overlay display processor and top mounted buttons.
Eyepiece	Can be tilted vertically and extended for left or right eye use.
Tally	LED tally light
Mounting Options	Fully adjustable EVF mounting kit included. Blackmagic URSA Cine Handle is required for mounting to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras. Blackmagic URSA Cine EVF Extension compatible with standard extended viewfinder supports.
Metadata Support	Displays and sends camera data and settings over USB to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras.

WHAT'S IN THE BOX
Blackmagic URSA Cine EVF
Blackmagic URSA Cine EVF Rotating bracket with 19mm carbon fibre rod
Blackmagic URSA Cine EVF Bracket rod mount

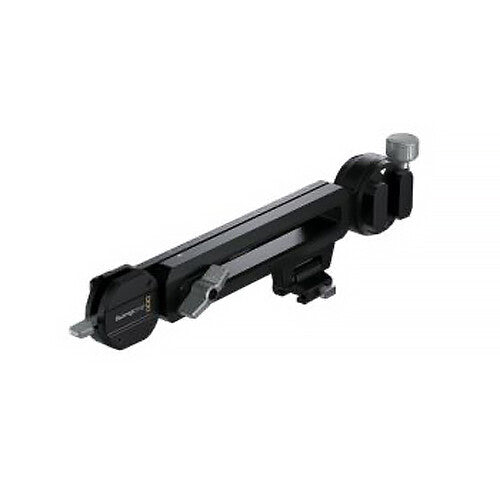

Blackmagic URSA Cine EVF Extension
2 short carbon fibre 15mm rods
1 short right angle to right angle USB Viewfinder cable
1 short right angle to straight USB Viewfinder cable
1 long right angle to straight USB Viewfinder cable
Rubber eyecup
Fabric eye chamois
Blackmagic Sticker
Welcome wallet with QR code for software download
