Blackmagic Design Studio Camera 6K Pro - CINSTUDMFT/G26PDK

**BMD NO LONGER ships from the UK ALL their Kit is now held in the Netherlands warehouse so please now allow 3-5 days lead time when ordering items**

FEATURES

Active Canon EF Lens Mount
Capture up to 6K 6144 x 3456p50
Live Streaming
Remote Controlled ND Filters
Raw Recording to External USB-C Disks
Records Blackmagic Raw, Up to 25,600 ISO
7" High-Brightness HDR Touchscreen LCD
12G-SDI, HDMI & 10G Ethernet Video I/O
XLR & 3.5mm Audio Input, Built-In Mics
Built-In DaVinci Resolve Color Corrector

Designed as the ultimate studio camera, Blackmagic Studio Camera 6K Pro adds a larger 6K Super 35 sensor and EF lens mount for true cinematic images in live production. There are built-in ND filters that let you reduce the amount of light entering the camera, allowing you to work in a wider range of situations, including in bright sunlight. Plus stream direct to the internet with built-in streaming! You also get 12G‑SDI, HDMI and 10G Ethernet which allows all connections on a single cable for a SMPTE style workflow that's much lower cost.

The ultimate self-contained live production camera!
Introducing the world’s most advanced self-contained studio camera! Blackmagic Studio Cameras have the same features as large studio cameras, miniaturized into a single compact and portable design. Plus with digital film camera dynamic range and colour science, the cameras can handle extremely difficult lighting conditions while producing cinematic-looking images. The sensor features an ISO of up to 25,600 so you can create amazing images even in dimly lit venues. It even works under the moonlight! Advanced features include talkback, tally, camera control, built-in colour corrector, Blackmagic RAW recording to USB disks, live streaming and more! You can even add a focus and zoom demand for lens control!

Designed for Live Production
While Blackmagic Studio Camera is designed for live production, it’s not limited to use with a live switcher! That’s because it records Blackmagic RAW to USB disks, so it can be used in any situation where you use a tripod! The large 7" viewfinder makes it perfect for work such as chat shows, television production, broadcast news, sports, education, conference presentations and even weddings! The large bright display with side handles, touch screen and physical controls makes it easy to track shots while being comfortable to use for long periods. Because it’s so lightweight, it’s perfect when you're constantly changing locations and doing different kinds of work.

Revolutionary Studio Camera Design
Large broadcasters use expensive studio cameras that are extremely large, so they’re not very portable. The distinctive Blackmagic Studio Camera has all the benefits of a large studio camera because it’s a combination of camera and viewfinder all in a single compact design. It features a lightweight carbon fibre-reinforced polycarbonate body with innovative technology in a miniaturized design. The camera is designed for live production so it’s easy to track and frame shots with its large 7" viewfinder. The touchscreen has menus for camera settings, and there are knobs for brightness, contrast and focus peaking. Plus a tripod mount with a mounting plate is included for fast setup!

Exceptional low-light performance
In advanced cameras, ISO is a measurement of the image sensor’s sensitivity to light. This means the higher the ISO the more gain can be added so it’s possible to shoot in natural light, or even at night! The Blackmagic Studio Camera features gain from -12dB (100 ISO) up to +36dB (25,600 ISO) so it's optimized to reduce grain and noise in images while maintaining the full dynamic range of the sensor. The primary native ISO is 400, which is ideal for use under studio lighting. Then the secondary high base ISO of 3200 is perfect when shooting in dimly lit environments. The gain can be set from the camera, or remotely from a switcher using the SDI or Ethernet remote camera control.

Get Cinematic Images in Live Production!
Amazing sensors combined with Blackmagic generation 5 colour science give you the same imaging technology used in digital film cameras. That means you can now use cinematic images for live production! Plus, when combined with the built-in DaVinci Resolve primary colour corrector you get much better images than simple broadcast cameras. The colour corrector can even be controlled from the switcher. With 13 stops of dynamic range, the camera has darker blacks and brighter whites, perfect for colour correction. Great for both HD and Ultra HD production, the 4K models feature a resolution of 3840 x 2160 and the 6K model has a resolution of 6144 x 3456. Plus, all models support 23.98 to 60 fps.

Affordable Photographic Lenses!
With the popular EF or MFT lens mounts, Blackmagic Studio Cameras are compatible with a wide range of affordable photographic lenses. Photographic lenses are of incredible quality because they're designed for use in high-resolution photography. Plus, the active lens mount lets you adjust the lens remotely! To eliminate the need to reach around to adjust the lens manually, the optional focus and zoom demands let you adjust the lens from the tripod handles just like a large studio camera! This means you avoid camera shake when adjusting the lens so you can track shots and operate the camera without taking your hands off the tripod! It gives you the same feel as an expensive B4 broadcast lens!

Frame Shots with Large 7" Viewfinder
The large 7" high-resolution screen will transform how you work with the camera because it's big enough to make framing shots much easier. The Pro models feature an HDR display with extremely high brightness, perfect outdoors in sunlight! On-screen overlays show status and record parameters, histogram, focus peaking indicators, levels, frame guides and more. You can even apply 3D LUTs for monitoring shots with the desired colour and look. The touchscreen also has menus and you can load and customize presets for different jobs. The included sun shade can be folded to protect the screen for transport plus it's compatible with sun shades from the Blackmagic Studio Viewfinder!

Physical and Touchscreen Controls
Blackmagic Studio Cameras feature physical buttons and knobs as well as controls on the touchscreen. Knobs on the right side of the camera allow adjusting of the brightness, contrast and focus peaking. The focus peaking knob is incredibly useful as it lets you fine-tune the detail highlight so you can get perfect focus as you zoom. The 3 function buttons on the left can have functions assigned to them, such as zebra, false colour, focus peaking, LUTs and more! Plus you can change the function assigned to each button in the menus. The touchscreen also includes a heads-up display with the most important shooting information, as well as menus for all camera settings, LUTs and custom presets.

Built-in Tally for On-Air Status
Blackmagic Studio Cameras feature a very large tally light that illuminates red on-air, green for preview and orange for ISO recording. The tally light also includes clip-on transparent camera numbers, so it's easy for talent to see camera numbers from up to 20 feet away! The Blackmagic Studio Cameras support the SDI tally standard used on all ATEM live production switchers and the HDMI tally used on ATEM Mini switchers. This means that a director can cut between cameras and the tally information will be sent back to the cameras via the SDI program return feed, lighting up the tally light on the camera whenever it's on air. SDI tally eliminates complex wiring so job setup is faster.

Communicate with the Director via Talkback
Unlike consumer cameras, the Blackmagic Studio Camera 4K Pro G2 and 6K Pro models have SDI connections that include talkback so the switcher operator can communicate with cameras during live events. That means the director can talk to the camera operators to guide shot selection, eliminating the problem where all cameras could have the same shot, at the same time! The talkback connector is built into the side of the camera and supports standard 5-pin XLR broadcast headsets. Talkback uses audio channels 15 and 16 in the SDI connection between the camera and the switcher and the program returns from the switcher to the camera. This means any embedded SDI audio device can work with talkback!

Powerful Broadcast Connections
Blackmagic Studio cameras have lots of connections for connecting to both consumer and broadcast equipment. All models feature HDMI with tally, camera control and record trigger, so are perfect for ATEM Mini switchers! You also get headphone and mic connections, and 2 USB-C expansion ports. The advanced Blackmagic Studio Camera Pro models are designed for broadcast workflows so have 12G-SDI, 10GBASE-T Ethernet, talkback and balanced XLR audio inputs. The 10G Ethernet allows all video, tally, talkback and camera power via a single connection so setup is much faster! That's just like an SMPTE fibre workflow, but using standard Category 6A copper Ethernet cable so it's much lower cost.

Four Ways to Connect
Blackmagic Studio Cameras can be connected in lots of different ways! All models feature HDMI so are perfect for HDMI switchers such as ATEM Mini. The HDMI supports video, tally, control and record triggers for a broadcast-style workflow using a single HDMI cable. The Blackmagic Studio Camera Pro models have 12G-SDI so you can connect it to SDI-based switchers such as the ATEM Constellation. There's a 12G-SDI connection for camera video and one for program return. The program return also includes a tally, talkback and remote camera control. Or you can use 10G Ethernet to get camera video, program return, tally, talkback, camera control and even power using a regular Cat6A Ethernet cable!

Get Low-Cost Camera Control via SDI
All Blackmagic Design ATEM switchers can control cameras via a protocol embedded into the camera's SDI video connections. Setup is easy because all ATEM switchers broadcast control commands from the switcher’s SDI program output to the camera via the SDI program input. The switcher can perform colour correction, tally and lens control and these are sent to all cameras. All you need to do is select the correct camera number and it all works. Even ATEM Mini switchers can control Blackmagic Studio Cameras because the HDMI output to the switcher has return data communication that can send control information back to the camera. All this means the camera operator is free to focus on framing shots.

Low-Cost SMPTE Fiber Style Workflow
The Blackmagic Studio Camera 4K Pro G2 and 6K Pro models support connecting cameras via a single Ethernet cable. It’s so simple, just plug in and you're ready! Traditional broadcast studio cameras use SMPTE fibre to communicate and power cameras, however, SMPTE fibre is very expensive. Blackmagic Studio Camera Pro models have 10G Ethernet as an alternative to SMPTE fiber so it's much lower cost. The Ethernet includes all camera video, program return feeds, tally, talkback, camera control and also power. The Blackmagic Studio Converter handles all video conversions at the switcher end plus adds power to the Ethernet cable. That means you don't need to connect power to the camera!

Live Streaming for Global Remote Cameras
Now you can place cameras remotely, anywhere in the world as the Blackmagic Studio Camera 4K Pro G2 and 6K Pro models have built-in live streaming! This means you can place a camera in a remote location and it can generate a H.264 HD live stream that is sent over the internet back to the studio. Simply connect the camera to the internet using the built-in Ethernet connection, or you can connect a 4G or 5G phone to the USB-C port to stream via remote data! The live stream is received in the studio by an ATEM Streaming Bridge where it's converted back to the video for connection to a switcher. The ATEM Streaming Bridge can even send tally, talkback and camera control back to the camera!

USB Expansion Port for Accessories
The Blackmagic Studio Camera features a high-speed USB-C expansion port that allows you to record to external disks or connect to a wide range of accessories. Plug in an external USB flash disk and the camera can record high-quality 12-bit Blackmagic RAW files for later editing and colour correction. That means you can just move the disk to a computer to work, and you don't need to waste time with file copying. You can even plug in optional focus and zoom demands to allow full lens control. Plus the USB port will power any phone or disk that’s plugged in!

Incredible Blackmagic RAW Quality
Blackmagic RAW is a revolutionary new format designed to capture and preserve the quality of the sensor data from your camera. Some file formats such as H.264 are highly compressed, so add noise and artifacts, causing sensor detail to be lost forever. Blackmagic RAW eliminates this problem so you get stunning images with incredible detail and rich colour throughout the whole post-production pipeline. Blackmagic RAW also saves camera settings as metadata so you can change ISO, white balance and exposure later in DaVinci Resolve. Plus the files are small and fast, so editing responsiveness is incredible. Only Blackmagic RAW gives you the highest quality, smallest files and fastest performance!

Includes Built-in Microphones
Blackmagic Studio Cameras include built-in microphones so you get sound included in the design making setup much faster. Plus the built-in microphones are shock and wind-resistant, so you get great sound even in tough conditions! With each microphone placed at the edges of the screen, you get the advantage of the studio camera design for better stereo separation than what is possible on a regular video camera. There’s also a 3.5mm audio input for connecting video camera microphones as well as a 3.5mm headphone jack. On the Blackmagic Studio Camera Pro model, you get professional XLR audio inputs and a built-in speaker for listening to the program return audio.

World's Best Camera Audio
Because the most common location to place microphones is near cameras, the Pro models include the best audio ever designed into a studio camera! The professional 2-channel balanced XLR inputs support a +24 dBu line level and have an ultra-low noise microphone preamplifier with P48 phantom power alongside an equivalent input noise (E.I.N.) of ‑131 dBV(A). That's followed by two 117 dB high dynamic range analogue to digital converters, so you get the high-end audio demanded by broadcasters and audio engineers. This means any microphone plugged into the XLR inputs will have a higher level of noise than the camera's audio!

Monitor Program Video
The Blackmagic Studio Camera lets you view program video from the switcher at the press of a button! Simply press the camera’s PGM button and the viewfinder will switch from the camera display to the program return feed from the switcher. Plus the built-in speaker lets you monitor the switcher audio. Program return is a fantastic feature as sometimes on large live shows, camera operators can be left waiting a long time for their camera to be used, so program return lets them watch the show while they wait. This means even if the camera operator is a large distance away from the switcher, they can still keep up with what’s happening and remain alert.

Built In ND Filters
Blackmagic Studio Camera 6K Pro features high quality, remote controllable ND filters that let you quickly reduce the amount of light entering the camera. Designed to match the colourimetry and colour science of the camera, the 2, 4 and 6-stop filters give you additional latitude even under harsh lighting. The filters are designed to filter both optical and IR wavelengths evenly, eliminating IR contamination of the images. The ND filters can be electronically controlled by the function buttons on the back of the camera, using buttons on demand and remotely. Because they can be controlled remotely by the camera control operator, the camera operator is free to focus on getting the perfect shot!

Powered by Blackmagic OS
With the advanced Blackmagic OS, you get an intuitive and user-friendly camera operating system based on the latest technology. Blackmagic OS is a truly modern operating system where all camera features run independently for smoother control, plus the camera powers on virtually instantly. It features the same controls and menus as other Blackmagic Design cameras so you can move between cameras on set easily. The interface uses simple tap and swipe gestures to adjust settings, add metadata and view recording status. You also get full control over advanced camera features such as on-screen focus and exposure tools, 3D LUTs, HDR, metadata entry, timecode, Blackmagic RAW settings and more!

Supports 3D LUTs for Film Looks!
When Blackmagic RAW files use logarithmic film gamma to preserve the camera dynamic range, 3D LUTs can be used to convert the images on the viewfinder display from looking flat and washed out. 3D LUTs solve this problem because they convert the image just before it's displayed on the LCD. This allows the film gamma images being recorded to be converted to nicer-looking images on the LCD. 3D LUTs are also saved into the Blackmagic RAW files so they can be used in later post-production, but they are never burned into the Blackmagic RAW image data, so you always have the option to disable them. This means the 3D LUT is transported in the Blackmagic RAW file, but only used when you enable it.

Localized in 13 Popular Languages
The Blackmagic Studio Cameras are designed to be used worldwide so they support 13 popular languages! When setting up your camera, you can choose to work in English, German, French, Spanish, Polish, Portuguese, Italian, Russian, Turkish, Ukrainian, Chinese, Japanese or Korean. It’s easy to switch to another language simply by going into the menu settings. When switching between languages, all the on-screen overlays, heads-up displays, and setup menus will be displayed in the selected language and you can change languages any time you like!

Powers From DC or 10G Ethernet
Blackmagic Studio Cameras have lots of different power options! All models have a common 12V DC locking power connector so the cable won't be accidentally pulled out. Plus, the camera includes a power supply with 5 different AC socket adapters for different countries. However, if you're using a single Ethernet cable to connect to the Blackmagic Studio Camera Pro models, then the whole camera and its accessories can be powered from the Ethernet connection. The Blackmagic Studio Converter has a large power supply that adds PoE power to the Ethernet cable so you don't need any power connection to the camera. That’s a great solution when there's no power available where the cameras are placed!

WHAT'S IN THE BOX

Blackmagic Studio Camera 6K Pro
Blackmagic Studio Camera Sun Shade
Tripod Mount compatible with 15mm lightweight rails
Tripod Mount Plate
Turret Dust Cap
External 12V DC power supply with locking connector and international sockets adapters for most countries.
Welcome wallet with QR code for software download
DaVinci Resolve download card
Blackmagic Design sticker

SPECIFICATIONS

Camera Features
Effective Sensor Size	17.78mm x 10mm (Four Thirds)
Lens Mount	Active MFT Mount.
Lens Control	Iris, focus, zoom on supported lenses.
Dynamic Range	13 Stops.
Dual Native ISO	0dB and 18dB gain.
Sensitivity at 0dB Gain	f11 with 2160p59.94.
	f12 with 2160p50.
	at 2,000 lux with 89.9% reflectance.
Signal to Noise Ratio	63dB for 2160p.
Shooting Resolutions	3840 x 2160 (Ultra HD) up to 60 fps.
Frame Rates	23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second.
	Off-speed frame rates up to 60 fps in Ultra HD.
Focus	Auto focus available using compatible lenses.
Screen Dimensions	7 inch 1920 x 1200
Screen Type	LCD capacitive touchscreen.
Screen Brightness	2000 nits
Controls	Touchscreen camera settings and menus with rotary settings dial
	program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials.
Mounting Options	2 x 1/4 inch tripod mount.
	1 x 3/8 inch tripod mount.
Connections
SDI Video Inputs	1
SDI Video Outputs	1
SDI Rates	1.5G, 3G, 6G, 12G.
HDMI 2.0 Video Outputs	1
Analog Audio Input	2 x XLR analog switchable between mic and line levels. Phantom power support.
	1 x 3.5mm Stereo Input. Can also be used for Timecode input.
Analog Audio Output	1 x 5-pin XLR for talkback headset.
	1 x 3.5mm TRRS mini jack for headphones with mic.
Reference Inputs	Tri-Sync or Black Burst when used with optional Blackmagic Studio Converter.
SDI Audio Output	2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI. 2 talkback channels on 15 and 16
Remote Control	Remote camera control over SDI, HDMI or Ethernet.
Ethernet	10Gb/s
Computer Interface	2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for
	external recording and focus / zoom demand connection. Software updates using USB‑C Port A.
Audio
Microphone	Integrated stereo microphone.
Built in Speaker	1 x mono speaker.
Standards
SD Video Standards	None
HD Video Standards	1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
	1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards	2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance	SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1
	SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
SDI Audio Sampling	Television standard sample rate of 48 kHz and 24‑bit.
Media	2 x USB-C 3.1 Gen 1 expansion ports for external
	media for recording Blackmagic RAW.
Media Format	Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Supported Codecs
Codecs	Blackmagic RAW Constant Bitrate 3:1,
	Blackmagic RAW Constant Bitrate 5:1,
	Blackmagic RAW Constant Bitrate 8:1,
	Blackmagic RAW Constant Bitrate 12:1,
	Blackmagic RAW Constant Quality Q0,
	Blackmagic RAW Constant Quality Q1,
	Blackmagic RAW Constant Quality Q3,
	Blackmagic RAW Constant Quality Q5
Storage Features
Storage Type	2 x USB‑C 3.1 Gen 1 expansion ports for external media.
Recording Formats	Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5
	in Ultra HD 3840 x 2160 at the selected frame rate.
Storage Rates	Storage rates based on 30 frames per second.
	3840 x 2160 (Ultra HD)
	Blackmagic RAW 3:1 - 127 MB/s
	Blackmagic RAW 5:1 - 77 MB/s
	Blackmagic RAW 8:1 - 48 MB/s
	Blackmagic RAW 12:1 - 32 MB/s
	Blackmagic RAW Q0 - 96 to 190 MB/s
	Blackmagic RAW Q1 - 64 to 153 MB/s
	Blackmagic RAW Q3 - 43 to 109 MB/s
	Blackmagic RAW Q5 - 26 to 64 MB/s
Control
External Control	Blackmagic Zoom Demand and Blackmagic Focus Demand
	controlling your camera and lens from tripod handles.
	Blackmagic Control Protocol over SDI and HDMI for external control
	when used with a compatible ATEM switcher with ATEM Software Control
	orATEM Camera Control Panel. Includes control of some camera settings
	focus, iris and zoom with compatible lenses, color corrector, tally and
	record start and stop to external media via USB expansion port.
Color Corrector	DaVinci YRGB
Talkback and Tally
Live Tally Indicator	1 x front facing for talent,
	1 x rear facing for operator.
Talkback	SDI Channels 15 and 16.
Software
Software Included	Blackmagic Camera Setup for Mac and Windows.
Operating Systems	12.0 Monterey,
	Mac 13.0 Ventura or later.
	Windows 10, 64-bit.
Power Requirements
Power Supply	1 x External 12V DC 60W power supply.
Power Inputs	1 x 12V DC locking 5.5 mm barrel connector.
	1 x 12V DC 4 pin XLR input for external power supply or battery use.
	1 x RJ45 Ethernet connector for power from Type 4 PoE power supplies.
Power Usage	26 ‑ 40 W using DC input.
	30 ‑ 46 W using PoE input.
Optional Accessories	Blackmagic Focus Demand
	Blackmagic Zoom Demand
	Blackmagic Studio Converter
	ATEM Mini switchers
	ATEM Television Studio Pro switchers
	Blackmagic 3G‑SDI Shield for Arduino
Physical
Dimensions	L - 273.6mm
	W- 169.7mm
	H- 167.3mm
Weight	1.685kg
Environmental Specifications
Operating Temperature	0° to 40° C (32° to 104° F)
Storage Temperature	-20° to 45° C (-4° to 113° F)
Relative Humidity	0% to 90% non-condensing
Warranty	12 Month Limited Manufacturer's Warranty.

Blackmagic Design Studio Camera 6K Pro - CINSTUDMFT/G26PDK

**In Stock with Blackmagic in the UK (Dispatches in 1-2 days)**

SPECIFICATIONS

Camera Features
Effective Sensor Size	17.78mm x 10mm (Four Thirds)
Lens Mount	Active MFT Mount.
Lens Control	Iris, focus, zoom on supported lenses.
Dynamic Range	13 Stops.
Dual Native ISO	0dB and 18dB gain.
Sensitivity at 0dB Gain	f11 with 2160p59.94.
	f12 with 2160p50.
	at 2,000 lux with 89.9% reflectance.
Signal to Noise Ratio	63dB for 2160p.
Shooting Resolutions	3840 x 2160 (Ultra HD) up to 60 fps.
Frame Rates	23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second.
	Off-speed frame rates up to 60 fps in Ultra HD.
Focus	Auto focus available using compatible lenses.
Screen Dimensions	7 inch 1920 x 1200
Screen Type	LCD capacitive touchscreen.
Screen Brightness	2000 nits
Controls	Touchscreen camera settings and menus with rotary settings dial
	program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials.
Mounting Options	2 x 1/4 inch tripod mount.
	1 x 3/8 inch tripod mount.
Connections
SDI Video Inputs	1
SDI Video Outputs	1
SDI Rates	1.5G, 3G, 6G, 12G.
HDMI 2.0 Video Outputs	1
Analog Audio Input	2 x XLR analog switchable between mic and line levels. Phantom power support.
	1 x 3.5mm Stereo Input. Can also be used for Timecode input.
Analog Audio Output	1 x 5-pin XLR for talkback headset.
	1 x 3.5mm TRRS mini jack for headphones with mic.
Reference Inputs	Tri-Sync or Black Burst when used with optional Blackmagic Studio Converter.
SDI Audio Output	2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI. 2 talkback channels on 15 and 16
Remote Control	Remote camera control over SDI, HDMI or Ethernet.
Ethernet	10Gb/s
Computer Interface	2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for
	external recording and focus / zoom demand connection. Software updates using USB‑C Port A.
Audio
Microphone	Integrated stereo microphone.
Built in Speaker	1 x mono speaker.
Standards
SD Video Standards	None
HD Video Standards	1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
	1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards	2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance	SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1
	SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
SDI Audio Sampling	Television standard sample rate of 48 kHz and 24‑bit.
Media	2 x USB-C 3.1 Gen 1 expansion ports for external
	media for recording Blackmagic RAW.
Media Format	Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Supported Codecs
Codecs	Blackmagic RAW Constant Bitrate 3:1,
	Blackmagic RAW Constant Bitrate 5:1,
	Blackmagic RAW Constant Bitrate 8:1,
	Blackmagic RAW Constant Bitrate 12:1,
	Blackmagic RAW Constant Quality Q0,
	Blackmagic RAW Constant Quality Q1,
	Blackmagic RAW Constant Quality Q3,
	Blackmagic RAW Constant Quality Q5
Storage Features
Storage Type	2 x USB‑C 3.1 Gen 1 expansion ports for external media.
Recording Formats	Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5
	in Ultra HD 3840 x 2160 at the selected frame rate.
Storage Rates	Storage rates based on 30 frames per second.
	3840 x 2160 (Ultra HD)
	Blackmagic RAW 3:1 - 127 MB/s
	Blackmagic RAW 5:1 - 77 MB/s
	Blackmagic RAW 8:1 - 48 MB/s
	Blackmagic RAW 12:1 - 32 MB/s
	Blackmagic RAW Q0 - 96 to 190 MB/s
	Blackmagic RAW Q1 - 64 to 153 MB/s
	Blackmagic RAW Q3 - 43 to 109 MB/s
	Blackmagic RAW Q5 - 26 to 64 MB/s
Control
External Control	Blackmagic Zoom Demand and Blackmagic Focus Demand
	controlling your camera and lens from tripod handles.
	Blackmagic Control Protocol over SDI and HDMI for external control
	when used with a compatible ATEM switcher with ATEM Software Control
	orATEM Camera Control Panel. Includes control of some camera settings
	focus, iris and zoom with compatible lenses, color corrector, tally and
	record start and stop to external media via USB expansion port.
Color Corrector	DaVinci YRGB
Talkback and Tally
Live Tally Indicator	1 x front facing for talent,
	1 x rear facing for operator.
Talkback	SDI Channels 15 and 16.
Software
Software Included	Blackmagic Camera Setup for Mac and Windows.
Operating Systems	12.0 Monterey,
	Mac 13.0 Ventura or later.
	Windows 10, 64-bit.
Power Requirements
Power Supply	1 x External 12V DC 60W power supply.
Power Inputs	1 x 12V DC locking 5.5 mm barrel connector.
	1 x 12V DC 4 pin XLR input for external power supply or battery use.
	1 x RJ45 Ethernet connector for power from Type 4 PoE power supplies.
Power Usage	26 ‑ 40 W using DC input.
	30 ‑ 46 W using PoE input.
Optional Accessories	Blackmagic Focus Demand
	Blackmagic Zoom Demand

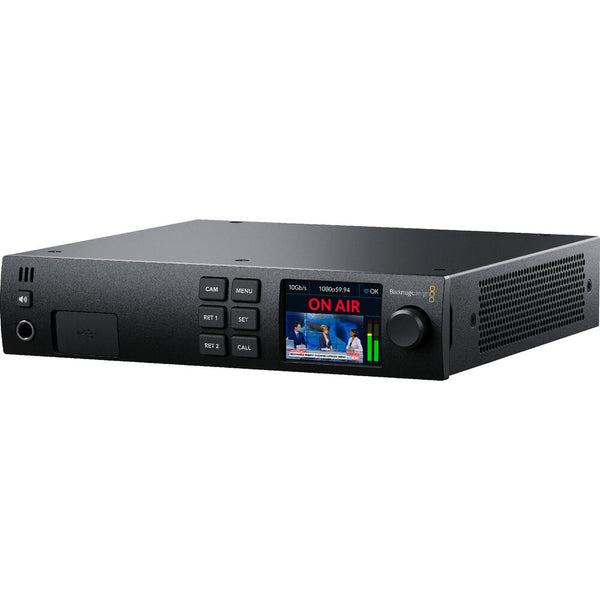

	Blackmagic Studio Converter
	ATEM Mini switchers
	ATEM Television Studio Pro switchers
	Blackmagic 3G‑SDI Shield for Arduino
Physical
Dimensions	L - 273.6mm
	W- 169.7mm
	H- 167.3mm
Weight	1.685kg
Environmental Specifications
Operating Temperature	0° to 40° C (32° to 104° F)
Storage Temperature	-20° to 45° C (-4° to 113° F)
Relative Humidity	0% to 90% non-condensing
Warranty	12 Month Limited Manufacturer's Warranty.

WHAT'S IN THE BOX
1x Blackmagic Studio Camera 4K Pro G2
1x Blackmagic Studio Camera Sun Shade
1x Tripod Mount compatible with 15mm lightweight rails
1x Turret Dust Cap
1x External 12V DC power supply with locking connector and international sockets adapters for most countries.
