Datavideo ITC-300P Digital 8-Channel Intercom System

FEATURES

Digital 8 Channel Intercom System
A revolutionary design transmits two ways talk, and tally over single CAT cable
Supports 8-Way digital wired Intercom
Communication distance up to 100 meters
Selectable channel talk, broadcast to all, or mute
Additional external earphone and microphone interface
Industry Standard 19" 1U rack design, for easy integration
Support cascading for more channels
Bi-colour tally light indicator
Supplied with Gooseneck Microphone and Light

The Datavideo ITC-300 is an 8-channel single wired communication system, featuring power over Ethernet to 8 belt packs. The video director can select to talk to an individual channel or to all channels simultaneously.

The ITC-300 is a standard 19" 1U rackmount design, so it is easy to integrate into any rack system for using in the field or in the studio.

SPECIFICATIONS

Power: 12V
Tally: 2 x 15 Pin D-Sub Female Sockets for Tally A and Tally B
MIC / Headset: 1 x 3.5mm Stereo Jack Socket (For Headphone / Microphone combination) | Headset Impedance 8~600 ohms 100mW (min)
Headphone: 1 x 1/4" (6.3mm) Stereo Headphone Socket | Headset Impedance 8~600 ohms 100mW (min)
Light Socket (DC 12V): Light Power Consumption - +5 V / 500 mA
Microphone: 3 Pin XLR / 1/4” (6.3mm) Socket x 1 | Switchable Condenser / Dynamic | Input Microphone Level -67dB | PIN1:N/A,PIN2:MIC,PIN3:GND
Frequency Response: 300 Hz-7 KHz, < +/-3dB
THD: < 0.1% @1KHz
S/N: >70dB
Built-in Speaker: 3W | Speaker is mute when headphones or mic / headset are connected to the ITC-300
Operating Range: Up to 100m between Base Station and Slave
Operating Temp. Range: 5~45 °C

WHAT'S IN THE BOX

1 x ITC-300
4 x ITC-300SL Belt Pack
4 x Ethernet Cable
4 x Earphone Cable

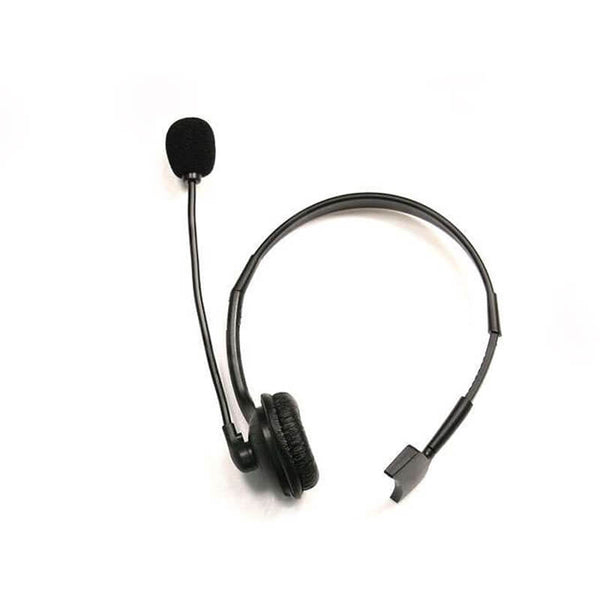

4 x Headset with microphone

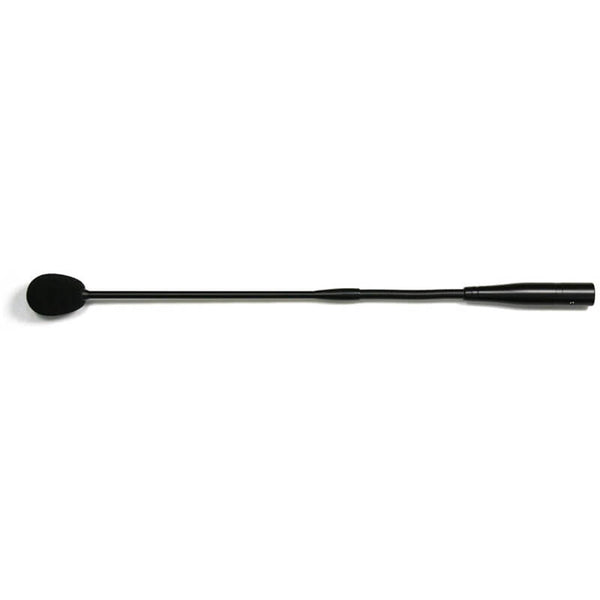

1 x Gooseneck Microphone

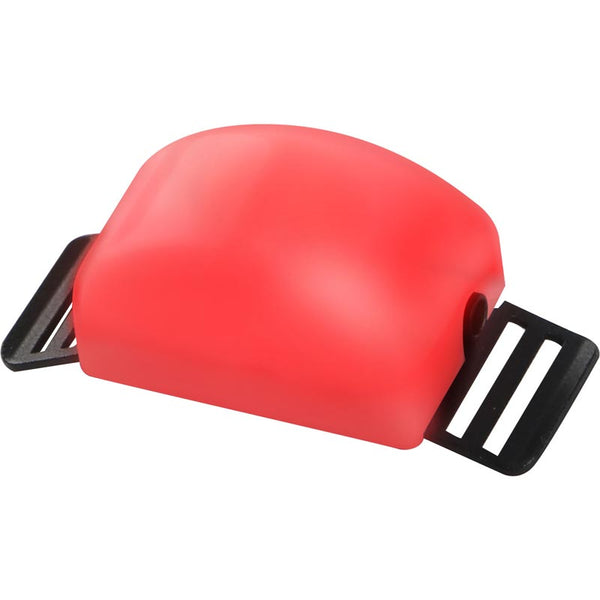

1 x Tally LED Indicator
4 x Velcro

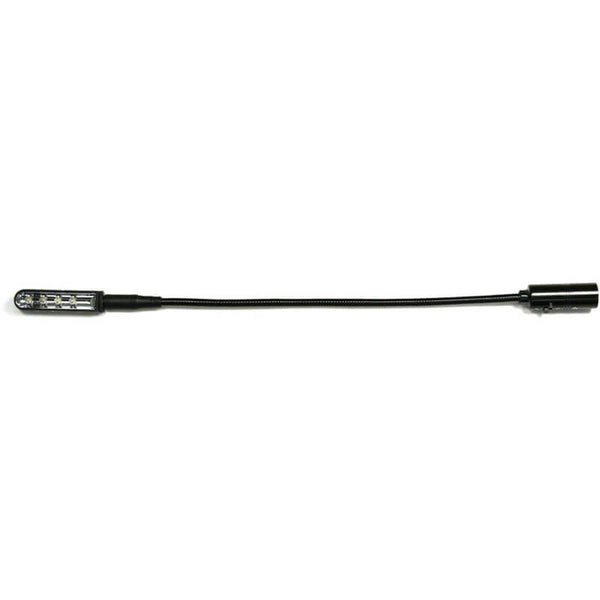

1 x USB Gooseneck Light
1 x Adaptor + AC Cord
