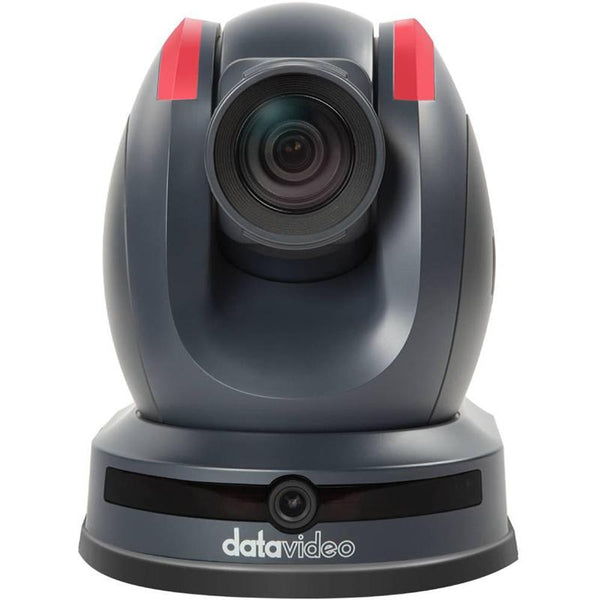

Datavideo PTC-140 HD PTZ Camera Black - DATAPTC140

FEATURES
HD PTZ Camera
1/2.8 inch CMOS sensor. Resolution up to 1920 x 1080 with frame rate up to 60fps
Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.
Audio Input Interface
Supports 16000, 32000, 44100, 48000 sampling frequency and AAC, MP3, PCM audio coding
Supports H.264/H.265 video compression; AAC, MP3 and PCM audio compression
Supports compressed resolutions up to 1920x1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression
Multiple Network Protocol: supports RTSP, and RTMP protocols and is easy to link to streaming media server
Available in Black or White

The PTC-140 is a low-cost SDI/HDMI PTZ camera, which features 20x optical zoom, and 10 digital zoom. The PTC-140 is an IP camera as well, supporting H.264/H.265 video compression and dual stream output.

SPECIFICATIONS

Model Number

PTC-140

Video format/Resolution

1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50

Image Sensor

1/2.8 inch high quality HD CMOS sensor

Effective Pixels (approx.)

2.07 Mega pixels

S/N Ratio

>55dB

Min. Illumination

0.5Lux (F1.8, AGC ON)

Electronic Shutter

Auto / Manual

Zoom Ratio

20x Optical Zoom, 10x Digital Zoom

Gamma Control

Off / Normal

Iris Control

Auto / Manual

Digital Noise Reductions

Yes

On-Screen Display (OSD)

English/Simplified Chinese/Traditional Chinese

White Balance

Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K

AGC / Gain Control

Auto / Manual

HDR/WDR

----

Mirror / Flip Image

Yes

Focus Mode

Auto / Manual

Panning / Tilting Range

Pan: 340° , Tilt: +90° to -30°

Panning / Tilting Speed

Pan: 0.1~60°/sec
Tilt: 0.1~30°/sec

Preset

255 Position

Focal Length

f=5.2 (wide) to 98 (tele) mm
F1.6 to F3.5

Field of View (Horizontal, Wide)

Approx. 54.7° (WIDE END) / 3.3° (TELE END)

Image Compensation

Backlight Compensation

Video Output

HDMI x 1
SDI x 1

Audio Input

3.5mm Line in

Tally LED

Dual color (Red, Green)

Lens Filter

M52.0 x 0.75 Thread with UV Protection

Control Protocol

Pelco-D, Peldo-P,
VISCA, VISCA over IP, DVIP, ONVIF

Remote Control Interface

RJ-45: for IP control (DVIP)
RS-232: Mini DIN 8-pin (IN / OUT)
RS-485

Video Compression Format

H.264/H.265

Audio Compression Format

AAC, G711

Audio Bitrate

96Kbps, 128Kbps, 256Kbps

HD IP Interface

100M IP port(100BASE-TX); Support DVIP

Streaming Protocols

RTSP, RTMP(S), Onvif, Multicast, SRT

First Stream Supported Resolution

----

Second Stream Supported Resolution

----

Video Bitrate

----

Video Bitrate Mode

----

Encoding Frame rate

----

POE

----

F/W Update

Via Web GUI

IR Control

Yes

Camera Control Unit

RMC-180 series/RMC-300 series/PTZ View Assist APP

Tripod Mount

1/4-20 UNC

Optional Accessories

WM-1/ WM-10/ WM-11

Color

Dark Blue/White

Dimension (LxWxH)

156(W) x 184(H) x 186(D)

Weight

1.6 kg

Operating Temp. Range

0~40 °C

Power

DC 12V 12W

WHAT'S IN THE BOX
PTC-140
1x Ceiling Mount Bracket-A
1x Ceiling Mount Bracket -B
6x Ceiling Mount Bracket screw M3*4mm
1x IR Remote Controller
1x DC 12V adaptor
1x UK Figure 8 Power Cable
1x AD-232, RS-232 to RS-422 Bidirectional Converter
