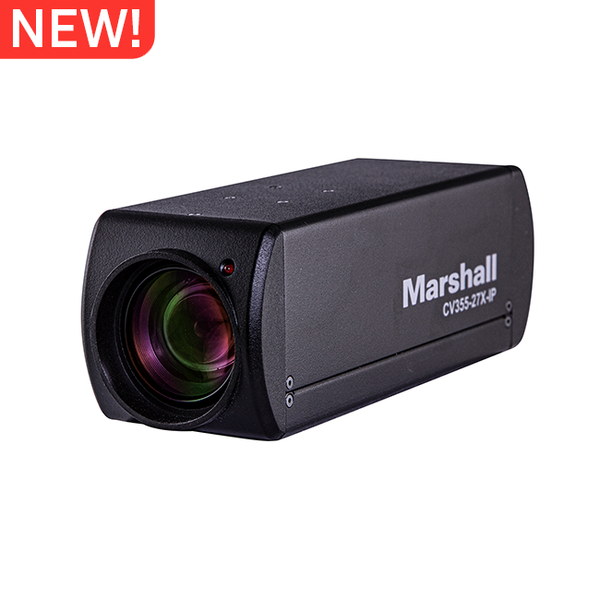

Marshall Electronics CV355-27X-IP HD60 Zoom Block Camera with 27x Zoom Lens IP (HEVC) & 3GSDI

FEATURES

8.5 Megapixel (1/2.5″) HD sensor
27X Optical Zoom (5.5~150mm) – 60° AOV
Supports:1092x1080p and 720p 60/59.94/50/30/29.97/25 fps, 1920x1080i 60/59.94/50 fps
IP formats: SRT, DHCP, DNS, HTTP, HTTPS, IPv4, NTP, RTSP, RTCP, RTP, TCP, UDP
IP (HEVC/SRT) and HDMI simultaneous outputs
Ethernet I/O supports video, control, audio and PoE over a single cable
RS232 and 3.5mm audio input with passthrough

The CV355-27X-IP 27X optical zoom IP (HEVC/SRT) camera utilizes a professional grade 8.5-megapixel sensor to capture crisp HD video up to 1920×1080 at 60fps with support for all HD formats. Marshall’s straight forward design and ease of use make this camera a valuable tool in a wide variety of broadcast and professional A/V applications.

27X Optical Zoom
The 27X optical zoom block offers an extensive zoom range from 5.56mm to 150mm starting at 60° all the way out to 3.2° horizontal angle-of-view for maintaining image crispness from ultra-wide to long telephoto shots.

P (HEVC/SRT) Workflow
SRT stands for Secure Reliable Transport. SRT is an open-source video transport protocol and technology stack that optimizes video streaming performance across unpredictable networks. With secure streams and simplified firewall traversal, SRT delivers the best quality video over the worst networks.

Low-light Sensitivity
The CV355-27X-IP operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including live events, houses of worship, indoor or outdoor sporting events, and other dynamic lighting environments.

IP (HEVC) Convenience
One cable to camera provides up to HD video, audio, control, and power (PoE) over one cable with IP (HEVC) and HDMI simultaneous outputs with stereo audio embedding.

CV355-27X-IP Applications:
The CV355-27X-IP is suitable for use in networked HD and workflows where image quality and versatility are of utmost concern, including live broadcast productions, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, concerts, house of worship and many more.

WHAT'S IN THE BOX

1x Marshall CV355-27X-IP 27X Camera Body
1x Power Supply Unit (PSU)
1x US Power Cable, 1x EU Power Cable, 1x UK Power Cable

SPECIFICATIONS

Sensor
Sensor Type	IMX317
	Lens Module
Optical Zoom	27x
Digital Zoom	12x
Angle of View (H)	60°
Vertical Viewing Angle	35°
Diagonal Viewing Angle	68°
Aperture	F1.66~F4.98
Focal Length	f=5.56mm~150.29mm
Focus Distance	Wide: 1m ~ ∞ / Tele: 1.5m ~ ∞
Field of View	Wide Horizontal viewing angle=60° (+/-5%) / Tele Horizontal viewing angle=3.2° (+/-5%)
Minimum Environmental Illumination	10 lux
Minimum Illumination	0.1 lux (F1.6, 50IRE, 30fps)
	Camera System
Stream	Dual Stream (Main/Sub) / Webpage
Streaming Protocol	RTSP / RTMP / RTMPS / SRT
Video Compression	HEVC (H.265) / AVC (H.264) / MJPEG
Audio Compression	G.711 / AAC
Preset	256
Preset Speed	NA
Focus System	Auto/ One-Push AF / Manual
Electronic Shutter	1/1 to 1/10000 sec
Exposure Control	Auto / Shutter Pri / Iris Pri / Manual
Gain Control	Auto, Manual
Brightness Control	Yes
3D NR	Yes
WDR	Yes
Backlight Compensation	Yes
White Balance	Auto, Manual R/B Gain
Flip / Mirror	Yes
Firmware Update	Operation on Webpage
	Output Resolution
HDMI	1080p: 60 / 59.94 / 50 / 30 / 29.97 / 25 fps
3G-SDI	1080p: 60 / 59.94 / 50 / 30 / 29.97 / 25 fps
Stream	PTZ view 1080p: 60 / 59.94 / 50 / 30 / 29.97 / 25 fps
Webpage	PTZ: MJPEG 360p
	Interface
Line In	x1 ; 3.5mm phone jack
Line Out	x1 ; 3.5mm phone jack
Audio Output	HDMI / 3G-SDI / RTSP / RTMP / SRT
Audio Type	Stereo, Unbalanced
Audio Compression Format	AAC
HDMI	x1
Audio Output	Yes
HDMI Color Format	RGB / YUV422
3G-SDI	x1
Audio Output	Yes
Serial	RS232
RS232 In	RS232 In ; Mini-Din x1
RS232 Out	RS232 Out ; Mini-Din x1
	Network
Ethernet RJ45 Port	x1 ; 1Gbps
Number of Clients (connection)	RTSP 1080P60 *5
Network Protocol	DHCP, DNS, HTTP, HTTPS, IPv4, NTP, RTSP, RTCP, RTP, TCP, UDP
Network Security	No Critical issues
	Camera Control
Serial Control	RS-232 In x1 ; RS-232 Out x1
Protocol	VISCA
Baud Rate	9600 / 38400
	Network
Webpage	HTTP CGI / HTTP API / Onvif Profile S / VISCA over IP
	General
Tally Light	Yes ; Red
Service Button	NA
Power Supply	POE ; IEEE 802.3af / DC 12V/3A ; EIAJ Type 4
Power Consumption	PoE: ≦ 15W ; DC: ≦ 13W
	Dimensions
Dimensions	187mm (l) x 67mm (w) x 67mm (h)
