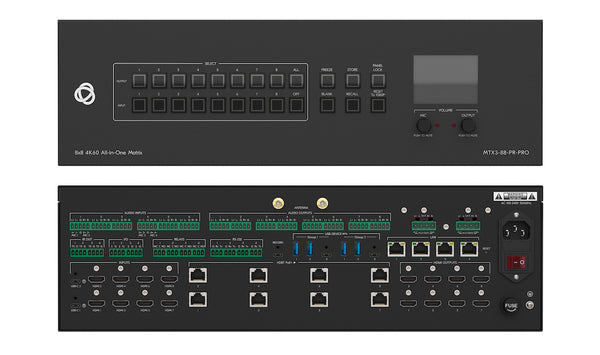

Kramer Electronics MTX3-88-PR-PRO 8x8 4K60 All in one Hybrid Presentation Matrix

FEATURES

AV + USB presentation matrix
Unmatched flexibility with 8 bi–direction HDBT 3.0 ports
2 USB–C ports for presenter use, supporting dual–stream extended desktop
Clean and fast switching between video sources
Advanced video processing including scaling, dual video wall and multi view options
Extensive splash–screen support, built–in video test patterns and video overlay features
Network output streamer/encoder (H.264/5) and wireless presenter input
Feature–rich audio function–set, including powerful DSP, dual–zone amplifier, Dante and more
Secure (802.1X) IP remote management

MTX3−88−PR−PRO is a high−performance video processing and fast−switching scaling matrix, with independent audio−visual (AV) and USB routing. The matrix has unmatched flexibility with USB−C, HDMI, HDBaseT 3.0 ports, air−casting inputs and network stream output.
The unit is enhanced with audio capabilities including an integrated DSP, integrated dual−zone power amplifier, DANTE and USB audio routing.
The flexibility and processing power of the MTX3−88−PR−PRO makes it a perfect system for numerous deployment scenarios.

Premium All–in–one Matrix — High–resolution scaling matrix with multi–signal routing of wired and wireless user interfaces.
Dual–screen USB–C routing capability allowing to connect any Alt–mode DP capable laptop with an extended desktop to be displayed on any selected pair of outputs.
Eight HDBaseT 3.0 extension ports with PoE remote device powering. Each HDBaseT 3.0 port has configurable direction (input or output) and can extend multi–signals over twisted–pair copper infrastructures for un–matched system flexibility.
Advance video processing capabilities with several Multiview presentation layouts and two independent video wall presentations.
Rich set of audio interface options including analog (line, microphone and speaker), Dante and USB audio devices.
A sophisticated audio DSP configured by an intuitive graphic dash–board style user interface. The audio DSP allows mixing, condensing, expanding, noise filtering and echo cancelling to ensure echo–free, noise–free, and crystal–clear sound distribution.
Fast <1sec AV Routing — Clean and instantaneous routing between matrix inputs and outputs, with smooth and uninterrupted transition between presented content on local and remote displays.
Hybrid–meeting Collaborative Sessions — Controllable multi–signals routing of both AV and USB host inputs. AV and USB routing may be performed independently or in USB–follow–AV mode.
Six local USB device ports divisible into two groups for enhanced host — device USB routing flexibility.
60W charging for USB–C connected devices.
High–Performance Scaling Experience — Built–in ProcAmp & high–resolution scaling technology for optimal up — or down image scaling.
Open Standard Streaming and Recording — Session content sharing and recording via the popular H264/5 open streaming standard over IT Lan and WAN networks.
Room Control — Includes gateways and a rich set of relays, RS–232 and GPIOs to reduce the systems complexity offering the end–user a smooth and sophisticated room control experience.
Standard Enterprise–Grade Secured Operation — Standard IT–grade authentication for secured IT LAN connectivity, and secured web–UI browsing and communication, with OWASP–10 (Open Web Application Security Project) standard penetration protection certification.
Comprehensive Management — Local panel buttons operation, remote and secured management via integrated user–friendly web–UI server, and remote via IP–driven API control and management communication, for flexible service options and ensure lasting, field proven deployment.

SPECIFICATIONS

INPUTS

OUTPUTS

INTERCHANGEABLE INPUTS/OUTPUTS

PORTS

3 1000BaseT Ethernet: On RJ–45 female connectors for LAN connection & extension
1 100BaseT Ethernet: On an RJ–45 female connector for LAN connection and management
4 USB 3.2 Device: On USB type–A female connectors
2 USB 3.2 Device: On USB type–C female connectors
1 USB 2.0 Device: On a USB type–C female connector for monitoring & recording
4 RS-232: On 3–pin terminal block connectors
4 SPDT Relay: On 3–pin terminal block connectors
4 GPIO: On 2–pin terminal block connectors

VIDEO

VIDEO PERFORMANCE

MULTI VIEW

VIDEO WALL

USB

USB-C

EXTENSION LINE

EXTENDED USB

EXTENDED ETHERNET

EXTENDED RS-232

AIR-CAST WI-FI

Max Resolution: 4K@60Hz 4:2:0 resolution
Max Antenna Coax Cable Reach: 20m
Max Air-cast Connection Reach: 10m for device–connected antennas
Max Air-cast Connection Reach: 5m for coax–connected antennas
Max Air-cast Connection Reach: Note: At free line–of–sight connection
Max Connection Time: 3sec
Max Presentation Latency: 130msec
Standards Compliance: 802.11ac
Radio Frequency Bands: 5GHz
Content Sharing Applications: Point–to–Point: Miracast
Content Sharing Applications: IT Wi–Fi Access Point: Air–Play, Chromecast

NETWORK STREAMED VIDEO

ANALOG AUDIO INPUT

MICROPHONE INPUT

Signal Type: Balanced: Condenser (with phantom power)
Signal Type: Unbalanced: Dynamic
Impedance: Balanced: 20kΩ
Impedance: Unbalanced: 10kΩ
Nominal Level: –60dBV
Nominal Level: Note: Adjustable via input gain
Max Level: Condenser: — 18dBu
Max Level: Dynamic: — 36dBV
Equivalent Input Noise: <–120dBV (1.0 µVrms)
Equivalent Input Noise: Note: At +40dB input gain
CMRR: >70dB typical
Input Gain Adjustment: –30dB to +24dB, in 0.5dB steps
Input Gain Adjustment: Note: Adjustable per input
DC Phantom Power: +48 VDC

ANALOG AUDIO OUTPUT

Impedance: Balanced: 100Ω
Impedance: Unbalanced: 50Ω
Gain: Balanced: 0dB
Gain: Unbalanced: — 6dB
Gain Error: ±0.1dB
Gain Error: Note: Channel to channel
Max Level: Balanced: +21dBu
Max Level: Unbalanced: +15dBu
Output Volume Range: –90dB to +10dB, in 0.5dB steps
THD + Noise : <0.01%, 20Hz to 20kHz
THD + Noise : Note: At maximum level
Frequency Response: : 20Hz to 20kHz, ±0.1 dB
Dynamic Range: 102dB typical
Dynamic Range: Note: 20Hz to 20kHz unweighted
S/N Ratio: >90dB, 20Hz to 20kHz
S/N Ratio: Note: At maximum balanced output (unweighted)
Crosstalk: ≤–90dB @ 20Hz to 20kHz
Crosstalk: Note: Fully loaded

POWER AMPLIFIED AUDIO

NETWORK STREAMED AUDIO

SECURITY

POWER

ENVIRONMENTAL CONDITIONS

REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)

ENCLOSURE

GENERAL

ACCESSORIES

PRODUCT DIMENSIONS

PRODUCT WEIGHT

SHIPPING DIMENSIONS

SHIPPING WEIGHT
