Description

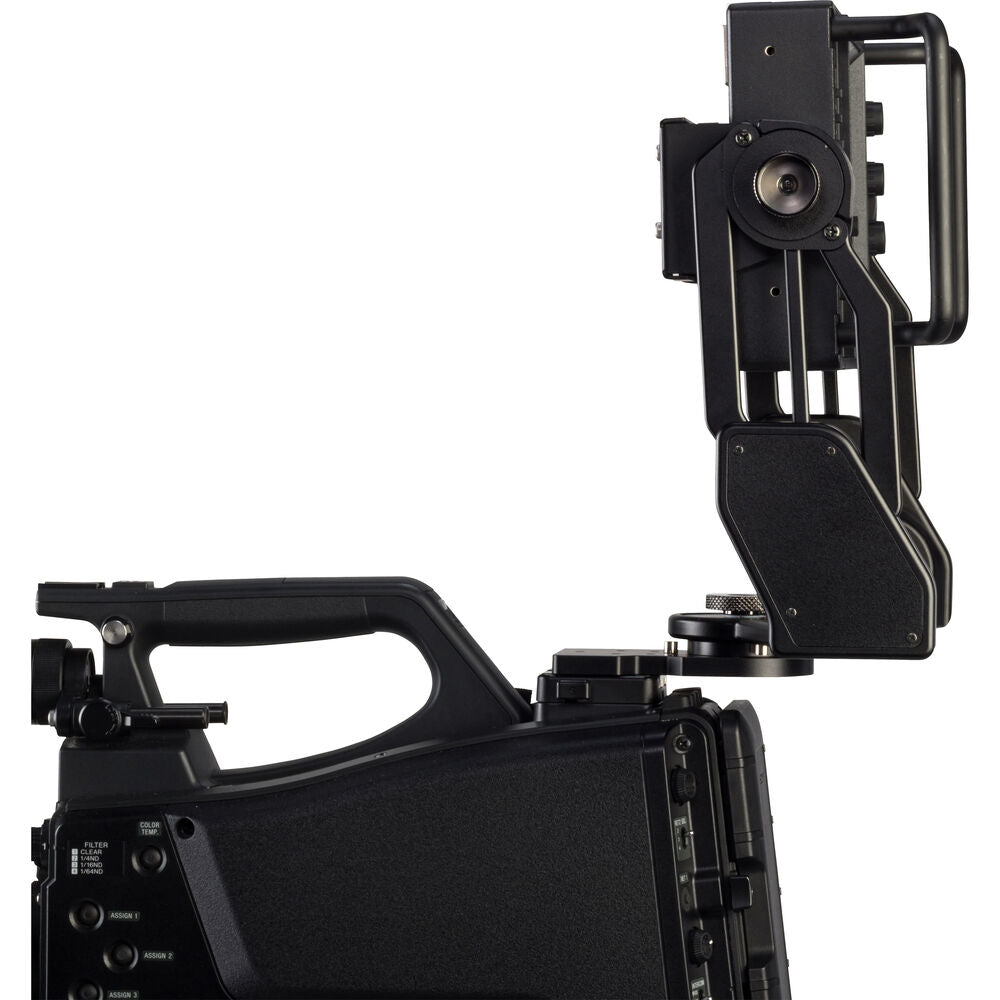

Libec SVF-7Pro Full HD 7-inch Viewfinder for Studio Cameras
FEATURES
- Yoke-Style Viewfinder for Studio Cameras
- 7" 1920 x 1080 HD Display
- 20-Pin Input Connector
- 350 cd/m² Brightness
- 170° H & V Viewing Angle

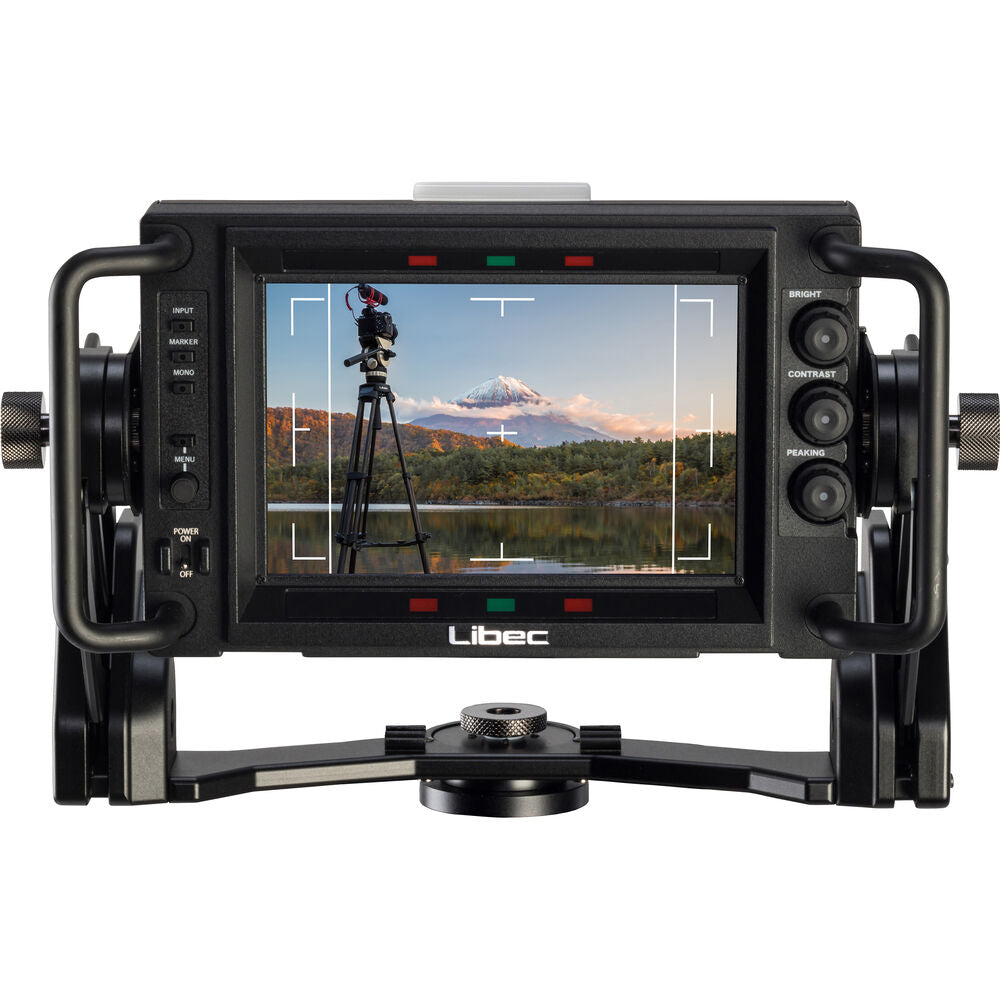

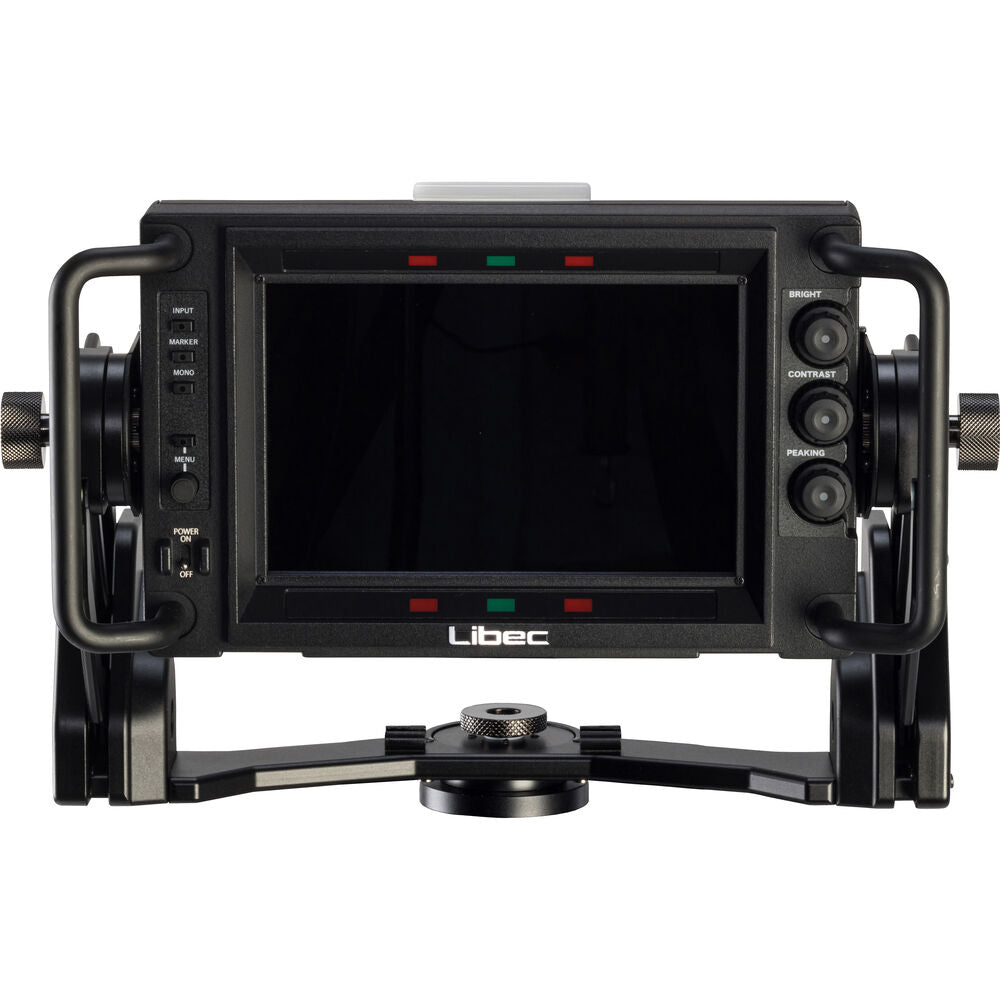

- Front-Panel Dials & Buttons
- Red & Green Dual Tally Inputs
- 4-Pin XLR Power
| Specifications | |
|---|---|
| Panel | 7-inch color TFT transmissive LCD |
| Picture resolution | 1920 x 1080 |
| Brightness | 350cd/m² |
| Viewing angle | 170°(H) / 170°(V) |
| Color reproduction | 16.7M colors |
| Display area | 151(H) x 85(V)mm / 5.94(H) x 3.35(V)" |

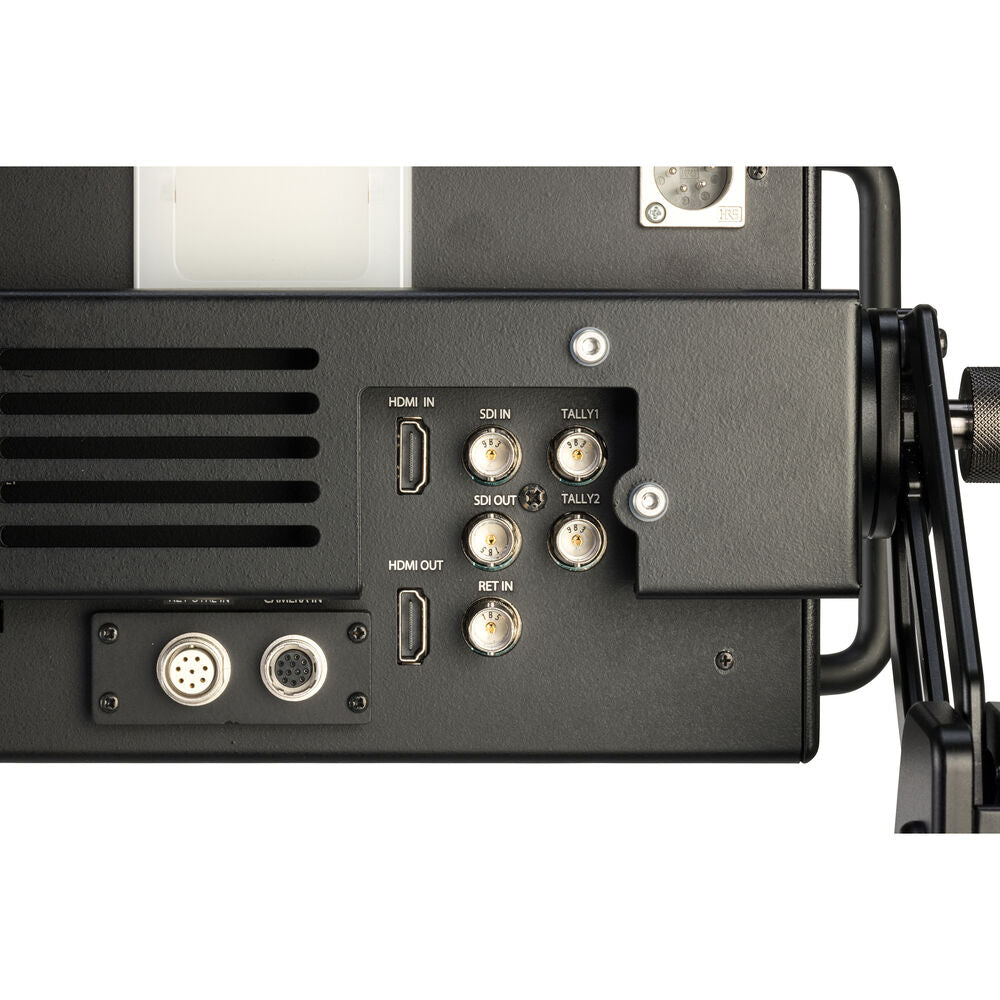

| SDI input | BNC x 1 |
| SDI output | BNC x 1 |
| SDI return input | BNC x 1 |
| HDMI input | HDMI x 1 |
| HDMI output | HDMI x 1 |
| CAMERA input | 20-pin x 1, Analog HD component (Y / PB / PR or G / B / R) |
| TALLY in | TALLY1: BNC x 1, Green (2V- 4V) / Red (4.1V- 5V) / OFF (0V- 2V) |
| TALLY2: BNC x 1, Red (ON / Short to GND) / OFF (Open) | |
| TALLY indicator | Front tally x 2 sets, Green / Red Brightness adjustable in MENU |
| Rear tally x 1, Red Brightness adjustable in MENU | |
| Weight | 1.2kg / 2.65lb (without accessories) |
| Size | 232 x 146 x 47mm / 9.13 x 5.75 x 1.85" (excluding protrusions) |
| Power consumption | 12W |
| Operating temperature | 0°C to +40°C / +32°F to +104°F |
| Operating humidity | 30% to 85% |
| Storage temperature | -10°C to +45°C / +14°F to +113°F |
| Storage humidity | 0% to 90% |
| Video input signal | 1080p (59.94 / 50 / 29.97 / 25 / 24 / 23.98) 1080i (59.94 / 50) 1080PsF (29.97 / 25 / 24 / 23.98) 720p (59.94 / 50) |
*Connection cable and shoe attachment for cameras not included, please be sure to purchase either the CA-7S, the CA-7I, or the CA-7H.
**Input signals that are not list in "Video input signals" may not be supported.
**Input signals that are not list in "Video input signals" may not be supported.
Model Connection confirmation
|
PXW-Z750 |
✔ |
|
|
PXW-Z450 |
✔ |
|
|
PXW-Z450KC |
✔ |
|
|
PXW-X400 |
✔ |
|
|
PXW-X400KC |
✔ |
|
|
PXW-X400KF |
✔ |
|
|
PDW-850 |
✔ |
|
|
PDW-750 |
✔ |
|
|
HDC-5000 |
✔ |
|
|
HDC-5500V |
✔ |
|
|
HDC-5500 |
✔ |
|
|
HDC-F5500 |
✔ |
|
|
HDC-3500V |
✔ |
|
|
HDC-3500 |
✔ |
|
|
HDC-3200 |
✔ |
|
|
HDC-3100 |
✔ |
|
|
HDC-4800 |
✔ |
|
|
UHC-8300/L |
✔ |
|
|
HXC-FZ90 |
✔ |
|
|
UHK-X750 |
N/A |
|
|
UHK-X700 |
N/A |
|
|
UHK-X650 |
N/A |
|
|
UHK-X600 |
N/A |
|
|
HDK-73 |
✔ |
|
|
UHK-435 |
N/A |
|
|
UHK-430 |
N/A |
|
|
HDK-790GX |
✔ |
|
|
HDK-79GX |
✔ |
|
|
HDK-55 |
✔ |
|
|
HDK-5500 |
✔ |
|
|
HC-HD300 |
✔ |
