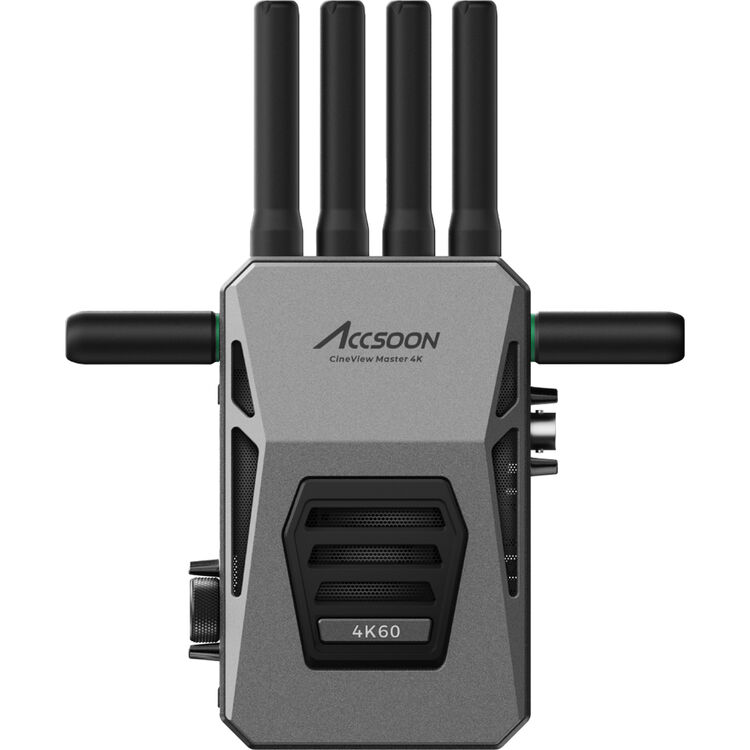

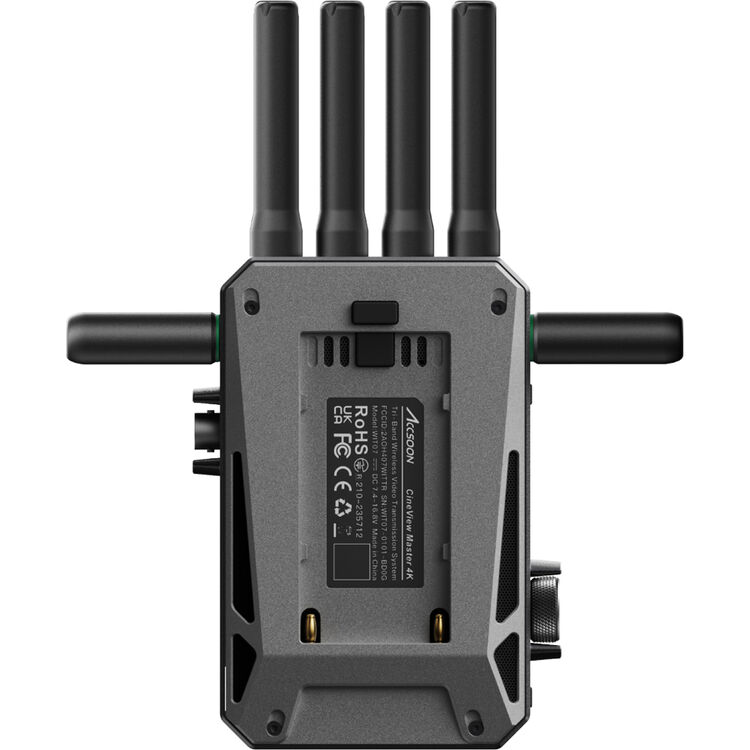

Accsoon WIT07-M-RX CineView Master 4K II RX Only

CineView Master 4K: Long-Range 4K Wireless Video Transmission

For Production Masters Ultimate 4K60 Tri-Band Wireless Transmission With Camera Control

FEATURES

• End to End 4K60
• Tri-band (6GHz+2.4GHz+5GHz) + DFS Transmission
• <25ms Best in Class Latency
• USB Wired Monitoring for Mobile Devices. Supported on Both TX & RX
• Monitoring on Up to 10 Devices
• 2.5 Kilometer Transmission Range
• Wireless Camera Control Support
• H.265 Encoding

Cineview Master Mark II.  This latest upgrade builds on the already excellent feature set of the original product.

 Powered by Accsoon's patented tri-band transmission and RTMS 4.0 communication protocol, CineView Master 4K II delivers long-range, ultra-low-latency 4K60 video for demanding production environments. With wireless camera control built in, it gives directors, cinematographers, focus pullers, and crew a cleaner, more reliable way to monitor, control, and collaborate on set.  Accsoon describe it as the Ultimate in 4K60 Tri-Band Wireless Transmission With Camera Control.

Details Come to Life

Experience stunning DCI 4K60 image quality with Accsoon CineView Master 4K II. From input to output,
this fully end-to-end workflow supports monitoring, recording, and live streaming in ultra-high definition.
Powered by efficient H.265 encoding, it preserves rich image detail and clarity even in fast-moving live
production environments, capturing every angle and every moment with precision.

DCI4K60

End-to-End True 4K60 Video

Advancing Wireless Transmissionwith Patented Tri-Band Technology

Accsoon’s proprietary Tri-Band transmission technology represents a quantum leap beyond its patented
Dual-Band technology. Supporting DFS (Dynamic Frequency Selection) and powered by the industry’s
only self-developed RTMS 4.0 protocol, it combines the 2.4GHz, 5GHz, and 6GHz bands for simultane
-ous transmission. Even in signal-dense, interference-heavy shooting environments, it delivers
high-speed, low-latency, and stable connectivity.

Accsoon Tri-Band Transmission vs. SDR

Enhanced Anti-Interference Capability

300%↑

Increased Bandwidth

1500%↑

Improved Transmission Rate

1000%↑

All New 6GHz FrequencyHigh Speed with Least Interference

25ms Best in Class LatencyFollow the Moment, Focus the Frame

Accsoon CineView Master 4K II significantly reduces latency from input to output to only 25ms. This near
real-time performance is notably faster and directly addresses the demands of cinematographers, camera
operators and assistants, ensuring precision and efficiency in fast-paced filming environments, enhancing
overall productivity in professional filmmaking.

Extended Range. Unlimited Creativity

Accsoon CineView Master 4K II with its original revolutionary Tri-band transmission technology and
innovative hardware design, achieves an impressive 2.5 km ultra-long transmission distance. Distance is
no barrier to the CineView Master 4K II. Not only does it work over vast distances, it does so with incredible
stability, pushing the limits to make it the highest performing Accsoon system to date.

Wireless Camera Control Gets Smarter

CineView Master 4K II supports wireless camera control from your mobile device. Adjust sup-
ported camera settings and start or stop recording remotely for a more efficient workflow in
complex or hard-to-reach setups.

• Record Trigger
• Responsive Touch Focus
• Adjust ISO, aperture, white balance, and shutter speed

Supported camera models: Sony FX3, FX30, A7C II, A7S III, A7 IV, A9 III; Canon R5, R6, R5 II, R6 II, R7, R8.

Accsoon is committed to adding support for additional cameras from other makers, as well as more Canon and Sony models.

Camera control is available only when a mobile device connects to the transmitter via Wi-Fi; it is not available through an RX USB connection.

Monitoring on Multiple DevicesSimultaneously

Direct On-camera Video Outputto Your Mobile Device

Dual-Side Wired Monitoring

USB-C Video output on both transmitter and receiver

Monitor the camera feed from the transmitter directly on your
phone or tablet via USB-C, with reliable, high-bitrate transmission
for precise framing and focus.

TX

Connect your phone or tablet to the receiver via USB-C
for stable, high-quality on-set monitoring.

RX

Superb Image Quality

Resolution Up to 4K60

Camera to Cloud

Easily share your creations to Frame.io through the C2C integration, enabling real-time automatic uploads from almost any camera to the cloud.

Wired Connection Without Latency

Create smoothly and seamlessly with every detail in real time

Charge Your Mobile Device

Charge the connected mobile device at the same time over Lightning or USB-C.

Versatile Wireless Connections for Any Production Crew

CineView Master 4K II Receivers

Delivers stable, high-quality video transmission for sharp and smooth on-site monitoring.

Wireless Monitoring Made Easy with iOS^[3]/Android

Adapts to versatile shooting needs, stays flexible and efficient even during fast moments.

Compatible with CineView M7 Series

Connects seamlessly with the Accsoon Wireless Ecosystem for greater control and a more flexible monitoring workflow.

[3] Compatible with iPhone/iPad equipped with Apple A14 processor and above

 SPECIFICATIONS

Product Image	Transmitter	Receiver
Protocol	Proprietary RTMS 4.0 protocol developed by Accsoon
Video Input	HDMI®, 3G SDI
Video Output	HDMI® Loop-Out USB Video Out	HDMI® 3G SDI USB Video Out
Camera Control	USB-C
SDI Input Format	1080p: 23.98/24/25/29.97/30/50/59.94/60fps Level A/B 1080i: 50/59.94/60i (Note: TX will display 1080P50/59.94/60) 1080PsF: 23.98/24/25/29.97/30PsF (Note: TX will display 1080P50/59.94/60) 720p: 50/59.94/60
HDMI Input Format	DCI 4K: 23.98/24/25/29.97/30/50/59.94/60p UHD: 23.98/24/25/29.97/30/50/59.94/60p 1080p: 23.98/24/25/29.97/30/50/59.94/60p 1080i: 50/59.94/60i (Note: TX will display 1080P50/59.94/60) 720p: 50/59.94/60p
SDI Output Format		1080p: 23.98/24/25/29.97/30/50/59.94/60p Level A 720p: 50/60p
HDMI Output Format		DCI 4K: 23.98/24/25/29.97/30/50/59.94/60p UHD: 23.98/24/25/29.97/30/50/59.94/60p 1080p: 23.98/24/25/29.97/30/50/59.94/60p 720p: 50/60p
HDMI Loop-out Format	Identical to the HDMI® video input
DC Port	5.5mmx2.1mm, center positive
DC Voltage	7.4-16.8V
Battery	Compatible with NP-F550, NP-F750, NP-F970 battery
Power Consumption	6.5W average *Without powering other devices	5.0W average
Audio	HDMI® embedded, SDI embedded
Latency	TX to RX 1080p 60 < 25ms [1] 4K 60 < 35ms (Camera latency not included) TX to iOS 1080p 60 < 25ms [1] 4K 60 < 35ms (Camera latency not included)
Transmission Range	≥ 2.5km [2] (No obstacles, no interference)
Operating Environment Temperature	-10~40°C
Dimensions (Antennas Not Included)	130mm × 95mm × 32 mm
Weight (Antennas Not Included)	322g	320g
