Description

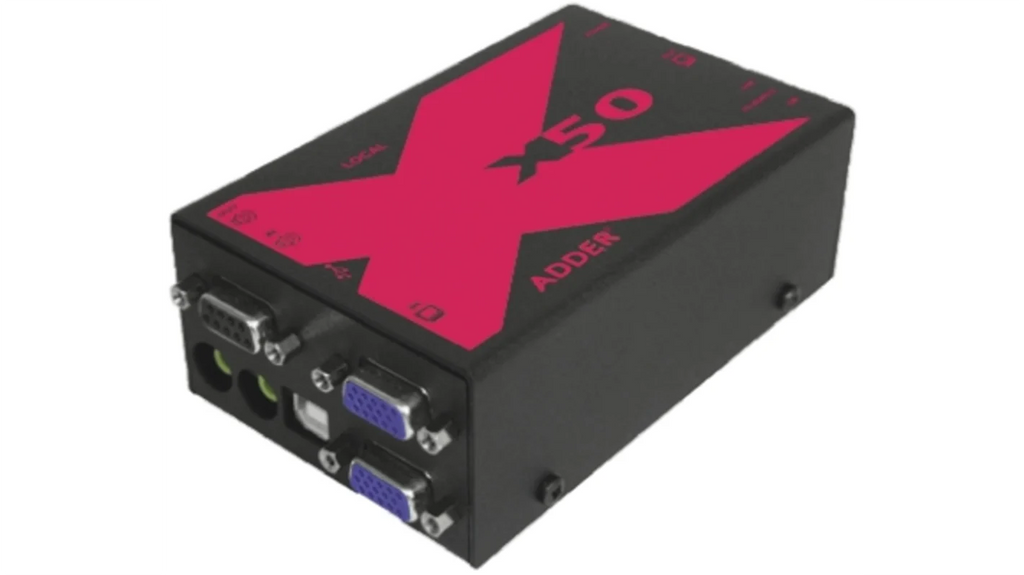

ADDEER AdderLink X50 Transparent USB & Dual Head VGA KVMA CATx Extender 50 Metres
The ADDERLink® X50-MS KVM extender deliver sharp, bright, high resolution video to dual user consoles up to 50m / 150ft away
ADDERLink® X50-MS is compact in size and delivers uncompressed, lossless extension of USB peripherals including Keyboards, Video and Mice (KVM) up to 50m (150ft) over a single CAT5 or higher UTP cable. Sharp, bright and ultra high-resolution video plus digital stereo audio are delivered over a VGA interface to multiple screens with total USB 2.0 compatibility, regardless of the computer being controlled or the peripheral being extended.
FEATURES
-
MultiScreen option: ADDERLink X50 MultiScreen (MS) adds a second video and transparent, High speed RS232 up to baud rates of 115,200 to enable extension of computers with dual monitors
-
Fully transparent Low/Full speed USB: delivers the highest possible levels of USB compatibility through a unique USB communication method. Integrated 4 port hub to support all USB 1.1 and 2.0 Low/Full speed devices.
-
High-performance video: industry leading video quality at high resolutions of 1920 x 1200 @ 60Hz over 50m (150ft)
-
Video compensation: broad range of ultra smooth, fine adjustments to video picture
-
True DDC Emulation: full supports 2-page Display Data Channel (DDC) ensuring all possible resolutions are supported
-
Fully platform independent: support for all common hardware platforms, and their associated peripherals, through fully transparent USB connections
SPECIFICATIONS
Video Resolution
1920x1200 x 60Hz at distances up to 50m / 150ft
Approvals / Compliance
-
CE
-
FCC
Standards
Supports all computers with USB style keyboards and mice, HDD15 video connectors and audio through 3.5mm audio jack. Supports all USB devices.
Cable Guidelines
Up to 50m / 150 ft using CATx cable (x=5,5e,6)
The maximum extension distance for USB is 50m including connections to and from the X50 independent of cable type. If a USB hub is connected to the RX unit, this is seen as 5m of cable length. This needs to be taken into consideration when planning your system
Environmental
0 to 40ºC / 32 to 104ºF
Connectors – Local Unit
ADDERLink X50-MultiScreen: As for as X50 plus extra Video input/output: HDD15 and Serial: DB9
Connectors – Remote Unit
ADDERLink X50-MultiScreen: As for as X50 plus extra Video: HDD15 and Serial: DB9
Mechanical
Local Unit:
ADDERLink X50-MultiScreen: All metal case, 120mm / 4.7’’ (w) x 75mm / 3’’(d) x 44mm / 1.7’’ (h) 430g / 1lb
Remote Unit:
ADDERLink X50-MultiScreen: All metal case, 120mm / 4.7’’ (w) x 75mm / 3’’(d) x 44mm / 1.7’’ (h) 430g / 1lb
Power
100 - 240V AC, 10W, 50-60Hz (Remote unit only)
Software
Compatible with all known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare
