Description
ADDER AdderLink XUSBPRO Transparent USB & Dual Head VGA KVMA CATx Extender 300 Metres
The ADDERLink X-USB PRO MS is Adder’s next generation USB, video and audio extender, distributing uncompressed data to deliver sharp, bright, high resolution video images and high quality audio to single or dual user consoles up to 300m (1000ft) away over a single CATx cable to multiple screens
Designed for multiscreen desktop environments, ADDERLink® X-USB PRO MS delivers uncompressed USB, VGA video and audio extension up to 300m over a single CATx cable. Two users can remotely access and interact with the same system simultaneously from their respective multiscreen desktop configurations, benefitting from industry-leading video clarity, system compatibility and space saving.
- Uncompressed, digital quality video quality and crystal clear images extended to multiple screens: replicating the exact content shown on the local monitor
- Extension up to 300m (1000ft): over a single cable to local consoles
- Lossless extension of data: to multiple screens in real-time, with zero latency
- USB 2.0 compatibility: to connect to a range of devices
- Dual user configuration: enables two users to access the same system simultaneously
- Energy efficient design: external power supplies not needed
- Complete desktop can be located remotely: including a keyboard, monitor, mouse, disk drive, flash memory stick, webcam, and any other USB device
- Stereo audio for speakers
- Space saving mountable kit
FEATURES
- Multiscreen: replicating the exact content shown on the local monitor
- Digital-quality video: VGA resolutions of up to 1920 x 1200 @60Hz are achievable at 300m (1000ft). Variable noise filter for extension in excess of 200m
- Video compensation: Multi-pole compensation technique enables uncompromised video quality at maximum distance over a single cable. Color skew compensation and gain adjustment controlled from the receiver’s keyboard to ensure crystal clear images
- Local feed through port: for audio and video, enabling a local console to be used
- USB powered transmitter: reduces the need for external supplies, with external power supply in place as backup
SPECIFICATIONS
Video
Video resolution up to 1920x1200 at 60Hz
Audio (end to end)
2 channel 16bit Audio @ 44.1kHz
THD+N (Total Harmonic Distortion + Noise) typically -80dB at 1kHz
SNR typically 85dB at 1kHz
Approvals / Compliance
- CE
- FCC Class A
Standards
Supports all USB 1.1 devices (Full speed and Low speed modes) and USB 2.0 devices that will run in Low speed or Full speed USB 1.1 modes
Skew Compensation
62ns de-skew with 2ns resolution (1/4 pixel at 1600x1200)
Cable Guidelines
200m using CAT5 Trunk cable
250m using CAT5e Trunk cable
300m using CAT6 Trunk cable
300m using CAT7 Trunk cable200m using CAT7a Patch cable
Environmental
Operating Temperature: 0ºC to 40ºC / 32ºF to 104ºF

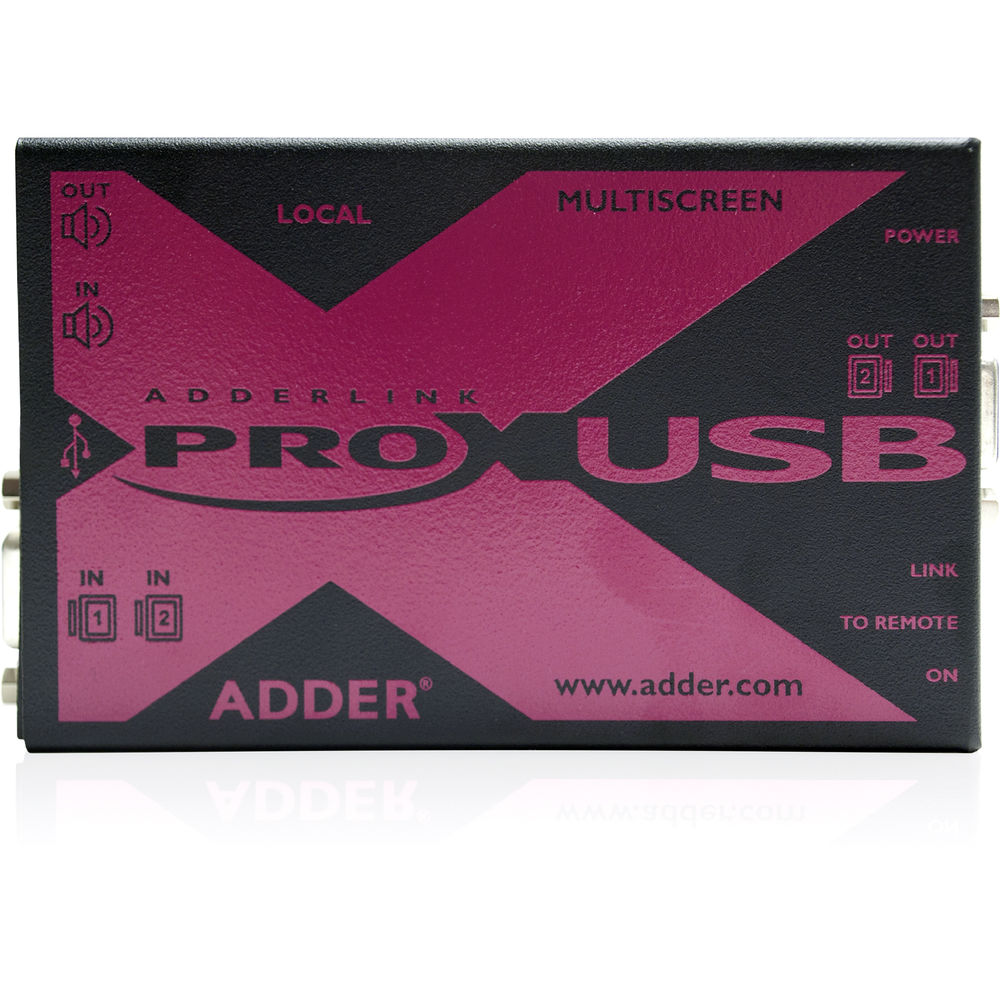

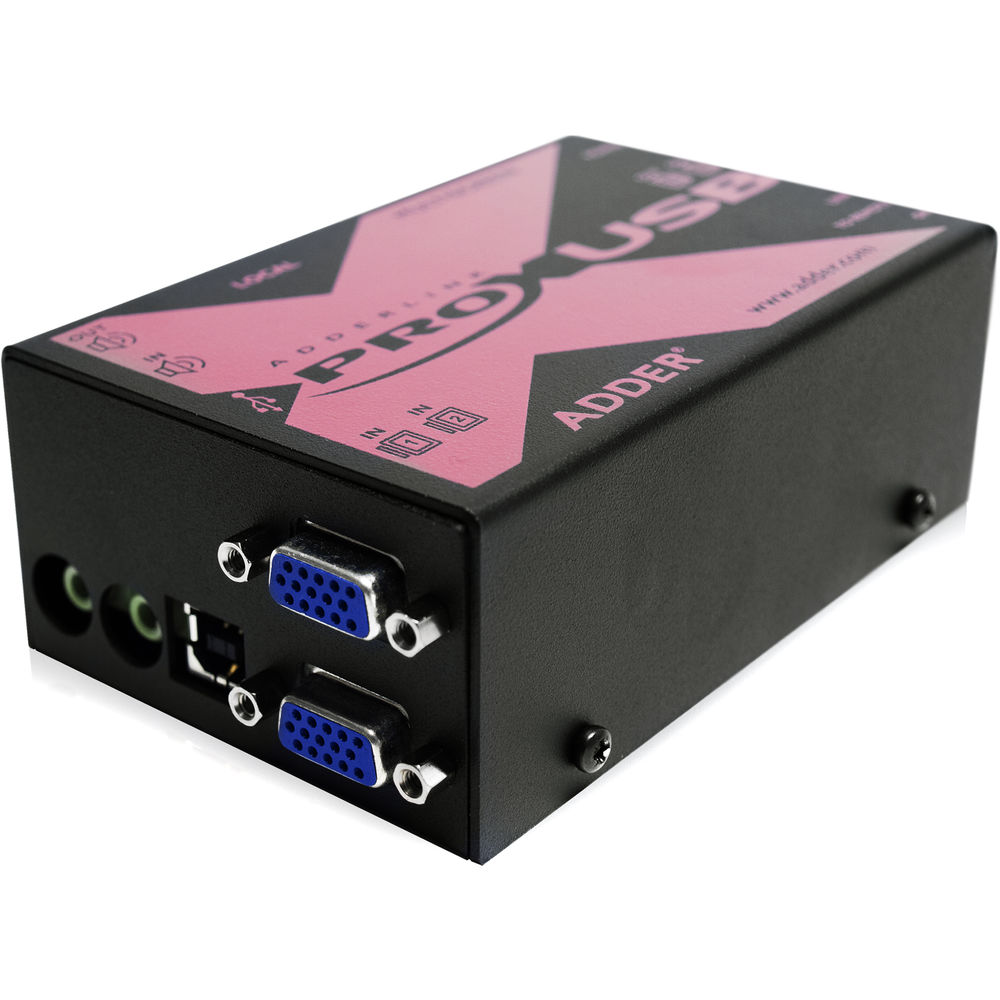

Connectors – Local Unit
Local: 4 x 15 Pin D Type VGA, 1 x USB B, power jack, 2 x 3.5mm jack socket and 2 x RJ45
Connectors – Remote Unit
Remote: 2 x 15 Pin D Type VGA, 4 x USB A, power jack, 3.5mm jack socket and 2 x RJ45
Mechanical
Local: All metal case, 122mm / 4.7’’ (w) x 75mm / 3’’(d) x 48mm / 2’’ (h) 500g / 1.1lb.
Remote: All metal case, 162mm / 6.4’’ (w) x 75mm / 3’’(d) x 48mm / 2’’ (h) 650g / 1.4lb
Power
100 - 240V AC, 50/60Hz input – 5V, 12W output
Software
Support for all known software and operating systems including Windows(all), DOS, Linux, UNIX, BSD, Sun OS, Solaris, Mac OS, NetWare
