AIDA Imaging HD-100A-VF FHD HDMI POV Weatherproof Camera with 2.8-12mm Lens

AIDASKU: HD-100A-VF

Need this in a hurry? Check current lead times for AIDA

Price:
Sale price£510.00(incl. VAT)
£425.00

(ex VAT)

Tax included

Stock:
Available to backorder
Shipping: Calculated at checkout

Payment & Security

Apple Pay Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

AIDA HD-100A-VF FHD HDMI POV Weatherproof Camera with 2.8-12mm Lens

**Items marked in stock are held with the EU Distributor in their EU Warehouse please allow 3-5 days lead time**

*THIS CAMERA IS DUE TO START SHIPPING END JULY 26*

FEATURES

  • 1/3"-Type Sensor, 1080p60 HDMI Video
  • Attached 2.8-12mm Varifocal Lens
  • 80 to 32° Horizontal Field of View
  • 3.5mm Stereo Audio Line Input
  • IP54 Weatherproof Rating with 3' Cable
  • Compact, Rugged Form

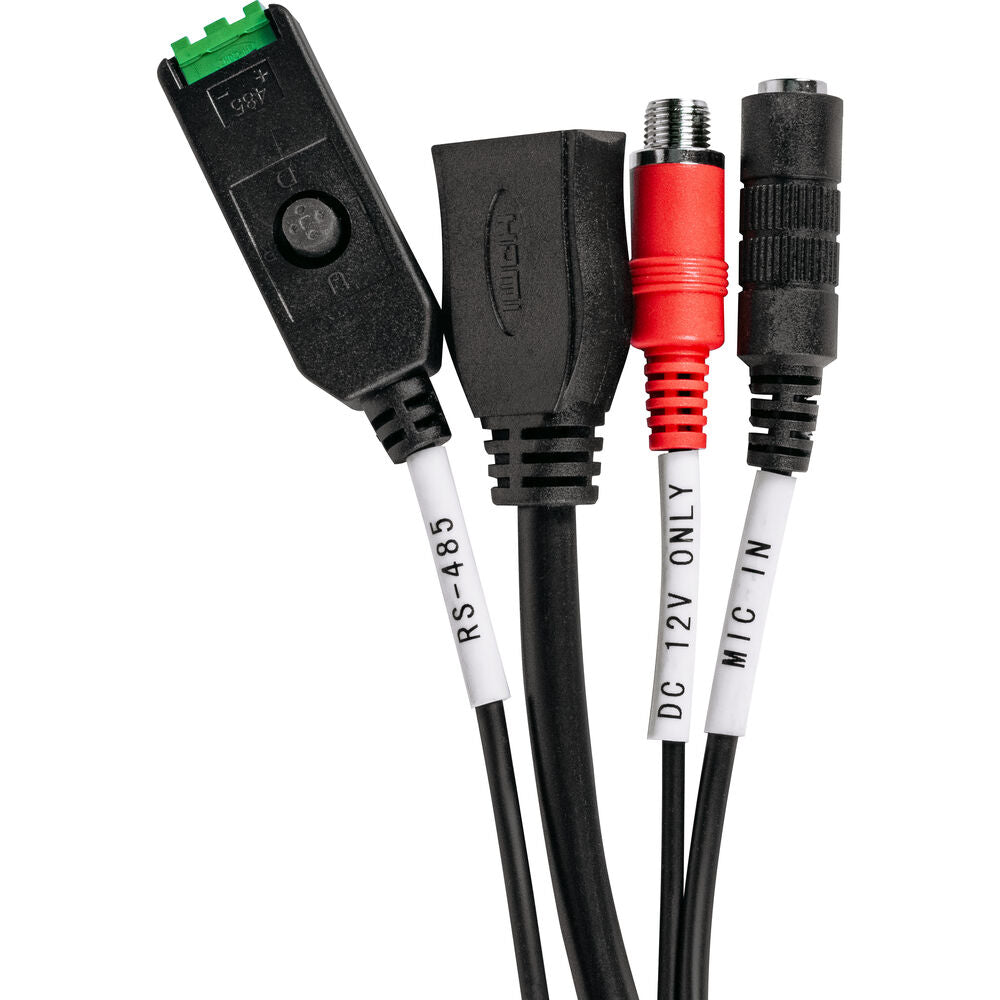

  • RS-485, Serial VISCA Control
  • Top and Bottom 1/4"-20 Threaded Mounts
  • Includes 12V Power Supply, Plug Set

The HD-100A Family's final form

Not wide enough? Not tight enough? HD-100A-VF: “Why not both?”

The HD-100A-VF is the perfect POV to adapt to either situation. Its 2.8–12mm varifocal lens is adjustable from a roomy 80° wide to a 32° zoomed-in view, allowing for the flexibility in many different scenarios.

On top of the custom varifocal lens, you get a beautiful uncompressed 1080p image over HDMI, wrapped in a IP54 shell tough enough to withstand dust and splashes! This POV camera comes prepared given any situation!


It's all about the HD-100A Family

Built on the same foundation of our famous HD-100A, you can get the same tried and trusted quality of the HD-100A, alongside its IP54 attached varifocal lens.

Unmatched Quality

The HD-100A-VF outputs uncompressed low latency 1080p video at various framerates for your viewing pleasure. Whether it goes into a switcher, or a monitor, you are getting the best, of the best!


Vari-ous solutions to Foc-us on!

The built-in 2.8–12mm varifocal lens swinging from 80° to 32° HFOV, is sealed in an IP54 shell built for your various shooting solutions needs!

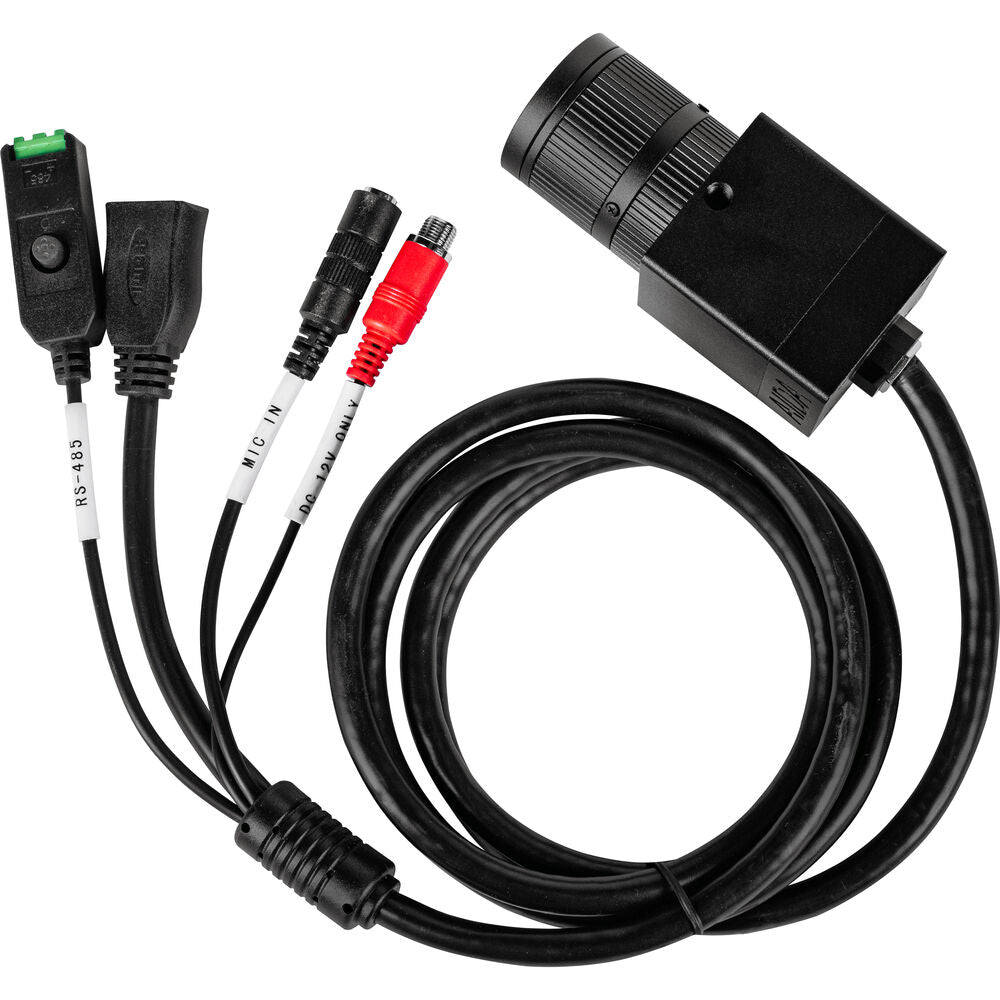

3FT/1M safety cabling

The camera has a 3ft / 1M IP-rated cabling to keep the most important of connections safe from nature’s way!


HD-AVH-100A Quick Specs


HDMI

HDMI 1.3a

1080P streaming

1080p, 1080i, 720p

Attached VF Lens

IP54 2.8~12mm VF lens (32~120° HFOV)

3.5mm Stereo Line in

Syncing audio over HDMI made easy!

Communication is key

The HD-100A-VF uses RS232 to communicate our VISCA protocol with, so using something like our CCS-USB ensures you are always in control with your camera!

Vari-ous Mounting Positions

The HD-100A-VF has 2 standard 1/4 20″ mounting solution at the top and bottom of the camera, allowing for easy installation on any standard tripod thread.

SPECIFICATIONS

Imaging
Image Sensor
1/3"-Type CMOS
Recording
Internal Recording
No
Video Output
10-Bit via HDMI
1920 x 1080p at 24.00/25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720p at 50/59.94/60.00 fps
Exposure Control
Shutter Type
Electronic Rolling Shutter
Compensation Mode
No
Minimum Illumination
0.2 Lux
White Balance
Range: 9000 to 11,000K
Lens
Focal Length
2.8 to 12mm
Interface
Digital I/O

1x HDMI 1.3a Video / Audio Output
Embedded Audio
HDMI
Power I/O
1x Barrel (12VDC) Input
Adapter / Cable
No
Internal Storage
No
Media/Memory Card Slot
No
Wireless
No
Supported Protocols
Camera Control
RS-485/VISCA
Remote Control
No
Mobile App Compatible
No
Power
PoE Support
No
Voltage
9.0 to 15.0 VDC
Power Consumption
6 W
Environmental
Operating Conditions
32 to 104°F / 0 to 40°C
General
Accessory Mounting
2 x 1/4"-20 Female
Dimensions
2.9 x 1.6 x 1.6" / 73 x 41 x 41 mm (Body Only)
Weight
1 lb / 454 g (with Included Lens)
