Description

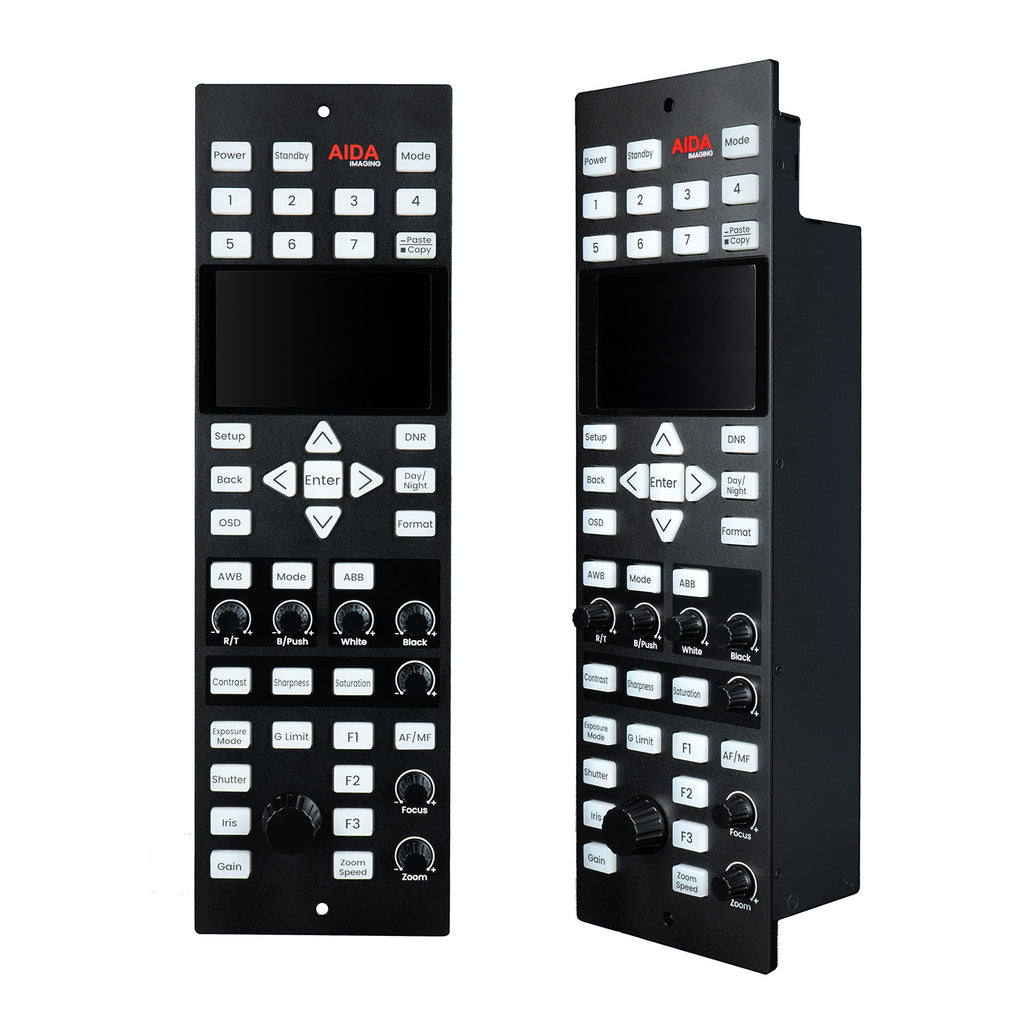

AIDA RCP-CORE VISCA Integrated Camera Remote Control Panel
**Items marked in stock are held with the EU Distributor in their EU Warehouse please allow 3-5 days lead time**
*THIS CAMERA Control IS DUE TO START SHIPPING AUG 26*
The Fleet Commander
The RCP-CORE brings more control over your production than ever before. It is designed to bring you more control almost every feature on your AIDA camera, from your exposure to your white balance. The RCP-CORE also features a quick copy/paste button that allows you to immediately copy one cameras settings and paste it to another, allowing for easy settings changes on the fly. Got a third party camera? No problem! With the RCP-Core's webUI, you can easily adjust the VISCA command to get full control over your camera, no matter the brand (as long as it speaks VISCA!)
Plays well with others!
Essentially, each button and knob is customizable to a VISCA command. So as long as you have a camera that speaks VISCA over IP or Serial VISCA, the RCP-Core can potentially control it as well.
LCD Screen to Stay in Control
The RCP-CORE comes with a 4" LCD screen that constantly queries the camera for the most update settings. So even if someone is changing something in the webUI, the RCP-CORE will be the first to realize it.
COPY, then PASTE!
The RCP-CORE comes with a copy and paste button, which allows you to copy the current profile and paste it onto another camera. Effectively saving you the trouble of changing each setting if the scenario never changed.
SPECIFICATIONS
|
Control Protocol
|
Serial VISCA, Visca over IP
|
|
Control Interface
|
RS-422/RS485/RJ45
|
|
Number of Cameras Supported
|
Up to 7
|
|
Third-Party Camera Support
|
Based on VISCA commands
|
POWER
|
Voltage
|
12VDC +/- 10%
|
|
PoE+ Standard
|
PoE+ (IEEE 802.3at)
|
DIMENSIONS
|
Dimensions
|
14" x 4" x 3" / 35.5cm x 10.2cm x 7.6cm
|
|
Mounting Hole Distance
|
13" / 33cm
|
|
LCD Screen Size
|
4" Diagonal
|
|
Weight
|
3.4lb / 1.5kg
|
