AJA DANTE-12GAM IP Audio Converter

SKU: DANTE-12GAM-R0-1

OPTIONS: DANTE-12GAM-R0 - 12G 32-Ch Dante Embedder/Disembedder (no SFP installed)
Price:
Sale price£2,220.00(incl. VAT)
£1,850.00

(ex VAT)

Tax included

Stock:
Available to backorder
Shipping: Calculated at checkout

Payment & Security

Apple Pay Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

AJA DANTE-12GAM IP Audio Converter

Dante®, AES67 and SMPTE ST 2110-30 SDI Audio Embedder/Disembedder

DANTE-12GAM brings the core functionality of the AJA openGear OG-DANTE-12GAM 12G-SDI Dante audio embedder/disembedder to a sleek new stand-alone Mini-Converter enclosure featuring an on-board LCD with control buttons. The 12G-SDI/Dante audio converter lets users easily bridge between SDI sources and destinations with embedded audio to/from Audinate’s Dante audio ecosystem for IP workflows. It can disembed 16 channels of audio in and 16 channels of audio out for up to 32 channels of Dante audio. DANTE-12GAM-TR-LC fiber and DANTE-12GAM-TR-BNC models extend that capacity to 64 channels for double the density.



Dante: The Audio Networking Standard for the Pro AV Industry and Beyond

Dante audio is the primary choice for ProAV system integrators and a growing number of broadcasters. It is widely adopted by over 600 manufacturers offering 4000+ Dante device types. Dante IP audio networking provides digital audio distribution over local and wide area networking with very low latency (<1 ms), using standard network hardware or connecting into a standard network infrastructure. This offers many advantages, including audio system scalability, ease of installation, and maintenance.

Dante allows uncompressed, multi-channel, low-latency, high-resolution digital audio to be distributed across a switched Ethernet network using standard TCP/IP protocols while meeting the stringent quality and timing requirements of professional audio. For your peace of mind, Dante Audio supports a redundant network topology with dual networks via a primary and secondary 1 GigE port on most Dante devices.

Connectivity

The DANTE-12GAM converter offers the power and flexibility of professional connectivity to plug and play into your existing SDI and Dante audio infrastructures.

SFP Options

The DANTE-12GAM-TR-BNC includes the BNC-TR-12G SFP, doubling the Dante conversion capacity up to 64 channels.

The DANTE-12GAM-TR-LC includes the Fiber FIBERLC-TR-12G SFP, doubling the Dante conversion capacity up to 64 channels.

Both SFP types can be swapped easily with the DANTE-12GAM to match the desired workflow. Customers can also upgrade to the dual-channel version at any time by purchasing an optional license and adding either the BNC or LC Fiber SFP.

DANTE-12GAM Video SFP software upgrade License ($199 MSRP)

FIBERLC-TR-12G SFP ($559 MSRP)

BNC-TR-12G SFP ($559 MSRP)

Dante and AES67

In addition to Dante IP audio, the DANTE-12GAM also supports AES67, which is an open standard for IP audio developed by the Audio Engineering Society (AES). Dante and AES67 work together by leveraging AES67's interoperability to allow Dante devices to communicate with other AES67-compliant systems, enhancing the flexibility and integration capabilities of audio networks, greatly expanding the Dante audio ecosystem. This means you can integrate Dante systems with other IP audio systems that use AES67, such as RAVENNA, Livewire, and Q-LAN. To enable AES67 on Dante devices, you need to activate AES67 in the Dante Controller software, which allows the Dante network to transmit and receive AES67 streams.

Dante and SMPTE ST 2110-30

SMPTE ST 2110-30 is the SMPTE standard for transporting uncompressed audio over IP networks. The DANTE-12GAM also supports SMPTE ST 2110-30 IP audio, which is a component of the broader SMPTE ST 2110 IP AV suite. The SMPTE ST 2110 standard includes video, audio, ancillary data, and more, transporting the highest quality video and audio IP data streams over robust IP networks, typically in broadcast environments. The DANTE-12GAM can interoperate with other ST 2110-30 compliant devices via the Dante Controller software. The Dante audio network and the DANTE-12GAM both support Precision Time Protocol version 2 (PTPv2), ensuring synchronization across Dante and SMPTE ST 2110 networks. With its support of SMPTE ST 2110-30, the DANTE-12GAM is a powerful bridge between Dante and SMPTE networks in professional audio and broadcast applications.

Advanced Enclosure

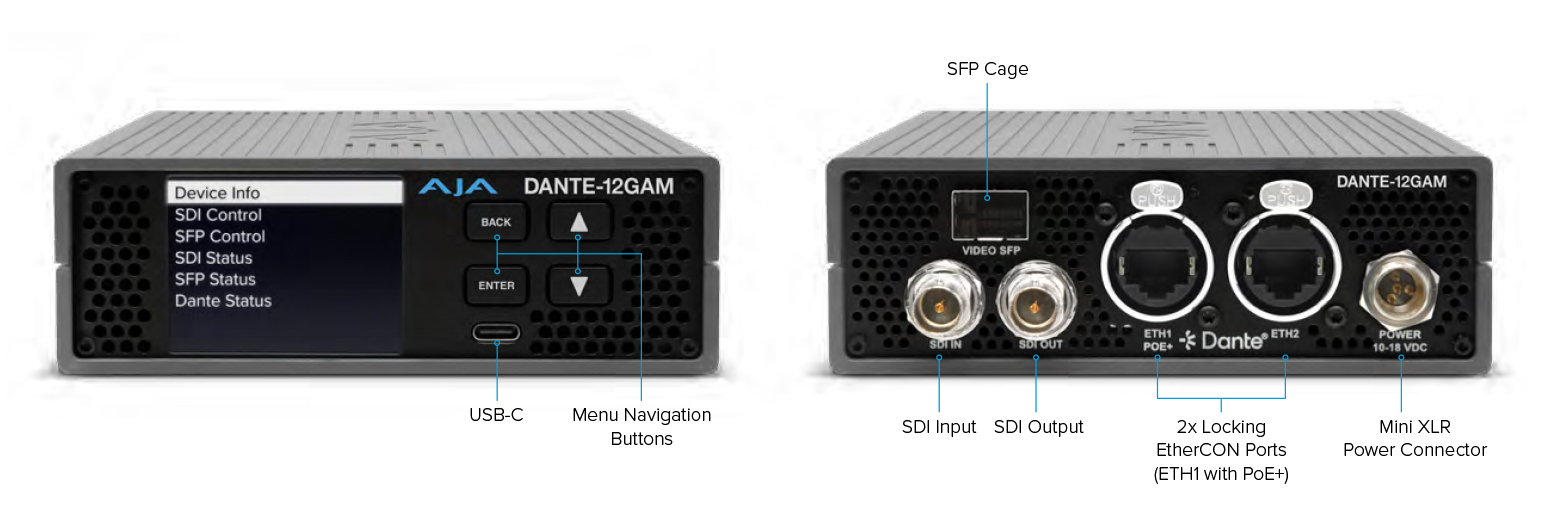

The DANTE-12GAM utilizes a rugged new aluminum enclosure, offering a front panel display, physical push-button controls, USB-C connectivity for initial Static IP configuration, and active cooling designed with front-to-back airflow. The onboard display reports status and configuration and is paired with buttons for enter, back, up, and down for easy access to settings for standalone operation.

AJA Web UI

The DANTE-12GAM can also be monitored and controlled by a user friendly web UI served by its integrated web server. The web UI shows the system status and connections to the Dante audio network. It can be used to configure network settings and update firmware. Applicable controls and status information are mirrored on the LCD front display on the device.

DANTE-12GAM Workflows

Explore DANTE-12GAM Workflows here to visualize several common DANTE-12GAM implementations.

View WorkflowsX



Dante Ecosystem

To learn more about the Dante Software Ecosystem, please click here:

View EcosystemX



AJA Mini-Matrix

Information on the complete line of AJA converters, routers, frame synchronizers, and openGear cards are available in Mini-Matrix. AJA products are extensive, and this resource helps you find the right converter for any situation, wherever you are. Individual products have links back to the main AJA website for more details.

Launch Mini-Matrix

Industry Leading Support

AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, or operation or encounter any technical issue,  AJA Support will work with you to get up and running.

Mini-Converter products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.

SPECIFICATIONS

Video Formats

  • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920x1080i 50, 59.94, 60
  • (HD) 1280x720p 50, 59.94, 60
  • RGB and YCbCr, 4:4:4/4:2:2, 10 or 12-bit



Note: Raster and frame rate dependent; please refer to DANTE-12GAM Video Formats in the Documents.



Video Input Digital

  • 1-channel independent 12G-SDI BNC connectors, SMPTE 292/424/2081/2082
    • Single Link HD/2K/UltraHD/4K


Video Output Digital

  • 1-channel independent 12G-SDI BNC connectors, SMPTE 292/424/2081/2082
    • Single Link HD/2K/UltraHD/4K


Video Optical SFP Input/Output
(DANTE-12GAM-TR-LC)

  • 1x FiberLC-TR-12G Dual LC 12G Fiber Transceiver SFP, SMPTE 297/292/424/2081/2082
    • Wavelength: Rx 1260 nm (min), 1620 nm (max)
    • Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
    • Overload Power: -2 dBm (min)


Video Electrical SFP Input/Output (DANTE-12GAM-TR-BNC)

  • 1x BNC-TR-12G Dual BNC 12G Coax Transceiver SFP, SMPTE 292/424/2081/2082


Internal Signal Generator

  • 2x independent internal video signal generators


Cable Equalization

(Belden 1694A coax)

  • 12 Gbps, 60m
  • 6 Gbps, 120m
  • 3 Gbps, 180m
  • 1.5 Gbps, 200m


Video Path Delay

  • Video Latency, time measured between video input and video output connector:
    • 12G = 3.2 µsec
    • 6G = 3.2 µsec
    • 3G level B Dual Link = 6.3 µsec
    • 3G level A = 3.2 µsec
    • HD (1.5 Gb) = 6.3 µsec


Digital Audio Input/Output

  • SDI: 1x independent 12G-SDI BNC connectors, 16 embedded channels each
  • DANTE: 1x primary Nuetrik etherCON RJ-45 Connector and 1x secondary Nuetrik etherCon RJ-45 Connector, Up to 32-channels
  • Video Optical (TR-LC Option): 1x independent 12G-SDI Fiber LC SFP connector, 16 embedded channels each
  • Video Electrical (TR-BNC Option): 1x independent 12G-SDI BNC SFP connector, 16 embedded channels each


SDI Embedded Audio

  • SMPTE 299M (12G/6G/3G/1.5G): 24-bit, 48 kHz synchronous
  • SMPTE 272M (SD): 20-bit, 48 kHz synchronous
  • Incoming embedded audio can be passed, removed, or overridden
  • 4 groups: (16-channels) of audio supported per SDI path



Note: 2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio.



Dante Audio

  • Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
  • Encoding: PCM 16, PCM 24, PCM 32


Audio Latency

  • Embed Path: 1500 µsec
  • Disembed Path: 1410 µsec


Network Interface

  • 2x Nuetrik etherCON RJ-45, 100/1000 Ethernet
  • Rest Interfac
