AJA HI5-Fiber 3G-SDI over Fiber to HDMI Video and Audio Converter - HI5-FIBER-R2

AJASKU: HI5-FIBER-R2

Need this in a hurry? Check current lead times for AJA

Price:
Sale price£852.00(incl. VAT)
£710.00

(ex VAT)

Tax included

Stock:
In stock
Shipping: Calculated at checkout

Payment & Security

Apple Pay Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

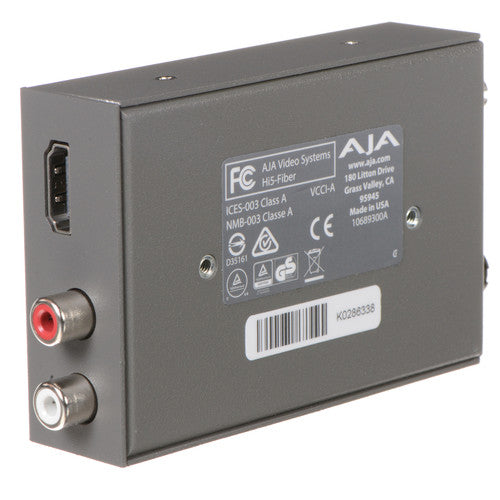

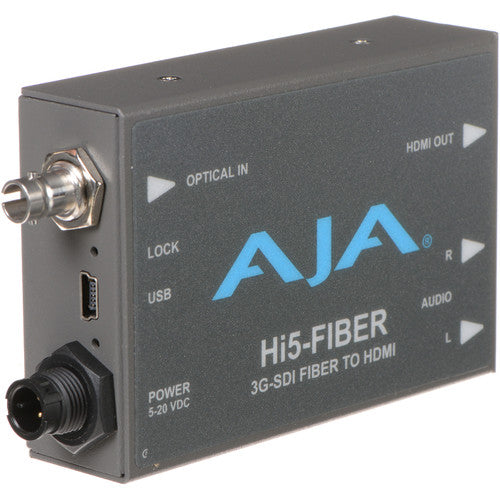

AJA HI5-Fiber Hi5 with ST Fiber Input (3G-SDI Protocol on Fiber) for Fiber to HDMI Conversion - HI5-FIBER-R2

Hi5-Fiber converts 3G-SDI over single mode 1310 nm Fiber optic cable (ST-style Fiber connector) to HDMI for driving HDMI monitors. Embedded 8-channel 3G-SDI audio is supported in the HDMI output allowing a convenient single cable audio/video connection. Hi5-Fiber provides 2-Channel RCA style audio outputs for separate audio monitoring if needed.

FEATURES

  • Fiber optic 3G-SDI to HDMI
  • Supports single mode 1310 nm fiber optic cable with ST receiver
  • Full HDMI support including embedded audio
  • Additional 2-Channel RCA jack audio output
  • No configuration necessary
  • 1m HDMI cable included
  • Five year warranty

SPECIFICATIONS

Video Formats

  • (2K) 2K x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2K x 1080PsF* 23.98, 24, 25, 29.97, 30
  • (HD) 1080i 50, 59.94, 60
  • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1080PsF* 23.98, 24, 25, 29.97, 30
  • (HD) 720p 50, 59.94, 60
  • (SD) 625i
  • (SD) 525i



*NOTE: converts to progressive



Video Input

  • Single mode optical fiber, ST connector supporting SMPTE-259/292/424 3G/HD/SD-SDI


Video Outputs

  • HDMI with embedded audio up to 8-Channels (selectable by Mini-Config)
    • 12-bit
    • 10-bit YCbCr 4:2:2
    • 8-bit RGB 4:4:4


Audio Input

  • SDI embedded audio, select from 16-Channels


Audio Output

• 2-Channel RCA style (-10 dBu nominal)



Size (w x d x h)

  • 4.6" x 2.4" x 1.0" (116.84 x 60.96 x 25.4 mm)


Weight

  • 0.4 lb (0.2 kg)


Power

  • Universal power supply included
  • 100-240V, 50/60 Hz universal input
  • +5V DC regulated, 3 watts


Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
