AJA Hi5-Plus 3G-SDI to HDMI with PsF to P support Includes 1 Meter HDMI Cable - HI5-PLUS-R1

AJASKU: HI5-PLUS-R1

Price:
Sale price£486.00(incl. VAT)
£405.00

(ex VAT)

Tax included

Stock:
In stock
Shipping: Calculated at checkout

Payment & Security

Apple Pay Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

AJA Hi5-Plus 3G-SDI to HDMI with PsF to P support Includes 1 Meter HDMI Cable - HI5-PLUS-R1

FEATURES

  • 3G-SDI to HDMI 1.4
  • Easily integrate HDMI devices into SDI workflows
  • 3G capability for high data rate signals
  • Compact size fits easily in small spaces
  • 16-channel embedded SDI and 8-channel HDMI audio
  • 2-channel RCA analog audio output
  • Configure via USB port and supplied Mini-Config software
  • Five year warranty

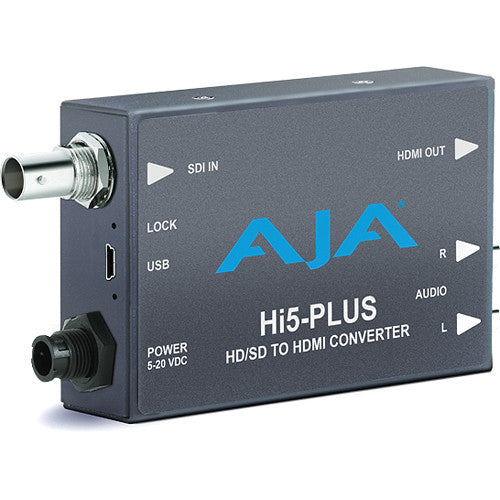

3G-SDI to HDMI Mini-Converter

Hi5-Plus is AJA’s next generation SDI-to-HDMI Mini-Converter for integrating HDMI monitors into professional SDI workflows

SPECIFICATIONS

Video Formats

  • (2K) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 1080PsF* 23.98, 24, 25, 29.97, 30
  • (HD) 1080i 50, 59.94, 60
  • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1080PsF* 23.98, 24, 25, 29.97, 30
  • (HD) 720p 50, 59.94, 60
  • (SD) 625i
  • (SD) 525i



*Converts to progressive



Video Input

  • 3G-SDI with embedded audio


Video Outputs

  • HDMI with embedded audio up to 8-channels
      (selectable by Mini-Config)
    • 8-bit RGB 4:4:4
    • 10-bit YCbCr 4:2:2
    • 12-bit


Audio Input

  • SDI embedded audio, select from 16-channels


Audio Output

  • 2-channel RCA style (-10dBu nominal)


Size (w x d x h)

  • 4.6” × 2.4” × 1.0” (117 × 61 × 25mm)


Weight

  • 0.3 lb (0.2 kg)


Power

  • Universal power supply included
  • 100-240V, 50/60 Hz universal input
  • +5V DC regulated, 7.5 watt capacity


Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)\
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
