Description
AJA OG-FiDO-4X-12G Bidirectional 12G-SDI and Fiber Transport
4-Channel 12G-SDI / Single-Mode LC Fiber, 2 Tx / 2 Rx
Production workflows often require signals to move in both directions over the same fiber infrastructure. OG-FiDO-4X-12G combines two transmit and two receive channels on a single openGear card, providing four independent signal paths for simultaneous, bidirectional conversion.

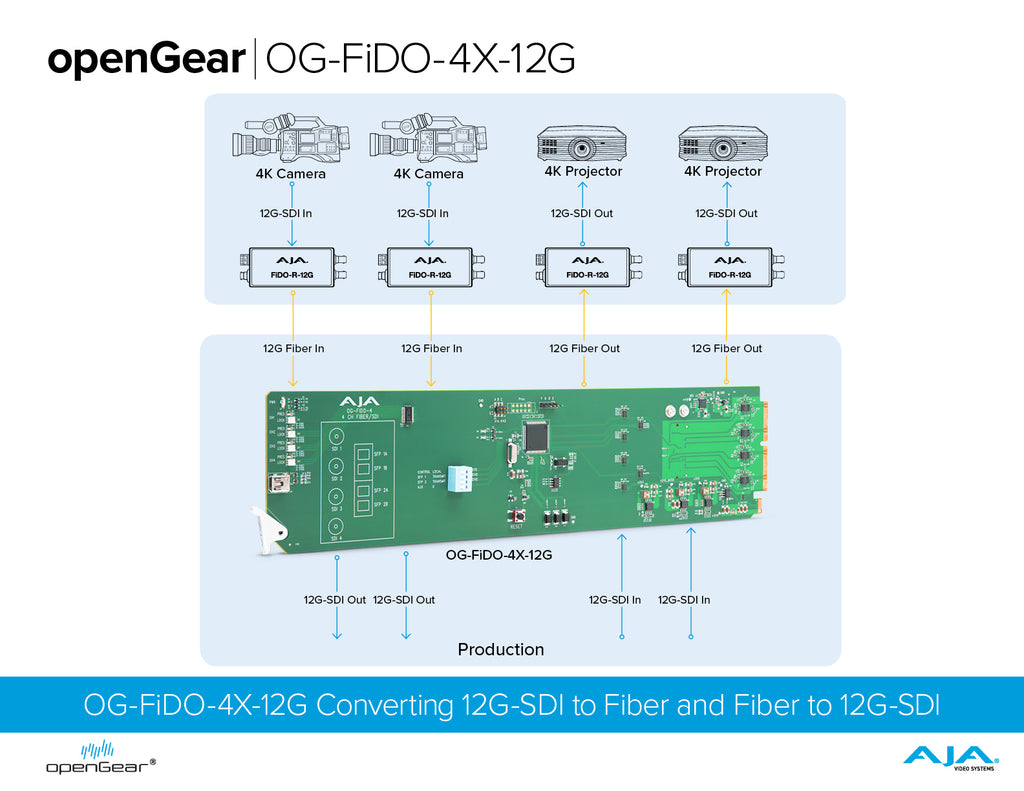

In this workflow, two 12G-SDI camera signals are converted to fiber for transport into production, while two 12G-SDI production outputs are simultaneously converted to fiber for delivery to remote 4K projectors. At each endpoint, AJA FiDO Mini-Converters provide the corresponding SDI/fiber conversion. The 2 Tx / 2 Rx configuration consolidates both directions into a single two-slot openGear card, simplifying bidirectional 12G-SDI fiber transport while increasing channel density within production environments.
