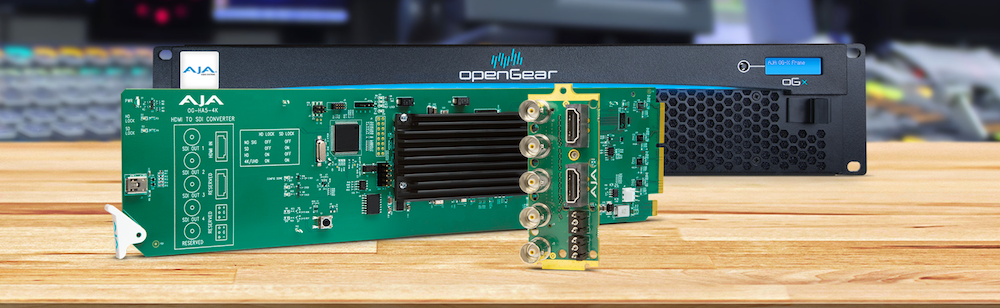

AJA OG-HA5-4K openGear 4K/UltraHD/2K/HD/SD HDMI 2.0 to 3G-SDI Conversion

Featuring four 3G-SDI outputs, the openGear compatible OG-HA5-4K enables high-quality conversion of HDMI 2.0 video from DSLRs, mirrorless cameras, action cameras, or prosumer 4K video cameras to 4K/UltraHD 3G-SDI for use in professional workflows. OG-HA5-4K is also capable of displaying HDR info frame data coming in over HDMI when used with DashBoard software.

Designed for use in high-density openGear 2RU frames including AJA’s OG-X-FR frame, DashBoard Software support on Windows®, macOS® and Linux® offers remote control and monitoring of the openGear architecture and provides convenient and industry-standard configuration, monitoring and control options over a PC or local network.

FEATURES
openGear compatible card
Convert HDMI 2.0 to Quad-3G, 4K/UltraHD 60 fps at 4:4:4, 4:2:2, and 4:2:0
Supports Two Sample Interleave (2SI) and Square Division (Quadrant) output pixel mapping
EDID Emulation
Displays HDR Infoframe data coming in over HDMI by HDMI v2.0b/CTA-861-G
HDR Metadata VPID Pass-through and optional override
Simple Frame Rate Conversion (FRC)
Embedded audio support 8-channel 24-bit
Embedded audio pass-through of AC-3 (Dolby Digital Plus) and E-AC-3 compressed audio, including DD+ Atmos (aka DD+ JOC)
Remote Ethernet configuration through Ross DashBoard software
Power: 10 watts
Hot-swappable
Rear I/O card included
Two slots are required for each card
Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
Five-year warranty
