Description
Atomos Shinobi 7 RX 7-inch 2200nit HDR Video Photo Monitor
7-inch, 2200nit HDR video photo monitor with camera control and integrated wireless video receiver
FEATURES
- 7-inch, 2200nit HDR video photo monitor with camera control and integrated wireless video receiver
- Super-bright, 7-inch HDR screen with a peak brightness of 2200nits
- HDMI and 3G-SDI input and output
- Camera control over USB-C (same as Shinobi II)*
- Touch to focus (same as Shinobi II)*
- 5G Wi-Fi for low latency (<60ms) receive from Atomos TX or RTSP H.264 stream
- Stunning 10+ stops of dynamic range in real-time from Log/PQ/HLG
- Built-in 3D LUT box
- Supports 8-channel, 24-bit audio input via SDI
- Supports on-device calibration (no computer required)

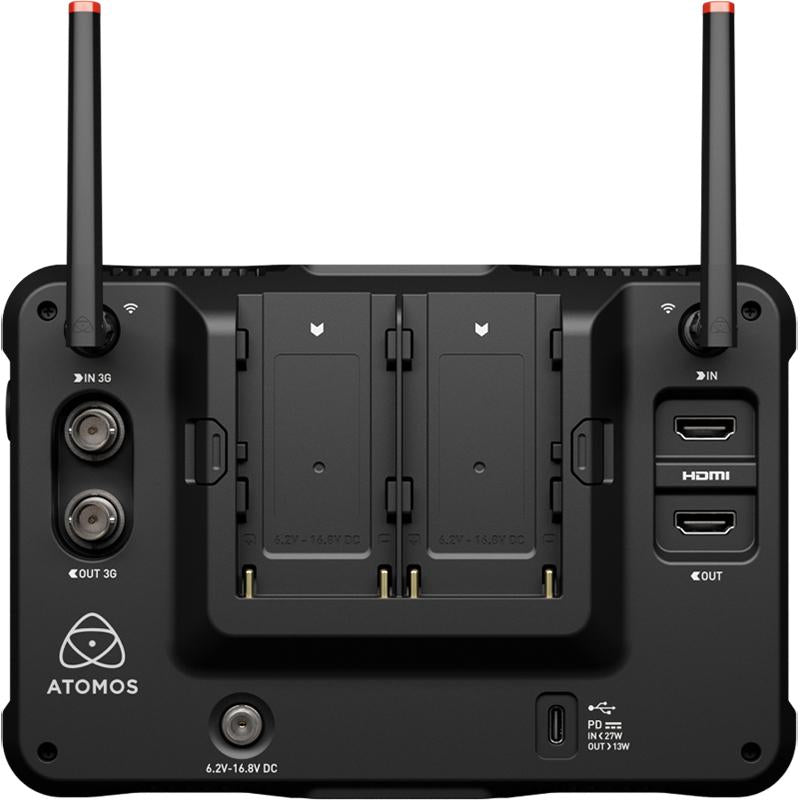

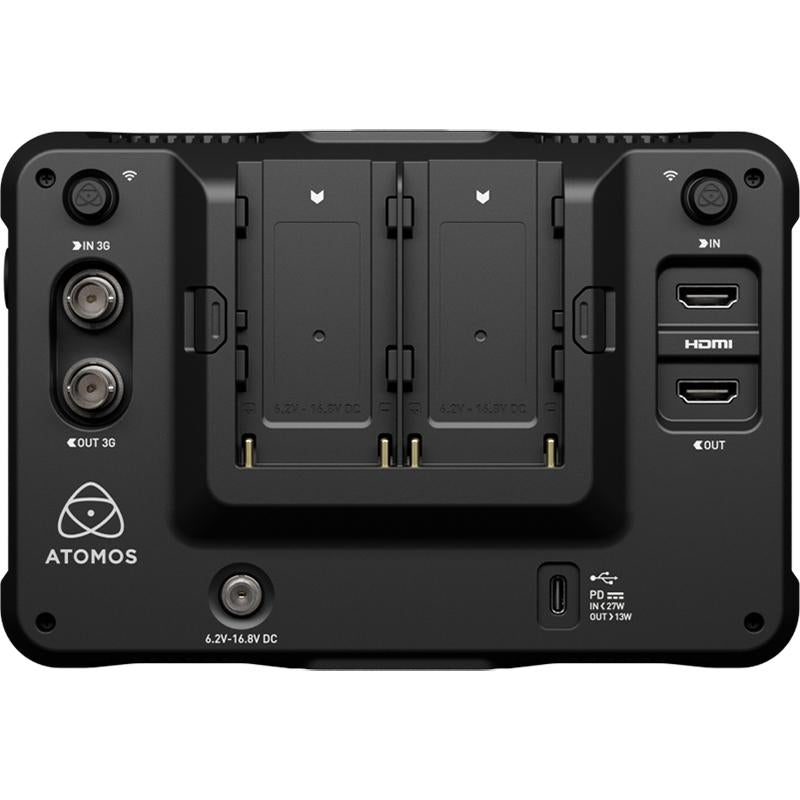

- Dual NPF battery slots

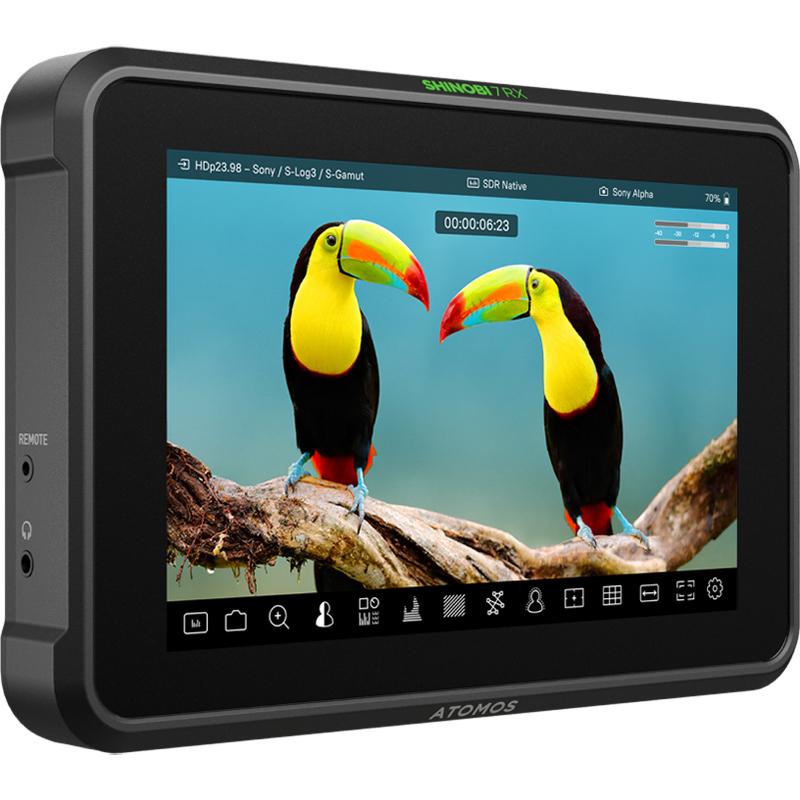

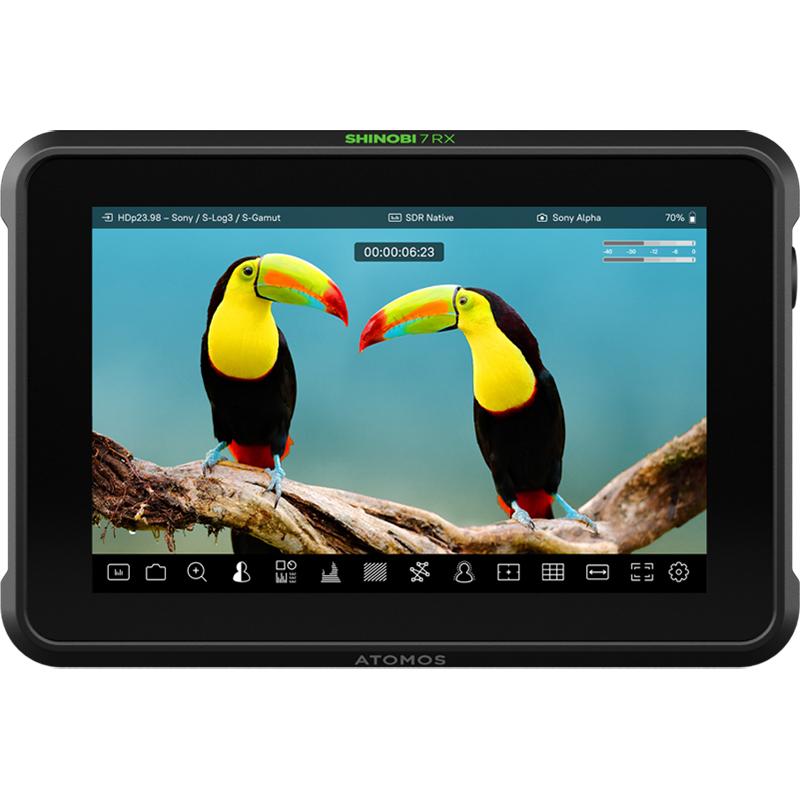

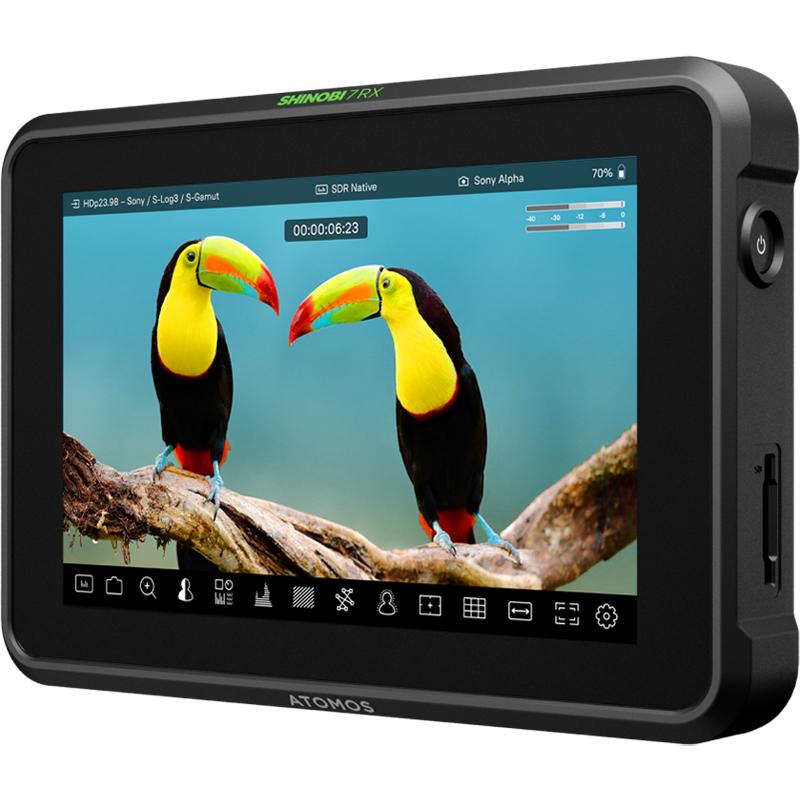

Shinobi 7 RX combines a larger 7-inch HDR screen with a calibrated peak brightness of 2200nits and the lightweight monitor-only functions of Shinobi. Can be used in the brightest of environments to monitor signals up to 4Kp60 via HDMI or HDp60 via 3G-SDI. Take control of Canon, Fujifilm, Nikon, Panasonic, and Sony cameras via USB-C, plus Z CAM cameras via optional USB-C to serial cable. The addition of Wi-Fi connectivity provides a stable link between the Shinobi 7 RX and the TX component of Atomos’ TX-RX wireless video system, or a RTSP H.264 stream. An ideal director’s monitor, focus puller’s monitor, program or preview display for video switchers.
WHAT'S IN THE BOX
- Shinobi 7 RX monitor

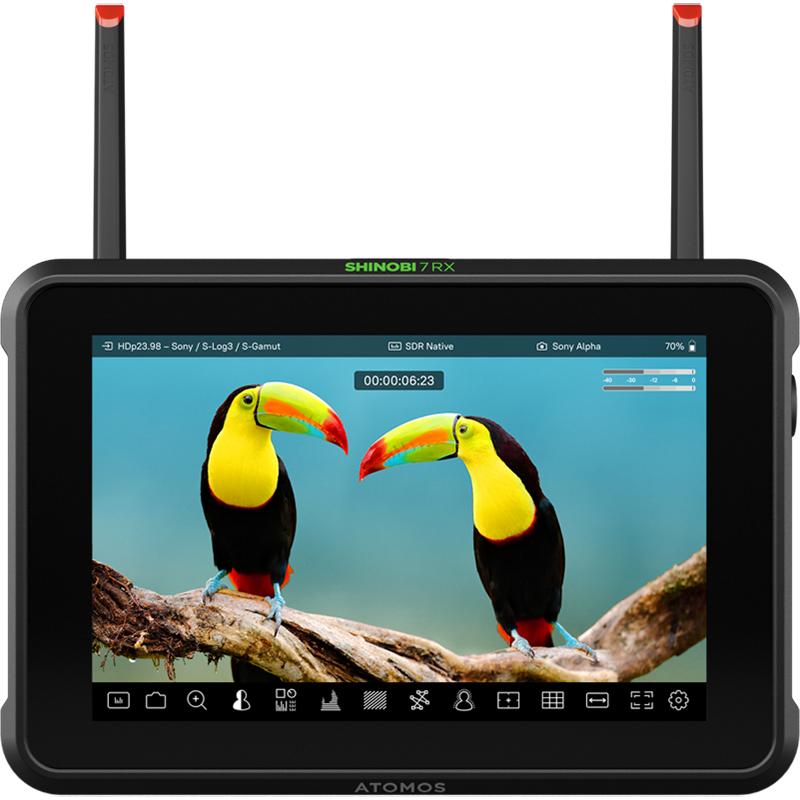

- Wi-Fi antenna
- 5x antenna tips (black, white, yellow, green, red)
- 2x antenna caps
- USB-C 2.0 cable (1m)
- Quick Start Guide
SPECIFICATIONS
| DISPLAY | |
| Size | 7-inch HDR screen with a calibrated peak brightness of 2200nits |
| Resolution | 1920 x 1080 |
| Backlight Type | Edge-lit |
| Brightness (cdm2 / Nits) | 2200 |
| Aspect ratio | 16:9 |
| Color Gamut | Rec.709 |
| Calibration support | Calibrite Display Pro or Display Plus on PC/Mac with Atomos LANC cable |
| COLOR PIPELINE | |
| Gamma | Sony SLog / SLog2 / SLog3 / HLG, Canon C-Log / C-Log2 / C-Log3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320, / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic V-Log / HLG, JVC J-Log, Red RedLogFilm / Log3G10 / Log3G12, FujiFilm F-Log, PQ (HDR10), HLG, Nikon N-Log |
| Gamut | BT.2020, DCI P3, DCI-P3 D65, Rec709. Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec.709. Canon Cinema: DCI P3 / DCI P3plus / Rec.709. Panasonic: V Gamut. ARRI: Alexa Wide Gamut. JVC: LS300. RED: DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut |
| 3D LUT Display | .Cube format (17 & 33 points supported) |
| 3D LUT Down Stream | Loop out |
| 3DLUT 50/50 | Yes |
| Monitoring Modes | SDR Native / HDR HLG / HDR PQ / 709 LUT / User LUT |
| HDR OUTPUT CONVERSION | |
| VIDEO INPUT | |
| HDMI | 1 x HDMI (2.0) |
| Locking port | N/A |
| SDI | 3G |
| Wi-Fi | Wi-Fi 6E |
| USB | 1 x USB-C 2.0/3.0 |
| Bit Depth | 8/10-bit video |
| Video Chroma Subsampling | 4:2:2 |
| VIDEO OUTPUT | |
| HDMI | 1 x HDMI (2.0) |
| Locking port | N/A |
| SDI | 12G |
| Wi-Fi | Wi-Fi 6E |
| USB | 2 x USB-C 2.0/3.0 |
| Bit Depth | 8/10-bit video |
| Video Chroma Subsampling | 4:2:2 |
| METADATA | |
| HDMI | N/A |
| NETWORK | |
| Wi-Fi | Wi-Fi 6E |
| USB | 1 x USB-C 3.0 |
| CONNECTIVITY | |
| LANC | Yes |
| AUDIO IN/OUT | |
| HDMI | 8-channel, 24-bit |
| SDI | 12-channel, 24-bit |
| Analogue Audio Line In | 3.5mm headphone jack, 2-channel input |
| Headphone Out | 3.5mm headphone jack, 2-channel |
| TIMECODE | |
| Embedded | HDMI (display only) |
| Time of day | Yes |
| Reference / Genlock input | No |
| LTC | No |
| RESOLUTION & FRAME RATES | |
| 4K DCI | 23.98/24/25/29.9/30/50/59.94/60p |
| 4K UHD | 23.98/24/25/29.9/30/50/59.94/60p |
| 2K DCI 2048 x 1080 | Yes |
| 1080p | 23.98/24/25/29.9/30/50/59.94/60/100/120p |
| 1080 PsF | Converted to P and looped out PsF |
| 1080i | 50/59.94/60i |
| 720p | 50/59.94/60p |
| SUPPORTED MEDIA | |
| SD | To update firmware and upload LUTs |
| File System | FAT32, NTFS |
| ON-SCREEN MONITORING TOOLS | |
| MultiScope Analysis View | Image, WFM, vector, histogram |
| Waveform | 3 sizes – adjustable opacity & brightness |
| Histogram | 3 sizes – adjustable opacity & brightness |
| RGB parade | 3 sizes – adjustable opacity & brightness |
| Vectorscope | 1 size – adjustable opacity & brightness |
| 1x Zoom | Yes. 1:1 pixel mapping for 4K |
| 2x Zoom | Yes |
| 4x Zoom | Yes |
| Focus peaking | 4 modes (color, black & white, outline, edge sharpening) with adjustable outline color & peaking intensity |
| Atomos False Color | Yes, with scale |
| Zebra | Adjustable threshold (50% to 105%) |
| Isolate color channel | Blue Only |
| Cine Frame Guides | Presets for 2.41, 2.35, 1.91, 1.9, 1.85, 16:9 |
| Social Frame guides | Presets for 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2 |
| Safe areas | SMPTE safe title area – 93% & 90% |
| Grid markers | 9 grid |
| Anamorphic desqueeze | 2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, 1.25x |
| Display Flip | Horizontal & vertical |
| EXTERNAL DEVICE CONTROL | |
| USB-C | Camera control for supported cameras via USB-C. Controllable functions: Record Trigger, White Balance, Shutter Speed, Shutter Angle (if supported by camera), Aperture, ISO, Camera Overlays, Record Indicator, Touch to Focus - see Atomos website for camera model compatibility. USB-C port can also be used with external calibrators (no PC required). |
| Serial 2.5mm Jack | Calibration via optional USB to serial cable |
| PRODUCT SPECIFICATIONS | |
| Dimensions (W x H x D mm) | 198mm x 133mm x 39mm |
| Weight | 580g (excluding batteries and antennas) |
| Mount points | 1 x anti-rotation 1/4-inch / 3/8-inch top and bottom |
| ENVIRONMENTAL | |
| Ambient operating temperature | Up to 40 degrees Celsius |
| CONSTRUCTION | |
| Body | ABS polycarbonate |
| Cooling | Passive heat sink |
| POWER | |
| Input voltage | 6.2V - 16.8V |
| Operating power | 5.8V - 7.2V |
| Multi-function button | Power / lock screen |
| Continuous power | Via NP-F battery or USB-C PD Power |
| DC in connector | Via Battery Eliminator (optional) |
| DTAP | Up to 13W |
| USB PD IN | 45W capable, power supply required |
| USB PD OUT | Up to 13W |
