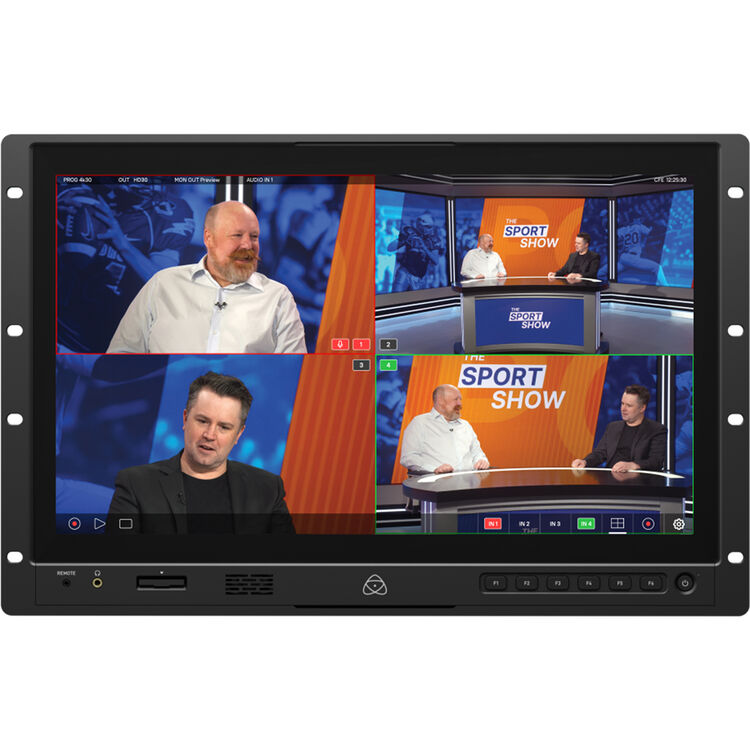

Atomos Shogun AV-19 19-inch 4K HDR DCI-P3 7RU Rack-Mounted Monitor

FEATURES

  • 19-inch, 4K HDR DCI-P3 7RU rack-mounted monitor
  • Record in ProRes, ProRes RAW, Avid DNx to CFexpress or external USB-C storage
  • Record up to four isolated camera feeds (ISOs), plus a fifth program output
  • Live multi-camera monitoring
  • 2 x 12G-SDI + 2 x 3G-SDI in, 12G-SDI out, HDMI in/out with XLR audio
  • Comprehensive technical monitoring tools including EL Zone™ false colour, focus peaking, waveform & more
  • Transmit and receive NDI® HX3 over Ethernet
  • User-definable function buttons
  • Log to LUT viewing, supporting 3D & .cube
  • Backup recording for redundancy

Shogun AV-19 is a powerful 19?inch 4K HDR monitor-recorder-switcher designed for professional live production, broadcast, and video village environments. With 4 SDI inputs, ISO recording, live multi-camera switching, NDI HX3 over Ethernet, ProRes/DNx/ProRes RAW, XLR audio, and advanced monitoring tools, it delivers a complete Monitor-Record-Switch workflow for modern studio and outside broadcast environments.

Its rugged, rack mountable design and crisp DCI?P3 display make it an ideal central hub for multi?camera monitoring, with built?in switching that supports four ISO feeds plus a fifth program channel for smooth, real?time operation.

Shogun AV-19 includes the monitoring tools professionals expect - EL Zone™, waveform, vectorscope, focus peaking, and full LUT support, and records Apple ProRes, ProRes RAW, and Avid DNx up to 10?bit 4:2:2 from SDI or HDMI. It offers flexible media options via CFexpress or USB?C, and integrated camera control provides direct access to key exposure settings on supported mirrorless systems.

With native NDI HX3 and built?in Ethernet, Shogun AV-19 delivers high?quality, low?latency IP video over a single RJ45 cable, making it ideal for those transitioning to IP?based production.

Professional calibration support and a fully integrated audio system - including balanced XLR I/O with 48V phantom power, embedded SDI/HDMI audio, speakers, and headphone monitoring - round out a complete, ready?to?deploy solution for broadcast and event environments.

Use cases

  • On-set monitoring
    Confidently manage complex productions with a large, colour-accurate 4K HDR display that’s ideal for directors, technical directors, and camera operators
  • Technical & confidence monitoring
    Bright, 19-inch 4K HDR display with comprehensive technical monitoring tools including EL Zone™ false colour, focus peaking, waveform & more
  • Live switching & routing
    Live switcher capable of playing and recording up to four ISO camera feeds, for broadcasts and live events

WHAT'S IN THE BOX

  • Shogun AV-19 monitor-recorder-switcher
  • 4-pin XLR PSU
  • 5x international IEC power cables
  • 10x rack nuts & bolts
  • screen cloth
  • Quick Start Guide

SPECIFICATIONS

Display
Panel Type
IPS-Type LCD
Display Size
19.00" / 48.3 cm
Native Resolution
3840 x 2160
Aspect Ratio
16:9
Touchscreen
Yes
Maximum Brightness
1200 nits / cd/m2
Color Support
1.07 Billion Colors (10-Bit)
HDR Support
Yes: Hybrid Log Gamma
Color Gamut
100% Rec. 709
99% DCI-P3
87% Rec. 2020
99% NTSC
LUT Support
Yes
Image Controls
Anamorphic De-Squeeze, False Color, Focus Peaking, Image Flip, RGB Parade, Vectorscope, Waveform, Zebra

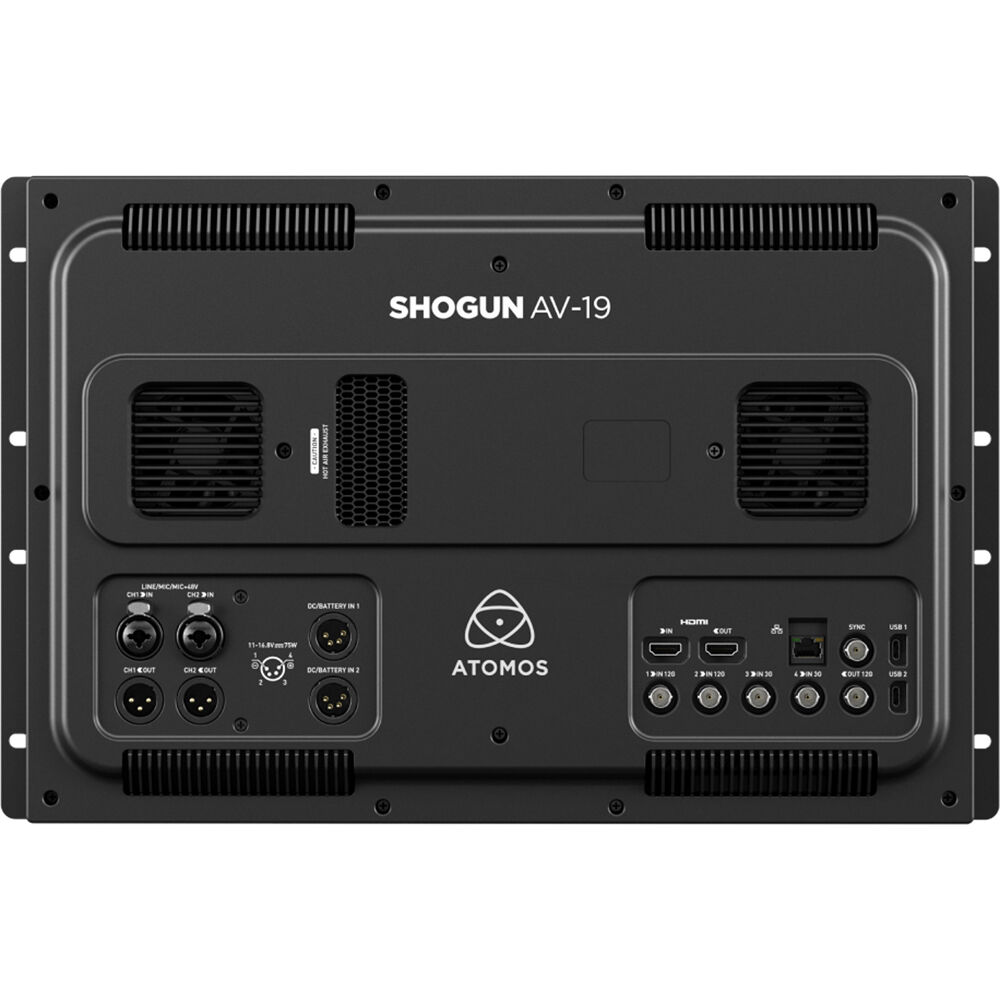

Inputs/Outputs
Video I/O
1x HDMI 2.0 Input
2x BNC (12G-SDI) Input
2x BNC (3G-SDI) Input
1x HDMI 2.0 Output
1x BNC (12G-SDI) Output
2x USB-C 3.0 / 3.1/3.2 Gen 1 Output
1x RJ45 (NDI) Input/Output
Embedded Audio
HDMI/SDI
Audio I/O
2x XLR Mic/Line Input
2x XLR Monitor/Line Output
1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker
No
Power I/O
1x XLR 4-Pin (16.8 VDC) Input
Other I/O
1x BNC (LTC) Input
1x 2.5 mm (LANC) Input/Output
Media/Memory Card Slot
Single Slot: CFexpress Type B [Supports Recording]
Wireless
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
No
Format Support
Video Format
HDMI/SDI (8/10-Bit 4:2:2/4:2:0 YCC)
5.7K: 30
DCI 4K: 60
UHD 4K: 60
1080p: 60
1080i: 60/50
720p: 60
HDMI (8/10-Bit 4:2:2/4:2:0 YCC)
DCI 4K
UHD 4K: 60
1080p
1080i: 60/50
720p: 60
Video Signal Conversion
HDMI to SDI

SDI to HDMI
Timecode Support
Yes
Recording
Pulldown Conversion
2:2, 3:2
Camera Trigger
SDI, HDMI
Pre-Roll Record
4K: 2 Seconds
Full HD: 8 Seconds
Encoding Formats
x
ProRes 422, 422 HQ, HQ, LB, LT, Raw, SQ
DNxHD 36, 145, 220x, HQ, HQX, LB, SQ
Maximum Audio Tracks
12
Closed Caption Support
No
Power
Input Power
12 to 16.8 VDC
Battery
No
Power Consumption
75 W
General
Environmental Resistance
No
Operating Conditions
Up to 104°F / 40°C
Material of Construction
Aluminum, Plastic
Dimensions
19 x 12.2 x 2.4" / 482 x 310 x 60 mm
Weight
11.51 lb / 5.22 kg
