Description

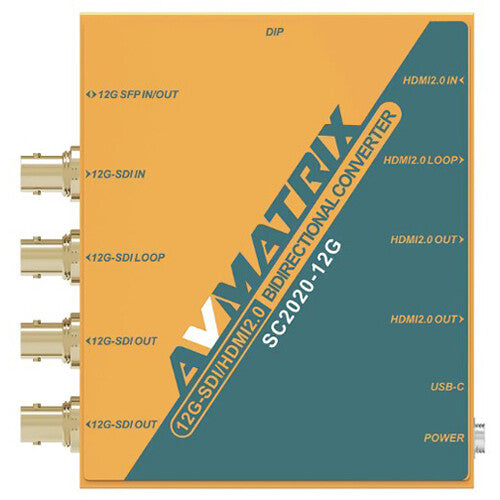

AV Matrix SC2020-12G 12G-SDI/HDMI BiDirectional HDMI 2.0 to 12G-SDI Converter
FEATURES
- HDMI 2.0 and 12G-SDI Inputs
- Dual HDMI 2.0 and 12G-SDI Outputs
- HDMI 2.0 and 12G-SDI Loop Outputs
- Supports up to 4K60 Resolution
- Supports Multiple RGB/YCC Color Spaces
- Optional Bidirectional Fiber SFP Slot
- Computer Host Control via USB-C
Built for true 4K60 performance, enabling seamless 12G-SDI and HDMI 2.0 conversion for next-generation professional video workflows
The AVMATRIX SC2020-12G is a professional-grade, ultra-compact bidirectional converter engineered for seamless 12G-SDI and HDMI 2.0 signal translation. Housed in a road-ready metal chassis, this Swiss-Army-knife utility device effortlessly bridges the gap between consumer HDMI gear and high-end broadcast setups at resolutions up to 4K at 60Hz. Whether you are setting up an Outside Broadcast (OB) truck, managing high-bandwidth corporate AV environments, upgrading a house of worship infrastructure, or deploying medical video routing, this flexible unit drastically simplifies on-site hardware demands. Armed with an internal SFP fiber slot for extreme long-distance runs and advanced colour space compatibility, it represents an essential, future-proof asset for any professional video engineer's tool kit.
Industry Applications
- Broadcast & OB Vans: Seamlessly cross-convert high-framerate 12G-SDI signals down to HDMI monitoring arrays without compromising visual latency.
- Live Events & Corporate AV: Effortlessly connect 4K corporate media servers and presentation switchers to native SDI matrix systems.
-
Houses of Worship & Education:
Modernise existing building workflows by easily integrating high-quality 4K HDMI cameras into legacy SDI setups.
- Long-Distance Production: Leverage the integrated SFP fiber slot to extend pristine 4K video feeds over long distances across large venue infrastructures.
Core Benefits
- Simultaneous Bidirectional Routing: Operates as a dual-path converter, allowing you to ingest HDMI and output SDI while routing an independent SDI feed to an HDMI monitor at the same time.
- Broad Dynamic Range Support: Fully compatible with professional colour spaces—including Full/Limited RGB 4:4:4 and YCbCr 4:2:2—ensuring absolute color grading precision from camera sensor to screen.

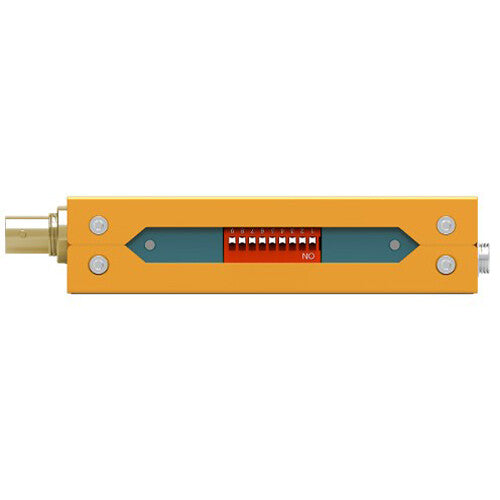

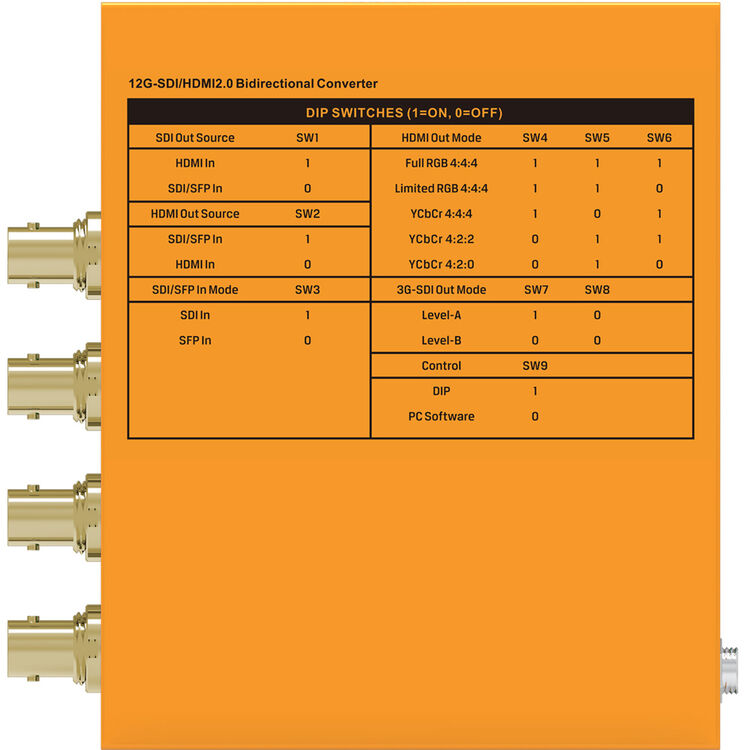

- Dual Setup Flexibility: Instantly switch settings on the fly using tactile, tool-free physical DIP switches, or dive into deep configuration and firmware management via a PC over USB-C.
Complete Technical Breakdown
| Feature | Specification |
|---|---|

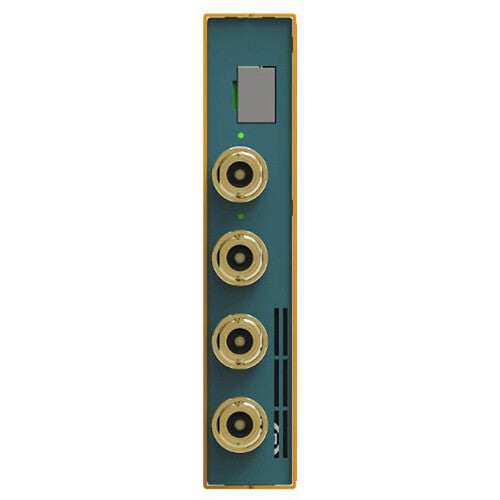

| Video Inputs | 1x 12G-SDI, 1x HDMI 2.0, 1x 12G SFP Fiber Port |

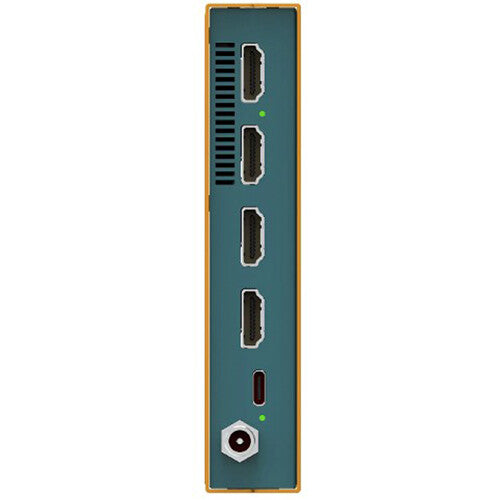

| Video Outputs | 2x 12G-SDI, 2x HDMI 2.0, 1x SDI Loop, 1x HDMI Loop, 1x 12G SFP |
| Max Resolution | UHD 4K at 60fps (3840 x 2160) |
| Colour Spaces | RGB 4:4:4 (Full/Limited), YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Control Interfaces | Physical DIP Switches & USB Type-C PC Software
|
| Power Supply | Included DC 12V 2A adapter (Supports wide DC 5V–24V range) |
| Form Factor | Rugged metal chassis (125.5 x 104 x 24.5 mm | 590g) |
