Description

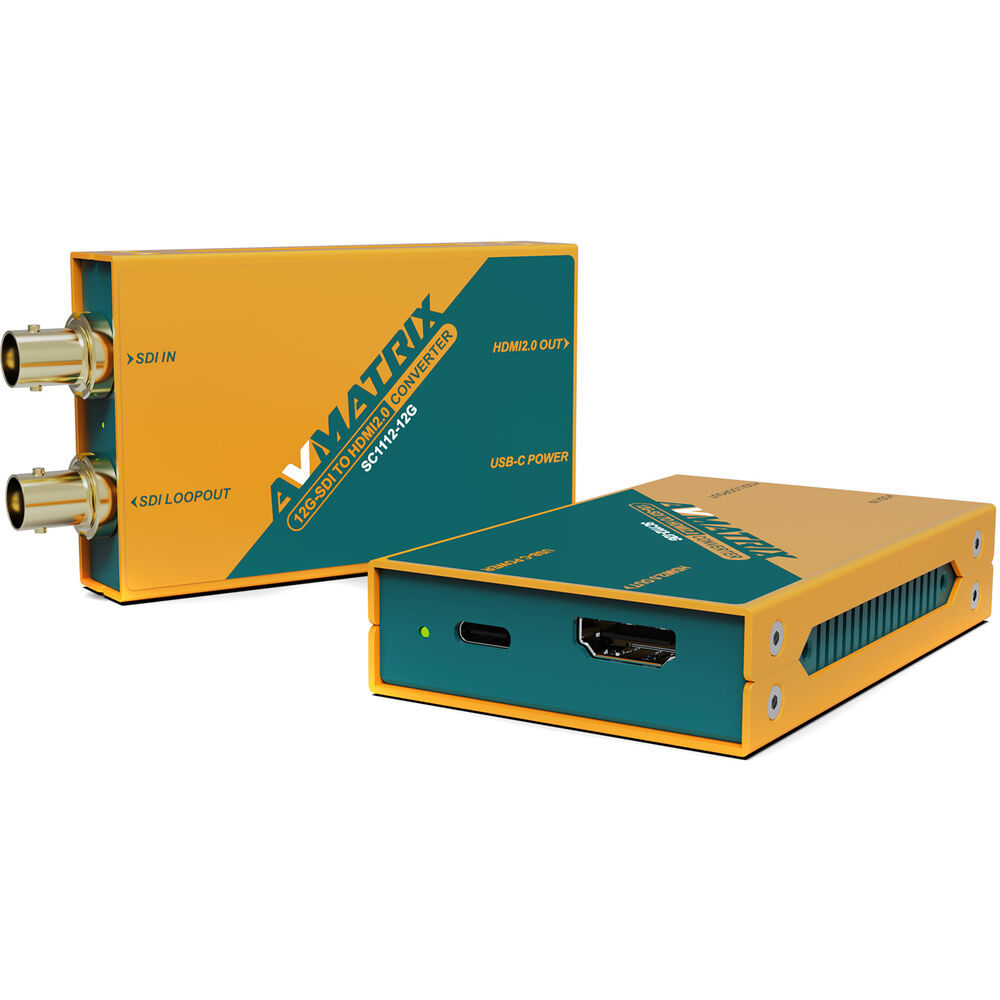

AVMatix SC1112-12G 12G-SDI to HDMI 2.0 4K Converter
FEATURES
- One 12G-SDI Input, One Loop Output
- One HDMI 2.0 Type A Output
- Supports up to DCI/UHD 4K60 Resolution
- Works 24/7 without Lag/Delay
- 5V USB-C Port for Power
- Cable and Power Adapter Included
- Can Power with Power Banks, Computer
- LED Power Indicator
The AVMATRIX SC1112-12G is the ultimate micro connectivity tool designed to seamlessly bring professional 12G-SDI video sources into the world of HDMI live streaming, remote production (REMI), and hardware encoding. By converting uncompressed broadcast signals up to 4K60, it allows you to ingest high-end cinematic or studio cameras directly into hardware streaming switchers, low-cost video capture cards, or HDMI visual arrays. Its ultra-lightweight, rugged metal frame makes it perfect for mounting on camera rigs or hiding behind flight cases, while the clever 5V USB-C power design enables it to run cleanly off field power banks or camera rigs. For vMix engineers, YouTube production spaces, and live-stream event companies, this converter provides rock-solid, zero-delay conversion when monitoring counts most.
Standout Workflows
- Live-Stream Monitoring Arrays: Run a long 12G-SDI cable from your camera to the master control desk, then convert it to HDMI locally to feed multi-viewer displays or software stream encoders.
- Esports & Gaming Event Feeds: Accept high-framerate 12G-SDI game-capture signals and seamlessly deliver an HDMI 2.0 output to players' low-latency local monitors or TVs.
- Rig-Mounted Field Conversion: Use the micro form factor and USB-C power to mount the unit right to a camera rig, feeding an onboard HDMI director's monitor directly from the camera's 12G-SDI output.
- Zero-Setup Speed: True plug-and-play architecture requires no software configuration—just plug in your SDI input, power via USB-C, and instantly get a perfectly scaled HDMI feed.
Complete Technical Breakdown
| Feature | Specification |
|---|---|
| Video Input | 1x HD/3G/6G/12G-SDI (BNC) |
| Video Outputs | 1x HDMI 2.0 Type-A, 1x 12G-SDI Loop-Out (BNC) |
| Max Resolution | UHD / DCI 4K at 60fps (up to 4096 x 2160) |
| SDI Input Space | YCbCr 4:2:2 10-bit |
| HDMI Output Space | RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Power Supply | USB Type-C (5V, ≤5W) — Adapter & A-to-C cable included |
| Form Factor | Pocket-sized metal housing (107.6 x 58 x 19 mm | 230g) |
| Warranty | Manufacturer 3-Year Limited Warranty |
