Description

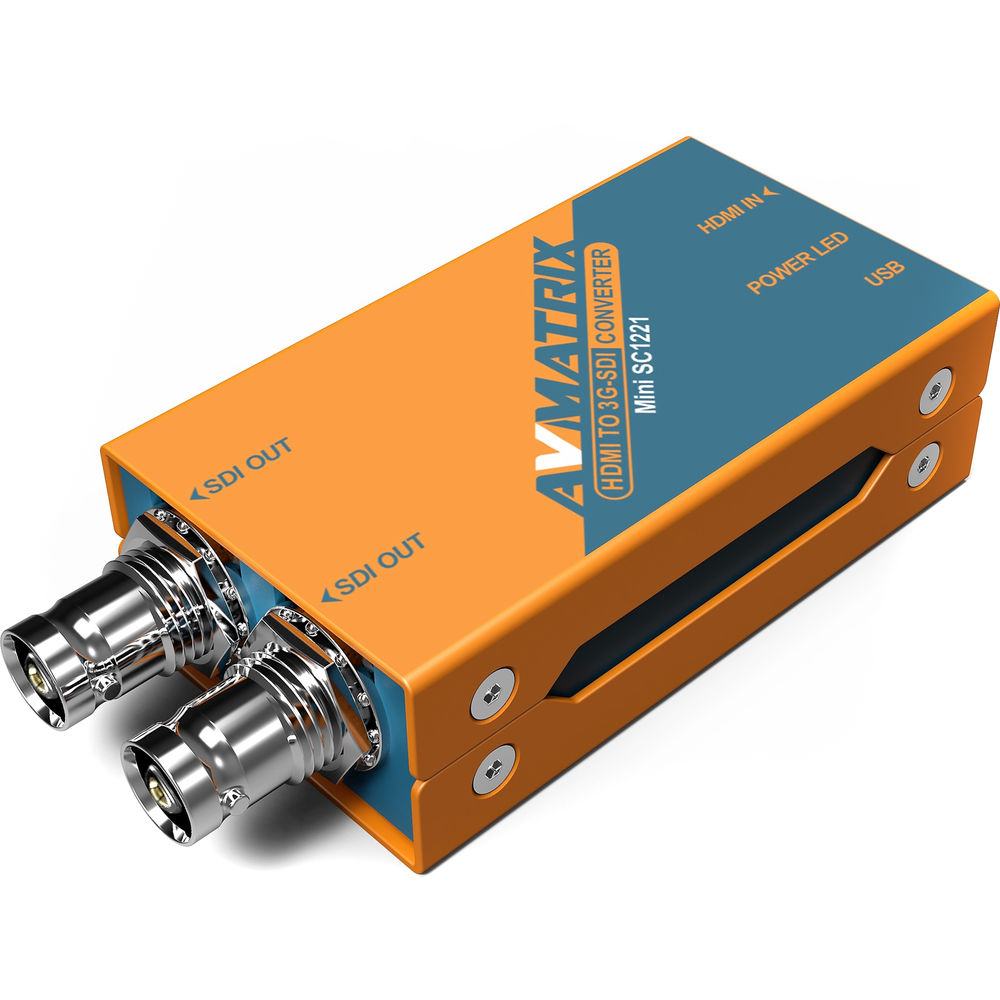

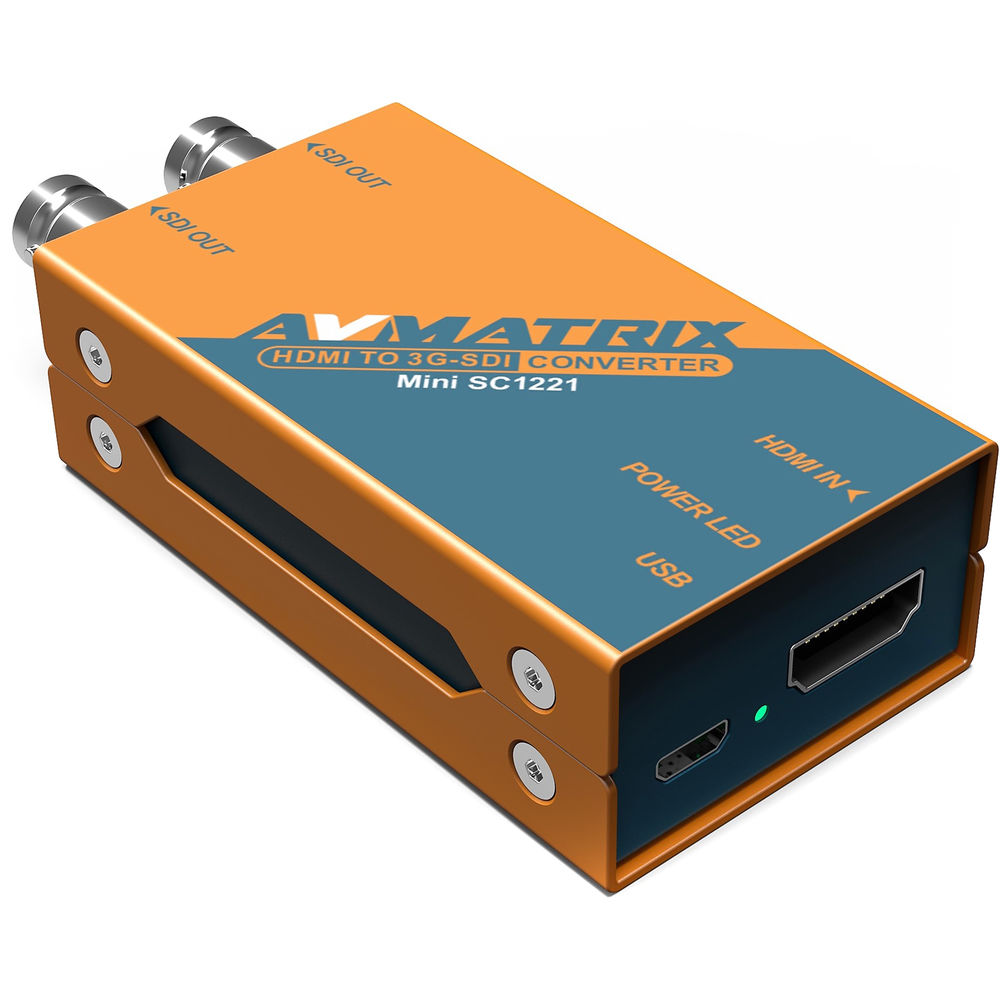

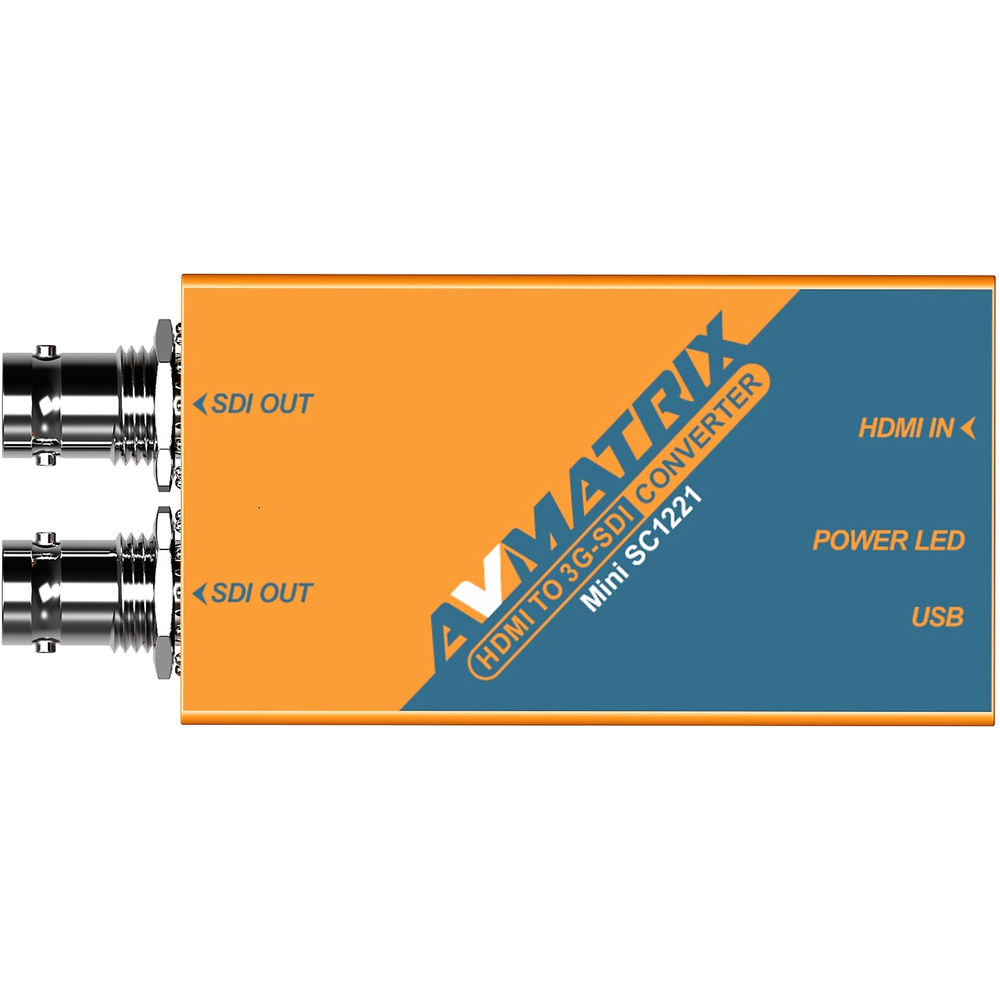

AVMatix SC1221 HDMI to 3G-SDI Converter
FEATURES

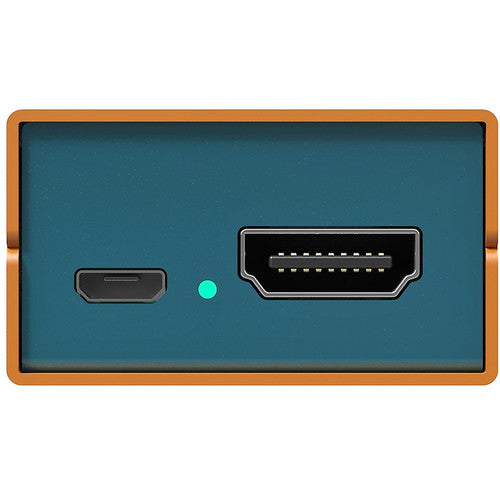

- HDMI Type-A Input

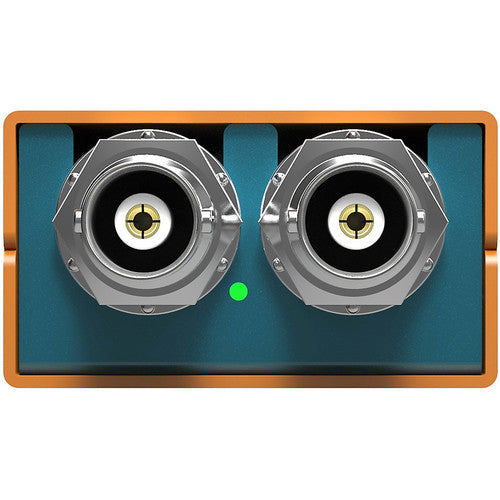

- Two 3G/HD/SD-SDI Outputs
- Supports up to 1080p60 Resolution
- Works 24/7 without Lag/Delay
- Micro-USB Port for Power
- AC Power Adapter Included
- Can Be Connected to Power Banks, Etc.
- LED Power Indicator
- Mounting Bracket Included
The AVMATRIX Mini SC1221 is the ultimate micro connectivity workflow solution engineered for fast-paced live streaming, web broadcasting, and multi-camera event production. By adapting standard HDMI hardware up to 1080p60 directly to dual professional 3G-SDI feeds, it lets you run long, robust coaxial cables from consumer cameras, gaming consoles, or presentations laptops straight into professional hardware switchers. Featuring an ultra-efficient 5V Micro-USB power design, it boasts incredibly low power consumption, allowing it to run continuously for over 24 hours on a basic 5,000mAh mobile power bank. For vMix operators, YouTube production houses, and live event webcasters, this zero-latency micro converter guarantees an absolute rock-solid link in the production chain.
Standout Workflows
- Esports & Gaming Webcasts: Output smooth, uncompressed 60fps action from a gaming PC or console HDMI output straight to pro-tier SDI capture cards or hardware encoders.
- Multi-Destination Signal Routing: Utilise the dual 3G-SDI outputs to cleanly feed a streaming encoder station and an independent backup recorder at the exact same time.
- Battery-Powered Field Operations: Break free from restrictive mains wall sockets; easily power the unit directly off a camera rig's USB port or a mobile power bank during remote outdoor streams.
- True Plug-and-Play Setup: Skip complicated system menus and driver installations. Just connect your cables, apply USB power, and the unit immediately delivers pristine, stable video conversion.
Complete Technical Breakdown
| Feature | Specification |
|---|---|
| Video Input | 1x HDMI Type-A (Full Size) |
| Video Outputs | 2x 3G/HD/SD-SDI (BNC, 75Ω) |
| Max Resolution | Full HD 1080p at 60fps (1920 x 1080) |
| HDMI Input Space | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2 |
| SDI Output Space | YUV 4:2:2 |
| Power Supply | Micro-USB (5V, 2W power consumption) |
| Form Factor | Pocket-sized metal chassis (71 x 41 x 23 mm | 168g) |
| In the Box | 1x Mini SC1221, 1x Mounting Bracket, 1x Power Adapter, 1x USB Cable |
