Description

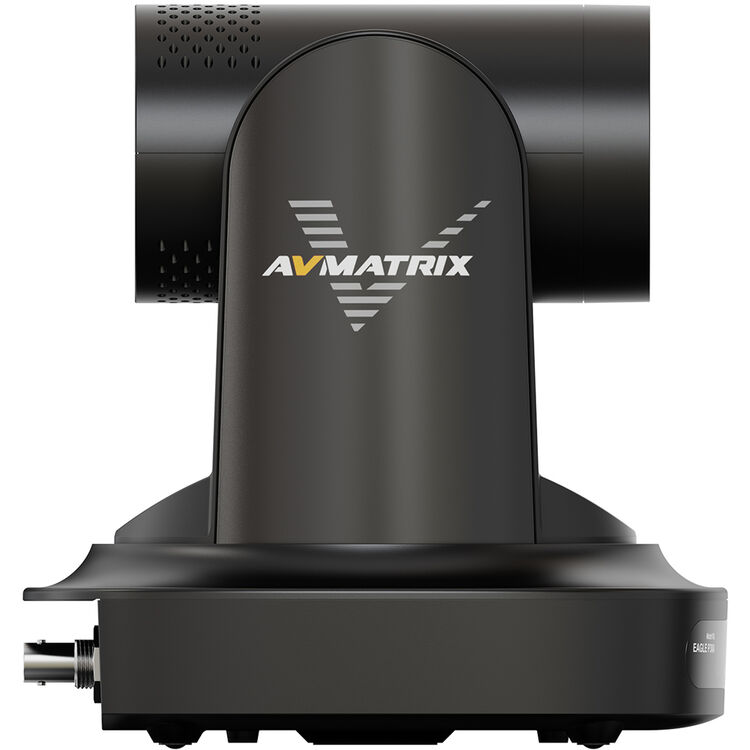

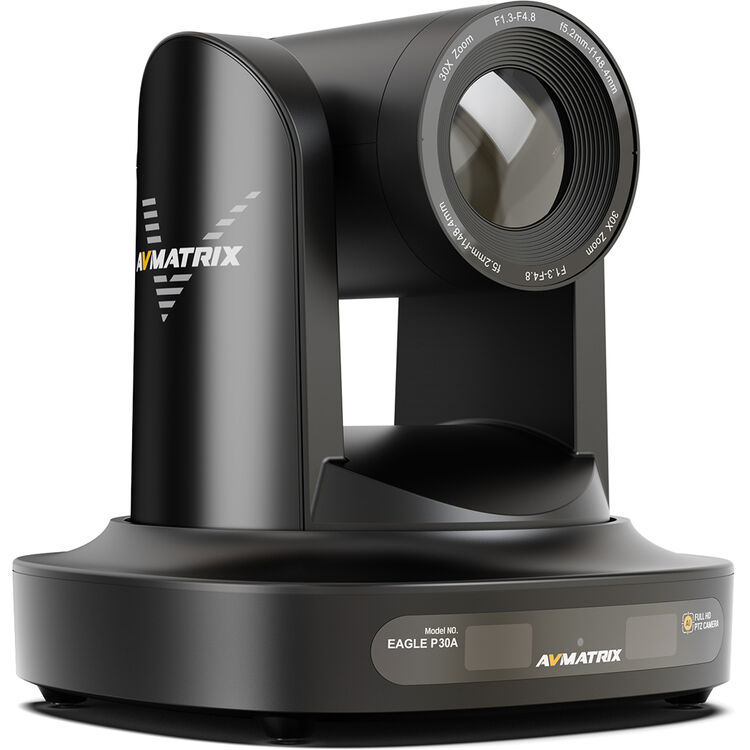

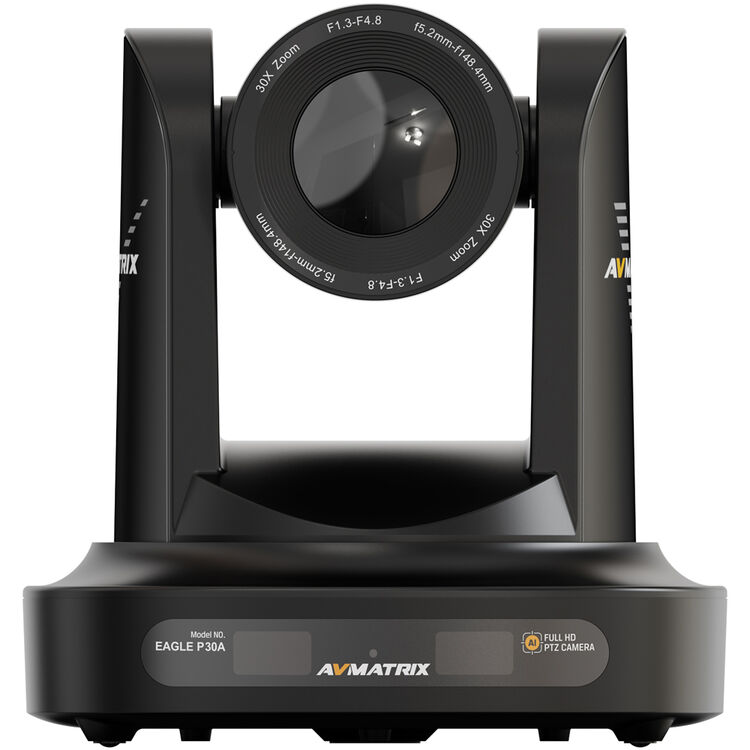

AVMatrix Eagle P30A HD PTZ camera with 30x Optical Zoom, NDI|HX3, HDMI and AI Tracking
FEATURES
- 1/2.8 inch HD CMOS sensor, 2.07 megapixels, 16:9
- 30x optical zoom (f=5.1 to 94.49 mm), 16x digital zoom
- Viewing angle: D 67.45° to 3.94°, H 60.04° to 3.45°, V 35.31° to 1.97°
- 1x HDMI, 1x 3G-SDI, 1x USB 3.0 (UVC), LAN (RJ45)
- USB 3.0 UVC output for direct PC capture (webcam); compatible with OBS, vMix, Zoom, Teams
- LAN streaming via RTSP, RTMP, ONVIF, SRT, NDI®|HX3
- 1080p60/50/30/25, 1080i60/50, 720p60/50 on HDMI and 3G-SDI
- 2D and 3D noise reduction; ≥50 dB SNR; 0.5 Lux (F1.8, AGC ON)
SPECIFICATIONS
Connections

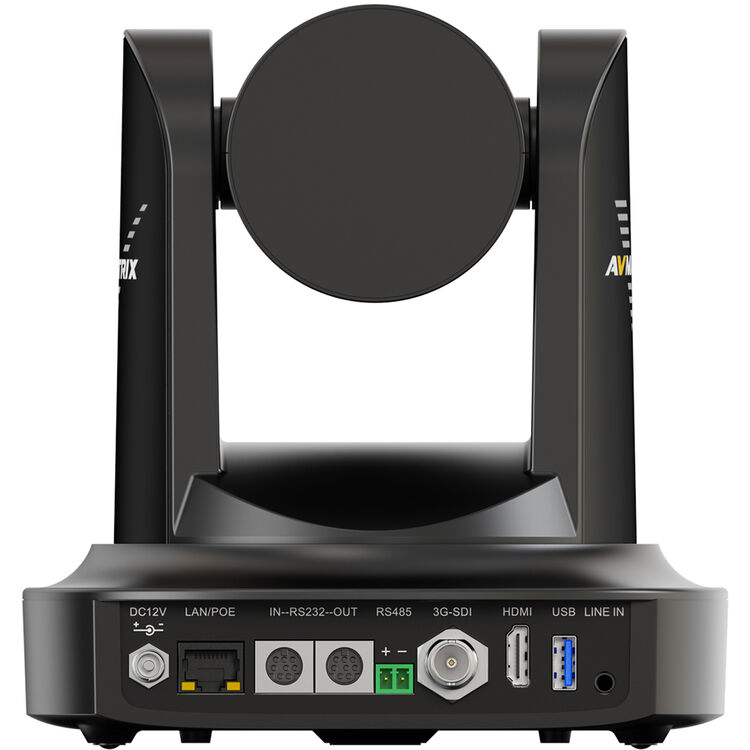

Video outputs1x HDMI, 1x 3G-SDI, 1x USB 3.0 (UVC), LAN (RJ45)
Audio in3.5 mm dual-channel linear input
Audio outputHDMI, 3G-SDI, LAN, USB 3.0
Audio bitrate96 Kbps, 128 Kbps
Audio compressionAAC, G.711A
Video compressionMJPEG, YUY2, NV12
Video bitrate64 to 40960
Bitrate controlFixed bitrate, Variable bitrate
Frequency50 Hz: 1 to 50 fps; 60 Hz: 1 to 60 fps
Network100M Ethernet; PoE+ IEEE 802.3at; audio and video output; remote upgrade, reboot, and reset
Network protocolRTSP, RTMP, ONVIF, GB/T28181, SRT, NDI®|HX3, IP VISCA
IP protocolVISCA over IP, ONVIF, UVC (USB only), NDI®|HX3
USB protocolUVC, UAC
Serial protocolVISCA, PELCO-D, PELCO-P (2400/4800/9600/38400/115200 bps)
Video Standards
HDMI1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50
3G-SDI1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50
LAN (main stream MJPEG)1920 x 1080 @ 60/30/25/20/15/10/5 fps, 1280 x 720 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps
LAN (sub-stream MJPEG)1280 x 720 @ 60/30/25/20/15/10/5 fps, 640 x 360 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps, 320 x 240 @ 60/30/25/20/15/10/5 fps, 320 x 180 @ 60/30/25/20/15/10/5 fps
USB capture (MJPG)1920 x 1080 @ 60/30/25/20/15/10/5 fps, 1280 x 720 @ 60/30/25/20/15/10/5 fps, 640 x 360 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps, 320 x 240 @ 60/30/25/20/15/10/5 fps, 320 x 180 @ 60/30/25/20/15/10/5 fps
USB capture (YUY2/NV12)1920 x 1080 @ 60/30/25/20/15/10/5 fps, 1280 x 720 @ 60/30/25/20/15/10/5 fps, 1024 x 576 @ 60/30/25/20/15/10/5 fps, 800 x 600 @ 60/30/25/20/15/10/5 fps, 800 x 448 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps, 640 x 360 @ 60/30/25/20/15/10/5 fps, 480 x 270 @ 60/30/25/20/15/10/5 fps, 320 x 180 @ 60/30/25/20/15/10/5 fps
Operational Features
Tracking modesOff, Real-time tracking, Stage tracking, Area tracking, Intelligent framing
Tracking distanceUp to 18 m
Remote control1x RS232-IN, 1x RS232-OUT, 1x RS485
Power
Power interfaceHEC3800 (DC 12V)
Power adapterAC 110 to 220V input, DC 12V/1.5A output
Input voltageDC 12V ±10%
Input current≤1.2 A
Power consumption≤13.8 W
PoEPoE+ IEEE 802.3at
Environmental
Operating temperature-10°C to +50°C
Operating humidity20 to 80%
Storage temperature-10°C to +70°C
Storage humidity20 to 95%
EnvironmentIndoors
Mechanical
Dimensions170 x 170 x 180 mm
Pan/Tilt rangePan -170° to +170°, Tilt -30° to +90°
Pan speed0.1 to 100°/s
Tilt speed0.1 to 45°/s
Preset speedPan 100°/s, Tilt 45°/s
Presets255 (10 via IR remote control)
Weight1.26 kg
Imaging
Sensor1/2.8 inch HD CMOS
Effective pixels2.07 megapixels, 16:9
Optical zoom20x (f=5.1 to 94.49 mm)
Digital zoom16x
Viewing angleD: 67.45° to 3.94°, H: 60.04° to 3.45°, V: 35.31° to 1.97°
Minimum illumination0.5 Lux (F1.8, AGC ON)
Noise reduction2D, 3D
White balanceAuto, Manual, One Touch White Balance, 2400K to 7100K (100K steps)
Focus modesAuto, Manual, One-push
IrisAuto, Manual
Electronic shutterAuto, Manual
BLCOn, Off
Dynamic rangeOff, Dynamic level adjustment
Video adjustmentBrightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR≥50 dB
