AVMatrix PKC3500-NDI IP PTZ Camera Controller
FEATURES
- Pan/Tilt/Zoom/Lock PTZ Controls
- Control up to 255 PTZ Cameras via IP/NDI
- ONVIF/VISCA-over-IP/Pelco-P & D Support
- Low-Latency NDI HX2 Streaming
- Bright 5" Color Display
- Power-over-Ethernet (PoE) Support
- Simultaneous Multi-Brand Camera Control
- Includes 12 VDC Power Supply

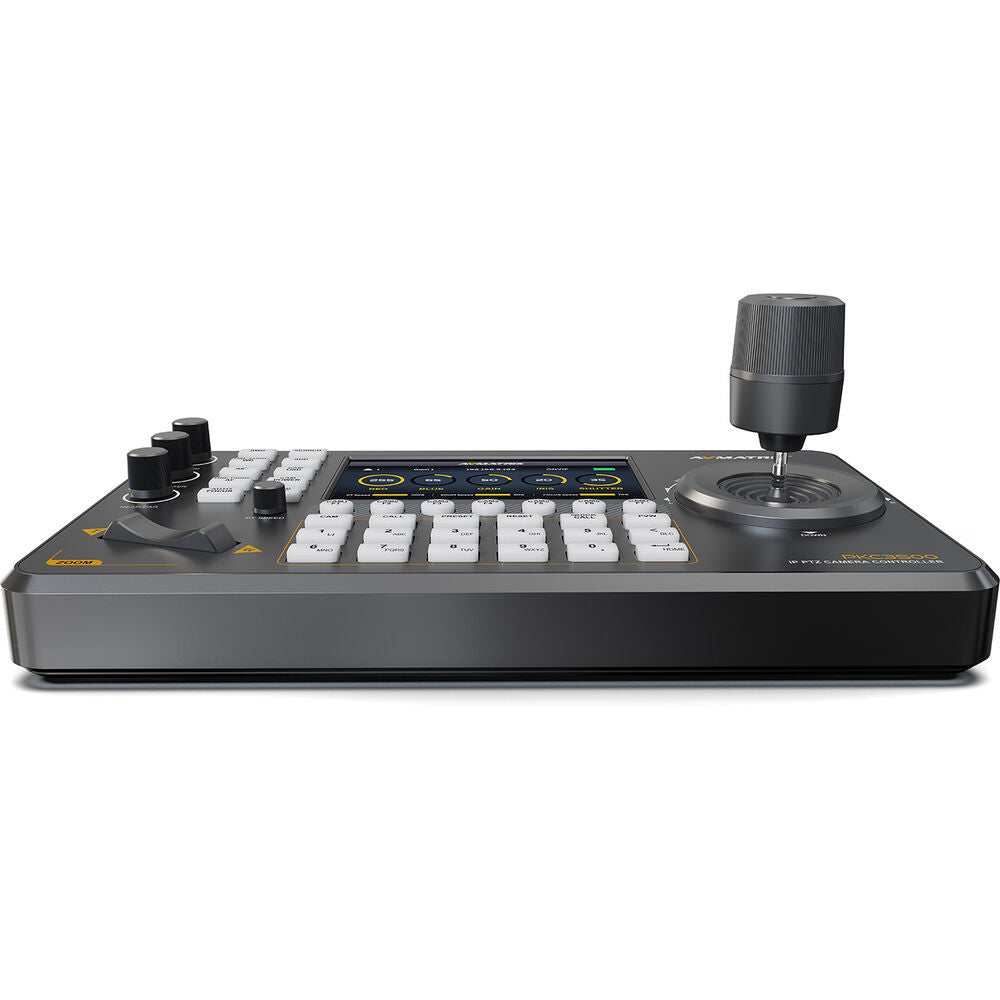

Control up to 255 PTZ cameras with a single operator over NDI/IP with the PKC3500-NDI PTZ Camera Controller from AVMATRIX. The controller offers joystick and button control for up to 255 PTZ cameras over IP and it can store up to 255 presets. This model also features NDI compatibility and the high-quality, low-latency NDI HX2 streaming codec.
Buttons and Joystick

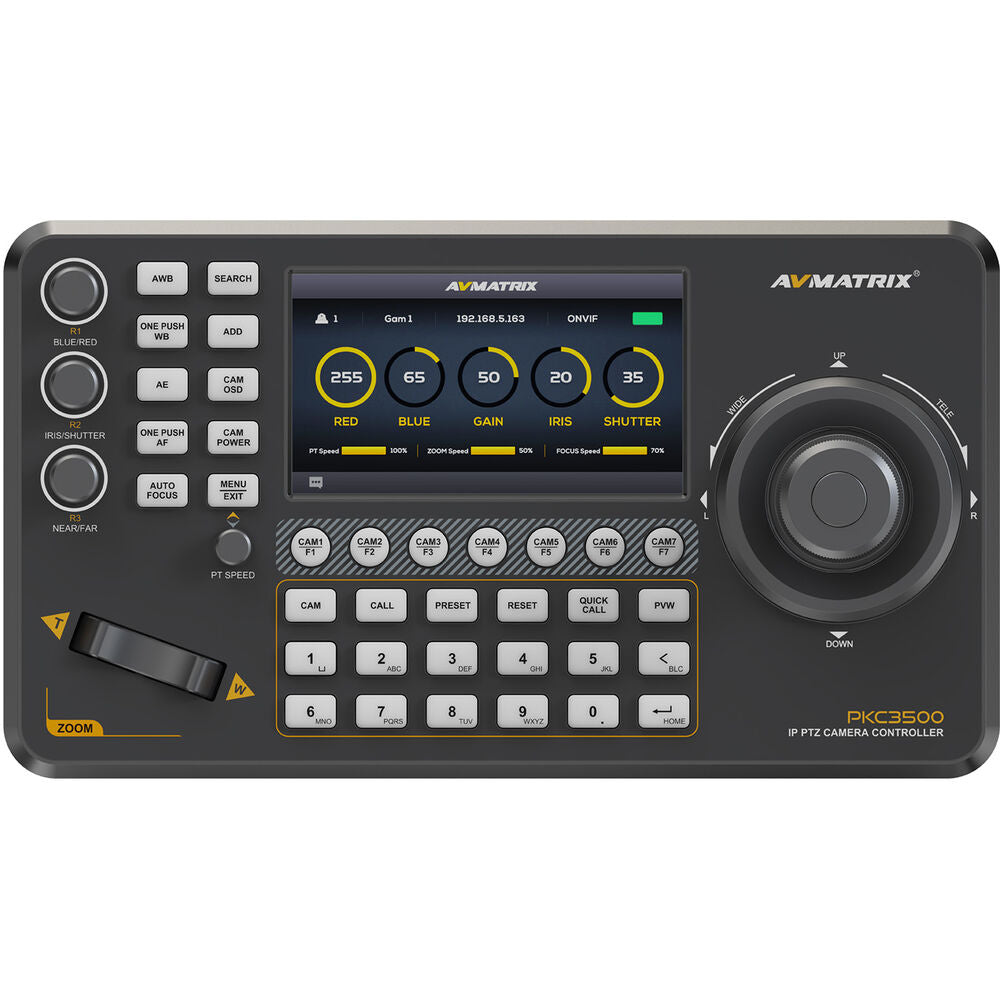

Physical control features include glowing buttons for working in the dark, 7 user-assignable camera keys for quick access, a 4D joystick, a rocker for smooth in/out zooms, 255 programmable camera presets, 255 camera addresses, and numerous knobs and buttons.
Control Protocol Options
PTZ control protocol support includes NDI, VISCA-over-IP, ONVIF, Pelco-P, and Pelco-D protocols over IP that enable you to control the speed of your pan, tilt, zoom, and lock moves and incorporates an LCD screen. The controller also offers the ability to control iris, focus, white balance, exposure, and on-the-fly speed control to control the finer camera settings on the PTZ cameras.
Bright 5" Touchscreen
The PTZ controller features a bright touchscreen that allows you to control settings and camera movements directly on the screen. You can also monitor camera previews in real time.
Power Options
You can power the controller using the included power adapter or via PoE on supported networks.
Real-Time Previews
The controller allows decoding via NDI HX2, RTSP and ONVIF, which allow simultaneous real-time previews of your camera video streams on the controller's 5" display.
