Description
AVMatrix Shark S4M All-In-One SDI / HDMI Audio and Video Mixer
FEATURES
- All-in-One 1080p60 AV Switcher & Mixer
- Two HDMI, Two SDI AV Inputs
- One HDMI Multiview, Two HDMI PGM Outputs
- USB-C Port for UVC Capture
- LAN Port for Web Control & Streaming
- Chroma Key, Luma Key, PiP & PoP Modes
- RTMP/SRT Streaming Support
- Six Mono, Two Stereo Audio Inputs
- One TRS, Two Balanced XLR Audio Outputs
- 99 Built-In Audio Effect Modes
The AVMatrix Shark S4M is the all-in one "swiss army knive" of mobile editing and video control. The S4M has SDI and HDMI video inputs, and both units offer a mobile editing and video processing suite.
The list of functions and features is both comprehensive and complete, and allows for the processing of both video feeds along with the input of separate audio feeds (up to 8 channels) which too can be mixed into the streamable or recordable video output.
It sports six mono microphone inputs, two stereo line inputs, one TRS headphone output, and two balanced XLR main outputs—all with precision controls. Each channel features gain adjustment, a two-band EQ, low-cut filtering, and access to 99 built-in DSP audio effect modes. Creators can further enhance their production with real-time effects such as chroma and luma keying, one PoP or two PiP group layouts, downstream keying, and logo overlays. With support for SD card and USB disk recording, the SHARK S4M delivers a streamlined solution for multi-camera, multi-source productions in one compact device.

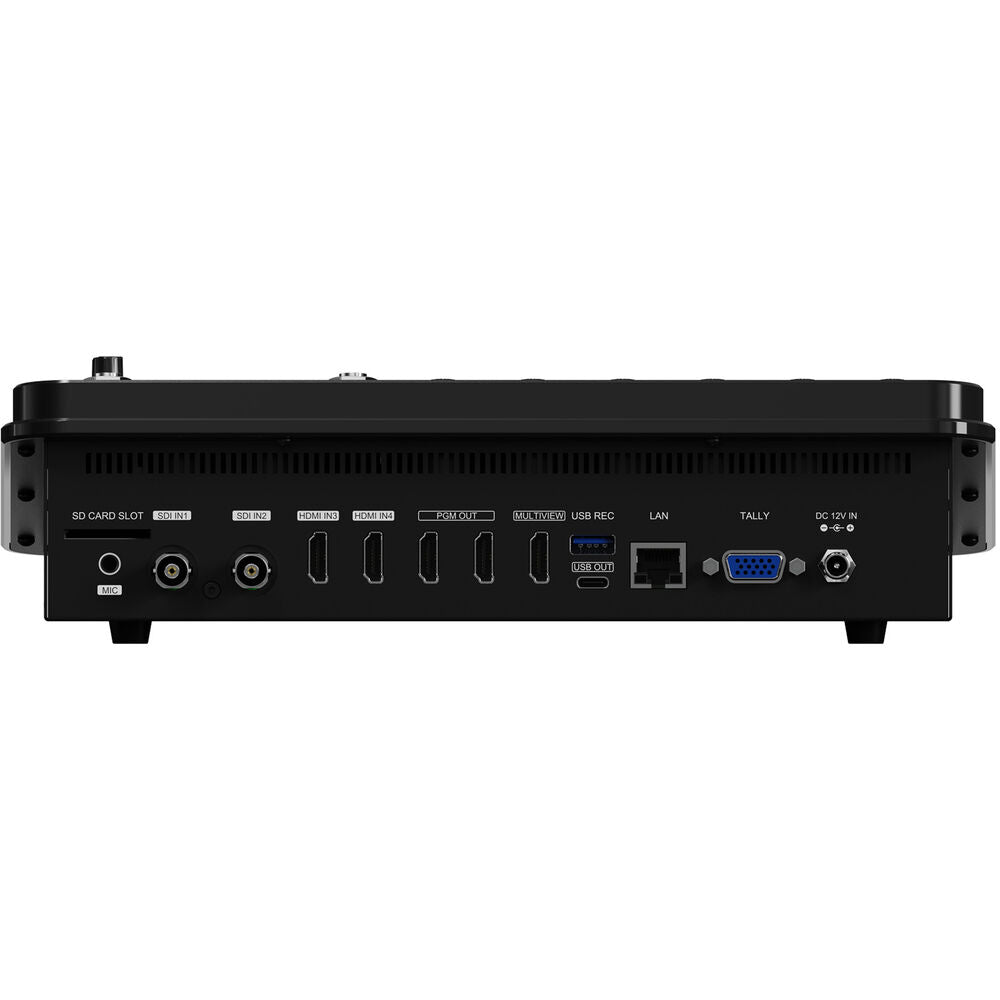

- Two HDMI and two SDI AV inputs for flexible source selection
- Two HDMI program outputs for simultaneous feeds
- One HDMI multiview output for live monitoring
- USB-C port enables UVC video capture to PC or Mac
- RTMP and SRT streaming support via LAN port
- SD card and USB disk recording capabilities
- Luma key and chroma key for seamless green screen integration
- Dual PiP (Picture-in-Picture) and PoP (Picture-outside-Picture) modes
- Downstream key (DSK) and customizable logo overlay
- T-Bar, auto, and cut transition options
- Wipe, mix, and dip effects for professional presentation
- Six mono mic/line inputs and two stereo line inputs
- One stereo headphone output and two balanced XLR main outputs
- 48V phantom power support with peak indicator
- Individual gain control, low-cut filters, and stereo/mono switching
- 99 built-in DSP audio effect modes for vocal and instrument enhancement
- MP3 recorder/player with Bluetooth audio input and USB sound card functionality

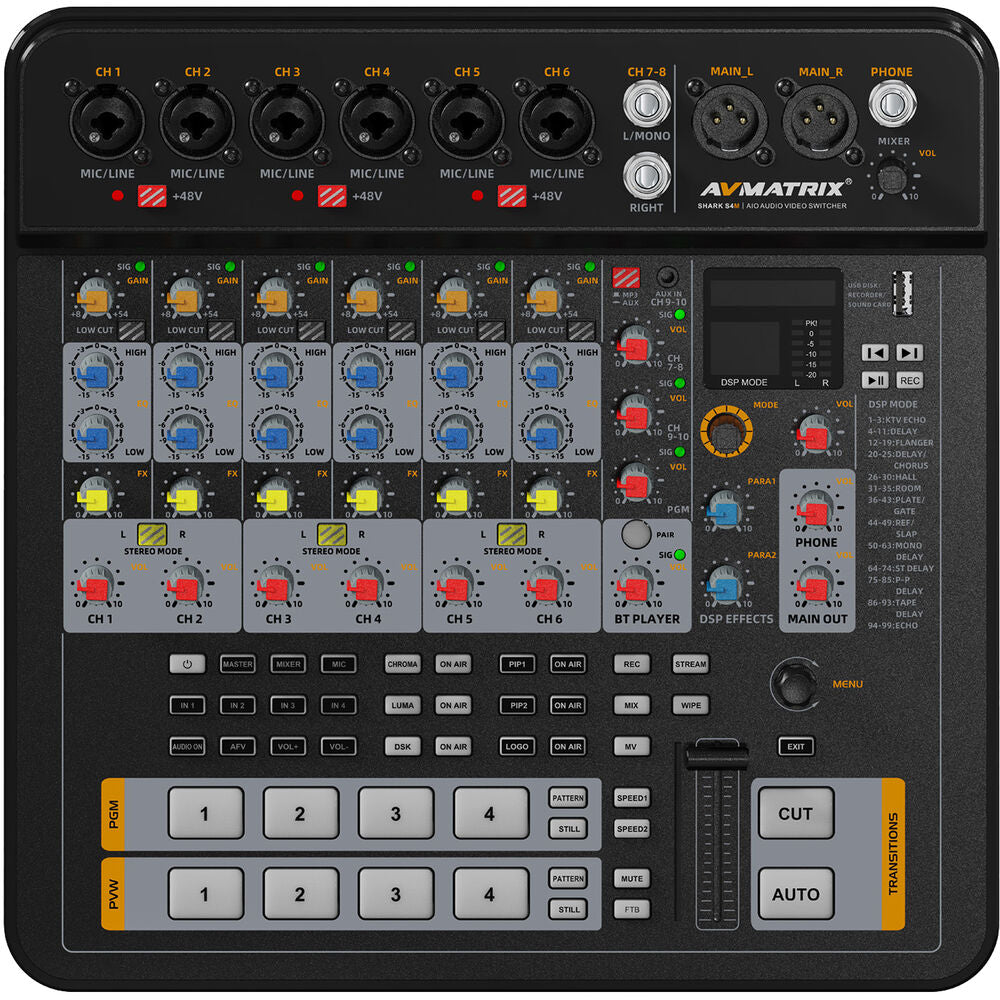

- All-in-one hardware interface with tactile controls
- Web-based interface for remote configuration via LAN
- Integrated media library for logo and image overlays
- Lightweight, compact build
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
SPECIFICATIONS
