AVMatrixSKU: S6

Need this in a hurry? Check current lead times for AVMatrix

Price:
£576.00(incl. VAT)
£480.00

(ex VAT)

Tax included

Stock:
Available to backorder
Shipping: Calculated at checkout

Payment & Security

Apple Pay Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

AVMatrix Shark S6 6-Channel HDMI/SDI Video Switcher

Portable 6 channel HDMI/SDI video switcher with 5" screen, Recording and USB Capture

FEATURES

  • 6-Channel Video Switcher
  • 3G-SDI and HDMI Input/Output
  • Input up to 1080p Video
  • Built-In 5" Display, RTSP Streaming
  • Support for External USB Drive Recording
  • Luma/Chroma Key, Mix/Fade/Wipe Effects
  • T-Bar, Auto, and Cut Transitions
  • Audio Mixing, Multiview, PiP Layout












SPECIFICATIONS

Mix Effects
Effect Types
1x Graphic, Chroma Key
Downstream Keys
1x DVE
Processing
Switching Type
Software, Touchscreen
Input
Number of Video Input Sources
6
Video Inputs
4x BNC (3G-SDI) Female
2x HDMI Female
Input Video Format
SDI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 23.98/24/25/29.97/30/50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
HDMI
WUXGA (1920 x 1200) at 30/50/60 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 15/23.98/24/25/29.97/50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
Audio Inputs
2x 1/8" / 3.5 mm TRS Analog Female
Input Audio Format
Analog
Embedded Audio Input
HDMI
SDI
Output
Video Output Channels
4
Video Outputs
3x BNC (3G-SDI) Female
1x HDMI Female
1x USB-C (USB Video) Female (Program)
Output Video Format
HDMI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
Audio Outputs
4x 1/8" / 3.5 mm TRS Analog Female
Output Audio Format
Analog
Embedded Audio Output
HDMI
SDI
RJ45
Multiview Output
6-Way Multiview via HDMI
Monitor Output
1x HDMI

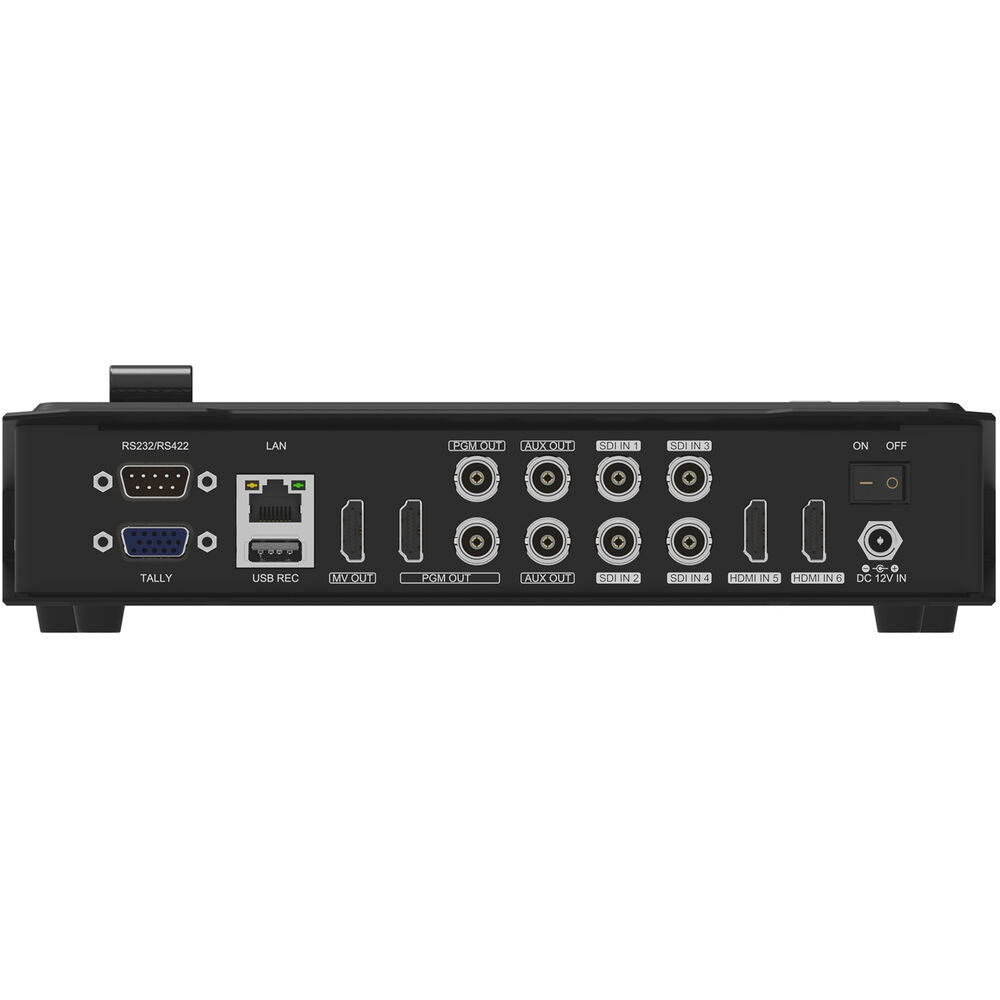

Connectivity
Other I/O
1x DE-9/DB-9 RS-232, RS-422, RS-485 Input/Output
1x DE-15/DB-15 Tally Input/Output
1x RJ45 LAN Input/Output
1x USB-A 2.0 Input/Output
Video Standard Compliance
SMPTE 259M/292M/424M
IP Encoding/Decoding
IP Video
MJPEG:
1920 x 1080 at 60p Encoding
Transport Protocols
RTMP, RTMPS, RTSP, SRT
Compatible Services
Facebook Live, Instagram, Livestream, Skype, Twitch, YouTube Live
Internal Recording
Recording Media
1x USB-A 2.0 (External Drives)
Recording Modes
1920 x 1080p up to 60 fps
Display
Display Size
5"
Hardware
OS Compatibility
Windows 7 or Later / Linux 2.6 or Later / macOS 10.8 or Later
Processor
Not Specified by Manufacturer
Wireless
No
Power
Power I/O
1x Barrel (12 VDC at 1.5 A) Input
Power Consumption
Device: 18 W
General
Operating Conditions
-4 to 140°F / -20 to 60°C
Storage Conditions
-22 to 158°F / -30 to 70°C
Dimensions
9.4 x 6.6 x 1.9" / 238.5 x 168.2 x 47.5 mm
Weight
3.2 lb / 1.5 kg
