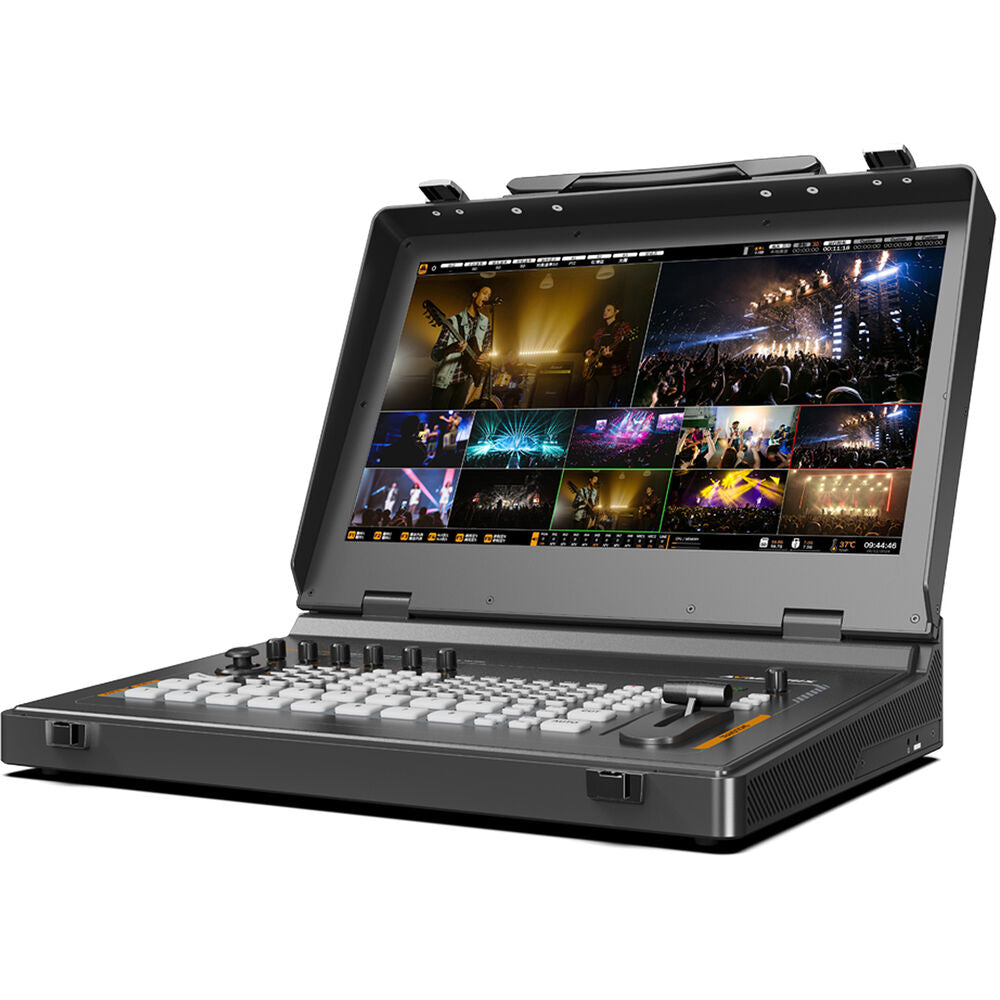

AVMatrix SHARK S8X PLUS-NDI 8-Channel SDI/HDMI/NDI Portable Video Switcher

Portable 8-channel HDMI/SDI/NDI video switcher with 17.3 inch screen and 8-channel PTZ controller

FEATURES

• Video Switcher for Streaming & Recording
• 17.3" FHD IPS Multiview Display
• Eight SDI & Two 4K HDMI AV Input Ports
• Four SDI & Three HDMI AV Output Ports
• USB, SD & SATA Recording Support
• RTMP, SRT, RTSP & NDI Streaming
• Up to Six Adjustable Keys
• Chroma Key, Luma Key, PIP & Logo Overlay
• 10-Channel Audio Mixing Support
• Visca, Onvif, Pelco P/D & NDI Control

Designed for demanding live production environments, the AVMATRIX SHARK S8X PLUS-NDI combines advanced broadcast capabilities with a portable, all-in-one design. Equipped with integrated NDI support, this professional 8-channel video switcher delivers smooth, real-time production for live events, houses of worship, sports coverage, conferences, studios and online streaming.

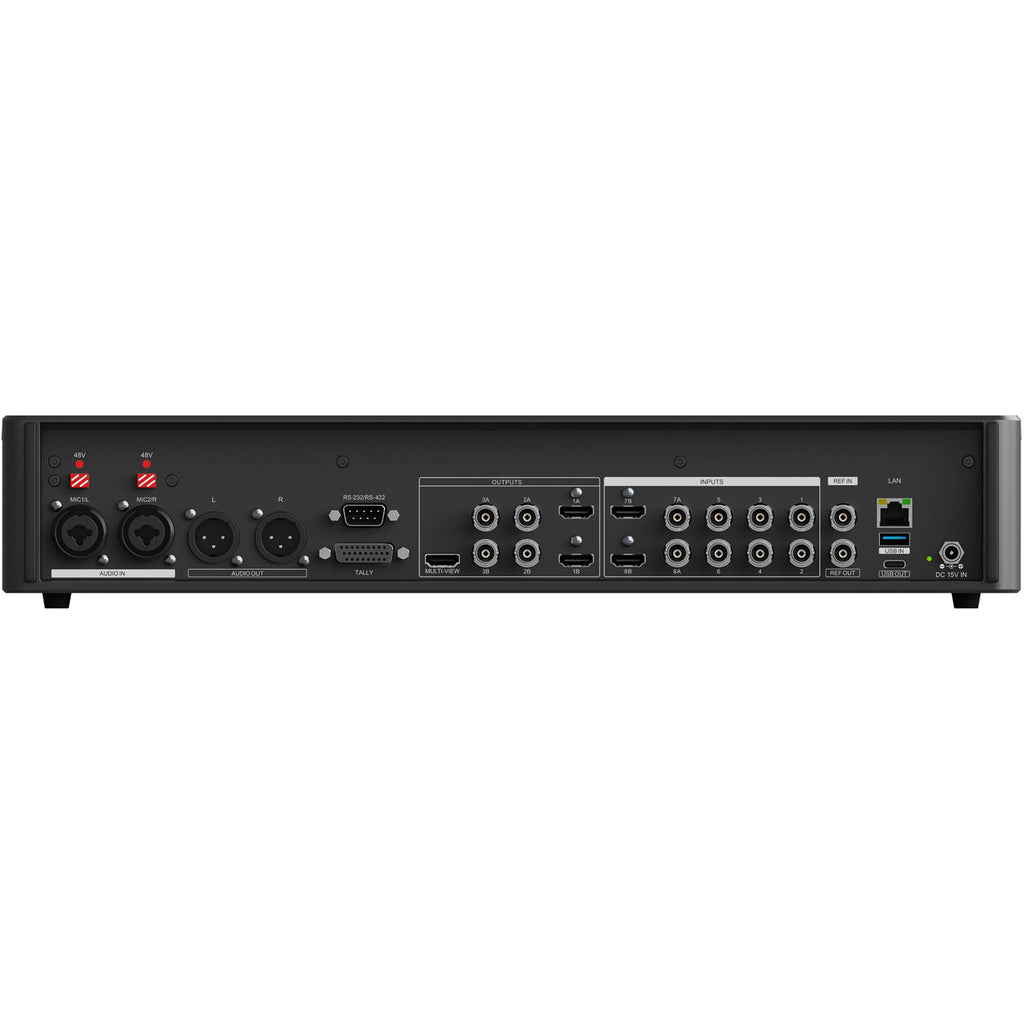

With eight 3G-SDI inputs and two 4K HDMI inputs, the SHARK S8X PLUS-N offers exceptional flexibility for connecting multiple cameras and broadcast sources. Outputs include four 3G-SDI connections, dual HDMI programme outputs and a dedicated HDMI multi-view output, allowing comprehensive monitoring via the integrated 17.3-inch Full HD IPS display.

Built to simplify both live streaming and content capture, the switcher records directly to USB storage devices, SD cards or SATA SSDs, making it straightforward to save footage for editing or archiving. Native RTMP, SRT, RTSP and NDI streaming protocols enable direct broadcasting to popular streaming platforms without the need for additional encoding hardware.

Creative production tools include up to six independently adjustable key layers, allowing complex scene compositions with Chroma Key, LUMA Key and custom logo overlays. Three fully configurable Picture-in-Picture (PIP) windows provide added flexibility, while T-Bar, Auto and Cut transition effects ensure professional programme switching.

Audio performance is equally impressive, with support for mixing up to ten audio channels. Two XLR/6.35mm combo inputs with switchable phantom power accommodate professional condenser microphones, while balanced audio outputs and a dedicated headphone connection provide reliable monitoring throughout production.

For streamlined multi-camera operation, the SHARK S8X PLUS-N supports PTZ camera control using Visca, ONVIF, Pelco P/D and NDI protocols. Additional tally, RS422 and RS232 control interfaces make it an ideal solution for both single-operator productions and larger professional broadcast workflows.

Key Features

• Professional 8-channel live production video switcher with integrated NDI support
• Eight 3G-SDI inputs and two 4K HDMI inputs for flexible source connectivity
• Four 3G-SDI outputs, dual HDMI programme outputs and HDMI multi-view output
• Built-in 17.3-inch Full HD IPS display for convenient live monitoring
• Direct recording to USB drives, SD cards and SATA SSDs
• Native RTMP, SRT, RTSP and NDI streaming without external encoders
• USB-C connection for UVC capture device compatibility
• Up to six fully adjustable key layers
• Chroma Key, LUMA Key and logo overlay effects
• Three customisable Picture-in-Picture (PIP) windows
• Smooth T-Bar, Auto and Cut transition modes
• Integrated 10-channel audio mixer
• Two XLR/6.35mm combo microphone inputs with phantom power
• PTZ camera control via Visca, ONVIF, Pelco P/D and NDI
• Tally, RS422 and RS232 control interfaces
• Balanced audio outputs and dedicated headphone monitoring
