Description

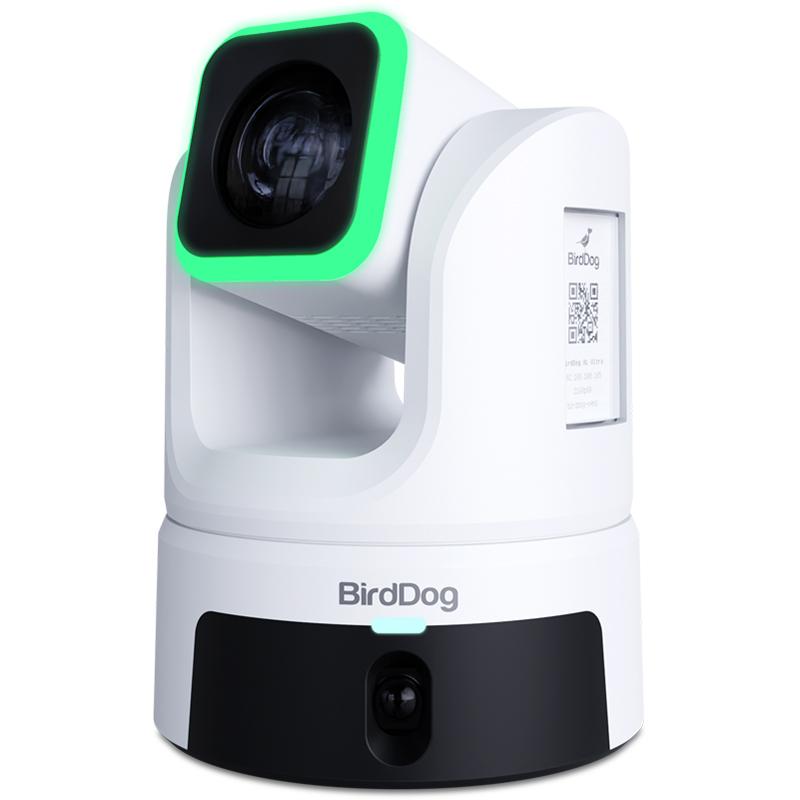

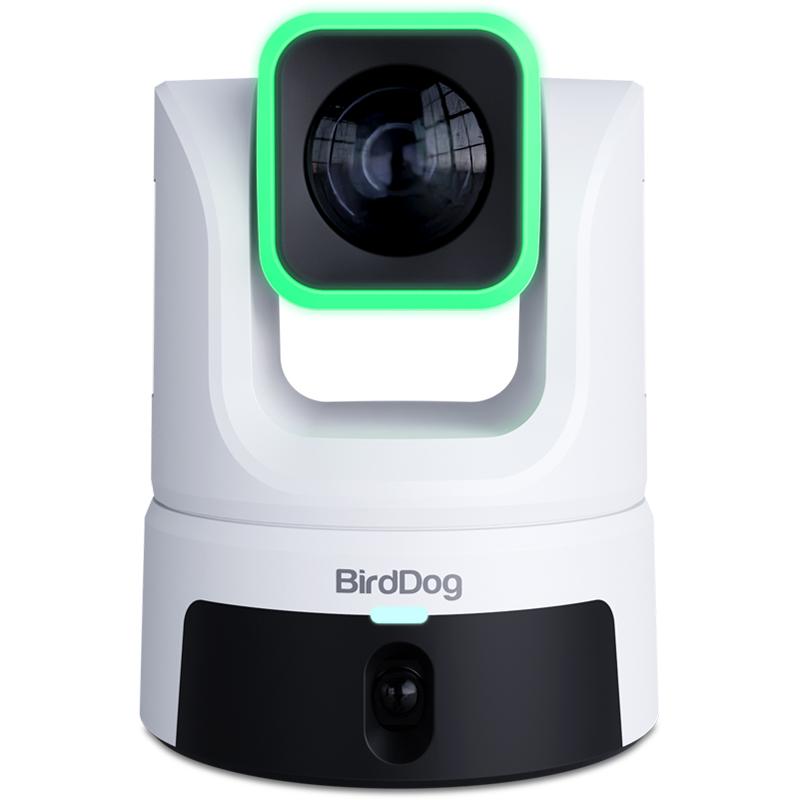

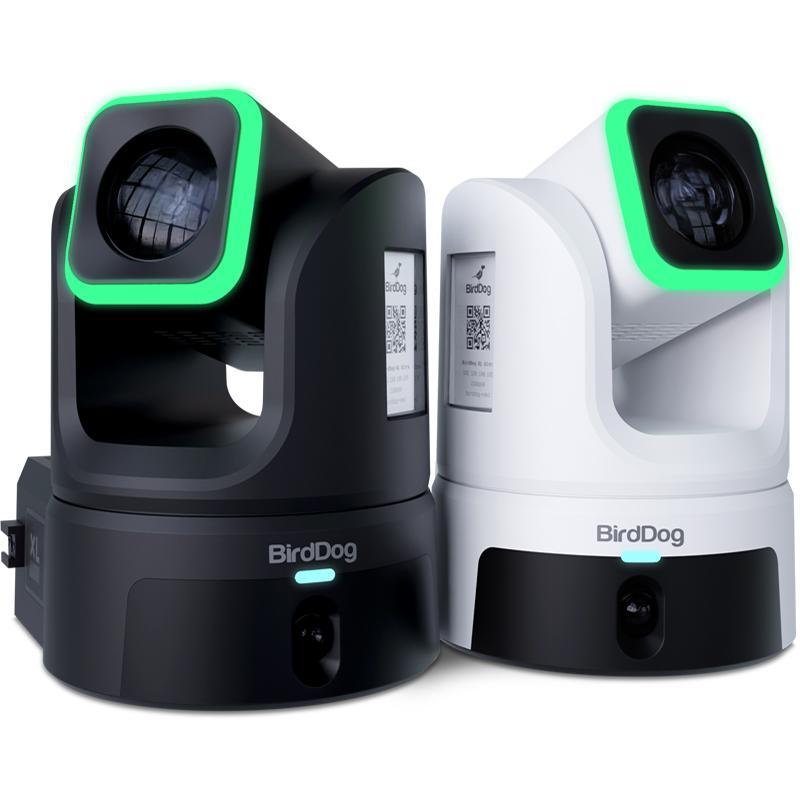

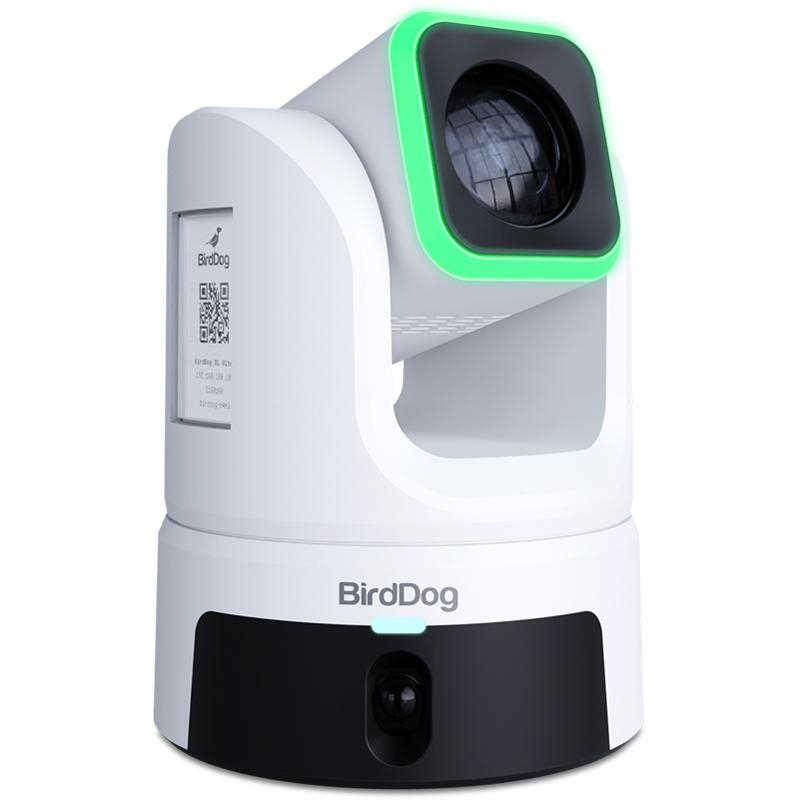

BirdDog XL Ultra PTZ Camera with a Cinematic 4/3-inch CMOS Sensor
PTZ Camera with a cinematic 4/3" CMOS sensor, 20× optical zoom, and dual 4K60 outputs - White
Pre-Order Now – Secure Your Unit with a £100 Non-Refundable Deposit. Due to ship Mid-Late October 25.
FEATURES
- PTZ Camera with a cinematic 4/3" CMOS sensor, 20× optical zoom, and dual 4K60 outputs
- Large-format 4/3"" CMOS sensor for cinematic depth of field and outstanding low-light performance
- 20× optical zoom (40× in HD) with OLPF and ND filters for precision and clarity
- AI tracking with machine learning, using dual-camera input for natural, human-like framing
- Ultra-quiet motors and advanced thermal design for distraction-free operation
- Dual 4K60 outputs via 12G-SDI and HDMI for uncompromising image quality
- FreeD and Genlock support, making XL ideal for XR stages, AR workflows, and multi-camera sync
- SFP+ fiber connectivity for large-scale and remote installs
- Simultaneous Full NDI® and NDI® HX3 streaming for flexible workflows
- Dual streaming support — NDI plus SRT, RTMP, or RTSP concurrently
- Firmware-ready for NDI 6.2, ensuring future-proof performance.
This isn’t just another PTZ. It’s the heavyweight champ, built around a colossal 4/3"" CMOS sensor — the kind usually found in pro cinema and DSLR cameras. Paired with a 20× optical zoom (40× in HD), OLPF, and ND filters, XL delivers cinematic depth, incredible low-light performance, and clarity that makes other PTZs look small.
But XL is more than just a big sensor. Its dual-camera design gives you both a main PTZ and a 100° panoramic camera, each shooting in 4K60, each independently adjustable, and each able to output simultaneously. One camera, two perspectives, endless flexibility.
AI tracking is powered by a neural processor that frames subjects naturally, moving with human-like precision. Premium motors and a next-gen thermal system keep motion whisper-smooth and nearly silent, so all the drama stays in front of the camera, not behind it.
Connectivity is uncompromising: 12G-SDI, HDMI, SFP+ fiber, PoE++, and balanced XLR audio, plus simultaneous Full NDI® and NDI® HX3. Dual streaming lets you send NDI alongside SRT, RTMP, or RTSP, so you’re ready for any workflow — broadcast, AV, XR, or virtual production.
With signature BirdDog touches like Halo Tally with RGB customization, dual side e-ink displays, and a rear numbering tally system, XL Ultra doesn’t just perform like cinema — it looks the part too.
From studios and XR stages to houses of worship and arena productions.
SPECIFICATIONS
| Primary Camera | |
| Image Sensor | 4/3" Sony CMOS 5K Sensor |
| Lens | 20x Optical Zoom Lens |
| Video Format | 2160p60 |
| Additional Resolutions | 2160p60, 59.94, 50, 29.97, 25 1080p60, 59.94, 50, 30, 29.97, 25 1080i60, 59.94, 50 720p60, 59.94,50 |
| Focal Length | 9.8mm ~ 186mm |
| Apeture | f2.8~f4.5 |
| Focus | Auto, Manual |
| AF Method | PDAF (Phase Detection Auto Focus) |
| Horizontal Field of View | 71° ~ 4° |
| Exposure | Auto, Shutter Priority, Iris Priority, Manual, BLC, WDR |
| Shutter Speed | 1/1- 1/10,000s |
| 3D Noise Reduction | Yes |
| SNR | 300lux-600lux 45-50dB |
| Effective Pixels | 20.89 MP |
| Vertical Field of View | 40° ~ 2° |
| Diagonal Field of View | 79° ~ 4.5° |
| ND Filter | Yes 1, 1/4/ 1/16, 1/62 |
| Optical Low Pass Filter (OLPF) | Yes |
| Image Stabilization | Digital |
| Digital Zoom | 16x Supersampling |
| Filter Ring | Yes ⍉TBC |
| Secondary Panoramic Camera | |
| Image Sensor | 1/1.8" Sony CMOS 4K sensor |
| Lens | Fixed |
| Focal Length | 4.4mm |
| Aperture | f2.0 |
| Horizontal Field of View | 85° |
| Vertical Field of View | 53° |
| Diagonal Field of View | 93° |
| Mechanical | |
| Pan/Tilt Rotation | ±170°, -30° ~ +90° |
| Pan Control Speed | 0.05° ~ 120°/s |
| Tilt Control Speed | 0.05° ~ 90°/s |
| Preset Number | 256 |
| Integrated Tally Light | Halo Style, RGB (Front), Number Style (Rear) |

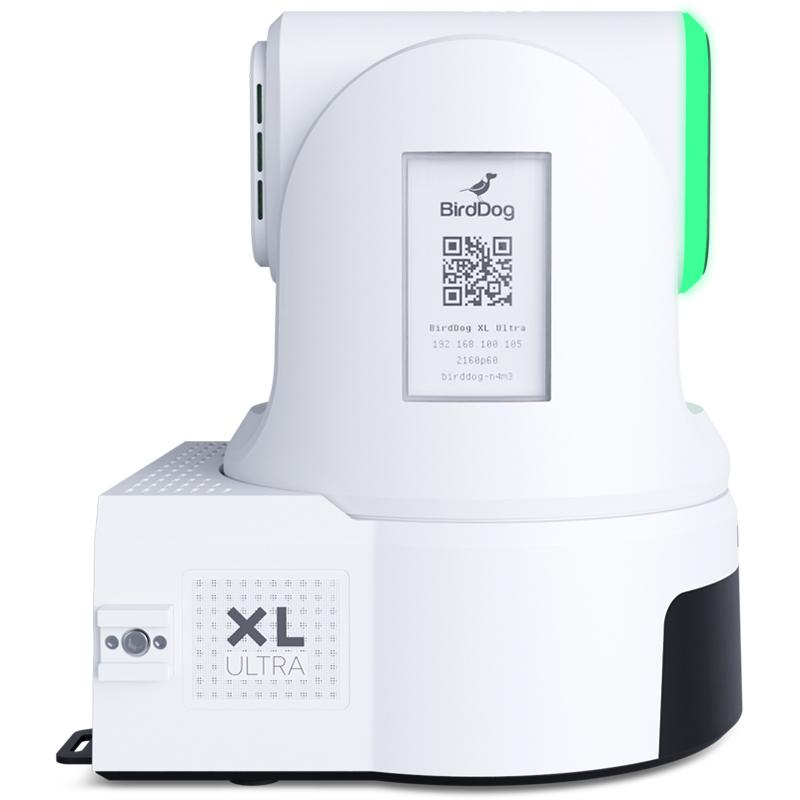

| e-Ink Display | 2x 3" Grayscale e-Ink Displays |
| Pan/Tilt Drive System | Ultra-fine drive |
| Quietness | NC 50 (with a sound pressure level corresponding to the 500Hz - 1kHz frequency band being 49 - 51 dB) |
| I/O Interface | |

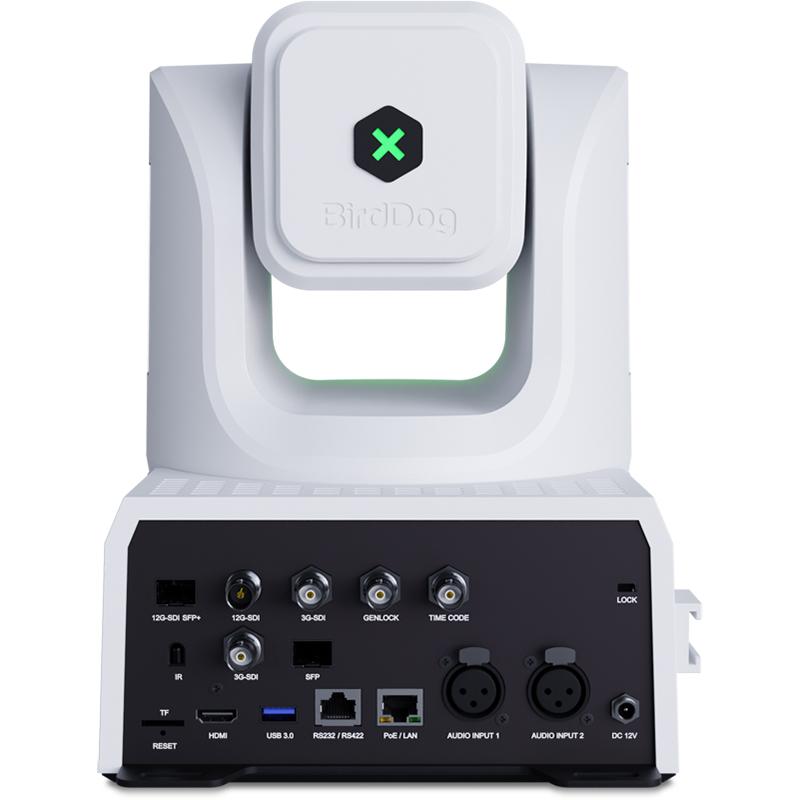

| Video Output Interfaces | 12G-SDI, 3G SDI x 2, HDMI 2.0, USB-C, 1Gb RJ45, SFP+ Cage (Ethernet) |
| Video Compression Formats | H.264, H.265, SpeedHQ |
| Network Interfaces | 1x 1GbE Adaptive Ethernet port, PoE++, 1x SFP+ Cage (Ethernet) |
| Encoder Network Protocols | High-Bandwidth NDI® (SpeedHQ), NDI® HX3, NDI® HX2, SRT, RTSP, RTMP |
| Decoder Network Protocols | NDI® HX3, NDI® HX2 |
| Decoder Supported Resolutions | 1080p @ 60 / 59.94 / 50 /30 / 29.97 / 25fps, 720p @ 60, 59.94, 50fps |
| Control Interfaces | 1Gb Ethernet, SFP+, RS232 (input & output), RS422, TYPE-C (UVC) |
| Control Protocols | VISCA-IP, NDI®, VISCA Serial, Pelco-P, Pelco-D |
| FreeD Protocol | Supported - UDP / NDI® Embedded |
| Analogue Audio | Balanced Audio XLR x2 |
| Digital Audio | Embedded with Main and Secondary HDMI, 12G-SDI, Network Video, USB (UVC) |
| Genlock | Supported |
| Timecode | Supported |
| SD Card Slot | MicroSD - Recording supported |
| Kensington Lock | Supported |
| WebUI Control | Integrated BirdDog BirdUI 2.0 |
| API Support | API Support |
| AI Features | |
| Presenter Tracking | Advanced with Secondary camera assistance |
| Auto-Framing | Advanced with Secondary camera assistance |
| Zone Tracking | Supported |
| Gesture control | Supported |
| General | |
| Environmental Operation | Internal |
| Input Voltage | DC-12V, PoE++ |
| Imput Current | ＜60W |
| Power Consumption | 12V 5A |
| Working Temperature | 0°C ~ 40°C (32°F ~ 105°F) |
| Working Humidity | ~20% ~ 80% (Non-condensing) |
| Dimension (W*H*D) | 218.6 x 291.6 x 263.3mm (8.61 x 11.48 x 10.37in) |
| Weight | ≈4KG |
