Computer Interface
USB Type‑C.
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description
Blackmagic Design ATEM Micro Camera Panel - SWPANELCCU1
FEATURES
- Compact Camera Control Panel
- Control up to 8 Cameras
- Joystick Control, Red/Green Tally LEDs
- USB-C or Bluetooth Computer Connections
- Battery Powered with Power Switch
- CCU Channels to Control More Cameras
- Aux Output, RGB Balance Knob Controls

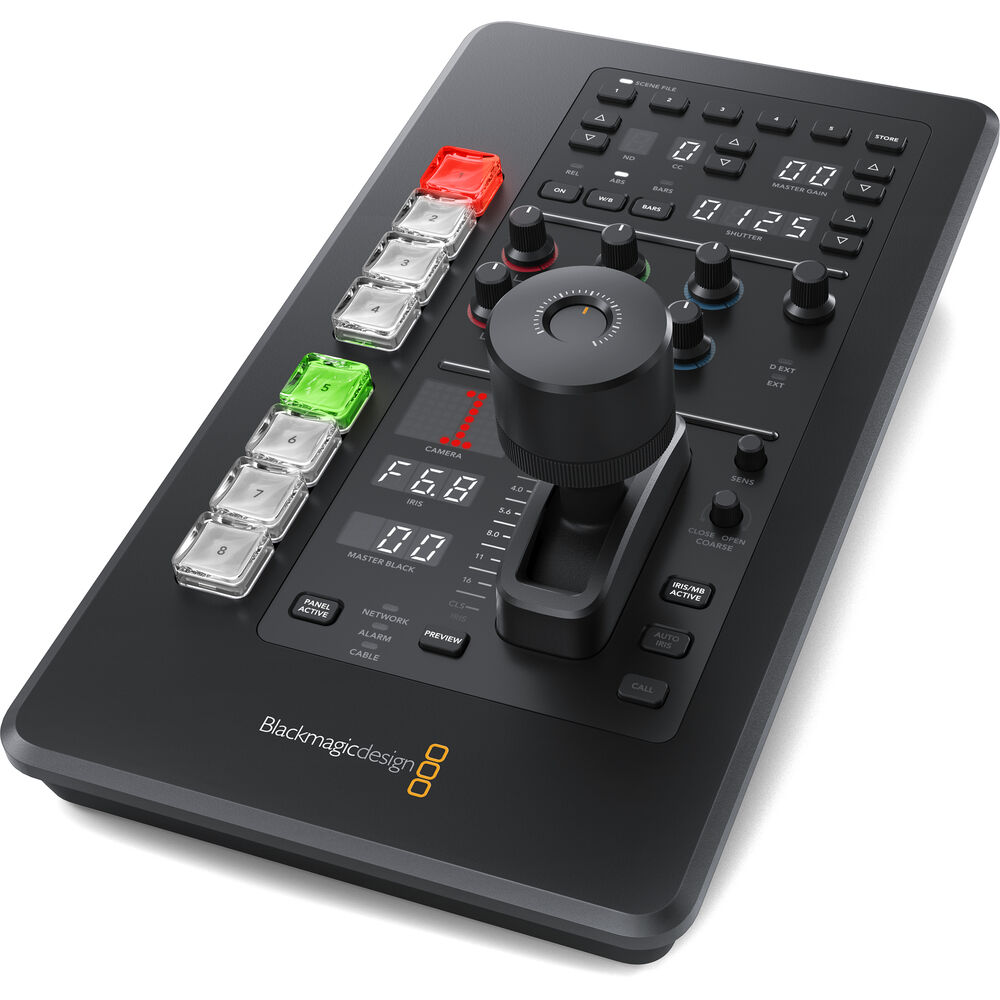

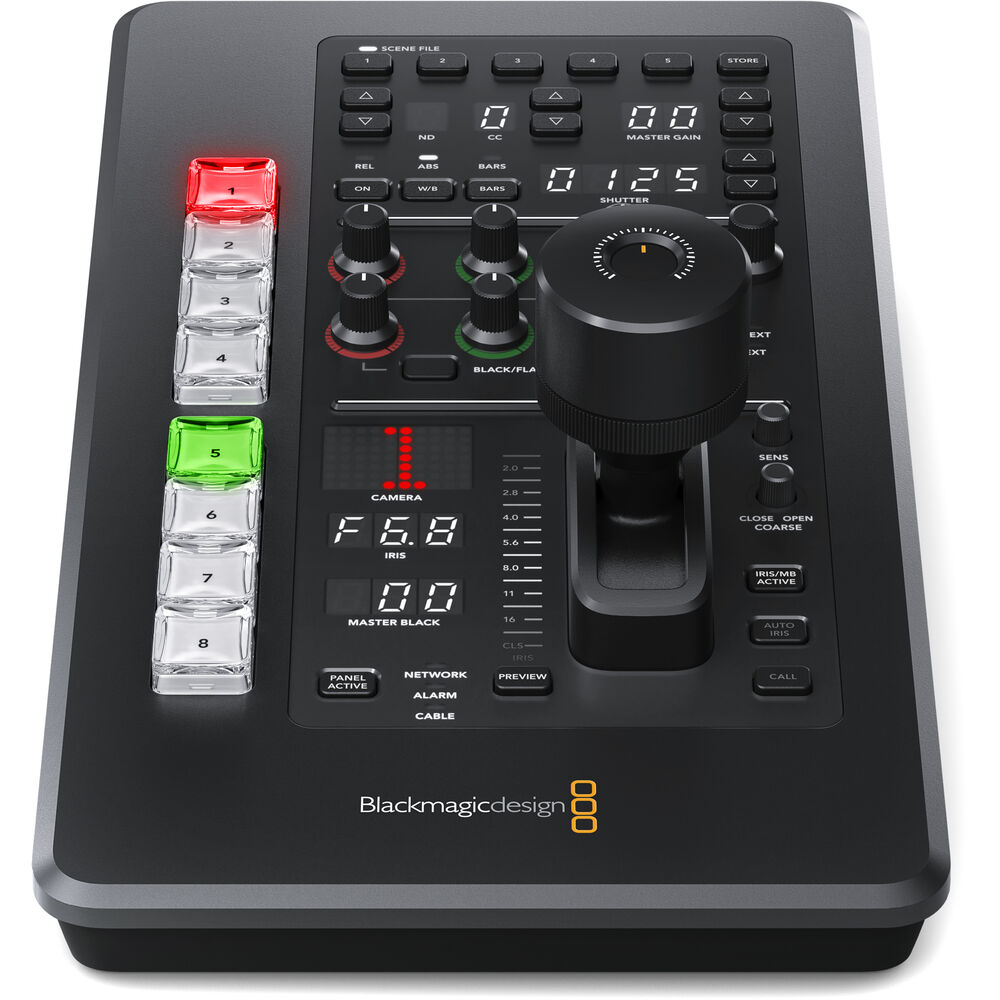

ATEM Micro Camera Panel is a portable camera panel with high end broadcast CCU controls. Control iris, pedestal, shutter, white balance, master gain, RGB balance and more for up to 8 cameras from a single panel. Connects to ATEM Software Control via Bluetooth or USB‑C.
Connections
Bluetooth
Bluetooth 5.1 LE
Software Updates
1 x USB‑C for firmware updates.
Product Specifics
Camera Selection buttons
8 x NKK buttons.
Assignable via setup utility.
Camera Number Display
Green off air, red on air.
Setup
White and black balance setup.
Flare via modifier key.
3 Axis Joystick
1
Preview Button
1
Iris Control
Auto Iris On, Coarse control.
Iris Range
CLS f32 to f1.2
Gain Range
-12dB to +32dB
ND Filters
0, 2, 4, 6.
Shutter Range
1/24 to 1/2000
White Balance Range
2500K to 10,000K
Recallable Scenes
5 per camera.
Panel Active
Protects settings.
Software
Software Applications
ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
Operating Systems
Mac 14.0 Sonoma,
Mac 15.0 Sequoia or later.
Windows 10 and 11.
Windows 11 for ARM

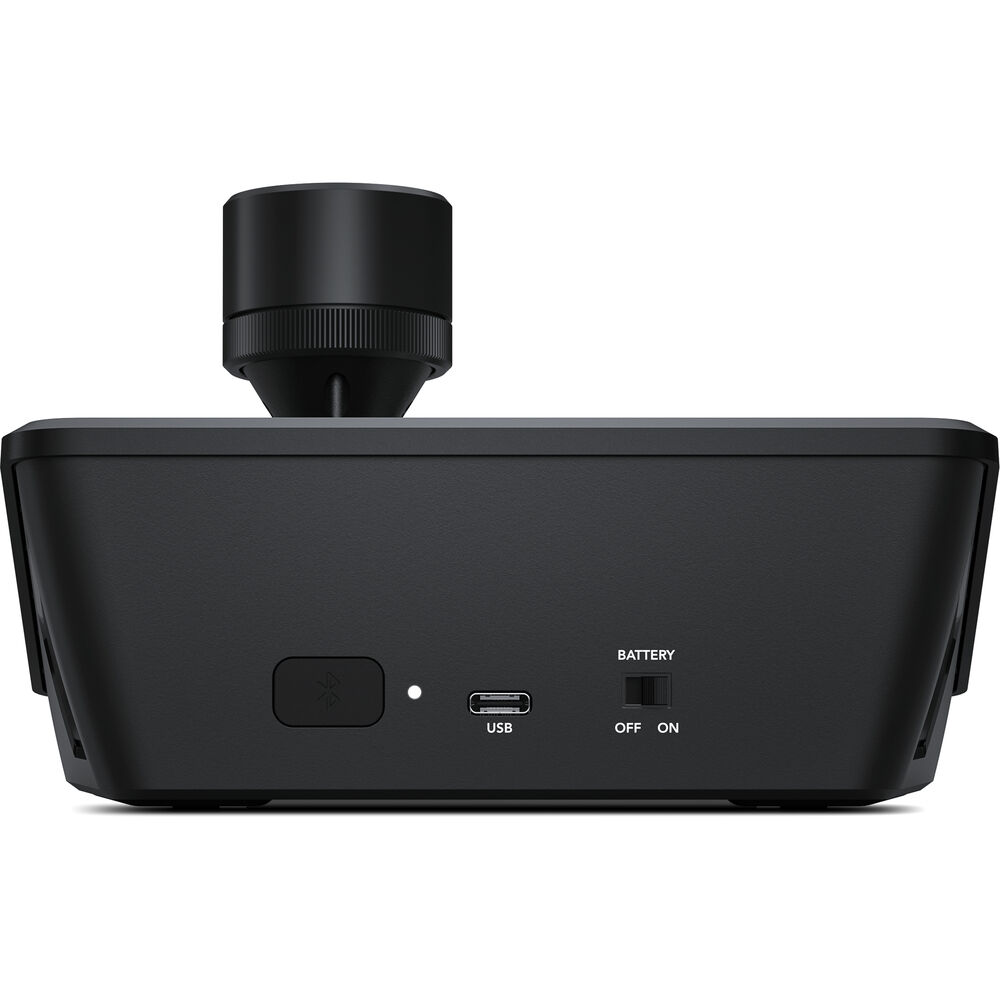

Power Requirements
Power Supply
Internal battery with power switch.
USB-C port for external power supply and battery charging.
Power Usage
TBA
Battery Life
TBA
Physical Specifications
Environmental Specifications
Operating Temperature
5° to 40° C (41° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non‑condensing
What's Included
ATEM Micro Camera Panel
Welcome wallet with QR code for software download
1 x USB‑C cable
Warranty
1 Year Limited Manufacturer’s Warranty.
