Blackmagic DesignSKU: SWPANELABRMP20

Need this in a hurry? Check current lead times for Blackmagic Design

Price:
£858.00(incl. VAT)
£715.00

(ex VAT)

Tax included

Stock:
Available to backorder
Shipping: Calculated at checkout

Payment & Security

Apple Pay Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

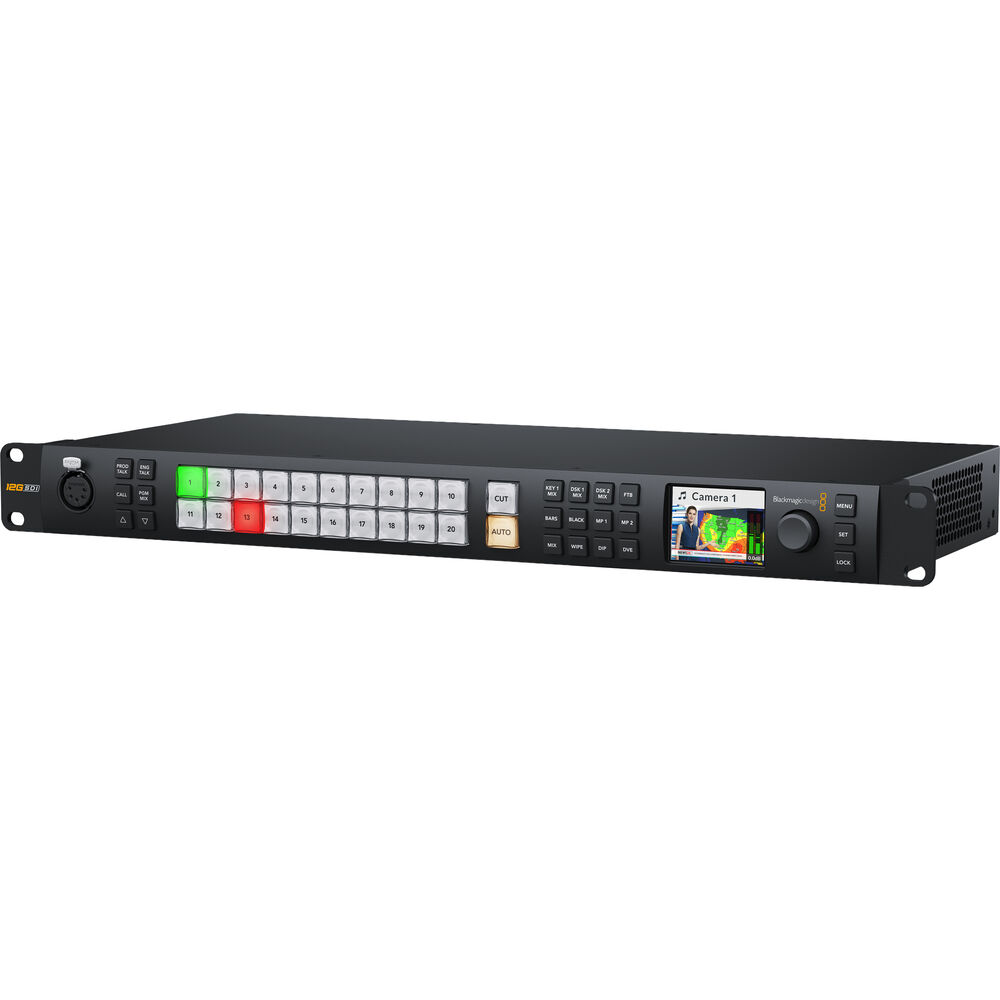

Blackmagic ATEM Monitoring Rack Panel 20

**BMD NO LONGER ship from the UK ALL their Kit is now held in the Netherlands warehouse so please now allow 3-5 days lead time when ordering items**

FEATURES

  • Monitoring converter built into a rack mount ATEM control panel.
  • Converts 10G Ethernet SMPTE-2110 to 12G-SDI and HDMI outputs.
  • 2 Redundant 10G Ethernet ports for SMPTE-2022-7 compliance.
  • Includes dedicated NMOS connection for routing IP sources.

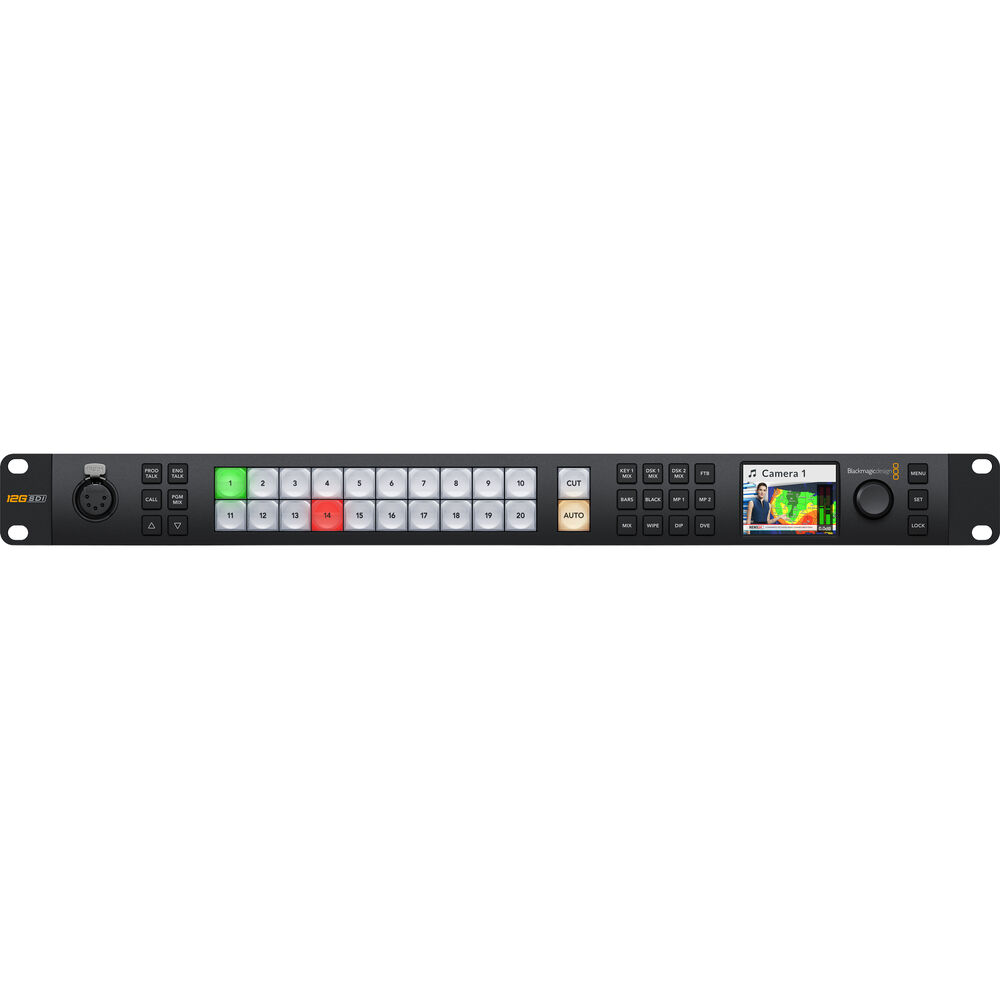

  • Front panel LCD allows monitoring of video and audio meters.
  • Front panel includes a 5 pin broadcast talkback headset connector.
  • Dual redundant AC power supplies for broadcast reliability.

ATEM Monitoring Rack Panel, a new combination monitoring converter and control panel that can be used with ATEM Constellation IP live production switchers. The ATEM Monitoring Rack Panel converts SMPTE 2110 IP to HDMI and 12G-SDI for connecting to monitors, however it also has front panel input buttons for controlling the switcher as well as an LCD and talkback connections

SPECIFICATIONS

Compatibility
Not Specified by Manufacturer
Buttons
22 x LED Backlit
8 x Source
4 x Transition
6 x Talkback and Mix
Rack Units
1 RU
Video Formats
UHD 4K 3840 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
HD 1920 x 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
HD 1920 x 1080i: 60, 59.94, 50
1280 x 720p: 60, 59.94, 50
Color
10-Bit, 4:2:2
Color Spaces
Rec. 709, Rec. 2020
Video Standard Compliance
SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022‑7
Codecs Supported
SMPTE 2110 IP
Blackmagic IP10 Optional for 2160p59.94 and 2160p60
Supported Protocols
IEEE 1588-2008 (PTP v2)
ST 2059-1
ST 2059-2
NMOS
Supported Operating Systems
macOS 14.0 Sonoma, 15.0 Sequoia, 26.0 Tahoe or Later
Windows 10 and 11, Windows 11 for ARM
Software
ATEM Setup Utility
ATEM Software Control Panel
Display
Panel Type
LCD
Size
Not Specified by Manufacturer
Touchscreen
No

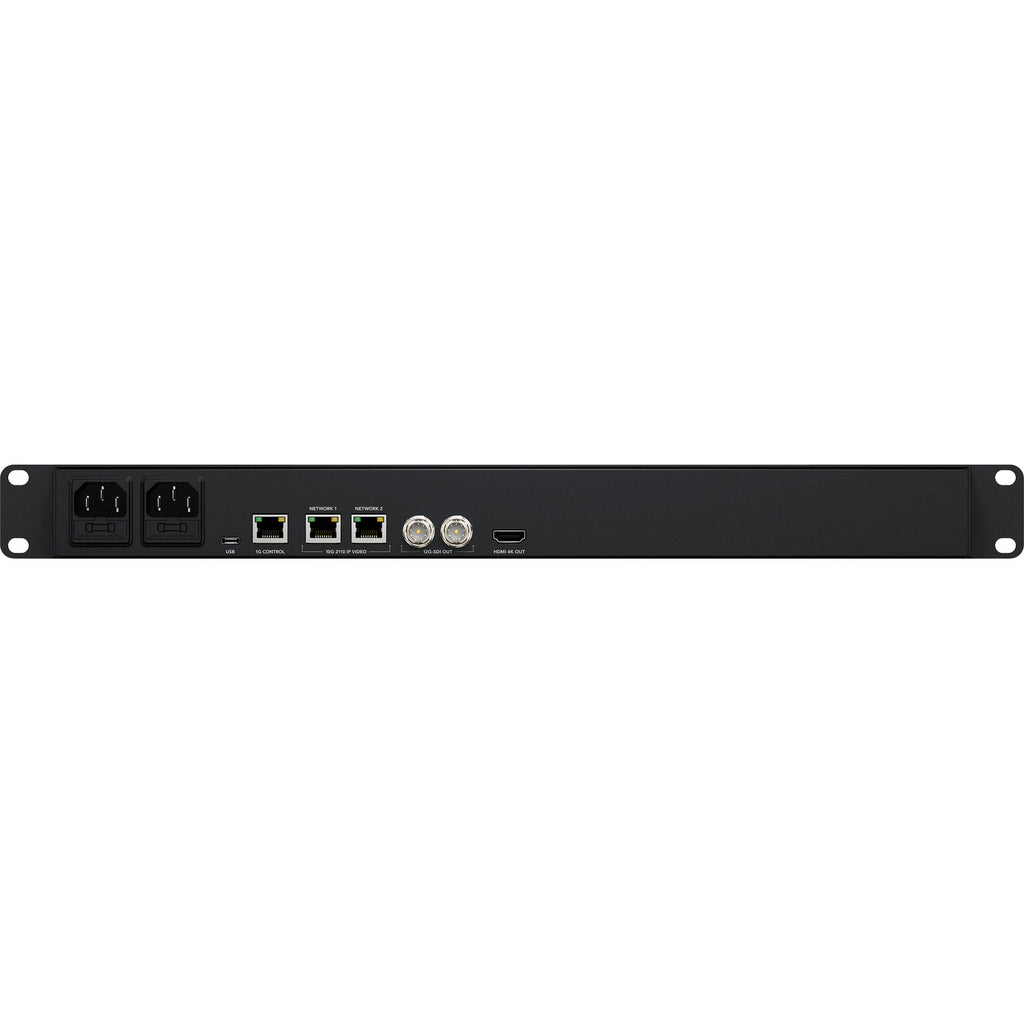

Inputs/Outputs
USB I/O
1 x USB-C (Firmware Only) Female Input
Video I/O
2x RJ45 Input ( Redundant 10G LAN Connections )
2x BNC (12G-SDI) Monitor Output ( Program, Preview, Multiview )
1x HDMI 2.0 Monitor Output ( Multiview )
Audio I/O
1x XLR 5-Pin Headphone/Mic Input/Output (Talkback)
Other I/O
1 x RJ45, 1G Ethernet Control
Power
Power Source
Plug-In Power
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Power Input
2 x IEC C14 (Redundant)
Physical
Mounting
2x Rack Ears
Color
Black
Operating Conditions
32 to 104°F / 0 to 40°C up to 90% Humidity
Storage Conditions
-4 to 140°F / -20 to 60°C up to 90% Humidity
Dimensions
19 x 8.94 x 1.74" / 48.3 x 22.71 x 4.42 cm
