HDMI Video Outputs
1 x HDMI 2.1 (Type A)
Outputs resolution and frame rate set in Blackmagic Camera for iOS.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Due to start shipping 17th Sept 25.
FEATURES
Genlock for advanced synchronisation
• HDMI monitoring output for on-set use
• Headphone and microphone inputs
• USB connections for external disks and accessories

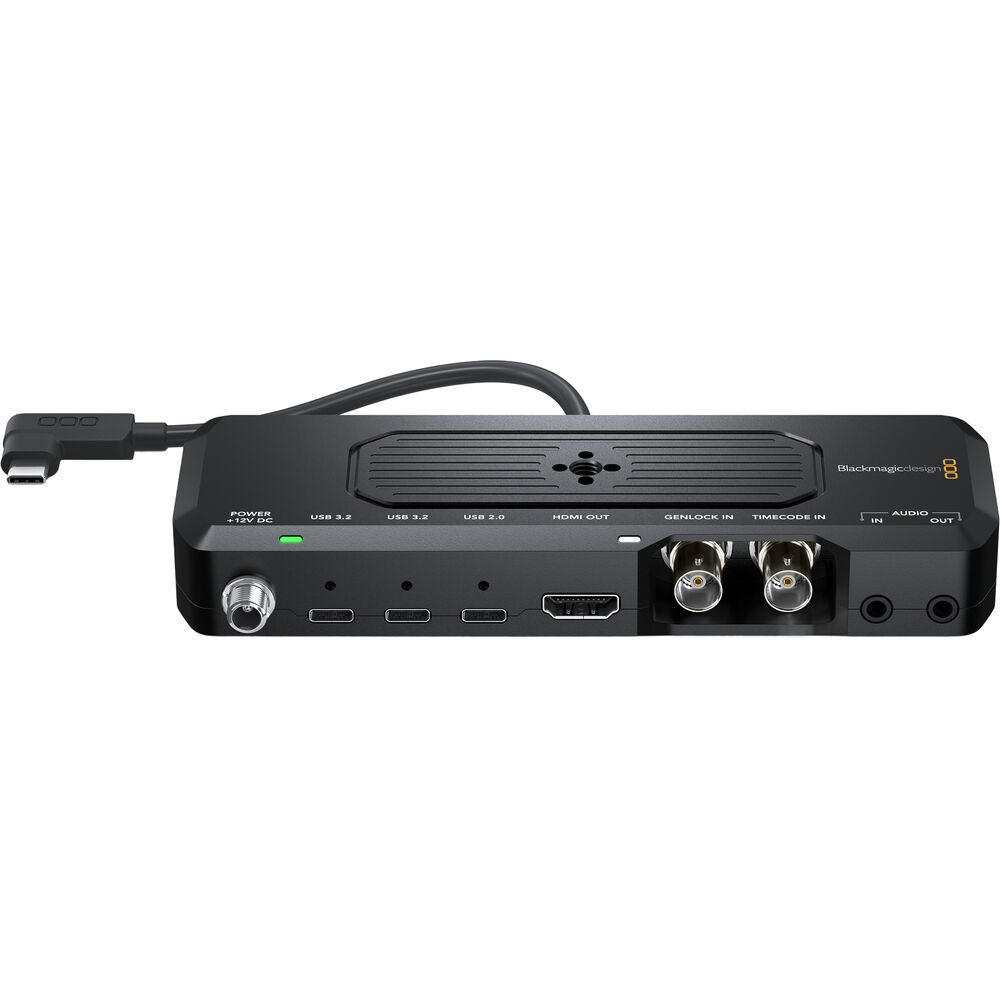

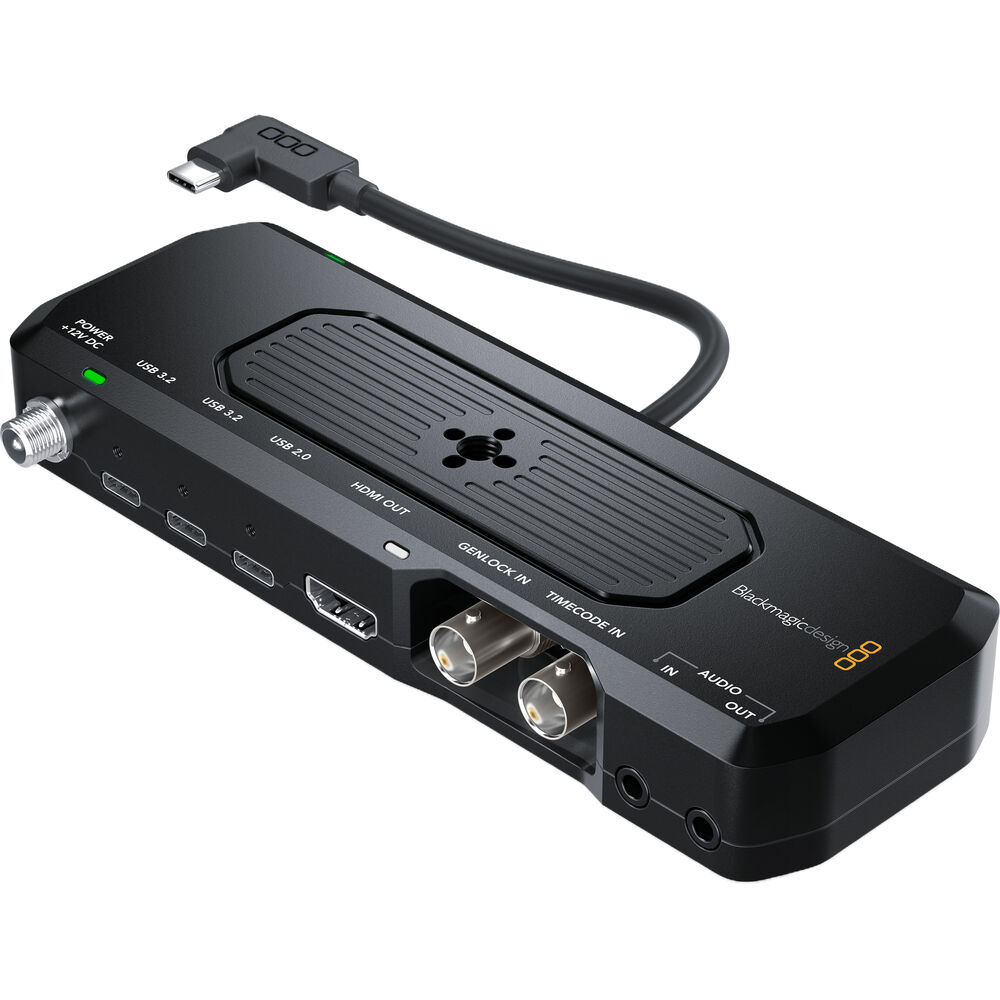

Blackmagic Camera ProDock designed to support the new Apple iPhone 17 Pro and iPhone 17 Pro Max.

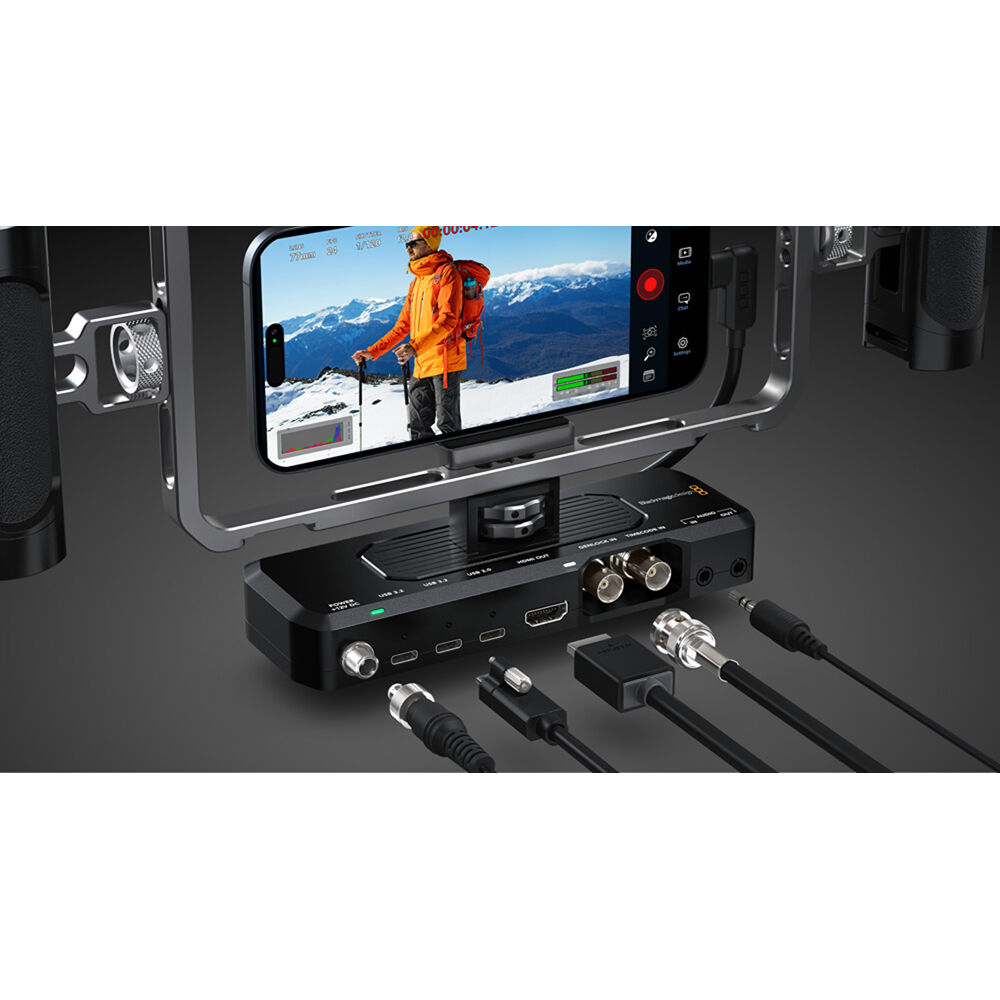

Blackmagic Camera ProDock transforms your iPhone into a professional production camera with all the connections you need to build a custom rig. It also supports the Blackmagic Camera app for iPhone! You get connections for HDMI monitoring, mic, headphones, genlock, USB for external disks and power! With professional BNC connections, Blackmagic Camera ProDock supports external genlock and timecode to keep all your cameras in perfect sync. You get 3 USB-C ports so you can connect control accessories and external SSDs for recording, plus the power management will ensure everything can run at the same time.
Add Professional Connections with Blackmagic Camera ProDock
Blackmagic Camera ProDock transforms the iPhone 17 Pro and iPhone 17 Pro Max into a professional production camera with all the connections you need to build a custom rig. It also supports the Blackmagic Camera app for iPhone! You get connections for HDMI monitoring, mic, headphones, genlock, USB for external disks and power!
Adds Genlock and Timecode for Multicam Production!
With professional BNC connections, Blackmagic Camera ProDock supports external genlock and timecode to keep all your cameras in perfect sync. It also lets you shoot LED walls with no distracting flickering or tearing, which is important for virtual production!
HDMI for On Set Monitoring
Blackmagic Camera ProDock includes a full sized HDMI port so you can connect your iPhone to external monitors! This makes it easy for crew to frame and monitor shots from any position on set.
Add External Microphones and Audio Monitoring
Blackmagic Camera ProDock features a 3.5mm audio input so you can use high quality hand held, lapel or shotgun microphones when you need a more directional microphone. You can also monitor sound on set using the 3.5mm headphone jack!
Add Accessories and External Disks
Two fast USB 3.2 ports let you connect high capacity, high speed external disks to massively extend your recording time, while the single USB 2.0 port suits accessories such as lens control systems! Plus, intelligent power management ensures everything can run at the same time.

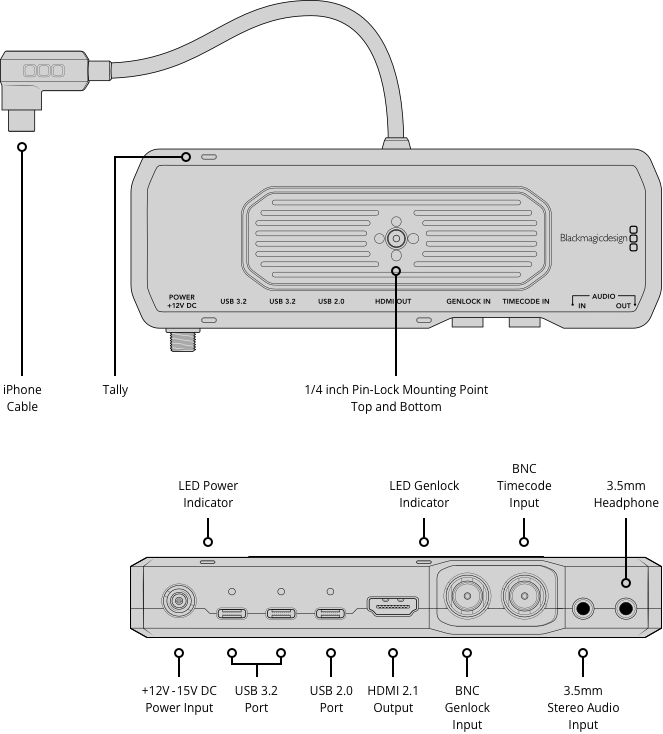

SPECIFICATIONS
1 x HDMI 2.1 (Type A)
Outputs resolution and frame rate set in Blackmagic Camera for iOS.
1 x 3.5mm stereo mini-jack.
1 x 3.5mm stereo mini-jack.
1 x BNC,
1 x 3.5mm audio input supports timecode in.
1 x BNC,
Tri-Sync or Black Burst.
2 x USB 3.2 high speed ports for recording to external media
1 x USB 2.0 port for accessories
+12V to +15V DC input with locking 5.5mm barrel connector.
1 x USB-C cable and plug.
Connect external microphones via the 3.5mm stereo mini-jack, or USB‑C ports.
Connect headphones via the 3.5mm stereo mini-jack audio output.
Record Blackmagic Camera clips to internal iPhone storage or external storage connected by USB.
1 x power LED indicator,
1 x front tally LED indicator,
1 x genlock LED indicator.
1 x External 12V DC 60W power supply.
+12V to +15V DC input with locking 5.5mm barrel connector.
5V 𝌂 1.5A 7.5W max output each USB‑C port.
0°to 40°C (32° to 104°F)
-20°to 45°C (-4° to 113°F)
0% to 90% non-condensing
Blackmagic Camera ProDock
1/4 inch to 1/4 inch mounting adapter
External 12V DC power supply with locking connector and international socket adapters
Welcome wallet with QR code for software download
1 Year Limited Manufacturer’s Warranty.
