Description
Blackmagic HyperDeck ISO Recorder 100G
**BMD NO LONGER ship from the UK ALL their Kit is now held in the Netherlands warehouse so please now allow 3-5 days lead time when ordering items**
FEATURES
- Records 8 channels of Ultra HD video.
- Designed for live action replay with DaVinci Resolve.
- Touch screen user interface with deck controls.
- Connects to SDI with Blackmagic SDI Expander 8x12G.
- Includes 100G Ethernet for recording to network storage.
- Supports Blackmagic Cloud Store Ultra and Media Dock Ultra.
- Includes 2 redundant SMPTE 2022-7 100G Ethernet connections.
- Redundant design includes dual Ethernet and dual AC supplies.
- Includes traditional broadcast deck controls.
- Records to Apple ProRes files for extremely high quality.
- Includes RS-422 control for broadcast automation systems.
- Runs Blackmagic OS for high reliability.
- Localized for 13 popular languages.

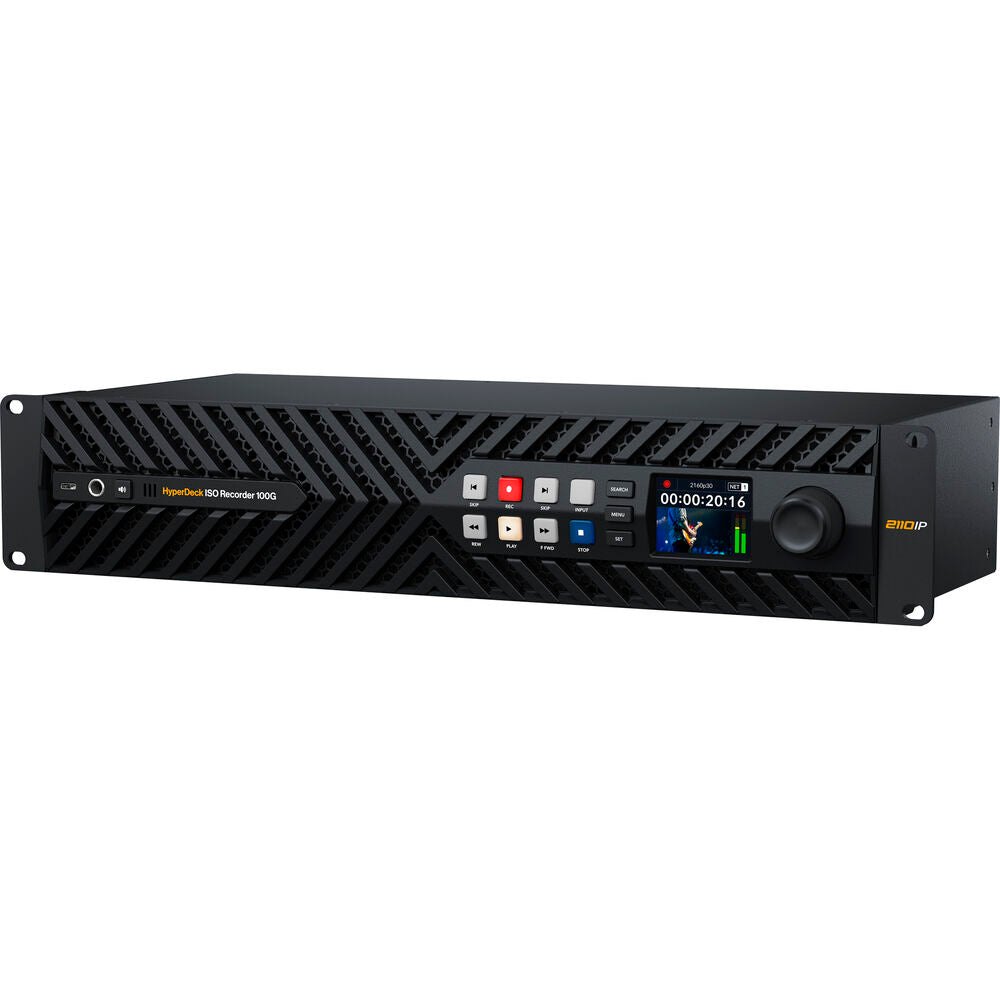

HyperDeck ISO Recorder 100G is designed for live production, recording 8 cameras at the same time. Record for later editing or get exciting live-action replay with DaVinci Resolve! Files are recorded in broadcast-quality ProRes format direct to network storage for very long record durations. It connects via SMPTE-2110 100G Ethernet, so all 8 video channels run over a single connection. Or add a Blackmagic SDI Expander 8x12G for 12G-SDI. You can also play back all 8 channels, great for testing!
- Records eight simultaneous SMPTE 2110 IP video channels up to DCI 4K60

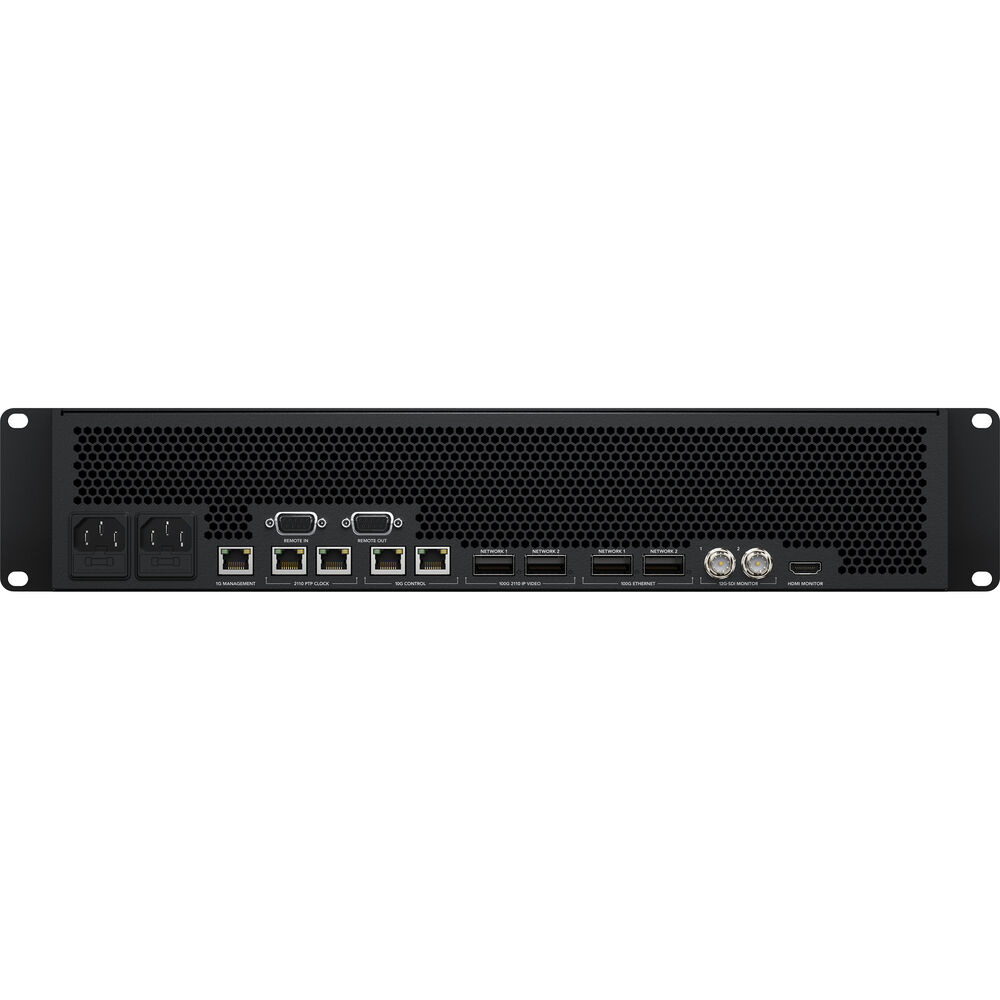

- Two pairs of 100GbE QSFP28 ports with SMPTE ST 2022-7 redundancy
- Direct recording to shared network storage over 100G Ethernet
- Supports ProRes 422 HQ, 422, 422 LT, and Proxy codecs
- 10-bit 4:2:2 video with Rec. 709 and Rec. 2020 color space support
- 16 channels of embedded audio per video stream
- Simultaneous multichannel playback for testing and replay

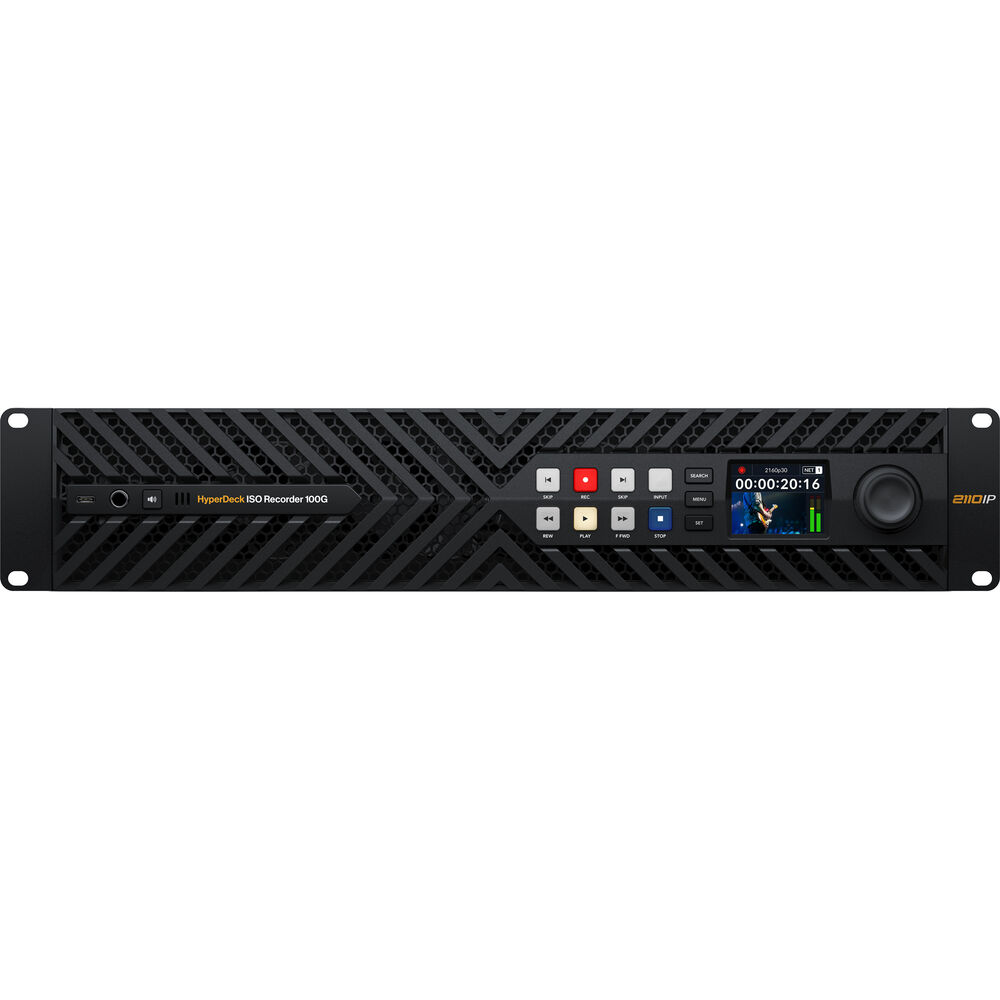

- 2.2" front-panel LCD for video, audio, and system monitoring
- Machined metal search dial with electronic clutch and transport controls
- Built-in speaker and headphone output for audio monitoring
- RS-422 deck control and Ethernet-based remote control support
- Dual 10G RJ45 ports for NMOS control and configuration
- USB-C interface for setup and firmware updates
- Dual IEC C14 AC inputs for redundant power delivery
SPECIFICATIONS
| Panel Type | |
| Size | |
| Touchscreen |
| USB I/O | |
| Video I/O | |
| Audio I/O | |
| Other I/O | |
| Video Resolution |
| Power Source | |
| AC Input Power | |
| Power I/O |
| Mounting | |
| Color | |
| Certifications | |
| Operating Conditions | |
| Storage Conditions | |
| Dimensions |
