USB-C with Locking Connector
Video, power, data and software updates.
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description
Blackmagic Design PYXIS Monitor Kit
**BMD NO LONGER ship from the UK ALL their Kit is now held in the Netherlands warehouse so please now allow 3-5 days lead time when ordering items**
FEATURES
- 5" HDR Touchscreen Monitor
- 1500 cd/m² Brightness, HDR Support
- Multiple 1/4"-20 & M4 Mounting Points
- 1920 x 1080 Native Resolution
- Three Assignable Function Buttons
- Clip-On Sunshade Included
- Swivel & Fixed Mounts Included
- USB-C Viewfinder Cable Included
Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere. Blackmagic PYXIS Monitor Kit contains the monitor, foldable sunshade, locking USB cable and PYXIS Mounts to attach to Blackmagic PYXIS and Blackmagic URSA Cine cameras. The design of the PYXIS Mounts with a dovetail means the PYXIS Monitor can be quickly attached and removed from the camera. The mount makes it simple to position the monitor where customers need it without requiring tools to loosen bolts.
SPECIFICATIONS
Connections
Features
Display Size
5 inch.
Display Resolution
Full 1920 x 1080.
Display Type
LCD capacitive touchscreen.
Display Brightness
1500 nits.
Frame Rates
Up to 60fps.
Tally
Rear facing LED tally light.
Accelerometer
Automatically rotates image when monitor mounted upside down.
Control
On Screen Controls
Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus.
Button Controls
Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions.
Function Button Presets
FPS: Preset Value
Iris: Preset Value
WB: Preset Value
ISO: Preset Value
Shutter: Preset Value
Function Button Toggle
Clean Feed
Status Text
Display LUT
Frame Guides
Focus Assist
False Color
Zebra
Grid
Safe Area Guide
Off Speed Rec
Focus Zoom
Focus
Record
Auto White Balance
Color Bars
Playback
False Color + Zebra
OIS
Stream
Still

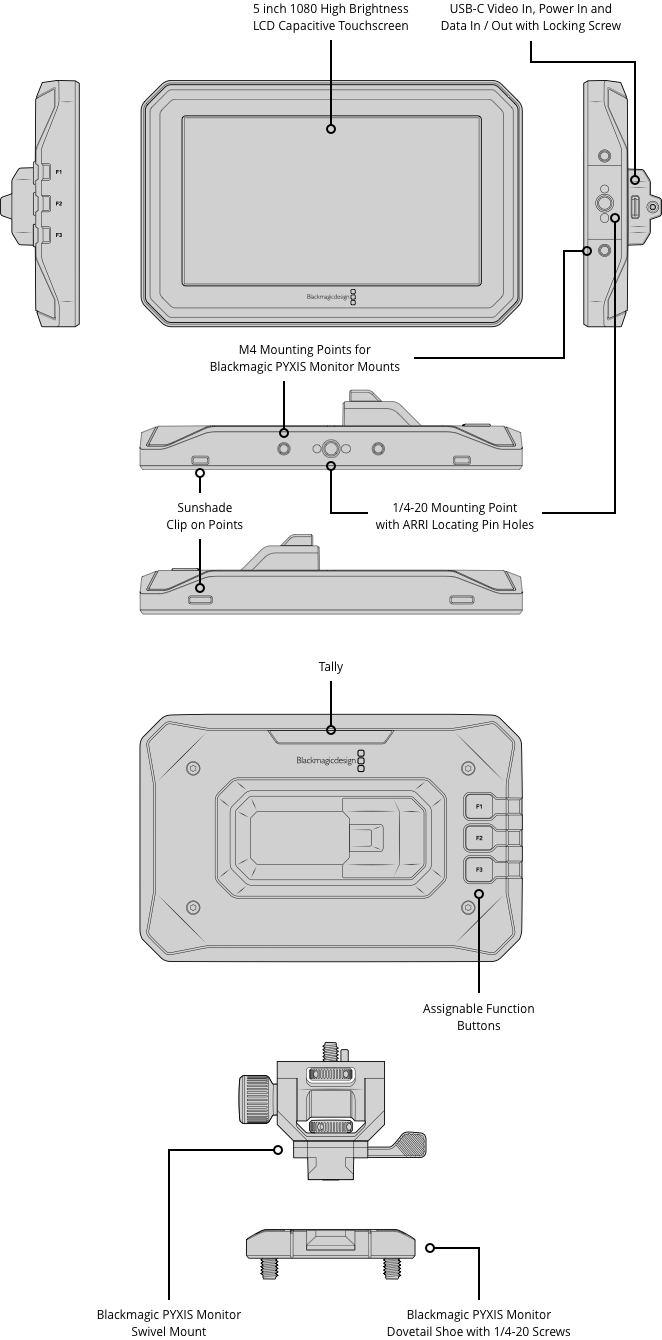

Mounting
Mounting Points
1 x 1/4-20 bottom mounting point with ARRI locating pin pattern.
2 x M4 bottom mounting points.
1 x 1/4-20 side mounting point with ARRI locating pin pattern.
2 x M4 side mounting points.
Mounting Brackets
Blackmagic PYXIS Monitor Swivel Mount ‑ included in Kit.
Blackmagic PYXIS Monitor Fixed Mount ‑ included in Kit.
Blackmagic PYXIS Monitor Dovetail Shoe ‑ included in Kit.
Compatible Cameras
Blackmagic PYXIS 6K
Blackmagic PYXIS 6K PL
Blackmagic PYXIS 6K EF
Blackmagic URSA Cine 12K LF
Blackmagic URSA Cine 17K 65
Operating Systems
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10 and 11.
Power Requirements
Powered over USB-C.
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40°C (32° to 104°F)
Storage Temperature
-20° to 60°C (‑4° to 140°F)
Relative Humidity
0% to 90% non‑condensing
What's Included
Blackmagic PYXIS Monitor
Blackmagic PYXIS Clip On Sunshade
Blackmagic PYXIS Monitor Swivel Mount
Blackmagic PYXIS Monitor Fixed Mount and screws
Blackmagic PYXIS Monitor Dovetail Shoe and screws
1 x USB-C Viewfinder Cable
Welcome wallet with QR code for software download
Blackmagic Design Sticker
Warranty
Product Warranty
1 Year Limited Manufacturer’s Warranty.
