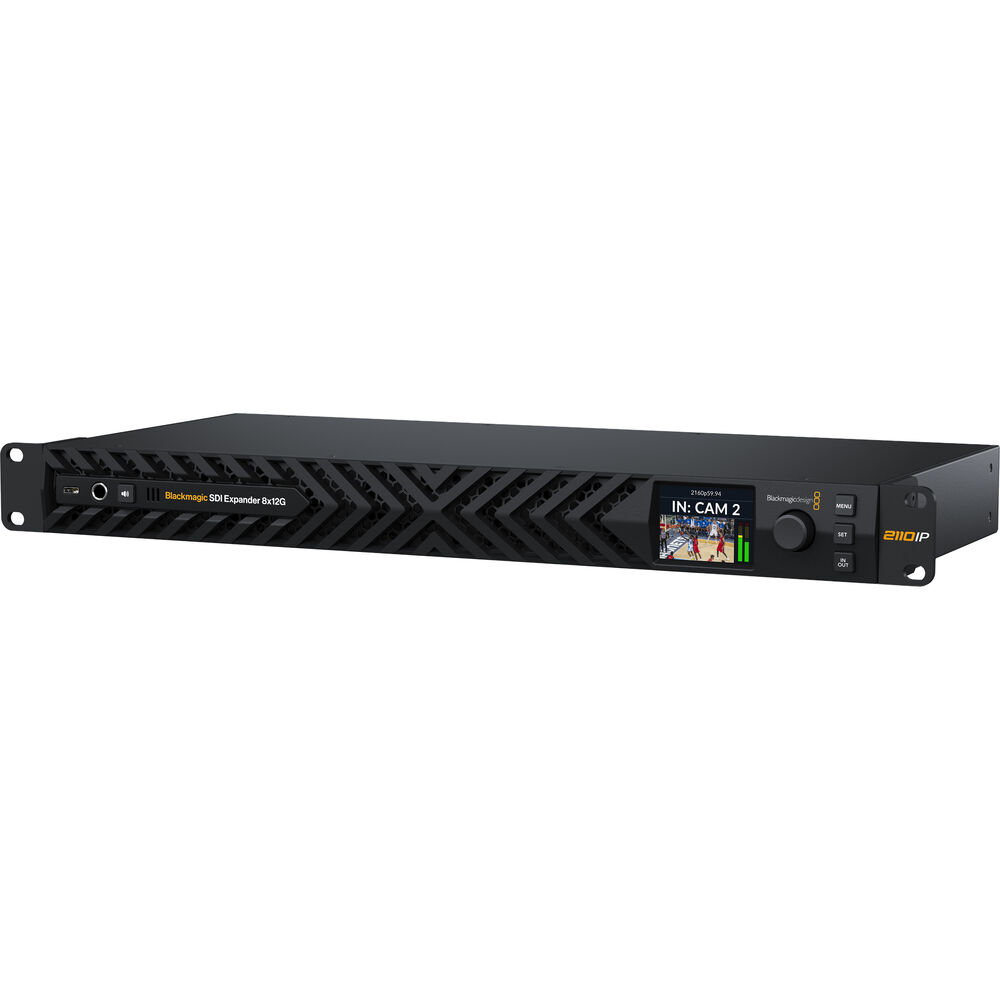

Blackmagic SDI Expander 8x12G
**BMD NO LONGER ship from the UK ALL their Kit is now held in the Netherlands warehouse so please now allow 3-5 days lead time when ordering items**
FEATURES
- Connect 12G-SDI gear to 100G Ethernet SMPTE-2110 IP systems.
- Supports 8 bi-directional connections and SMPTE-2022-7 redundancy.
- 8 x 12G-SDI inputs and 8 x 12G-SDI outputs in a single 1RU design.
- Redundant 100G Ethernet for full SMPTE-2022-7 compliance.
- SDI connections switch between SD, HD, and Ultra HD.
- Includes dedicated NMOS connection for routing IP sources.

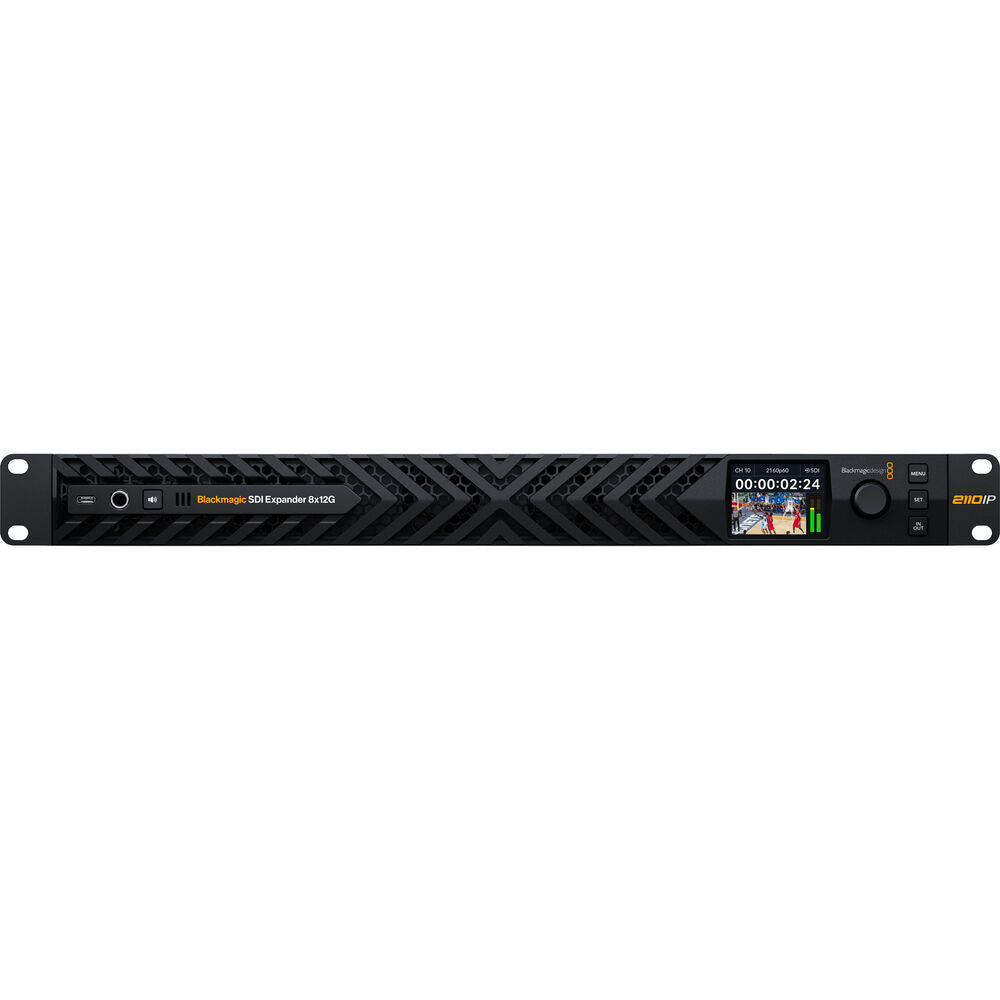

- Front panel LCD for monitoring of video inputs and outputs.
- Front panel speaker and headphone for audio monitoring.
- Dual redundant AC power supplies for broadcast reliability.
- Localized for 13 popular languages allowing international use.
Blackmagic SDI Expander 8x12G converts in 2 directions at the same time! It converts 8 independent channels of 12G-SDI to SMPTE-2110, while simultaneously converting a separate set of 8 channels of SMPTE-2110 back to 12G-SDI. That's 16 channels of conversion in a single rack unit! The SMPTE-2110 connections use two 100G Ethernet ports for full SMPTE-2022-7 redundancy. There is also a separate NMOS control Ethernet port and dual redundant AC power supplies for reliable broadcast operation.
Engineered for hybrid SDI/IP environments, the expander supports SD, HD, and Ultra HD formats up to 4K60 with automatic detection, along with 16 channels of embedded audio per 2110 IP video stream. A front-panel 2.2" LCD with integrated control knob and buttons enables real-time monitoring of video, audio, and system parameters, while a built-in speaker and headphone output allow for direct audio confidence monitoring. External control is supported via a dedicated RJ45 for NMOS-based configuration and USB-C for setup and firmware updates, with dual IEC power inputs ensuring power redundancy for reliable performance.
- Simultaneous bidirectional conversion between 12G-SDI and SMPTE 2110 IP video
- Eight 12G-SDI inputs and eight 12G-SDI outputs in a single 1 RU chassis

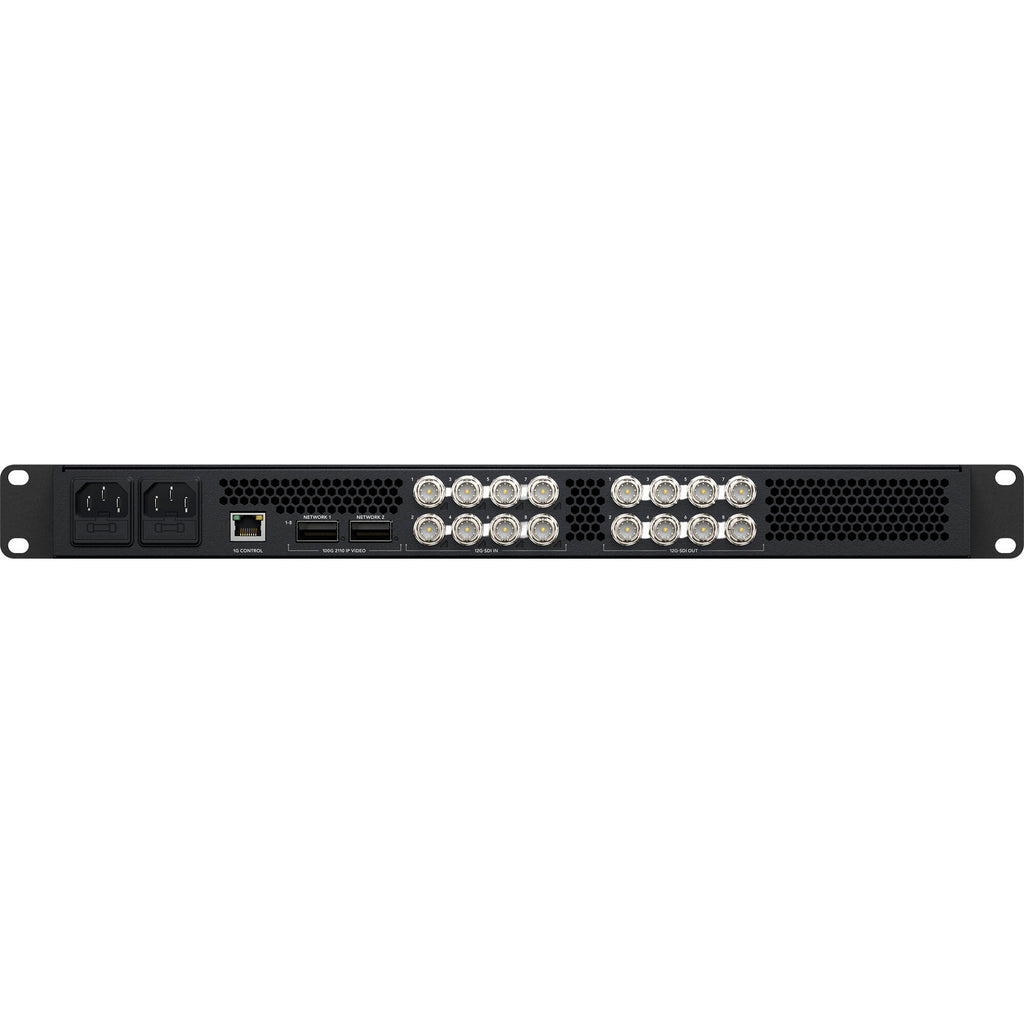

- Dual 100GbE QSFP28 ports with SMPTE ST 2022-7 redundant streaming
- Auto-detection of SD, HD, and Ultra HD formats up to 4K60
- 10-bit 4:2:2 video with Rec. 709 and Rec. 2020 color space support
- 16 channels of embedded audio per IP video stream
- 2.2" front-panel LCD for video, audio, and system monitoring
- Integrated control knob and buttons for configuration and routing
- Built-in speaker and headphone output for audio monitoring
- Dedicated RJ45 port for NMOS control, configuration, and updates
- USB-C interface for firmware updates and local configuration
- Dual IEC C14 AC inputs for redundant power delivery
SPECIFICATIONS
| Inputs | |
| Embedded Audio | |
| Outputs | |
| Other I/O |
| Video Standard Compliance | |
| Reclocking | |
| HDR Support | |
| HDCP Support | |
| EDID Support | |
| OS Compatibility |
| Video Format | |
| Maximum Data Rate |
| Power I/O | |
| Power Consumption |
| Rack Form Factor | |
| Certifications | |
| Operating Conditions | |
| Storage Conditions | |
| Dimensions |
