Description

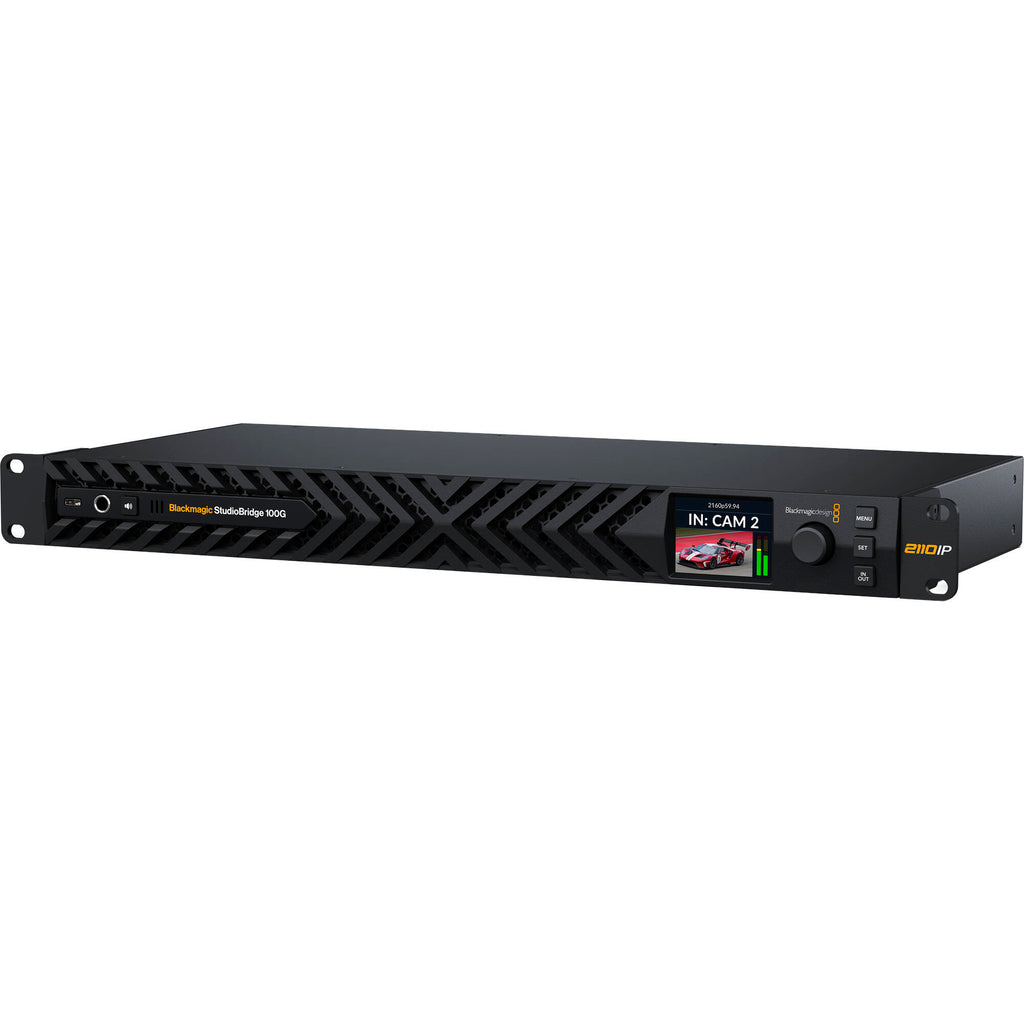

Blackmagic StudioBridge 100G
**BMD NO LONGER ship from the UK ALL their Kit is now held in the Netherlands warehouse so please now allow 3-5 days lead time when ordering items**
FEATURES
- Bridge 1 or 2 Channels of 4K60 Video
- 2 x 100GbE Camera Feed Inputs
- Dual Redundant 100GbE Video Outputs
- SMPTE 2110 IP Video Compliance
- 2.2" LCD Monitor & Control Knob/Buttons
- 2 x RJ45 & 2 x SFP Accessory Ports
- External Control via 1GbE RJ45 Port
- 16 Channels of Embedded Audio per Stream
- 1 RU Form Factor
- Dual Redundant AC Power Inputs
The Blackmagic StudioBridge 100G bridges a single 100G Ethernet SMPTE-2110 connection into a redundant dual 100G Ethernet broadcast system. It also has two
100G Ethernet camera connections that can be combined if total bandwidth doesn't exceed 100 Gb/s! This lets you interface two cameras such as the URSA Cine 12K 100G into a redundant broadcast system. It also includes a separate 10G Ethernet channel for accessories, an NMOS control port, and dual redundant power supplies.
SPECIFICATIONS

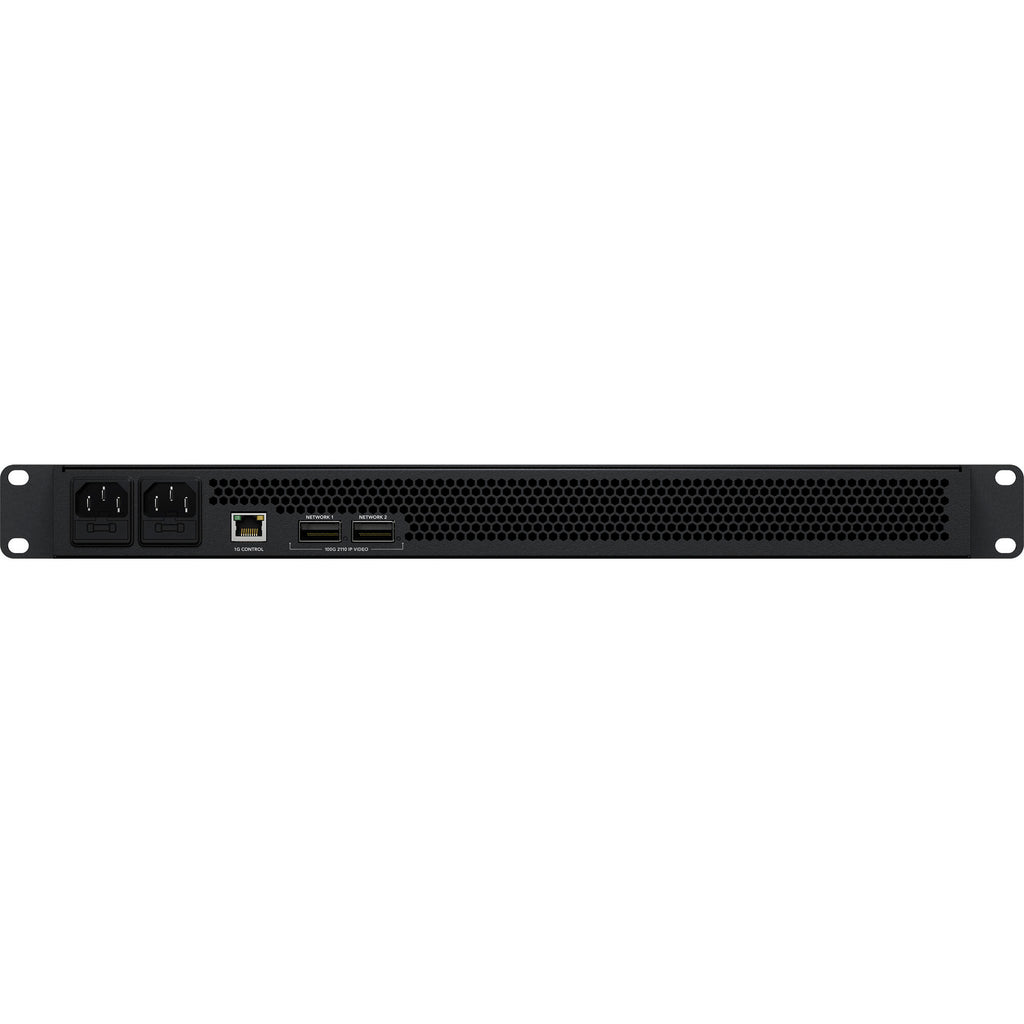

| CONNECTIONS | |
|---|---|
| 100G 2110 IP networks | 2 × 100G QSFP28 |
| ST 2022-7 redundant delivery supported | |
| 100G camera connections | 2 × 100G QSFP28 |
| Senders / receivers (100G) | 1 × 100G URSA Cine |
| 2 × URSA Cine Immersive / URSA Immersive | |
| 10G 2110 IP networks | 2 × 10G SFP (optical fibre) |
| 2 × 10G RJ45 | |
| Senders / receivers (10G) | 8 × Ultra HD or HD |
| 1G control network | 1 × 1G RJ45 (NMOS, configuration, updates) |
| IP audio inputs | 16 ch embedded per stream |
| IP audio outputs | 16 ch embedded per stream |
| Multi-rate support | Auto HD / Ultra HD / 4K detection |
| Computer interface | 1 × USB-C |
| Power input | 2 × IEC C14 |
| VIDEO STANDARDS | |
| HD | 720p50 |
| 720p59.94 | |
| 720p60 | |
| 1080i50 | |
| 1080i59.94 | |
| 1080i60 | |
| 1080p23.98 | |
| 1080p24 | |
| 1080p25 | |
| 1080p29.97 | |
| 1080p30 | |
| 1080p50 | |
| 1080p59.94 | |
| 1080p60 | |
| 1080PsF25 | |
| 1080PsF29.97 | |
| 1080PsF30 | |
| Ultra HD | 2160p23.98 |
| 2160p24 | |
| 2160p25 | |
| 2160p29.97 | |
| 2160p30 | |
| 2160p50 | |
| 2160p59.94 | |
| 2160p60 | |
| 8K | 8160 × 7200 × 2 stereo immersive |
| STANDARDS & COMPLIANCE | |
| SMPTE compliance | SMPTE 2110-20 |
| SMPTE 2110-21 | |
| SMPTE 2110-30 | |
| SMPTE 2110-40 | |
| SMPTE 2022-7 | |
| Colour precision | 10-bit 4:2:2 YUV |
| Colour space | Rec.709 |
| Rec.2020 | |
| SDI auto switching | HD / Ultra HD auto detect |
| IP VIDEO | |
| Video | SMPTE 2110-20 (uncompressed) |
| IGMP | v2 |
| Traffic shaping | Sender: Narrow |
| Receiver: Narrow, Wide synchronous, Asynchronous | |
| Audio | SMPTE 2110-30 (Level C) |
| Ancillary data | SMPTE 2110-40 (full stream access) |
| CODEC & TIMING | |
| Codec | Blackmagic IP10 (optional) |
| Precision time protocol | IEEE 1588-2008 (PTP v2) |
| ST 2059-1 | |
| ST 2059-2 | |
| NMOS | |
| IS-04 | v1.3.2 (Discovery & Registration) |
| mDNS / DNS-SD peer-to-peer | |
| IS-05 | v1.1.2 (Connection Management) |
| BCP-002-01 | Natural grouping |
| BCP-004-01 | Receiver capabilities |
| DISPLAY & CONTROL | |
| Display | 2.2" LCD (video, audio, timecode, menus) |
| Control panel | 3 buttons + spin knob |
| External control | Ethernet |
| USB-C | |
| OPERATING SYSTEMS | |
| Mac | macOS 15.0 Sequoia |
| macOS 26.0 Tahoe or later | |
| Windows | Windows 11 |
| POWER | |
| Power supply | 2 × internal 100–240 V AC |
| Power inputs | 2 × IEC C14 |
| Power usage | TBC |
| PHYSICAL | |
| Installation | 1U rack mount |
| Dimensions | 482.6 × 218 × 44.2 mm |
| ENVIRONMENTAL | |
| Operating temperature | 5 °C to 40 °C |
| Storage temperature | -20 °C to 45 °C |
| Humidity | 0% to 90% non-condensing |
| MANUFACTURER WARRANTY | |
| Warranty | 1-year limited manufacturer’s warranty |
