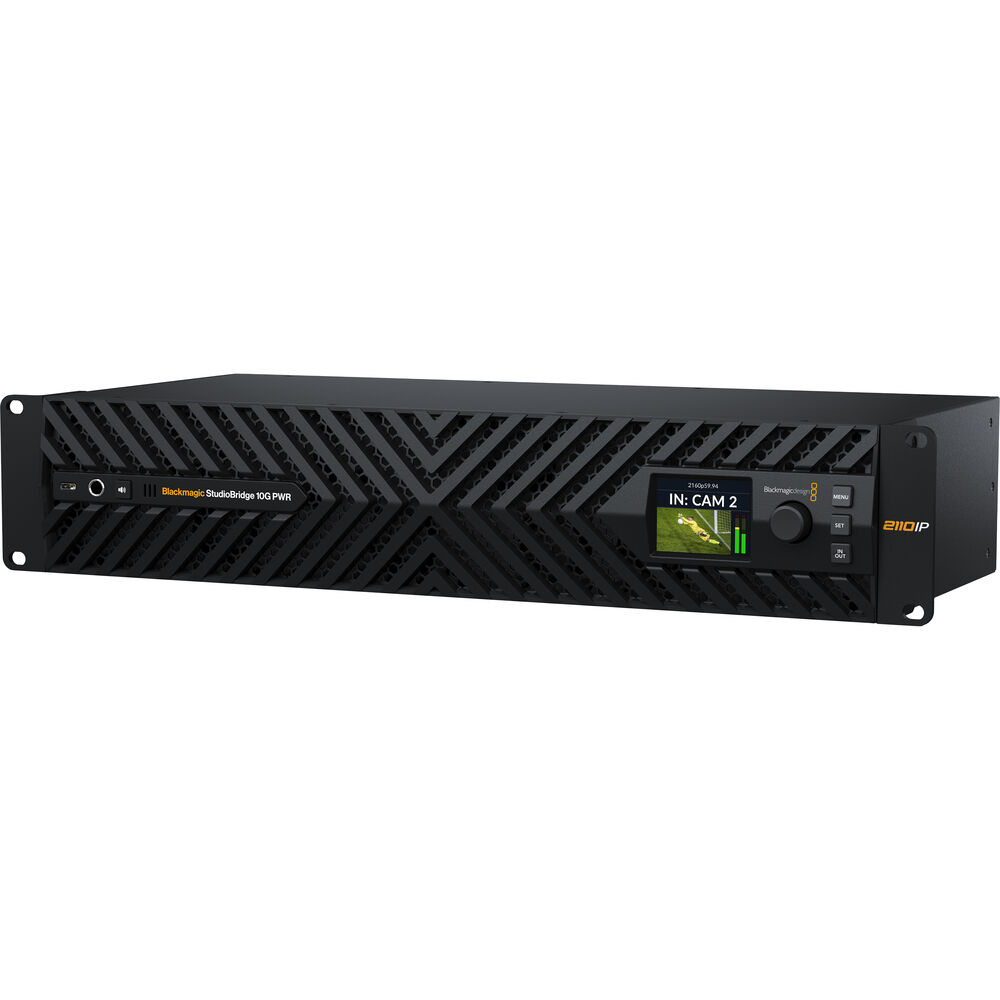

Blackmagic StudioBridge 10G PWR
**BMD NO LONGER ship from the UK ALL their Kit is now held in the Netherlands warehouse so please now allow 3-5 days lead time when ordering items**
FEATURES
- Bridges 8 x 10G Ethernet connections into redundant 100G Ethernet systems.
- Redundant 100G Ethernet for full SMPTE-2022-7 compliance.
- Supports 90W of PoE++ power on each 10G Ethernet port.
- Includes dedicated NMOS connection for routing IP sources.
- 2RU rack mount design with front-to-back cooling.

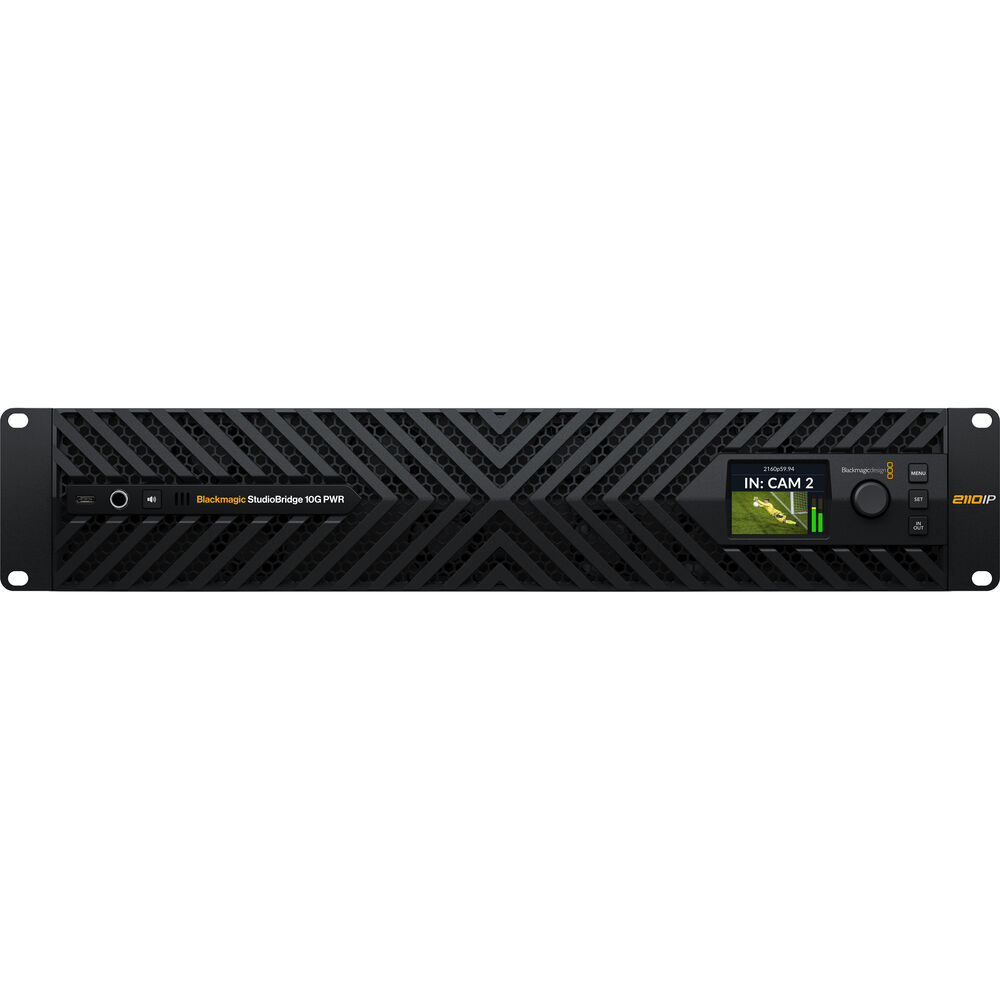

- Front panel LCD for monitoring of video inputs and outputs.
- Front panel speaker and headphone for audio monitoring.
- Dual redundant AC power supplies for broadcast reliability.
- Localized for 13 popular languages allowing international use.
The Blackmagic StudioBridge 10G PWR is designed to bridge low-cost single link 10G Ethernet SMPTE-2110 connections into high-end redundant 100G Ethernet based systems. It converts and combines 8 channels of 10G Ethernet into a redundant pair of 100G Ethernet connections. That means you can plug in 8 separate 10G Ethernet Ultra HD devices. Each 10G Ethernet port has a massive 90W of PoE++ power, so you can power equipment such as converters and cameras directly from their Ethernet connections!

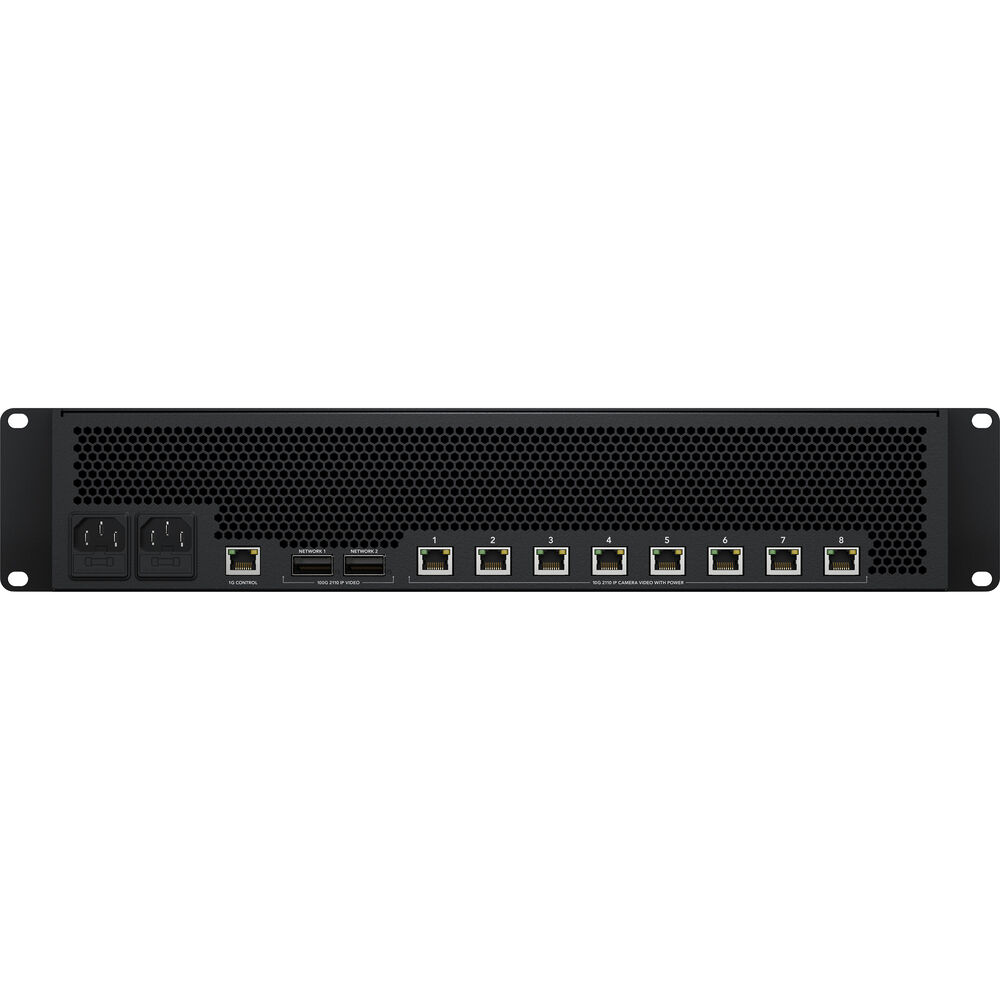

Engineered for deployment in live production and broadcast environments, each of the eight 10GbE RJ45 inputs provides up to 90W of PoE++ power, enabling direct connection and powering of cameras, converters, and other downstream devices over a single cable. A front-panel 2.2" LCD with integrated control knob and buttons allows real-time monitoring of video, audio, and system status, and a built-in speaker and headphone output provide immediate audio confidence monitoring. External control is supported via a dedicated RJ45 for NMOS-based configuration and USB-C for setup and firmware updates, with dual IEC power inputs ensuring power redundancy for reliable performance.
- Converts eight 10GbE SMPTE 2110 IP video streams into dual 100GbE outputs
- Two 100GbE QSFP28 outputs support full SMPTE 2022-7 redundancy
- Eight 10GbE RJ45 inputs with up to 90W PoE++ per port
- Supports SMPTE 2110-20, 2110-21, 2110-30, and 2110-40 standards
- Auto-detection of HD and Ultra HD formats up to 4K60
- 10-bit 4:2:2 video with Rec. 709 and Rec. 2020 color space support
- 16 channels of embedded audio per IP video stream
- 2.2" front-panel LCD for video, audio, timecode, and system monitoring
- Integrated control knob and buttons for source selection and configuration
- Built-in speaker and headphone output for audio monitoring
- Dedicated RJ45 port for NMOS control, configuration, and updates
- USB-C interface for firmware updates and local configuration
- Dual IEC C14 AC inputs for redundant power delivery
SPECIFICATIONS
| Connections | 2 × 100G QSFP28 |
|---|---|
| Support | ST 2022-7 redundant IP stream delivery over dual 2110 networks |
| Senders/Receivers per 100G Pair | 8 × Ultra HD or HD |
| 10G 2110 IP Network | |
| Connections | 8 × 10G RJ45 (PoE++) |
| Control Network | |
| 1G Control Network | 1 × RJ45 (NMOS control, configuration, firmware updates) |
| Audio | |
| SMPTE ST 2110 IP Audio Inputs | 16 channels embedded per 2110 IP stream (100G & 10G Ethernet) |
| SMPTE ST 2110 IP Audio Outputs | 16 channels embedded per 2110 IP stream (100G & 10G Ethernet) |
| Video Processing | |
| Multi Rate Support | Auto-detection of HD and Ultra HD |
| Interface | |
| Computer Interface | 1 × USB-C (configuration & firmware updates) |
| Power | |
| Power Input | 2 × IEC C14 |
| HD Video Standards | |
| HD Formats | |
| 720p50 / 59.94 / 60 | |
| 1080i50 / 59.94 / 60 | |
| 1080p23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 | |
| 1080PsF23.98 / 25 / 29.97 / 30 | |
| Ultra HD Video Standards | |
| UHD Formats | 2160p23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 |
| Video Processing | |
| Color Precision | 10-bit, 4:2:2 YUV |
| Color Space | Rec.709, Rec.2020 |
| SDI Auto Switching | Automatically detects HD and Ultra HD |
| SMPTE Compliance | |
| SMPTE Standards | SMPTE 2110-20, 2110-21, 2110-30, 2110-40, SMPTE 2022-7 |
| IP Video Compliance | |
| SMPTE 2110-20 | Uncompressed Video |
| IGMP | v2 |
| SMPTE 2110-21 | Traffic Shaping |
| Sender | Narrow |
| Receiver | Narrow, Wide Synchronous, Asynchronous |
| SMPTE 2110-30 | PCM Audio (Level C) |
| SMPTE 2110-40 | Ancillary Data |
| Full SMPTE ancillary data stream | |
| Includes RP188 / SMPTE 12M-2 | |
| Closed captioning and HDR static metadata | |
| Codec | Blackmagic IP10 (optional for 2160p59.94 / 2160p60 as 2110 IP video) |
| Timing & Network Standards | |
| Precision Time Protocol | IEEE 1588-2008 (PTP v2) |
| Timing Standards | ST 2059-1, ST 2059-2 |
| NMOS IS-04 | Discovery & Registration v1.3.2 |
| NMOS IS-05 | Connection Management v1.1.2 |
| Peer-to-Peer | mDNS / DNS-SD |
| NMOS BCP-002-01 | Natural Grouping |
| NMOS BCP-004-01 | Receiver Capabilities |
