Description
Blackmagic UPDOWNCROSS 100G
**BMD NO LONGER ship from the UK ALL their Kit is now held in the Netherlands warehouse so please now allow 3-5 days lead time when ordering items**
FEATURES
- Features 8 channels of Up, Down and Cross conversion.
- Connects using high speed 100G Ethernet for SMPTE-2110.
- Supports SD, HD and Ultra HD television standards up to 2160p60.
- 2 x 100G Ethernet ports to support full SMPTE-2022-7 redundancy.
- 8 independent channels of simultaneous standards conversion.
- Includes dedicated NMOS connection for routing IP sources.
- Front panel LCD for monitoring of video inputs and outputs.
- Front panel speaker and headphone for audio monitoring.
- Dual redundant AC power supplies for broadcast reliability.
- Localized for 13 popular languages allowing international use.

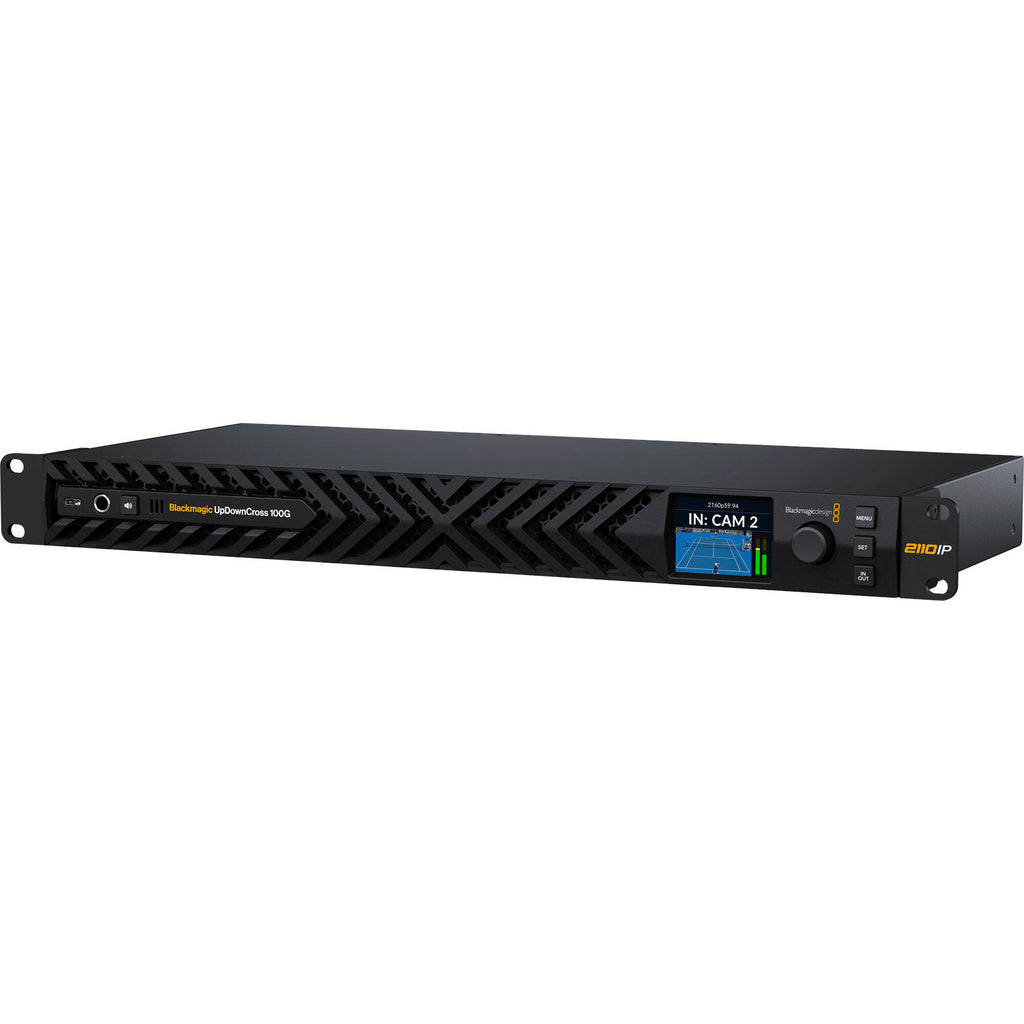

The Blackmagic UpDownCross 100G is a powerful 8-channel standards converter with native SMPTE-2110 connections via 100G Ethernet. It converts up to 8 separate channels of SD, HD and Ultra HD video to any other standard simultaneously. The professional 1RU design features front-to-back cooling that's very quiet! It also includes redundant 100G Ethernet for full SMPTE-2022-7 compliance, dual redundant AC power supplies and a separate NMOS control port for connecting to control networks!

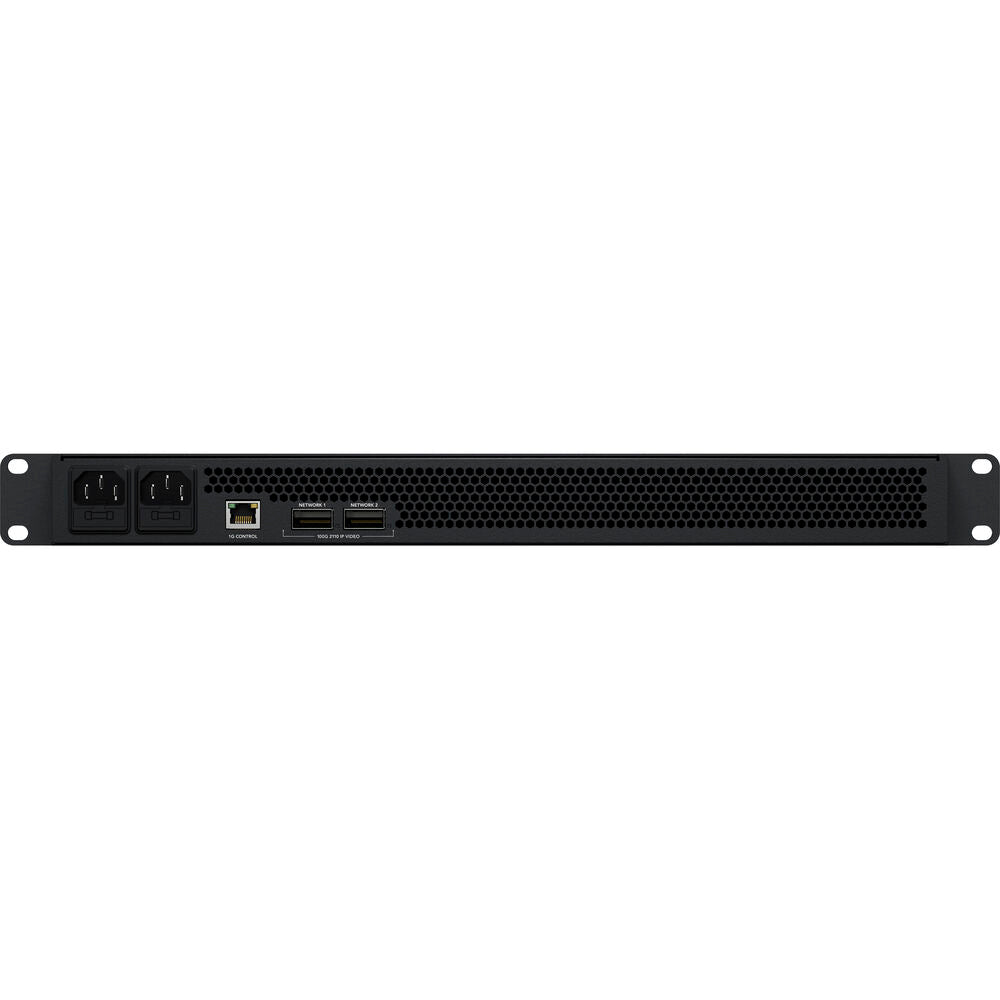

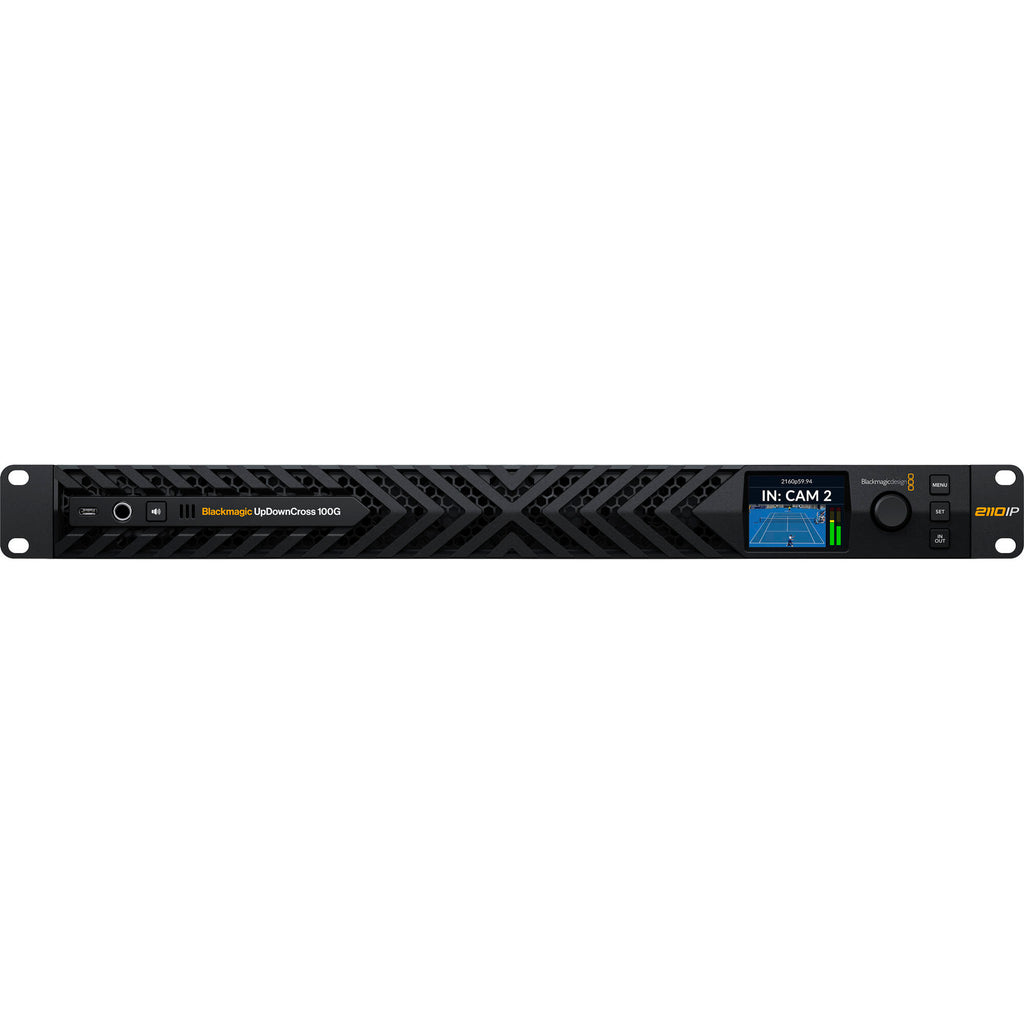

Engineered for deployment in live production and broadcast environments, the UpDownCross 100G sports a front-panel 2.2" LCD with an integrated control knob and buttons, allowing real-time monitoring of video, audio, and system status. A built-in speaker and headphone output provide immediate audio confidence monitoring. External control is supported via a dedicated RJ45 for NMOS-based configuration and USB-C for setup and firmware updates, with dual IEC power inputs ensuring power redundancy for reliable performance.
- Converts eight channels of IP video from SD, HD, or Ultra HD to any other standard
- Two 100GbE QSFP28 interfaces with full SMPTE 2022-7 redundancy support
- Supports SMPTE 2110-20, 2110-21, 2110-30, and 2110-40 IP video
- 10-bit 4:2:2 video with Rec. 709 and Rec. 2020 color space support
- 16 channels of embedded audio per IP video stream
- 2.2" front-panel LCD for video, audio, timecode, and system monitoring
- Integrated control knob and buttons for source selection and configuration
- Built-in speaker and headphone output for audio monitoring
- Dedicated RJ45 port for NMOS control, configuration, and updates
- USB-C interface for firmware updates and local configuration
- Dual IEC C14 AC inputs for redundant power delivery
SPECIFICATIONS
| CONNECTIONS | |
|---|---|
| 100G 2110 IP networks | 2 × 100G QSFP28 |
| ST 2022-7 redundant delivery supported | |
| Senders / receivers per 100G camera | 8 × Ultra HD or HD |
| 1G control network | 1 × RJ45 (NMOS, configuration, firmware) |
| IP audio inputs | 16 ch embedded per stream |
| IP audio outputs | 16 ch embedded per stream |
| Analogue audio output | 1 × 6.35 mm headphone jack |
| Computer interface | 1 × USB-C |
| Power input | 2 × IEC C14 |
| VIDEO STANDARDS | |
| SD | 525i59.94 NTSC |
| 625i50 PAL | |
| HD | 720p50 |
| 720p59.94 | |
| 720p60 | |
| 1080i50 | |
| 1080i59.94 | |
| 1080i60 | |
| 1080p23.98 | |
| 1080p24 | |
| 1080p25 | |
| 1080p29.97 | |
| 1080p30 | |
| 1080p47.95 | |
| 1080p48 | |
| 1080p50 | |
| 1080p59.94 | |
| 1080p60 | |
| 1080PsF25 | |
| 1080PsF29.97 | |
| 1080PsF30 | |
| Ultra HD | 2160p23.98 |
| 2160p24 | |
| 2160p25 | |
| 2160p29.97 | |
| 2160p30 | |
| 2160p47.95 | |
| 2160p48 | |
| 2160p50 | |
| 2160p59.94 | |
| 2160p60 | |
| STANDARDS & COMPLIANCE | |
| SMPTE compliance | SMPTE 2110-20 |
| SMPTE 2110-21 | |
| SMPTE 2110-30 | |
| SMPTE 2110-40 | |
| SMPTE 2022-7 | |
| Audio sampling | 48 kHz, 24-bit |
| Colour precision | 10-bit 4:2:2 YUV |
| Colour space | Rec.709 |
| Rec.2020 | |
| IP VIDEO | |
| Video | SMPTE 2110-20 (uncompressed) |
| IGMP | v2 |
| Traffic shaping | Sender: Narrow |
| Receiver: Narrow, Wide synchronous, Asynchronous | |
| Audio | SMPTE 2110-30 (Level C) |
| Ancillary data | SMPTE 2110-40 (full stream access) |
| CODEC & TIMING | |
| Codec | Blackmagic IP10 (optional) |
| Precision time protocol | IEEE 1588-2008 (PTP v2) |
| ST 2059-1 | |
| ST 2059-2 | |
| NMOS | |
| IS-04 | v1.3.2 (Discovery & Registration) |
| mDNS / DNS-SD peer-to-peer | |
| IS-05 | v1.1.2 (Connection Management) |
| BCP-002-01 | Natural grouping |
| BCP-004-01 | Receiver capabilities |
| AUDIO | |
| Headphones | Front panel monitoring |
| Speaker | Built-in mono speaker |
| Controls | Button control (press / double press / hold) |
| DISPLAY & CONTROL | |
| Display | 2.2" LCD (video, audio, timecode, menus) |
| Control panel | 3 buttons + spin knob |
| External control | Ethernet |
| USB-C | |
| OPERATING SYSTEMS | |
| Mac | macOS 15.0 Sequoia |
| macOS 26.0 Tahoe or later | |
| Windows | Windows 11 |
| POWER | |
| Power supply | 2 × internal 100–240 V AC |
| Power inputs | 2 × IEC C14 |
| Power usage | TBC |
| PHYSICAL | |
| Installation | 1U rack mount |
| Dimensions | 19 × 8.58 × 1.74 in |
| ENVIRONMENTAL | |
| Operating temperature | 0 °C to 40 °C |
| Storage temperature | -20 °C to 45 °C |
| Humidity | 0% to 90% non-condensing |
| MANUFACTURER WARRANTY | |
| Warranty | 1-year limited manufacturer’s warranty |
