Display Size
7 inch.
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description

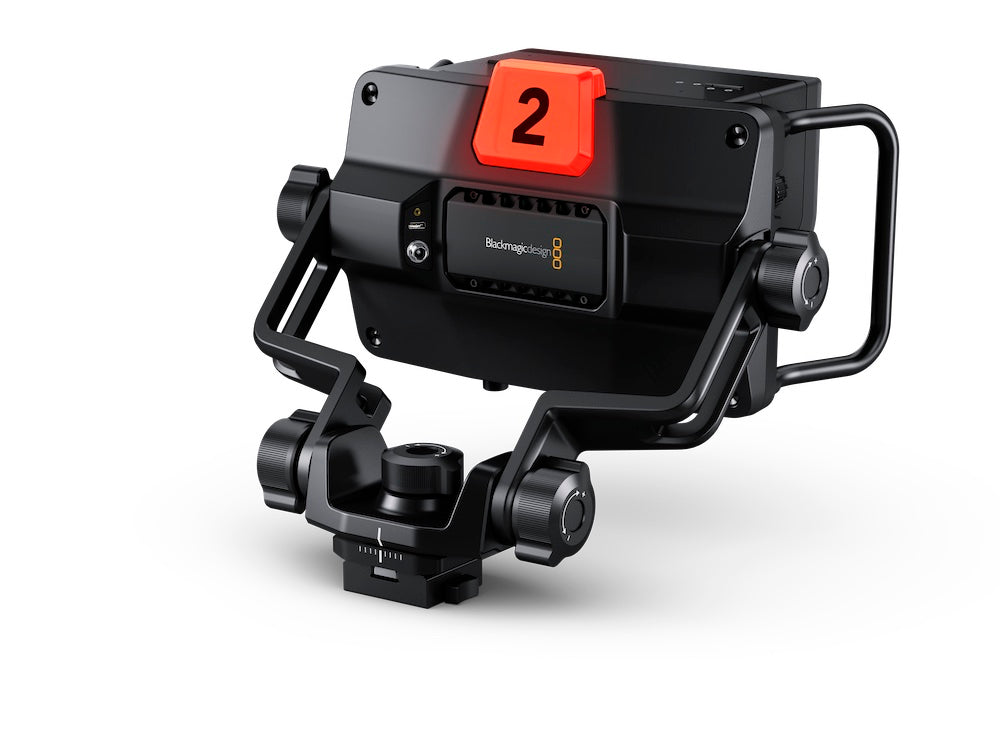

Blackmagic URSA Cine Studio Viewfinder
**BMD NO LONGER ship from the UK ALL their Kit is now held in the Netherlands warehouse so please now allow 3-5 days lead time when ordering items**
Blackmagic URSA Cine Studio Viewfinder is a large 7″ HDR touchscreen viewfinder with full camera control, designed for use with URSA Cine in live production environments. It combines a high brightness HDR touchscreen with custom function buttons and physical knobs for brightness, contrast and focus peaking. On screen overlays include focus peaking, frame guides, histograms and more, with full touchscreen access to all camera settings. Includes removable sunshade and connects via a single USB-C cable for video, power and camera control.
FEATURES
Display Resolution
1920px x 1200px.
Display Type
LCD capacitive touchscreen.
Display Brightness
2000 nits.
Frame Rates
Up to 60fps.
Handles
Built in grab handles for positioning the monitor independently from the camera.
Position Adjustment Options
Articulated yoke with variable tension pivots and grab handles for forward, backward, up, down, pan and tilt adjustments.
Sunshade
Detachable and foldable sunshade
Mounting Options
Quick release V-lock mounting bracket for attaching viewfinder to URSA Cine 12K body.
Tally
Large talent facing LED tally light with customizable perspex camera numbers.
Metadata Support
Viewfinder supports all camera metadata and full Blackmagic OS camera control.
Control
Controls
Touch screen with heads up display and full camera control,
Push button dial for settings and navigating menus,
Customizable short cut function buttons,
Dedicated brightness, contrast and peaking knobs.
On Screen Controls
Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus.
Button Controls
Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions plus BACK button.
Function Button Toggle
Clean Feed
Status Text
Display LUT
Frame Guides
Focus Assist
False Color
Zebra
Grid
Safe Area Guide
Off Speed Rec
Focus Zoom
Focus
Record
Auto White Balance
Color Bars
Playback
False Color + Zebra
OIS
Stream
Still
Mounting
Mounting
Includes quick release VLock bracket, attaches to mounting surfaces using 2 x 1/4-20 screws.
Compatible Cameras
Blackmagic URSA Cine 12K LF 100G
Blackmagic URSA Cine 12K LF
Blackmagic URSA Cine 17K 65
Blackmagic URSA Cine Immersive 100G
Blackmagic URSA Cine Immersive
