Description

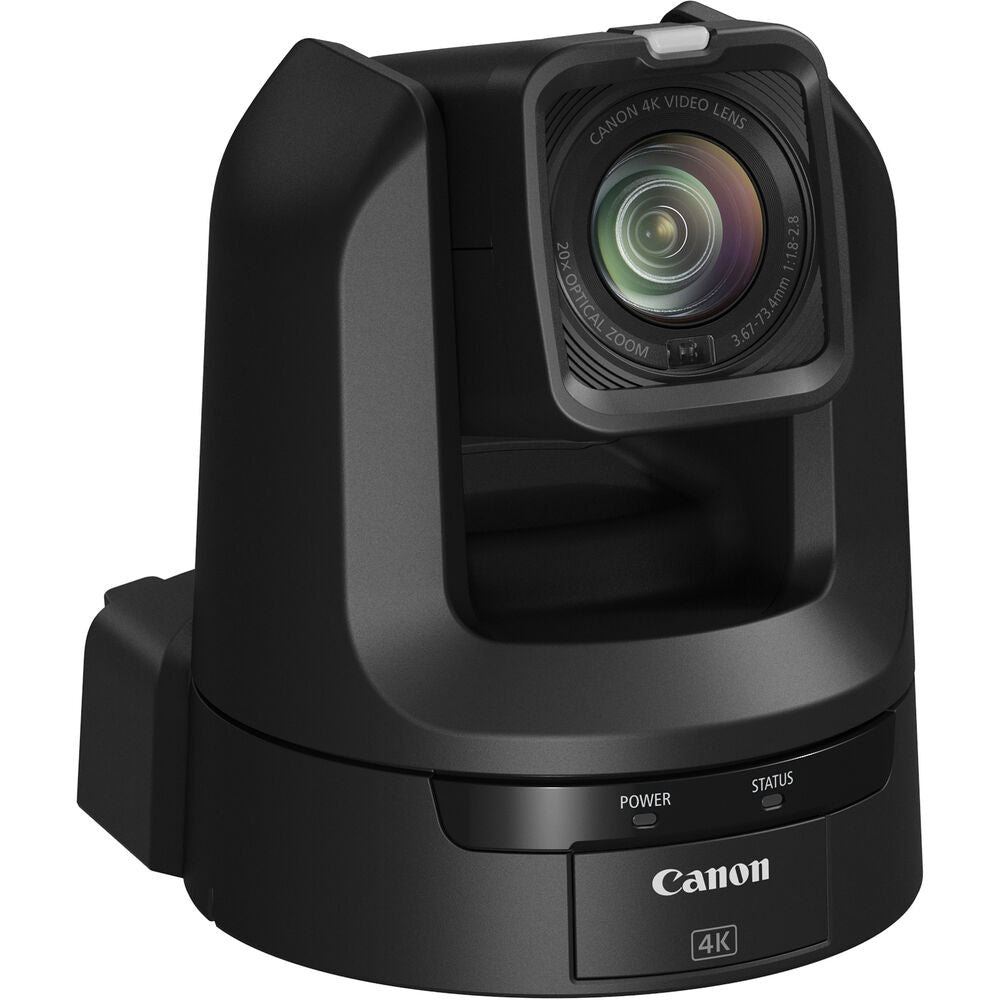

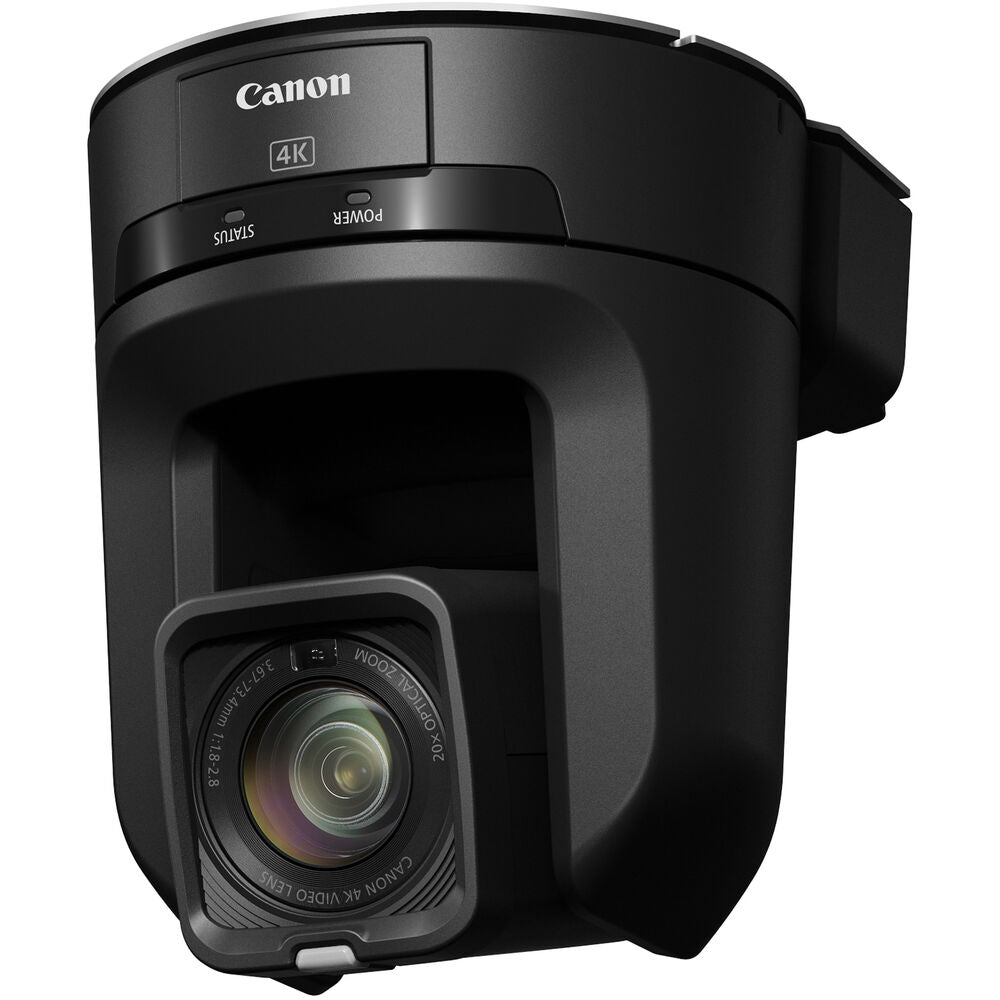

CANON CR-N300 4K UHD 30P PTZ Camera with Auto Tracking License
**Buy 5 x N300 or N100 – Get RC-IP100 Free of Charge**
In stock with Canon in the Netherlands so please be aware when ordering 3-5 WORKING DAYS LEAD TIME.
FEATURES
- Capture up to UHD 4K30 / 1080p60 Video
- 8.29MP 1/2.3" CMOS Sensor with Hybrid AF
- HDMI, 3G-SDI, IP, and USB Video Output
- Built-In NDI|HX Support, PoE+, 1.5 Lux
- 20x Optical, 20x Digital Zoom, AWB
- 3.5mm Audio Input, AC Adapter Included
- Canon DIG!C DV6 Processor
- IP, RS-422, IR, and Wi-Fi Control
- Works with Canon Control Software
- Compatible with Canon PTZ Controller
CLOSE THE DISTANCE WITH UNRIVALLED CLARITY
The CR-N300 makes content creation and streaming simple. Equipped with a 1/2.3-inch CMOS sensor with 4K UHD resolution, 20x image stabilised optical zoom and a wide range of streaming and control protocols, as well as the ability to automate your productions using Auto Tracking*, it's the ideal choice for a variety of productions.
*Auto Tracking function available via paid licence.
Main features of CR-N300
With a 15x optical zoom and 4K UHD shooting capabilities, the CR-N500 offers precise control and seamless IP streaming, even in low light conditions.
RESOLUTION
Razor Sharp 4K Imagery
OPTICAL ZOOM LENS
20x Optical Zoom
STREAMING AND CONTROL PROTOCOLS
IP Streaming and Control
AUTOFOCUS
Hybrid AF
CONNECTIVITY
Flexible connectivity and workflow
PAN AND TILT
Smooth precise pan and tilt
Accurate 4K Auto Tracking*
Unlock the potential to track the main speaker with face/header detection as they move around the stage, automatically. Capable of multiple adjustments, settings such as composition size, tracking sensitivity, exclusion zones, priority display area and more mean the ideal tracking set-up can be easily achieved.
*Requires paid licence
Razor sharp 4K imagery
A 1/2.3-type CMOS Sensor and DIGIC DV6 processor combine to deliver exceptional 4K UHD imagery (up to 30p), or outstanding Full HD footage thanks to over sampled HD processing. These technologies provide an image quality with superior levels of detail fit for any production.
20x Optical zoom for incredible flexibility
Capture all the detail you need, thanks to Canon’s advanced 4K optics which feature a flexible 20x optical zoom covering a broad focal range of 29.3-601mm (35mm equivalent), ensuring great flexibility. Equipped with image stabilisation, for minimal image disruption when moving.
IP Streaming and Control to transform your productions
The CR-N300 boasts a comprehensive range of IP control and streaming protocols up to 4K UHD 30p allowing for greater control for your production needs. Featuring major protocols such as NDI|HX*, RTMP, RTP/RTSP, RTMPS, SRT, FreeD and Canon’s XC Protocol, it will fit into most new or most existing systems, making it an extremely flexible option.
*NDI is a trademark or registered trademark of NewTek, Inc. in the United States and other countries
Hybrid AF for precise focus
The CR-N300 combines high-precision contrast AF with high-speed phase-detection AF, ensuring rapid and accurate focusing of the subject, even in low light conditions.
Equipped with a bespoke external sensor which measures the distance to the subject and compares the point of focus with that determined by the Contrast AF system. This Hybrid AF system is particularly effective in low light situations and provides fast, accurate and reliable Autofocus with greater accuracy than Contrast AF alone.
Flexible connectivity for your workflow

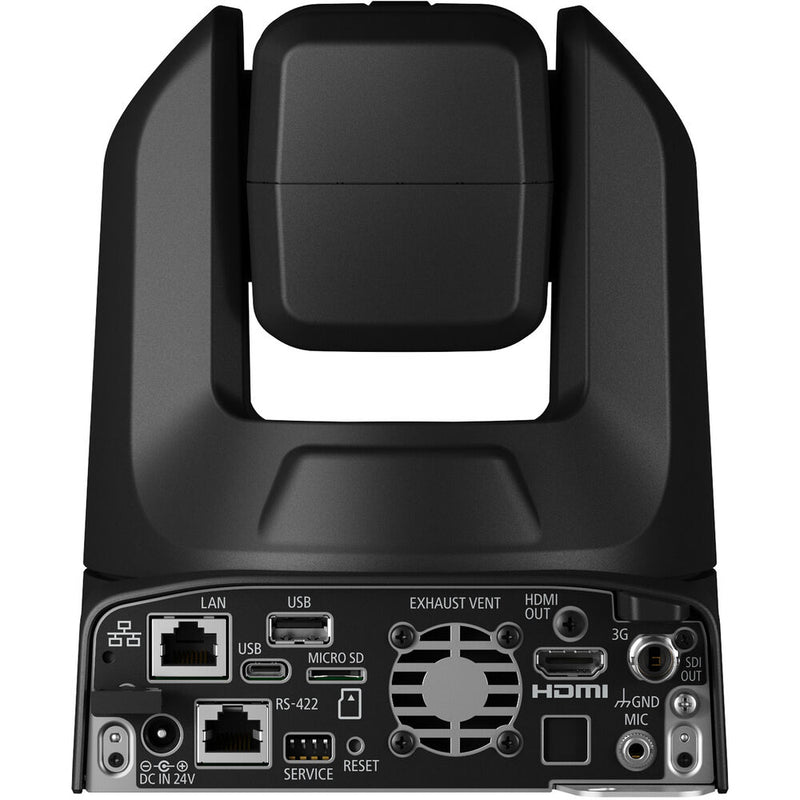

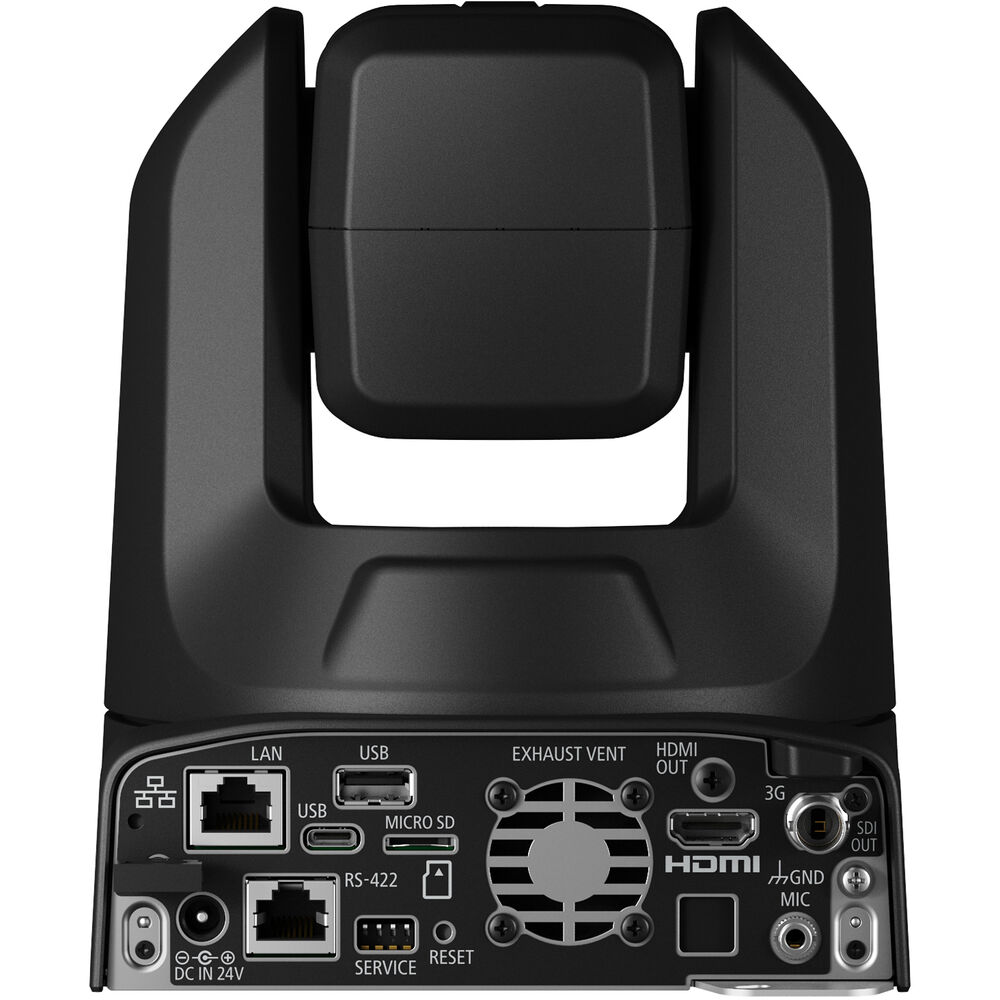

The CR-N300 features a whole host of connections to ensure the ultimate flexibility in workflows. Featuring a HDMI port which can achieve 4K UHD, 4:2:2 10-bit. The camera also boasts a 3G-SDI port, USB Port, 3.5mm Audio Input and a PoE+ LAN port.
Smooth, precise control
The CR-N300 is equipped with a high-precision drive mechanism, enabling the Pan and Tilt movement to be finely adjusted at variable speeds using controllers such as RC-IP100, Canon Remote Camera Control Application or a tablet via Wi-Fi, to capture the perfect shot.
Image Presets for Quick and Easy Use
The CR-N300 is equipped with multiple Image Presets that allow for quick and easy adjustments of video settings for specific environments. The user can also register up to 100 preset positions on the CR-N300 making productions simple and easy.
Small and compact for easy installation
The CR-N300 is small and discreet at 154 x 178 x 164 mm (W x H x D), and weighs just 2.2kg making it ideal to be installed in environments where space is at a premium.
Seamless High Quality 4K Video Streaming
With the free of charge* Webcam Driver**, you can enjoy seamless video streaming in up to 4K 30p with maximum 5 selected Canon PTZ Cameras*** via a simple ethernet connection. Compatible with most conferencing platforms and applications which require UVC, this Windows OS software is a virtual USB driver which allows an easy video streaming integration, ideal for video conferencing and online lectures.
-
A third party license may be required
** Software available in June 2022
*** Applicable only to the CR-N500, CR-N300 and CR-X300
SPECIFICATIONS
| CAMERA | |
| Image Sensor Type | 1/2.3 (1/2.3 in.) single-plate CMOS sensor |
| Effective Pixels | approx. 8.29 megapixels (3840 x 2160) |
| Lens | f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed circular aperture |
| Optical Zoom | 20x optical zoom |
| Digital Zoom | 20x digital zoom |
| Focal Length | 3.67 – 73.4 mm, f/1.8 – 2.8 |
| 35mm Equivalent Focal Length | 4K UHD approx. 29.3 (W) – 601 mm (T) Full HD approx. 30.5 (W) – 627 mm (T) |
| Angle of View | 4K UHD |
| Horizontal | 65.6° (W) – 3.6° (T) |
| Vertical | 39.8° (W) – 2.0° (T) |
| Full HD | Horizontal: 63.5° (W) – 3.4° (T) |
| Vertical | 38.4° (W) – 1.9° (T) |
| Minimum Subject Illumination | Approx. 1.5 lux (shutter speed 1/30 sec., frame rate 59.947P (P (Programmed AE) shooting mode, auto slow shutter on) |
| Shutter Speed | 1/6 – 1/2000 sec. (specific values depend on the frame frequency and frame rate) |
| Iris | Manual/Automatic aperture |
| Gain | 0.0 dB – 36 dB |
| ND Filter | Built-in (1/8 at maximum, gradation ND), motor operated |
| Optical Low Pass Filter | Yes |
| White Balance | AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K, tungsten lamp: 3,200 K), colour temperature setting (2,000 K – 15,000 K) Manual |
| FOCUS | |
| Focus mode | Manual, Continuous AF, AF type: Hybrid AF, Contrast AF |
| Gamma | Normal1 (Standard), Normal3 (BT.709) |
| PAN AND TILT | |
| Pan operation range | Horizontal ±170° |
| Pan operation speed | 0.2° – 300°/sec. |
| Tilt operation range | Vertical -30° – +100° |
| Tilt operation speed | 0.2° – 170°/sec. |
| VIDEO OUTPUT FORMAT | |
| SDI | 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit) 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit) Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI) When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI. |
| HDMI | 3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit) 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit) 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit) |
| IP | 3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) If 59.94/50.00 Hz is selected for the frame frequency, the 3840 x 2160 format cannot be selected. A frame rate that exceeds the frame frequency cannot be selected. JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected) Resolution: 1280 x 720 59.94/50.00 Hz: 14.99 fps 23.98 Hz: 11.99 fps 29.97/25.00 Hz: 12.50 fps |
| USB Motion JPEG | 1920 x 1080 and other resolutions with frame rates dependent on Hz setting |
| YUV | 640 x 360 with frame rates dependent on Hz setting |
| Protocol | Canon XC, RTSP/RTP, NDIHX, RTMP/RTMPS, Standard Communication (Serial and IP), SRT |
| Preset | Number of presets: Max. 100 (including home position) |
| INTERFACE | |
| Communication Control | LAN, Wi-Fi, Serial, IR |
| Network Terminal | LAN x 1, RJ45, 1000Base-T |
| 3G-SDI OUT Terminal | BNC jack (output only) x 1, 0.8 Vp-p/75 Ω, unbalanced SMPTE 424, SMPTE 425, SMPTE ST 299-2 compliant Embedded |
| AUDIO, TIME CODE (VITC/LTC) | |
| HDMI OUT Terminal | HDMI connector x 1, output only |
| RS-422 Terminal | RJ45 connector x 1 |
| Audio Input 1/Input 2 Terminals | No |
| MIC Terminal | ϕ3.5 mm stereo mini jack (unbalanced, plug-in power supported), Sensitivity (MIC): -72 dBV, Sensitivity (LINE): -10 dBV |
| Supply Voltage | 2.4 V DC (Bias resistance: 2.2 kΩ) |
| USB Terminal | Type-A (USB 2.0) x 1 (future expansion) Type-C (USB 3.1) x 1 |
| OTHERS | |
| Operating Environment Temperature | 0°C – +40°C (+32°F – +104°F) |
| Humidity | 10% – 90% (without condensation) |
| Power Supply | PoE+ power supply via LAN connector (IEEE802.3at compliant) |
| External power source | 24 V DC (using included AC adaptor) |
| Power Consumption | PoE+ Input: Approx. 16.2 W max. (body only) |
| DC Input | Approx. 15.0 W max. (body only) |
| Dimensions (W x H x D) | Approx. 154 x 178 x 164 mm (excluding protrusions) |
| Weight | Approx. 2.2 kg (4.86 lb.) (body only) |
| IR Remote Control | WL-N01 Included |
