Datavideo HS-1400 5-Channel HD Portable Streaming Studio

Simplified AI-Powered Video Production Station

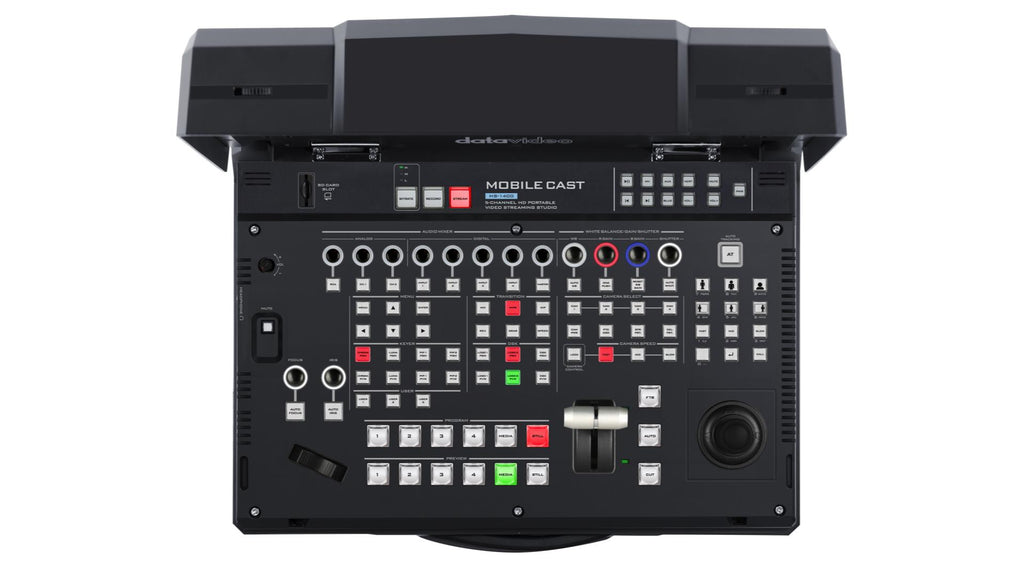

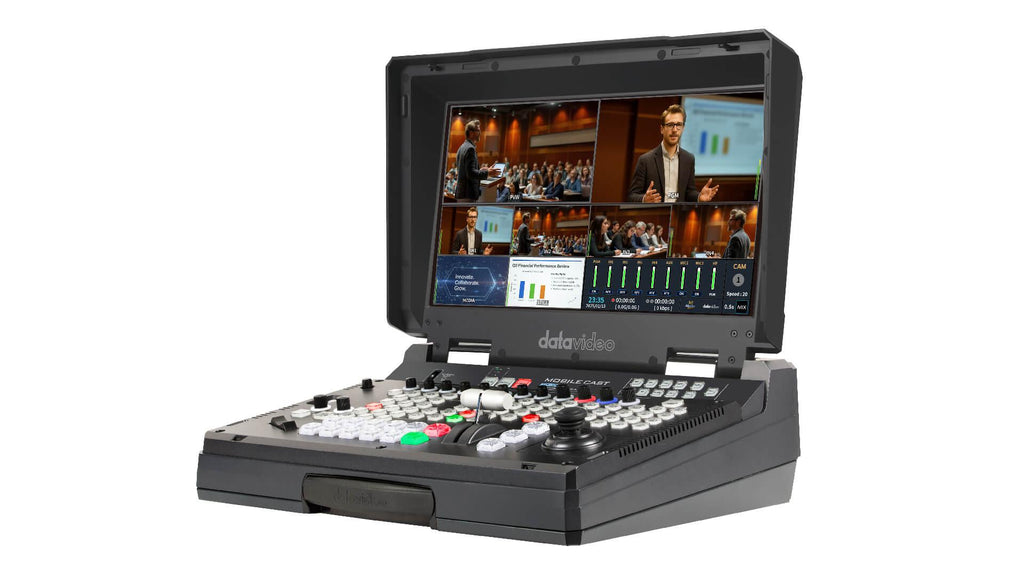

The Datavideo HS-1400 is a highly portable, all-in-one video production studio designed for single-operator efficiency. Featuring an integrated 17.3-inch Full HD monitor, it combines video switching, smart audio mixing, multi-platform streaming, recording, and camera control into a single workstation. Equipped with AI auto-tracking, seamless NDI workflows, and direct UVC conferencing support, the HS-1400 streamlines live production for education, corporate events, podcasts, and live broadcasts.

All-in-One
The HS-1400 is your comprehensive solution for live production, allowing you to switch, stream, and record seamlessly from a single, portable unit. With built-in XLR audio connections, you can easily integrate master audio from an external mixer, ensuring professional sound quality alongside your high-definition video output. This all-in-one production studio simplifies complex workflows, making it an indispensable tool for live events, broadcasts, and productions.

Completely Customizable 5 Input Full HD Production Switcher

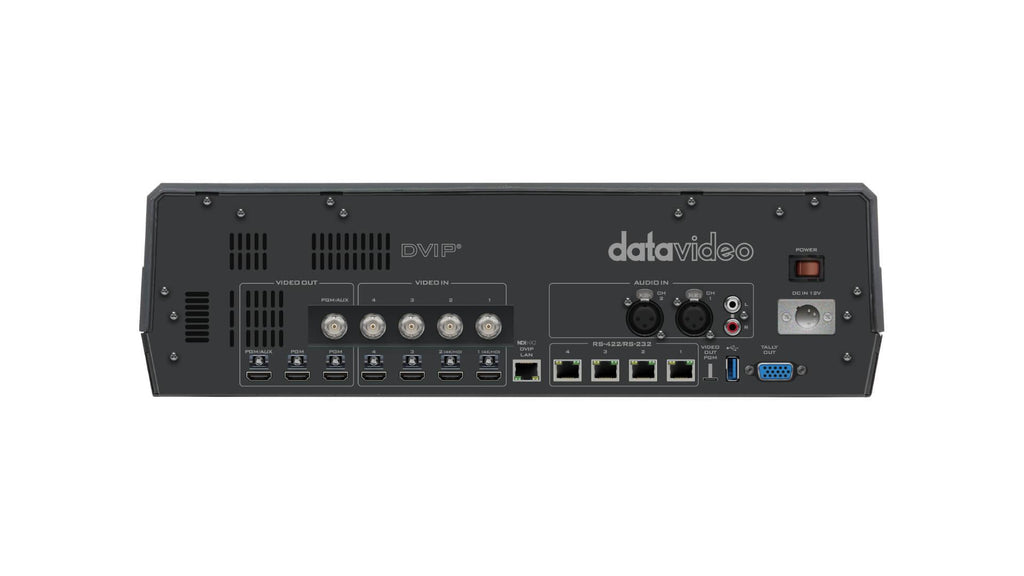

The HS-1400 is equipped with 5 inputs (4 x HMDI/ 3G-SDI selectable, NDI and 7 outputs) (3x SDI+4x HDMI) to help you produce a professional live event.

Stream to Facebook Live, YouTube, Twitch and More
The built-in H.264 web streaming encoder allows you to stream your show to Facebook, YouTube or Twitch in no time.

Built-in H.264 Recorder for SD Cards
The HS-1400 comes with a built-in web-ready recorder. Simply insert your SD card, and you'll have video files that can be immediately uploaded to the video network of your choice or to your website.

Pro Audio Mixing & Sync
Built-in XLR, RCA, and embedded audio inputs allow precise control of each audio source, ensuring clear and balanced professional sound even with multiple audio sources.

Status Control Center
Keep every critical production status in one place. Monitor audio levels, camera control, recording, streaming, system status, logos, and transition effects at a glance, allowing operators to react instantly and maintain a smooth, uninterrupted production.

NDI One-Cable IP
Supports NDI|HX3 and multiple streaming protocols. A single network enables video transmission, signal integration, and multi-location display for efficient IP production.

Integrated Media Player
Supports direct playback of videos, logos, and still images from local storage, SD card, or USB drive, allowing quick setup of opening titles, subtitles, and media playback without external

All-in-One Multiview Monitoring

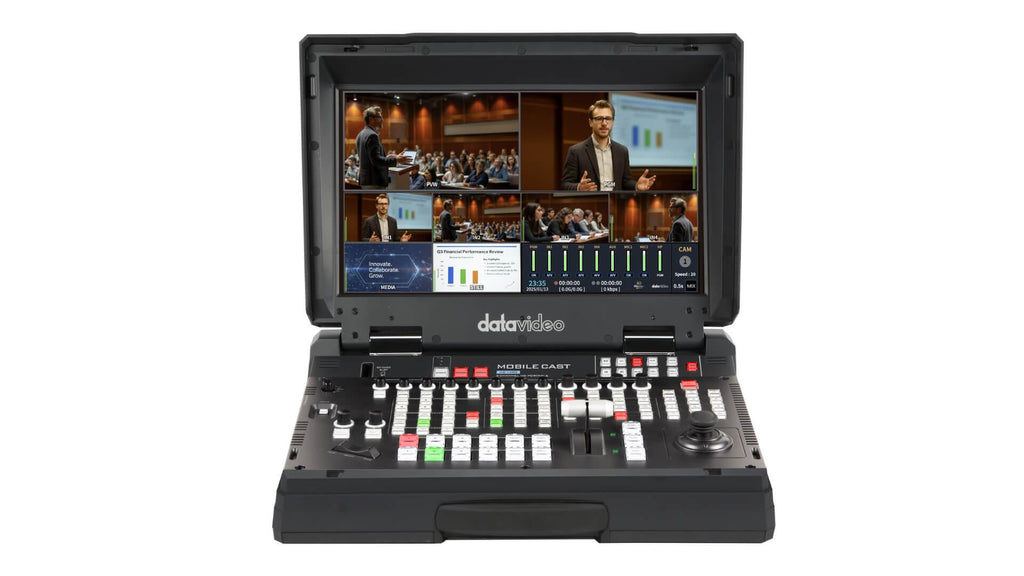

Monitor everything on a single screen — four live video inputs, NDI sources, media files, still images, and logos, alongside camera selection, audio mixing levels, and recording and streaming status. The HS-1400 also supports vertical layout mode, making it the perfect companion for portrait-format mobile live streaming.

UVC for Streaming & Conferencing
Choose from a variety of pre-saved animated stinger transitions and 50 virtual set backgrounds to create advanced effects.

Streaming and Recording Simultaneously
All 2600 series switchers have built-in support for Datavideo CG software. This unique feature converts a regular HDMI output of a PC or laptop into a fully-fledged CG interface for use with Datavideo’s CG suites. Free CG-200 software included.

Direct Access to Auto Tracking Features
The HS-1400 features dedicated physical buttons for instant, one-touch auto-tracking control.

Choose from three talent positions — center, left, or right — and three framing options — full-body, half-body, or close-up. Pan, tilt, and zoom speeds are independently selectable between fast, medium, and slow, giving operators precise, real-time camera control without taking their eyes off the production.

Quick Access to Framing Options
The HS-1400’s dedicated framing buttons let operators instantly switch between full-body, half-body, and close-up shots with a single press, adapting to any scene without interrupting the live production flow.

Talent Position: Center / Left Side / Right Side
Talent positioning depends more on a videographer’s creativity than strict rules. A centered composition provides stability and balance, ideal for highlighting the subject. Alternatively, placing talent on the left or right third creates a sense of direction or hints at future possibilities through their line of sight.

Custom AI Object Tracking
If you are filming multiple people, you can designate a person for Auto tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, etc.

Smart PTZ Speed Adaptation
The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.

Full Control, Anywhere
The HS-1400's Web UI gives operators remote access to all essential production functions — switch between camera angles, manage auto tracking settings, control PTZ movement, select media files and still images, all from any browser-connected device without touching the physical panel.

Support SRT Streaming Protocol, no Need to Worry About Unreliable Network Environment
Many broadcasters have experienced pixelated video during live streaming, often due to unstable network environments caused by bandwidth volatility.

Streaming RTMP over unreliable, low-bandwidth networks can cause issues. With dvCloud, you can now replace the RTMP protocol with SRT, which will fix most streaming issues you may have. SRT is better than RTMP because it handles problematic networks more efficiently.

It requires less bandwidth, and it solves data errors faster. As a result, your viewers will experience a better stream, with less buffering and pixelization.

WHAT'S IN THE BOX

1 x HS-1400 Unit
1 x AD Switch DC 12V with AC Cord

SPECIFICATIONS

Streaming

Others
