E-Image EP880MK Pedestal System 20KG Payload

E-ImageSKU: EI-EP880MK

Price:
Sale price£4,633.50(incl. VAT)
£3,861.25

(ex VAT)

Tax included

Stock:
Available to backorder
Shipping: Calculated at checkout

Payment & Security

Apple Pay Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

E-Image EP880MK Pedestal System 20KG Payload - EI-EP880MK

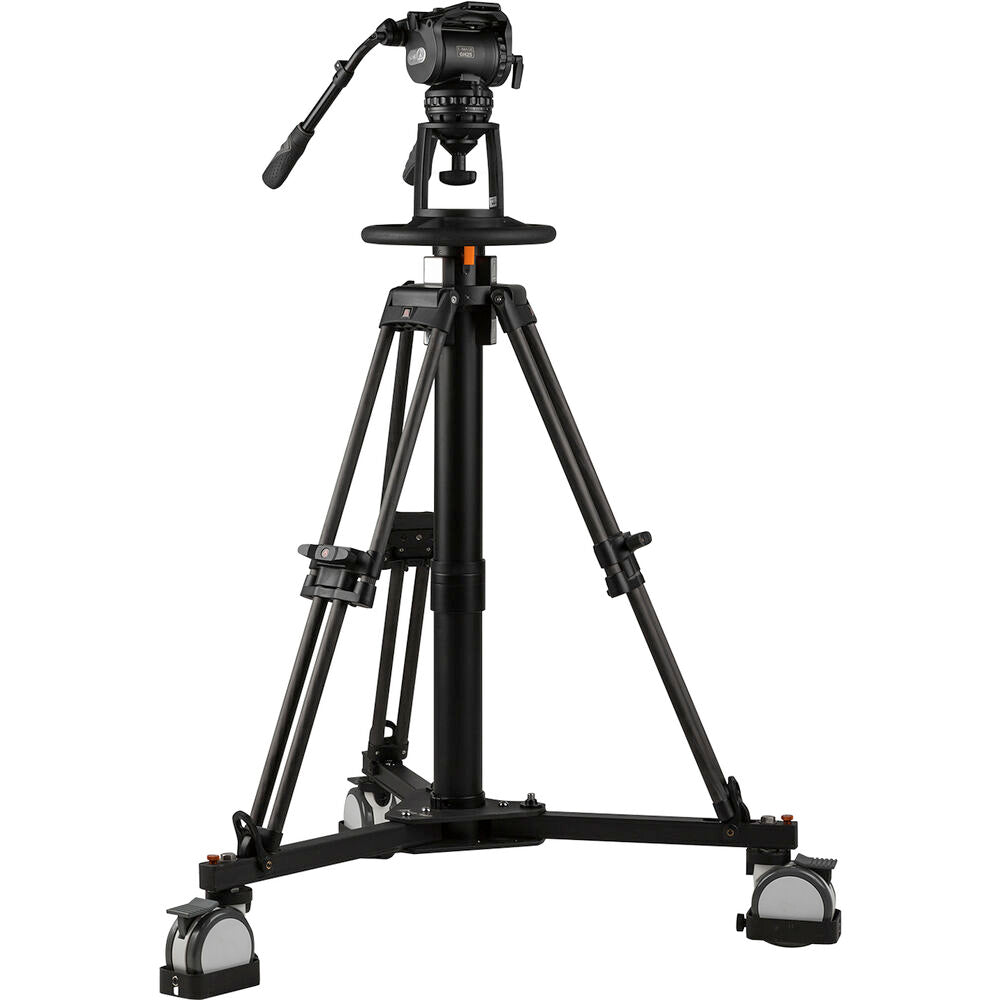

The EP880MK pneumatic pedestal kit is a stable and compact system, consists of EIMAGE’s EI-7105H fluid head and EP880S pedestal, which is designed and built for both studio and location broadcast needs, provides payload up to 20kg (44.0lbs) and working height adjustment from 104cm to 183cm (40.9in-72.0in).

FEATURES

  • Payload of 20kg
  • 100mm Bowl Size
  • Ideal for outside and broadcasting and studio shooting

EI-7105H Fluid Head

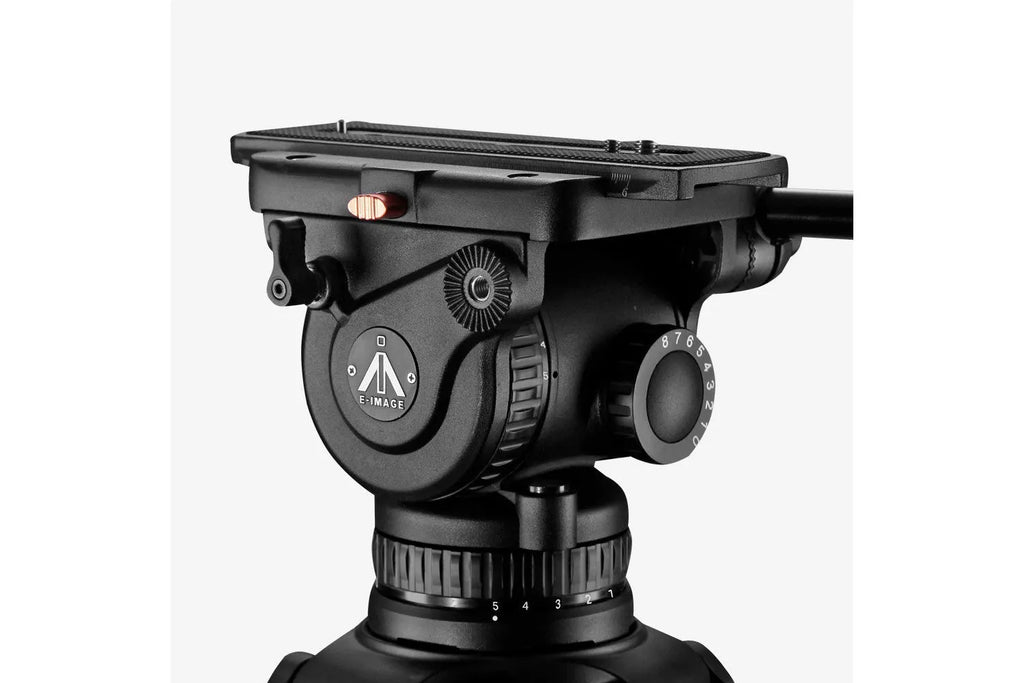

The EI-7105H fluid head features a 9-step counterbalance system (0-8) and 6-step pan and tilt drag adjustment (0-5) for smooth, precise movement. It is designed for a 100mm bowl tripod system, supporting payloads of up to 20kg (44lbs). The head also includes a 100mm (3.9in) sliding plate, dual extendable pan handles, and a built-in bubble level for improved control.

100mm Bowl Size
Secured with a 100mm ball adapter and 3/8"-16 stud, allowing quick leveling without adjusting tripod legs, even in complex setups. The wide platform provides better support for various camera setups.

True Fluid Damping System
Features 5+0 drag adjustment settings for both pan and tilt, allowing fine-tuned movement based on shooting style or shot requirements.

Real Counterbalance System
Offers 8+0 steps of counterbalance to support payloads of up to 20kg (44lbs) while maintaining stability.

P3 Quick Release Plate
Designed for quick and secure attachment of cameras to the EI-7105H fluid head.

GB3 Telescopic Handle
Extendable from 405mm to 605mm (15.9in–23.8in) for better reach and precise control.

Precision Engineering & Expert Assembly
Most components are CNC-machined or die-cast for high precision. Each head is assembled and fine-tuned by experienced technicians to ensure top-quality performance.

EP880S Pneumatic Pedestal

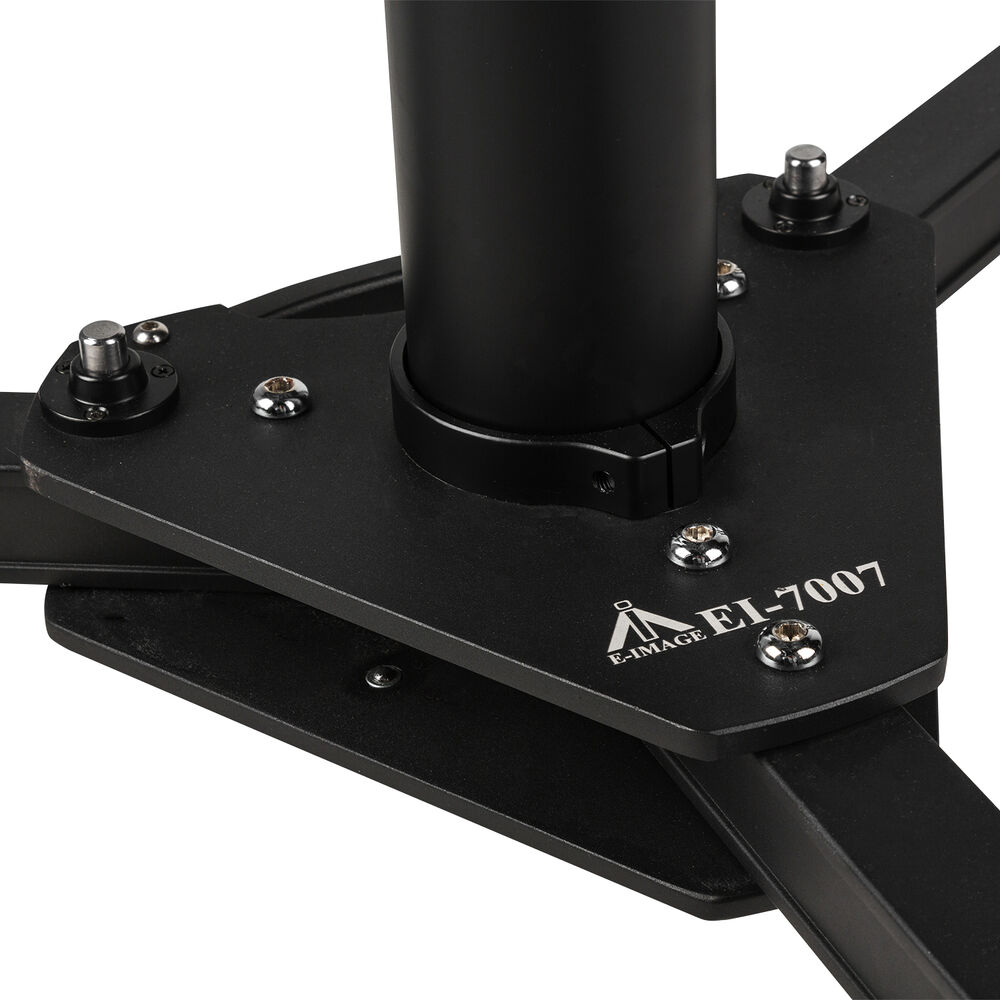

The EP880S pneumatic pedestal provides exceptional stability and smooth, jerk-free operation. It features an air pressure gauge, locking brake, safety latch, and a safety air pressure valve for enhanced control and reliability. The included EI-7007 foldable dolly is equipped with position track locks, foot-operated brakes, and cable guards on each 125mm wheel, ensuring smooth movement in any direction. A manual air pump is also included for easy pressure adjustments.

Compatible with 100mm Fluid Heads

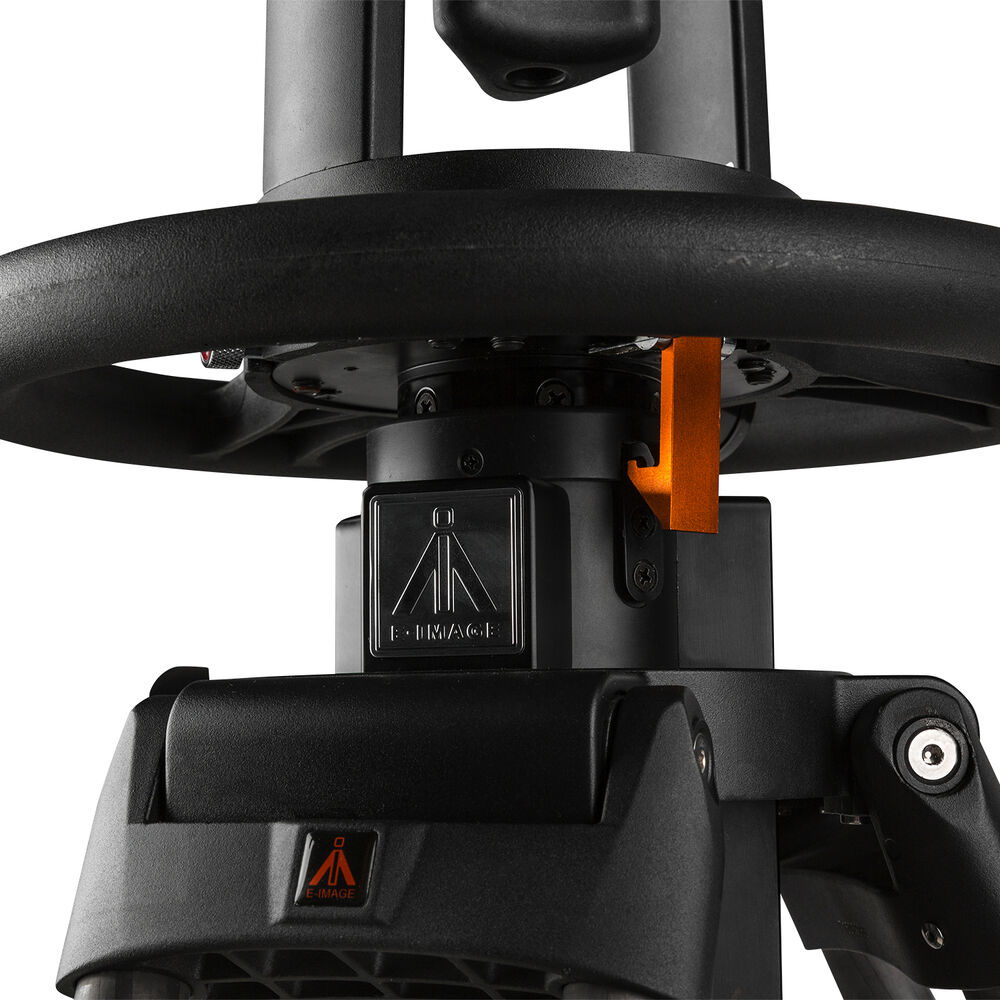

A safety latch ensures the central column remains locked when fully collapsed for secure transportation.

Adjustable Height
The removable central column allows height adjustment from 86cm to 165cm (33.9in–65.0in).

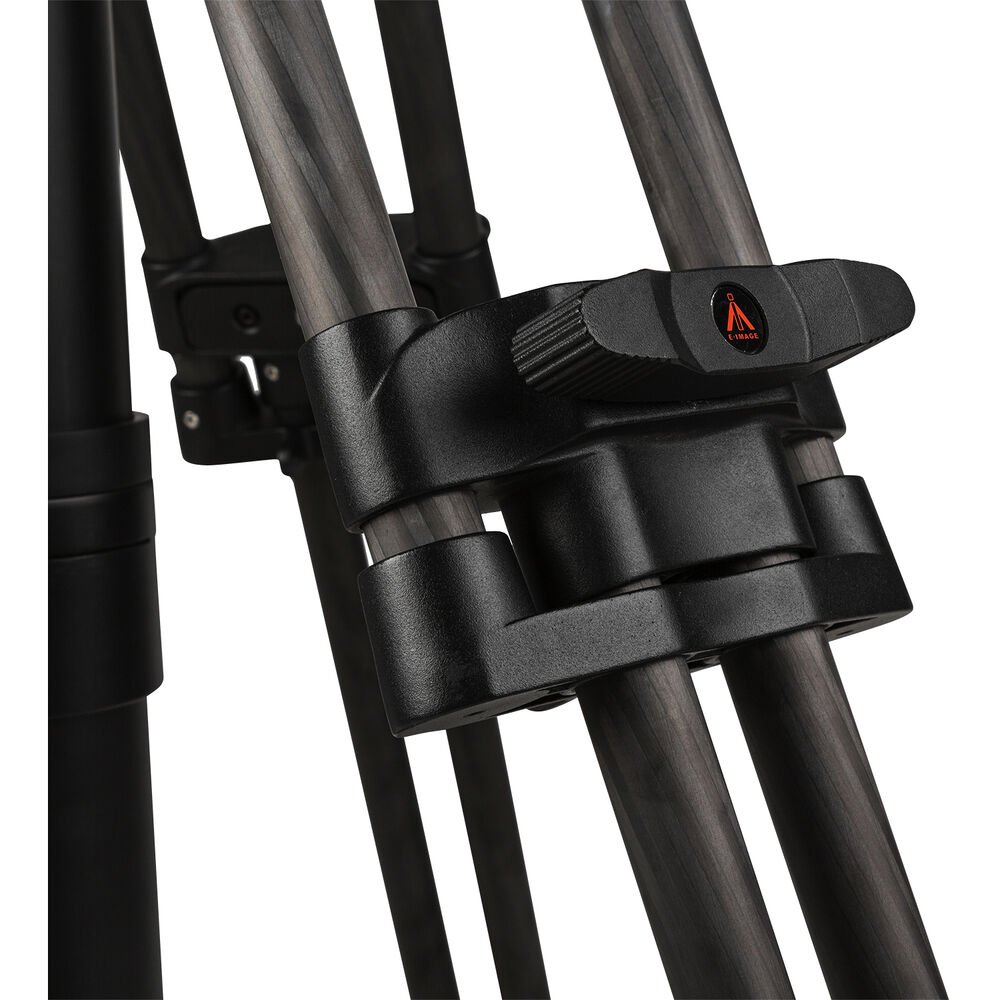

High-Quality Dual Carbon Fiber Legs
Provides lightweight durability and superior stability.

Reliable Height Positioning
Features a locking brake for extra safety, maintaining balance at any height.

Adjustable Air Pump System

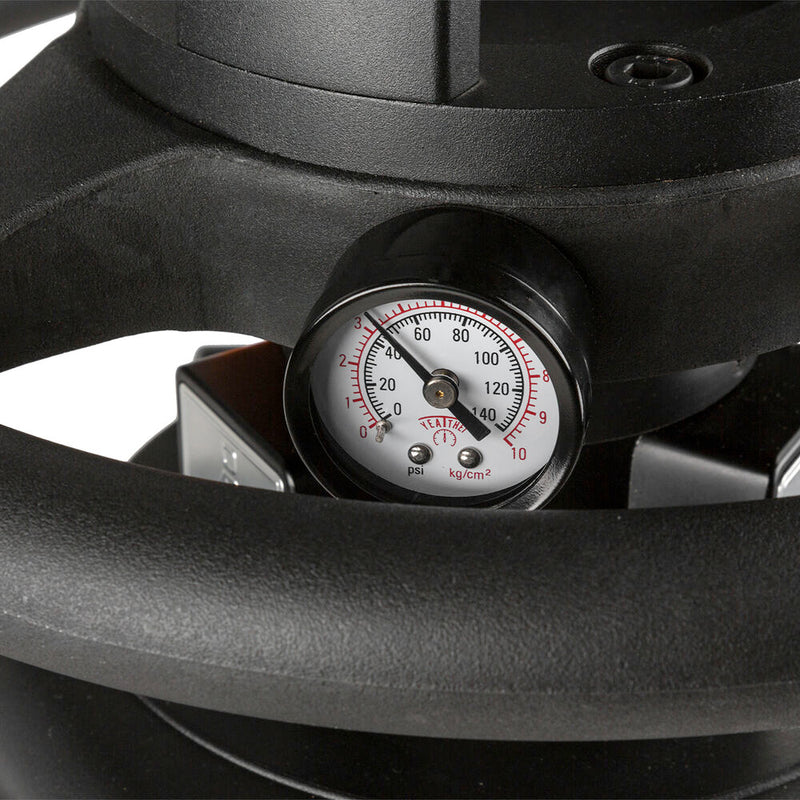

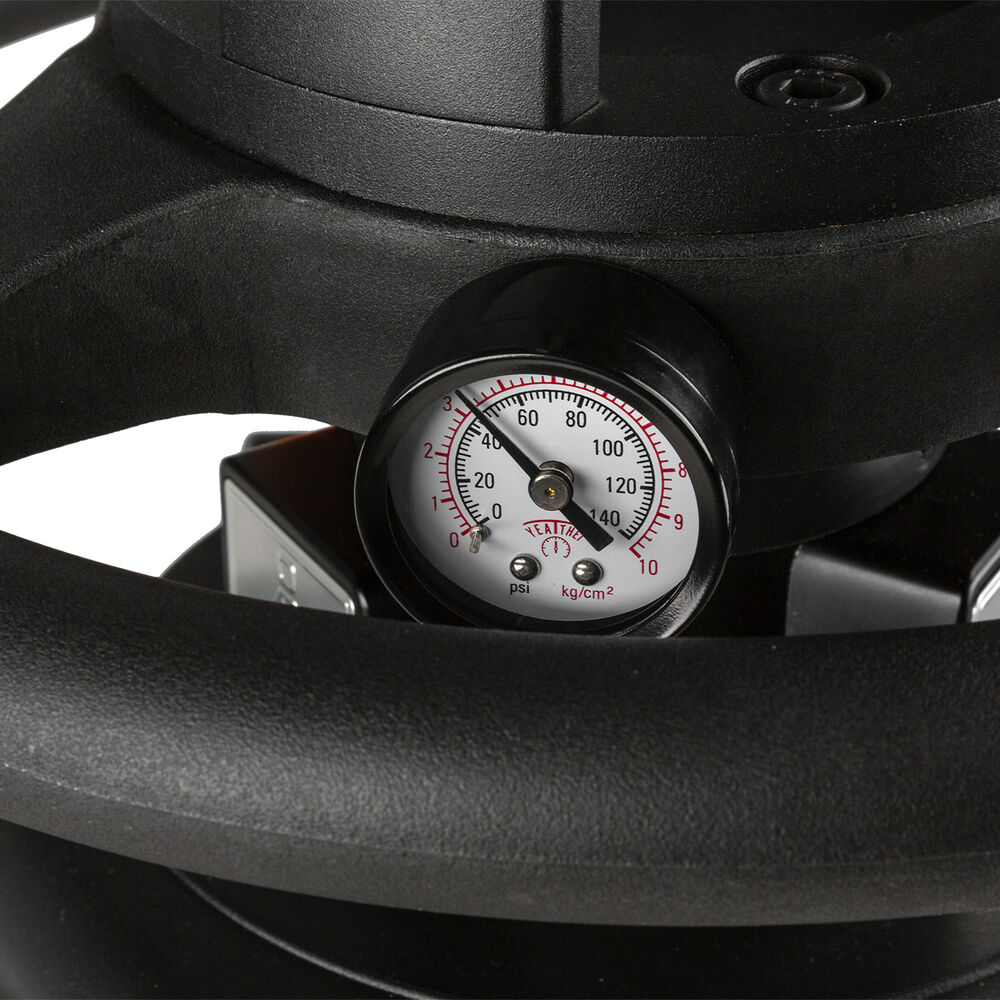

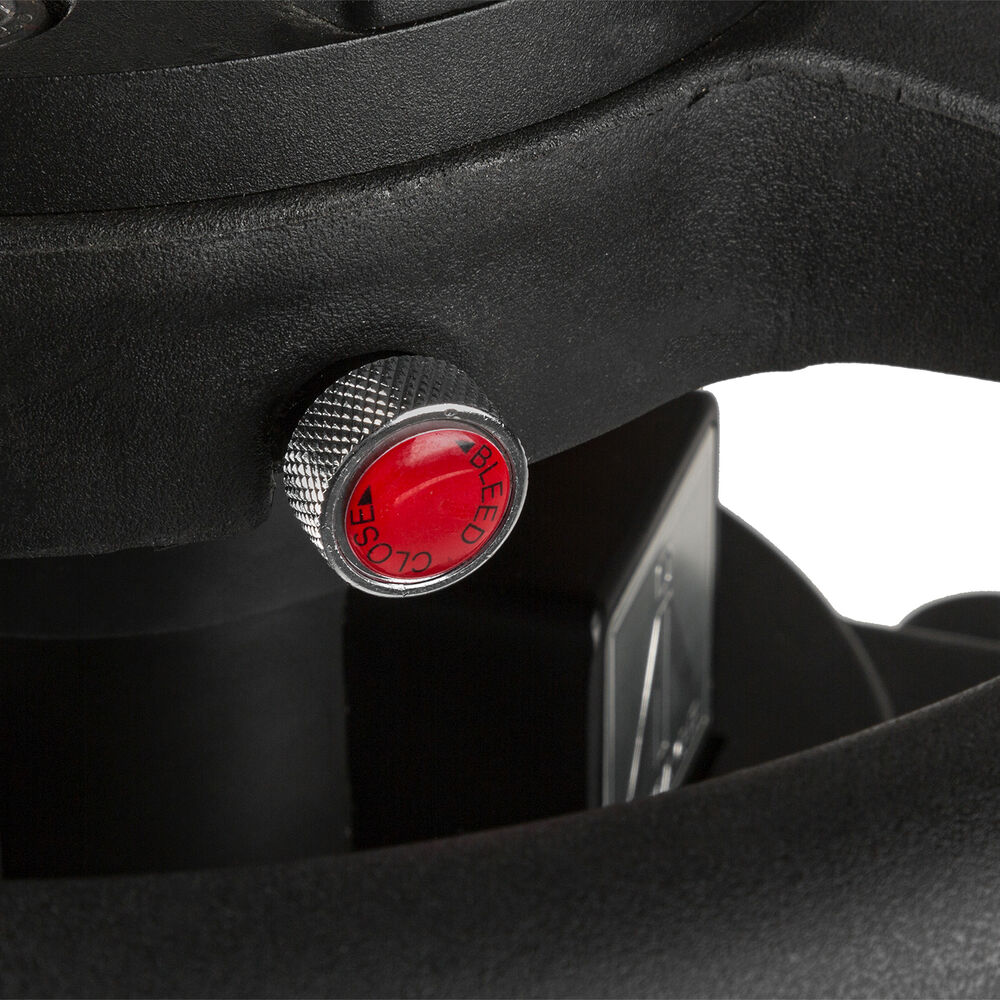

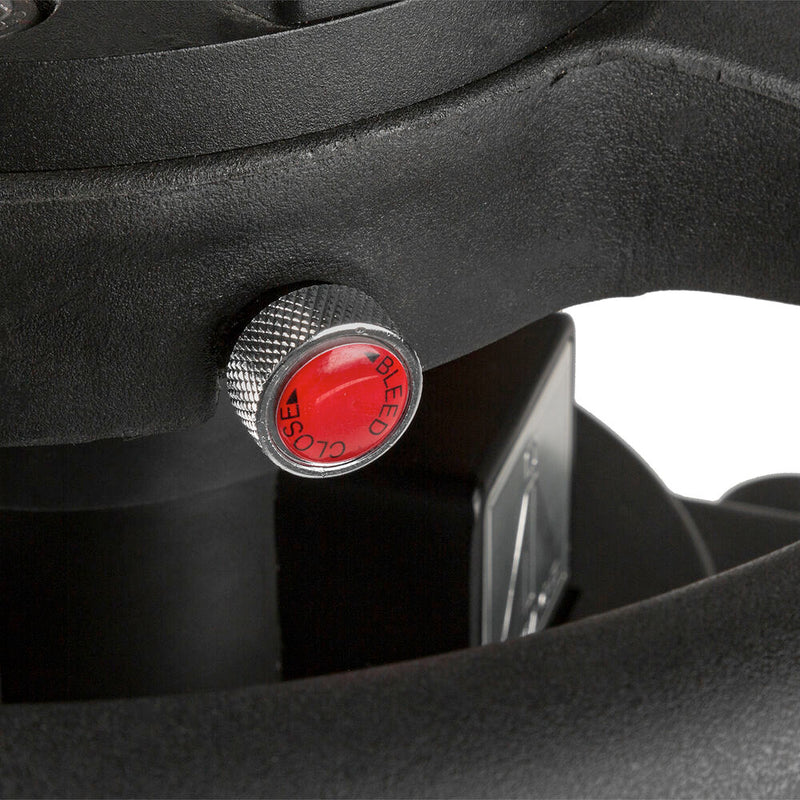

Equipped with an air pressure gauge and safety valve for controlled elevation adjustments.

Ergonomic Twist Knobs
Ensures quick and secure locking for easy setup.

Durable 125mm Wheels
Smooth and quiet movement with six-position track locks for precise angle adjustments.

WHAT'S IN THE BOX

  • 1x 7105H Head
  • 1x EP880S
  • 1x EI7007 Dolly

SPECIFICATIONS

Included 7105H (Head) + EP880S (includes E17007 dolly)
Payload Range 20kg / 44.0lbs
Safety Payload 25kg / 50lbs
Net Weight 28.5kg / 62.7lbs
On-shot stroke 38cm / 15.0in
Bowl Size 100mm
Height Range 104-183cm / 40.9-72.0in
On-Shot Stroke 38cm/15in
