E-Image EP880XK Pneumatic Pedestal System Payload 40KG

E-ImageSKU: EI-EP880XK

Price:
Sale price£9,072.00(incl. VAT)
£7,560.00

(ex VAT)

Tax included

Stock:
Available to backorder
Shipping: Calculated at checkout

Payment & Security

Apple Pay Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

E-Image EP880XK Pneumatic Pedestal System Payload 40KG - EI-EP880XK

The EP880XK is an integrated two-stage pneumatic pedestal kit, provides more smooth drive system for both studio and location broadcast needs, consists of EIMAGE’s GH40 PLUS fluid head and EP880X pedestal. Its payload up to 40kg (88lbs) and working height adjustment from 124.5 cm to 187.0cm (49.1in-73.6in).

EP800X Pneumatic Pedestal Highlights:

  • Height Range: 78cm – 152cm (30.8" – 59.7") with 15” on-shot stroke

  • Adjustable Air Pressure System with built-in gauge and hand pump for manual tuning

  • Locking air valve and safety latch to prevent slippage during operation

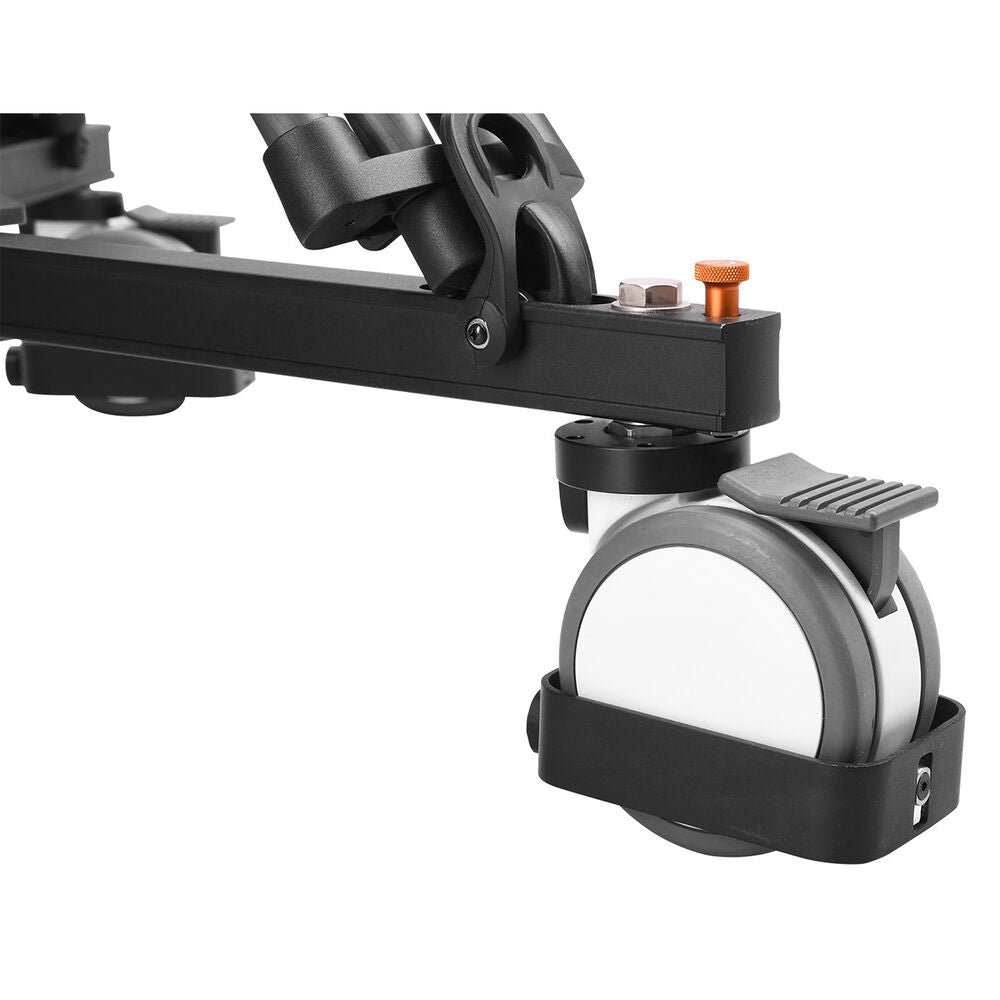

  • Heavy-duty EI700B dolly with foot-operated wheel locks and six-position track locks

  • Integrated cable guards help protect critical equipment from snags and damage

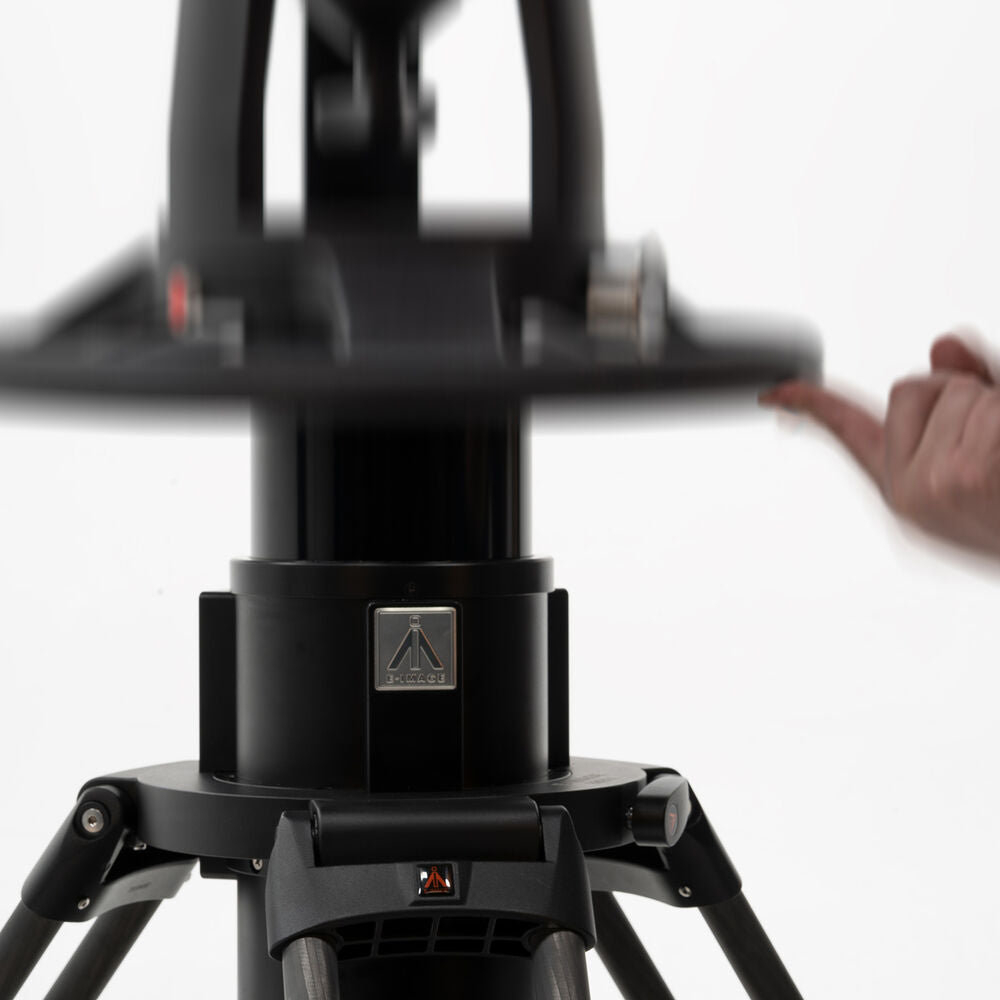

Engineered for smooth vertical movement, the EP800X's pneumatic column delivers reliable elevation without backlash, letting you achieve professional, repeatable moves with ease.

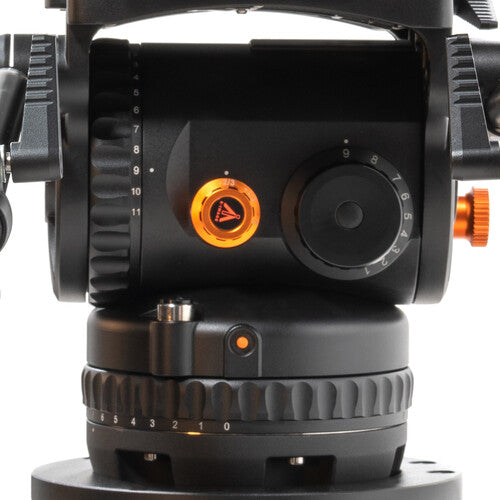

GH40 PLUS Fluid Head Features:

  • Supports payloads up to 40kg (88.2 lb) – perfect for full-size studio camera rigs

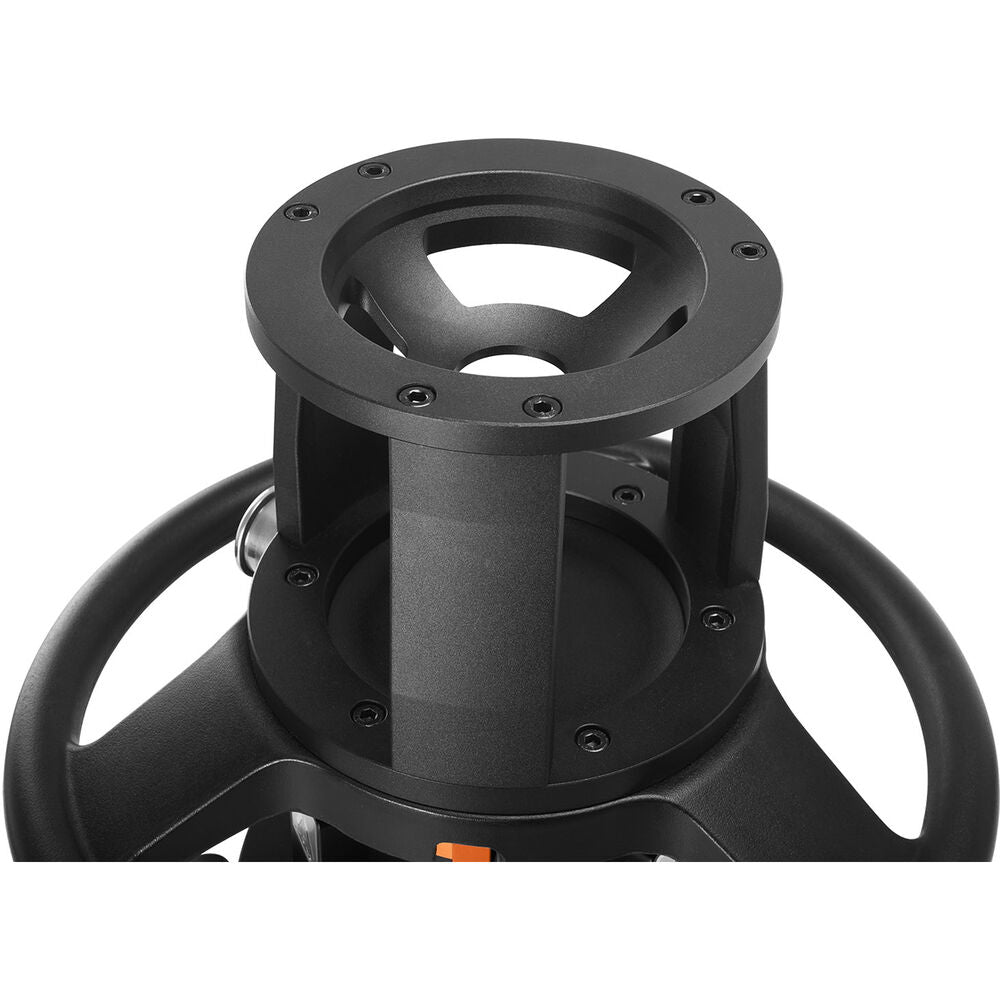

  • 150mm bowl fitting for perfect compatibility with the EP800X pedestal

  • Dual telescopic pan bars with sculpted grips for intuitive, fatigue-free operation

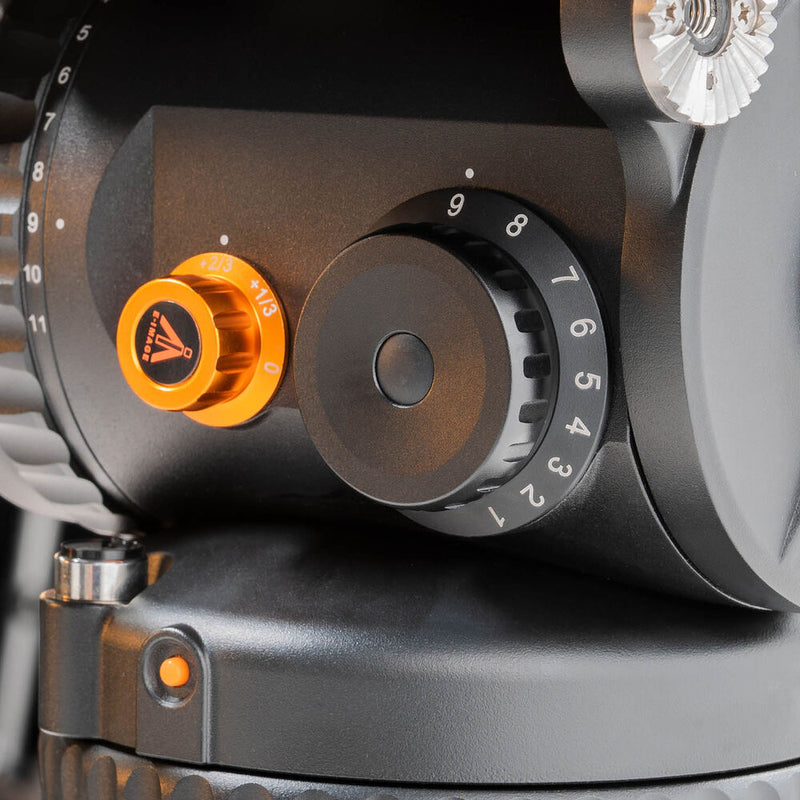

  • 12-step pan and tilt drag settings for precision control in any shooting scenario

  • 9-step counterbalance system plus fine-tune adjustment knob for dialled-in rig balance

  • Illuminated bubble level for fast, accurate setup – even in low-light studios

  • Accessory mounting points (1/4"-20 & 3/8"-16) for monitor arms or other add-ons

This professional-grade setup is ideal for multi-camera studio production environments where consistent framing, repeatability, and comfort are essential.

SPECIFICATIONS

Maximum Height
64.6" / 164.2 cm
Minimum Height
49.1" / 101.8 cm
Working Range
On-Shot Stroke: 15" / 38 cm
Head Attachment Fitting
150 mm Bowl
Tilt Range
-70 to 90°
Rotation & Tilt
12-Step Drag Adjustment
Tilt Lock
Balance Plate
8.1" / 205 mm Sliding Range
Bubble Level
Built-In Illuminated
Casters
4.9" / 125 mm Diameter
Physical
Mounting
Side: 1x 3/8"-16 Female Thread
Side: 2x 1/4"-20 Female Thread
Load Capacity
110.2 lb / 50 kg (Pedestal)
88.2 lb / 40 kg (Fluid Head)
59.5 lb / 27 kg (Fluid Head in Boost Mode)
Color
Black
Material of Construction
Carbon Fiber
Environmental Resistance
No
Dimensions
10.2 x 9.4" / 260 x 239 mm (Fluid Head)
Weight
82.5 lb / 37.4 kg (Pedestal)
19.4 lb / 8.8 kg (Fluid Head)
