Description

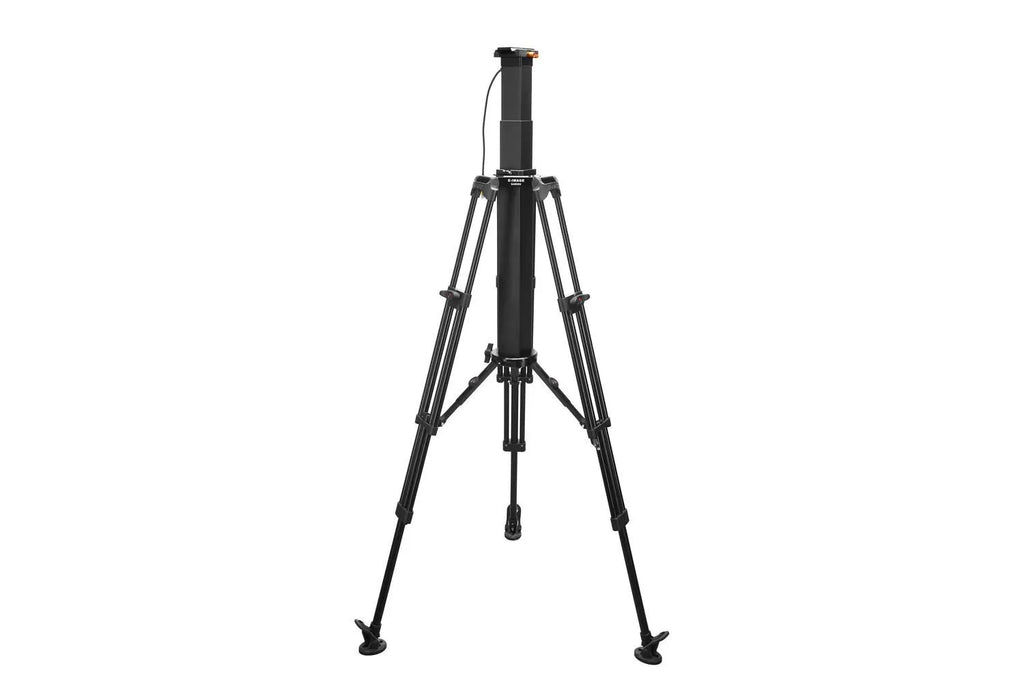

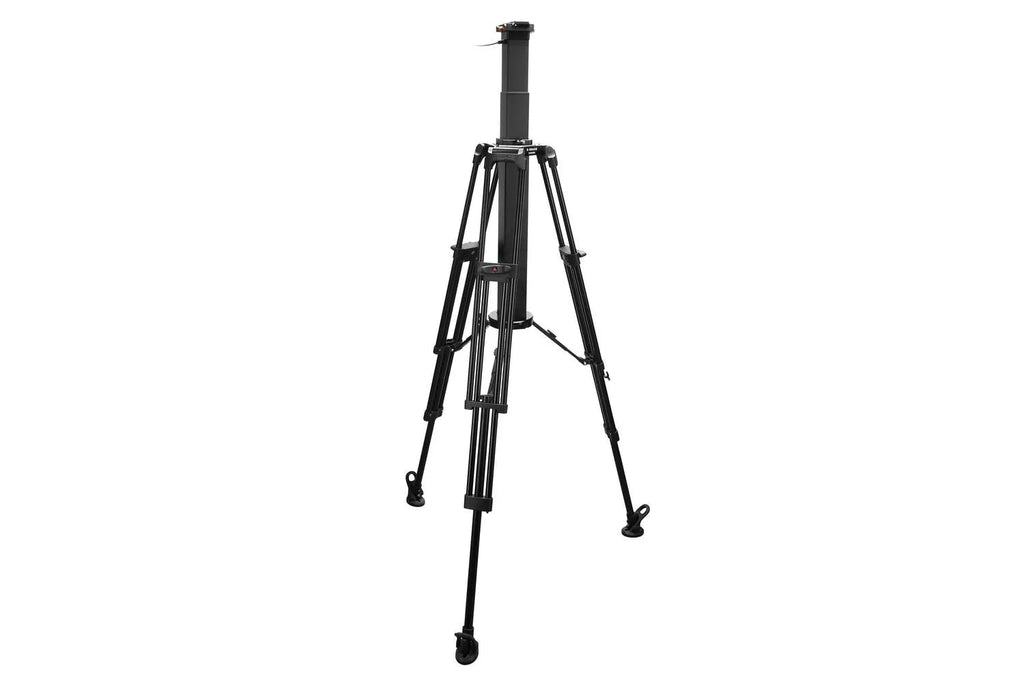

E-Image GAM260 Motorized Elevation System - EI-GAM260
The E-Image GAM260 Motorized Elevation System is an advanced, versatile solution designed specifically for PTZ cameras. Featuring an electric motor and remote control system, it enables smooth and precise height adjustments, enhancing shooting efficiency and creative flexibility. The 3-section column and memory-based remote control system allow for quick and seamless positioning, making it an essential tool for professional video production.
FEATURES
Smooth Motorized Elevation
Effortlessly adjust the height with motorized elevation and the convenience of remote control operation.
High Load Capacity
Supports PTZ cameras and equipment weighing up to 30kg (66 lbs), ensuring maximum stability during use.
Height Display
Monitor and adjust elevation settings with precision, thanks to the clear digital height display.
Optional Wireless Control
Enjoy the flexibility of wireless operation with an optional 2.4G remote controller (maximum range: 10m).
Maximum Working Height
Achieve a broader shooting perspective with a maximum working height of 2.6m (8.5 ft), ideal for unique camera angles.
Quick Positioning
Easily switch between three preset height positions, allowing for efficient repositioning during shoots.
Compatibility with Video Heads
Adapt to different camera setups with the optional EI-A19 100mm bowl riser, ensuring seamless compatibility with various video heads.
Battery-Powered Operation
For increased portability, the GAM260 can be powered by an optional 26V V-Mount battery, eliminating the constraints of traditional power sources.
Enhanced Versatility
- When paired with the MS-010 tripod horizontal boom, the GAM260 can support two PTZ cameras simultaneously.
- Using the EI-A19 100mm bowl adapter, it accommodates multiple camera types with attached video heads.
- The optional EI-A05V clamp and AD-10 external battery mount plate allow for battery-powered operation, providing greater flexibility in location shooting.

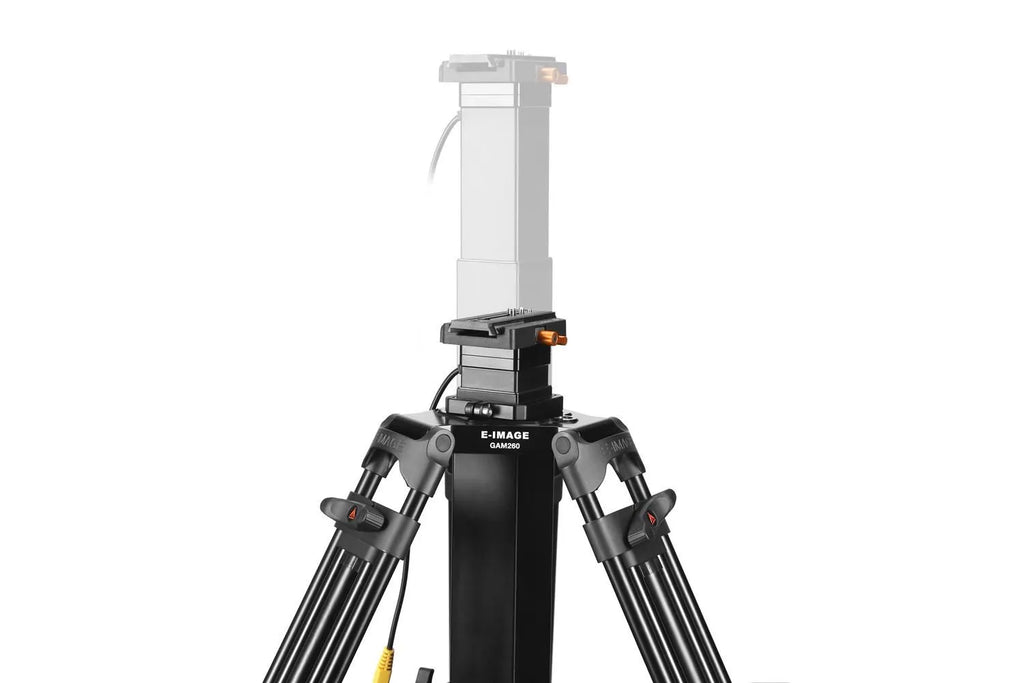

Motorised Elevation System
Motorised elevation system with a maximum working height of 260 cm (102.4 inches)

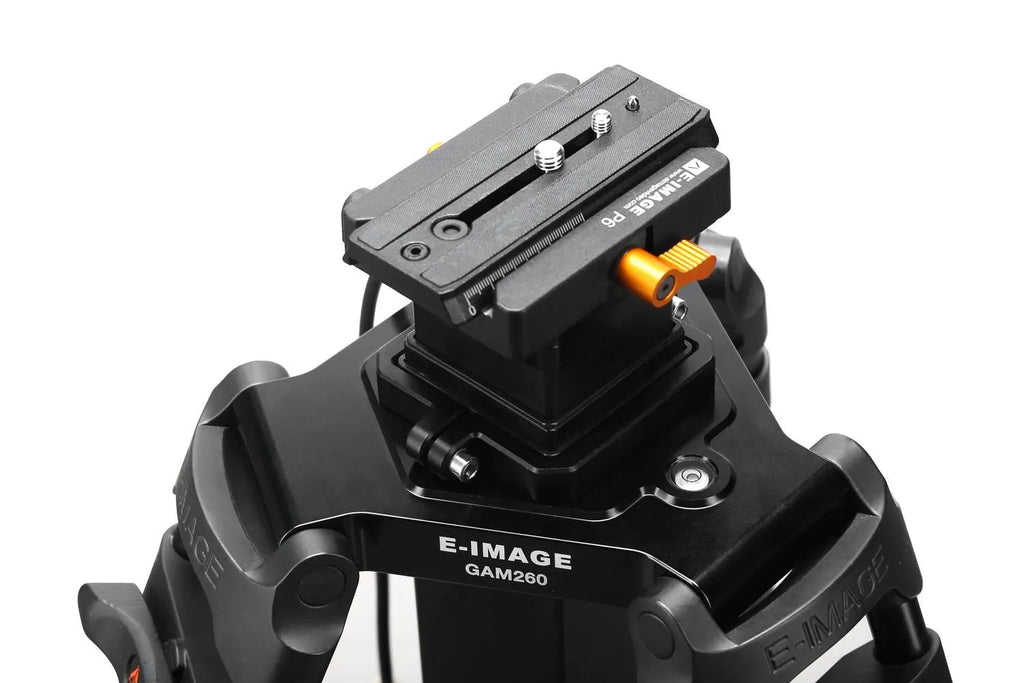

P6 QR Adapter
Camera can be easily attached using the P6 quick-release adapter

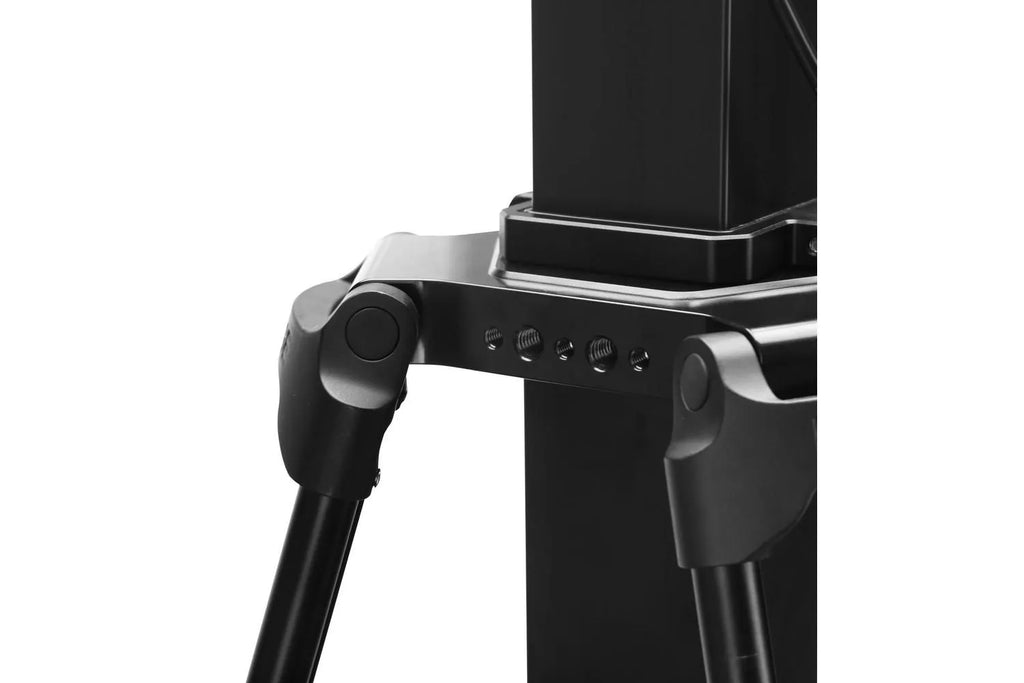

1/4" & 3/8" Screw Holes
Additional standard 1/4" and 3/8" screw holes for attaching accessories

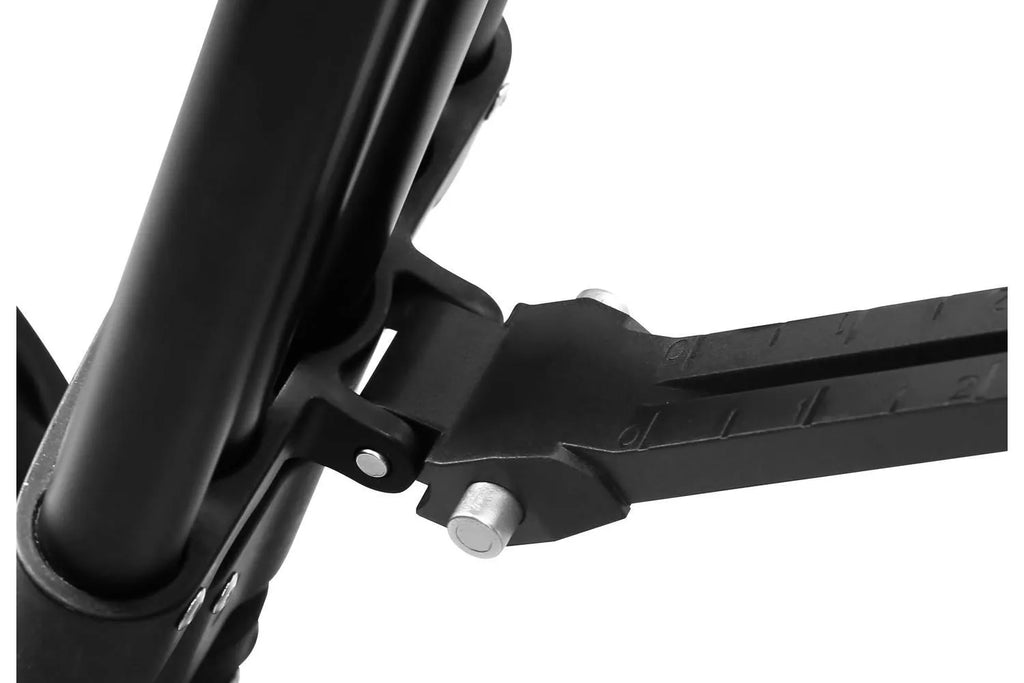

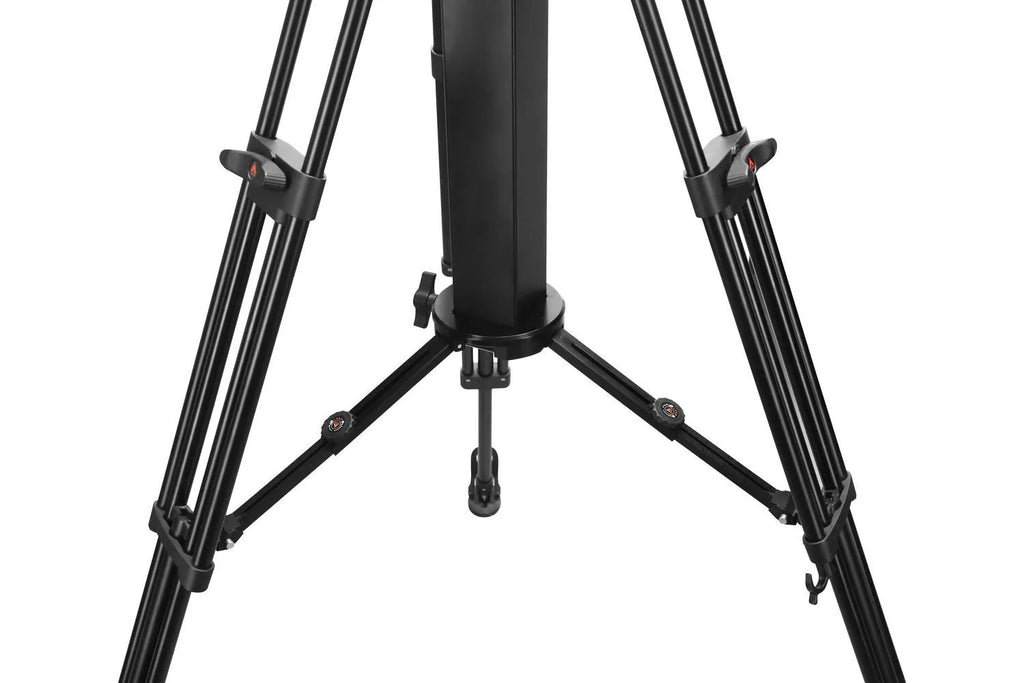

Quick-Release Middle Spreader
Adjustable middle spreader adds extra stability
WHAT'S IN THE BOX
- GAM260 Motorized Elevation Tripod
- Power Supply Unit with Cable (3m)
- Motor Cable (2.5m)
- Extension Cable (2.5m)
- Wired Remote Controller (2m)
- SC-4 Carrying Bag
SPECIFICATIONS
| Max. Payload | 30kg / 66lbs |
|---|---|
| Net Weight | 14.5kg / 31.9lbs |
| Height Range | 87-260cm / 34.3-102.4in |
| Transport Length | 92cm / 36.2in |
| Stroke | 65cm / 25.6in |
| Raising / Lowering Speed | 40mm/s |
| Temperature Range | 10°C~40°C |
| Camera Attachment | 1/4" and 3/8" |
| Bubble Level | Available |
| Column Interface | P6 (QR adapter with plate) |
| Column Section | 3 |
| Column Size | 70×70mm |
| Noise Level | ≤38dB |
| Controller Cable | 2m / 78.7in |
| Motor Cable | 2.5m / 98.4in |
| Motor Cable Extension | 2.5m / 98.4in |
