Description

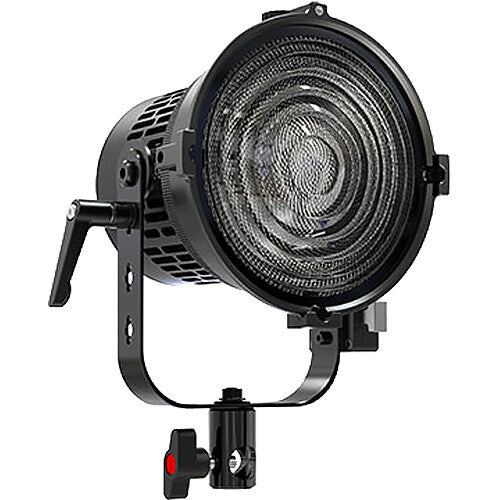

Fiilex Q3 Color 90W LED Fresnel
The Q3 COLOR is a cinema-grade 90W full-color fresnel that packs a ton of features into its compact four pound housing. Almost a point source, this LED is capable of producing crisp shadows and clean barndoor cuts. Its IP-X5 rating and flexible mounting options also means it can be used and rigged in harsh and dynamic environments. No other portable LED fixture can match the Q3's combination of power, size, and control.
FEATURES
- High-CRI white light output (2000-10000K)
- 8 and 16-bit color modes: CCTRGBW, CCTHSI, CIExy, etc.
- IP-X5 Rating (water resistant)
- Easy PSU / battery mounting on yoke
- Removable yoke for versatile rigging
- Wireless control via integrated LumenRadio
- Hardline DMX via XLR-5 adapter
- Smooth and Sharp dimming modes
- DMX-controllable fan modes: Full, Auto, Silent, Off

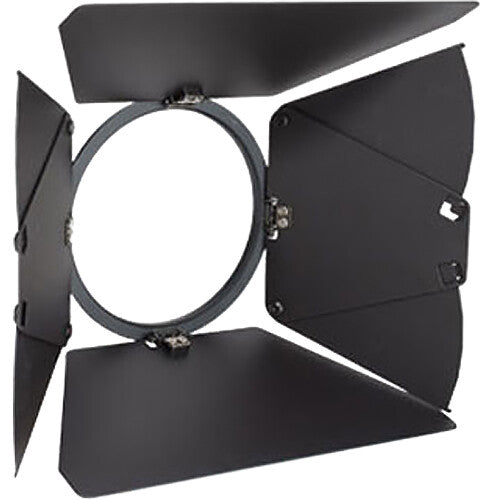

- 8-leaf barndoor cuts clean with no color splitting
WHAT'S IN THE BOX
1x Q3 COLOR w/ LumenRadio Head & Yoke & Fresnel
1x FLXQ3CLR-BD8

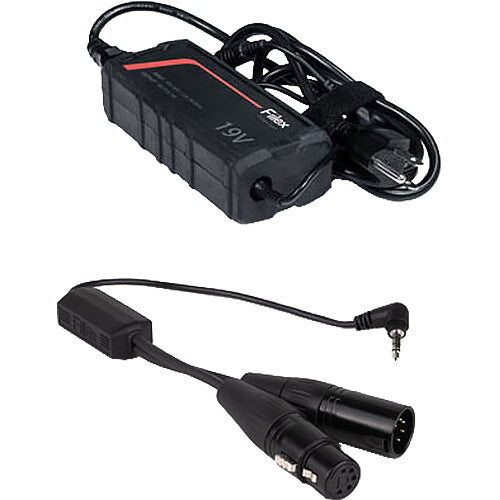

1x FLXQ3CLR-PSU-90V
1x FLXQ3CLR-TRRS2XLR5
SPECIFICATIONS
Fresnel Diameter: 5”
Beam Angle: 15°-45° with fresnel (55° without fresnel)
CCT Range: 2000-10000K continuous tuning + magenta/green shift
CRI / TLCI: 95 / 90 typical
CCT Range: 2000-10000K continuous tuning + magenta/green shift
CRI / TLCI: 95 / 90 typical
Control Modes: CCT, HSI, RGBW, GEL, CCTRGBW, CCTHSI, CIExy, ICTHS, and more
Dimming: 100% - 0% flicker free
Dimming: 100% - 0% flicker free
Dimming Modes / Curve: Smooth, Sharp / Linear, Gamma
Light Engine: DiCon Dense Matrix LED
Power Consumption: 90W max AC | 80W max DC
Power Consumption: 90W max AC | 80W max DC
BTUs/hour: 307 (BTUs/hour) max
DC Input: 14 - 30V DC (via 5.5mm x 2.5mm Barrel)
AC Input: 100 - 240V AC, 50 ~ 60Hz
DMX/RDM Port: TRRS (XLR-5 via adapter)
DC Input: 14 - 30V DC (via 5.5mm x 2.5mm Barrel)
AC Input: 100 - 240V AC, 50 ~ 60Hz
DMX/RDM Port: TRRS (XLR-5 via adapter)
Wireless Control: Integrated LumenRadio CRMX
USB Power Output: 5V/1A (via USB-C)
Weight: Fixture: 4.5 lbs / 2kg (includes yoke, barndoors) | Power adapter: 1.1 lbs/0.5kg
Size (L x W x H): 5.7" x 6.8" x 9.0" / 14.4cm x 17.4cm x 23.0cm
Mount Type: Baby stud 5/8" female (16mm)
Weight: Fixture: 4.5 lbs / 2kg (includes yoke, barndoors) | Power adapter: 1.1 lbs/0.5kg
Size (L x W x H): 5.7" x 6.8" x 9.0" / 14.4cm x 17.4cm x 23.0cm
Mount Type: Baby stud 5/8" female (16mm)
IP Rating: IP-X5 (water-resistant)
Thermal Design: Controllable fan
Operating Temperature: 0-40º C (32-104ºF)
Thermal Design: Controllable fan
Operating Temperature: 0-40º C (32-104ºF)
