Description

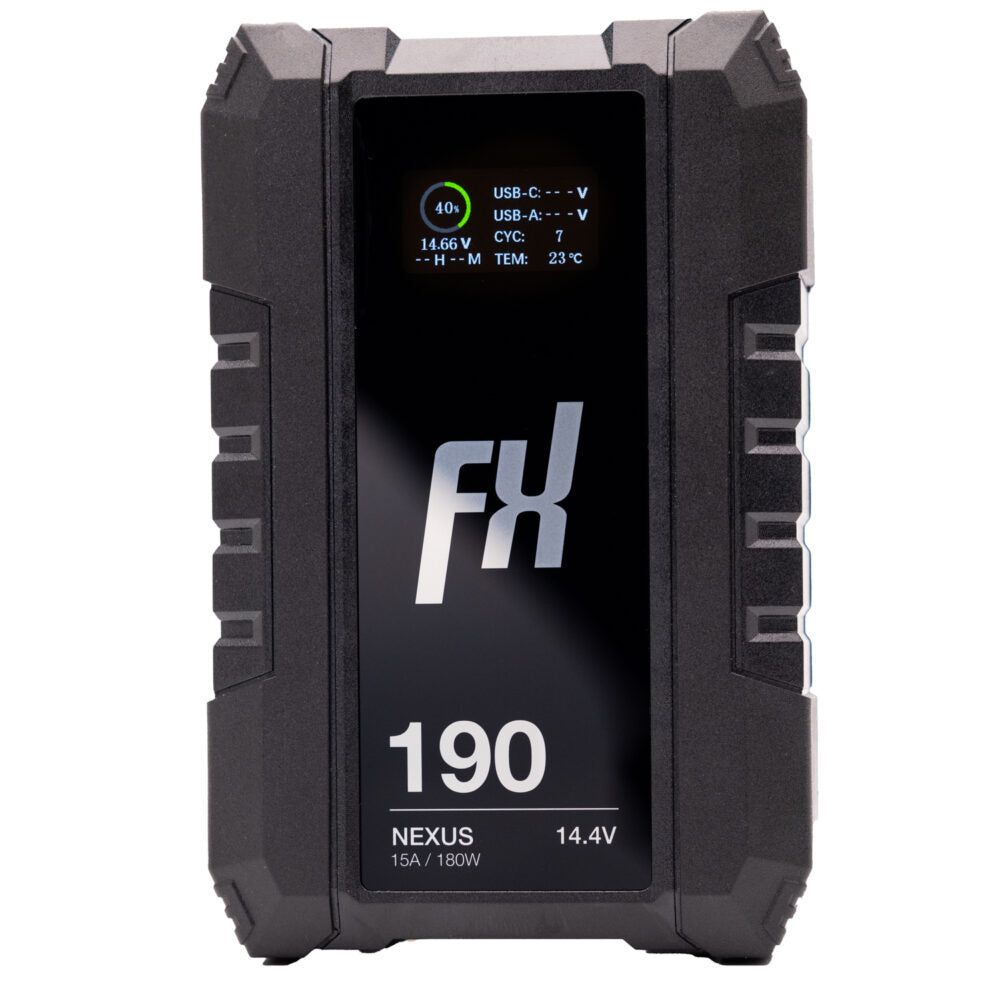

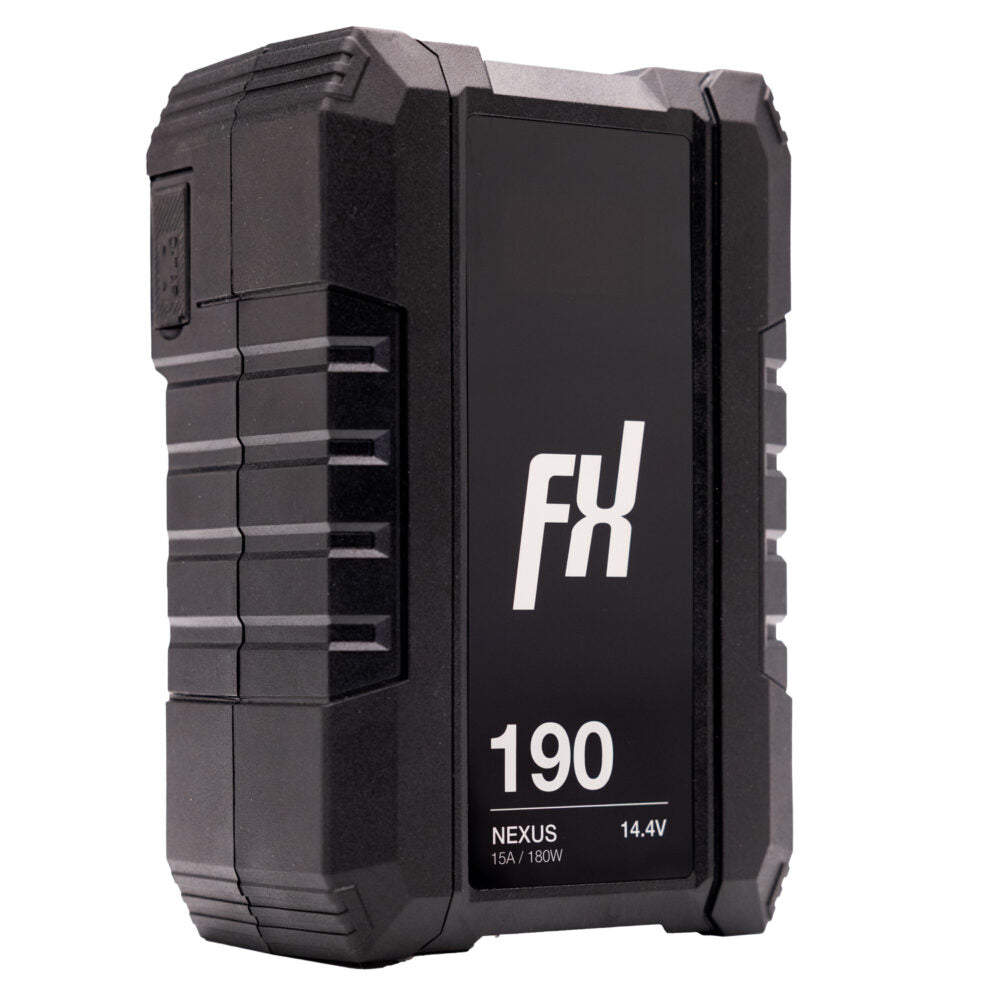

FXLION BP-190SL 14.4V/184Wh Nexus V-Mount Battery
The BP-190SL is Nexus V-mount Battery.
FEATURES
Rugged, shockproof casing with rubberized protection and an LCD Display
• 15A / 180W high-power output, with a peak output of 180W
• Rechargeable Li-ion battery with no memory effect
• Advanced PCB design with multi-layer protection against overheating, overcharging, over-discharging, and overcurrent
• Compatible with SONY and RED communication protocols, allowing the camera to display battery capacity, voltage, percentage, and other key data
• Wire-free internal assembly for enhanced structural stability
• USB-C port with bidirectional PD fast charging up to 100W
• One USB-A output port
• Two D-Tap in/out ports for powering cameras and high-power LED lights, and for charging via D-Tap charger
• Operating temperature range: -20°C to +55°C
• Independent battery pack and shell design for improved drop resistance
• D-Tap and USB-A ports equipped with protective rubber caps
• Durable metal V-lock mount for increased solidity and wear resistance
This 184Wh battery features a shockproof hard case with rubber protection and an LCD Display, offering superior durability and a sleek, professional design. With a high output of 15A / 180W, it delivers the power needed for demanding equipment. The rechargeable Li-ion cells are free from memory effect, ensuring consistent performance over time.
An intelligent PCB design provides multi-layer protection against overheating, overcharging, over-discharging, and overcurrent, keeping both the battery and your devices safe. It supports SONY and RED communication protocols, allowing compatible cameras to display real-time battery data such as capacity, voltage, and remaining percentage.
The internal battery pack uses a non-wire assembly process for enhanced stability and reliability. It includes a USB-C port with bidirectional PD 100W fast charging, a USB-A output port, and two D-Tap in/out ports. These allow you to power cameras, high-draw LED lights, and also charge the battery using a D-Tap charger.
Designed to perform in extreme conditions, the battery operates reliably in temperatures ranging from -20°C to +55°C. Its reinforced internal structure improves drop resistance, while protective rubber caps on the D-Tap and USB-A ports enhance durability. A metal V-lock mount provides added strength and wear-resistance for long-term, professional use.
SPECIFICATIONS
| Voltage |
14.4 V |
|---|---|
| Capacity |
12.8Ah / 184Wh |
| Load |
15A (MAX) / 180W (MAX) |
| Mount Type |
V-Mount |
| D-Tap In- & Output |
2* 10–16.8V / 15A (Max) |
| USB-C In- & Output |
5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A (PD 100W Max) (USB-C cable with built-in E-Mark chip supports 100W input/output) |
| USB-A Output |
5V/2A, 9V/2A, 12V/1.5A |
| Operating Temperature |
-20°C to +55°C |
| Charging Temperature |
0°C to +40°C |
| Storage Temperature |
-20°C to +45°C |
| Dimensions |
154(L) × 100(W) × 66(H) mm |
| Weight |
1154g |
