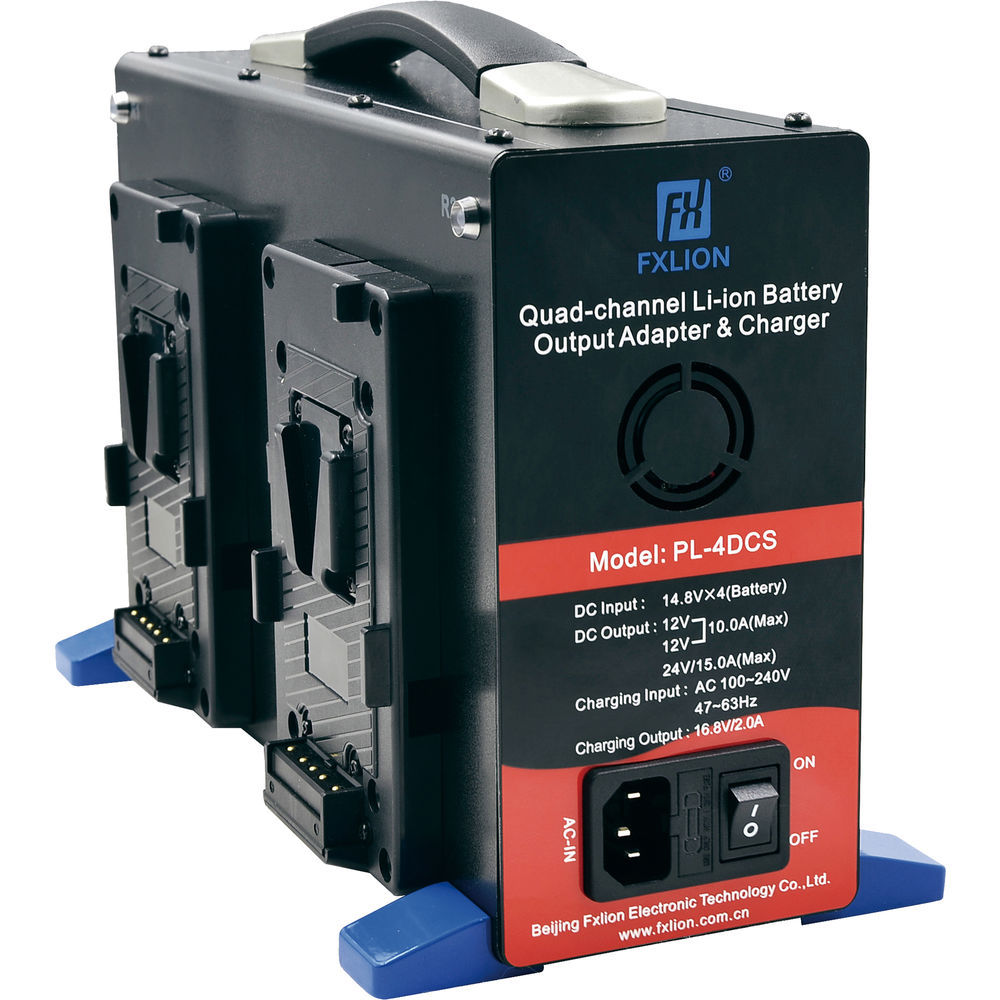

FXLION PL-4DCS Skypower 24V DC Output Adapter & Charger V-Mount

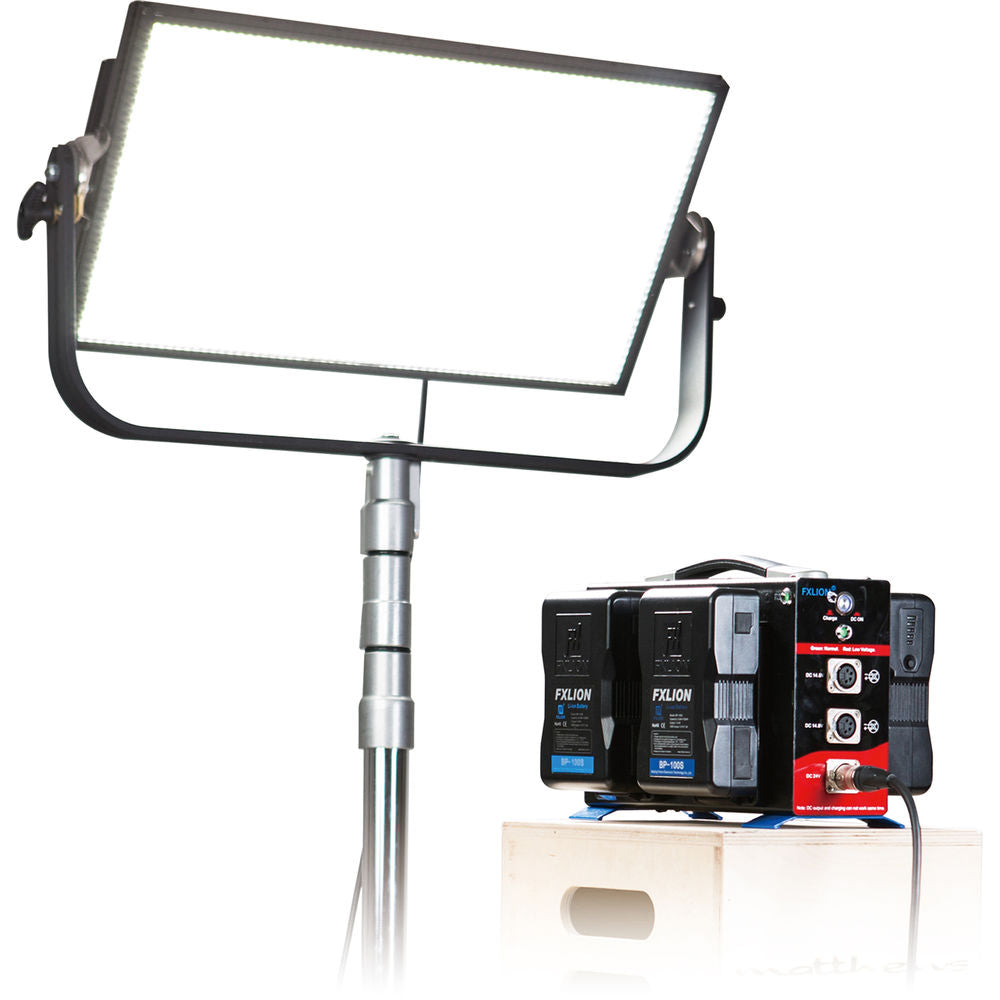

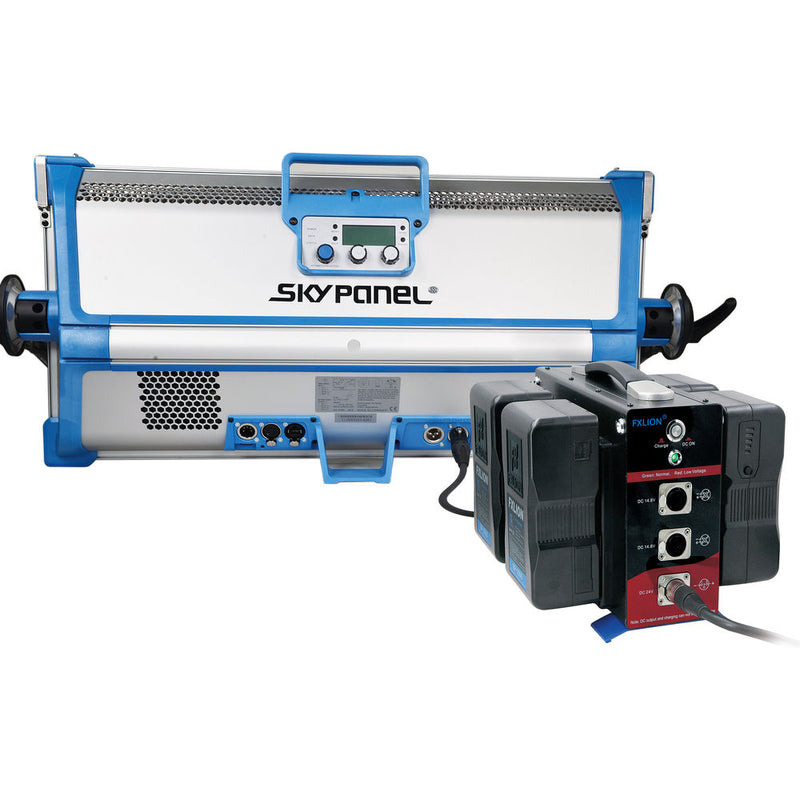

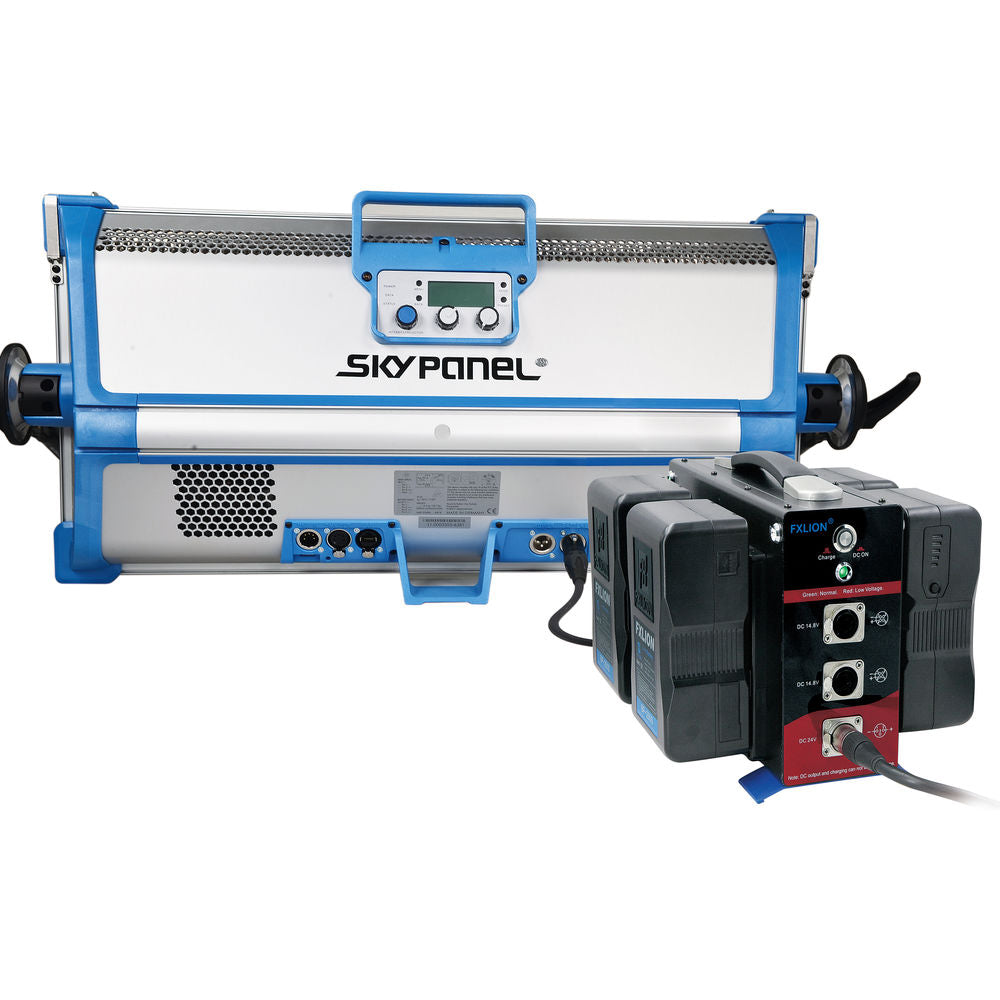

The Skypower is both a charger and power adapter. It has two 14.8V outputs and one 24V output. Put four batteries on it and your set for powering LED lights or cameras.

The classic Skypower Series features a 24V and 48V version for V-Mount or Gold-Mount batteries. Both versions act as battery charger and power station. The charging output is 2 Amps at 16.8 Volts.

If you put four 14.8V batteries on it, doesn’t matter how much capacity they have, the 14.8 volts are being transformed to 24V or 48V (according to the version). At the same time you have two 14.8V outputs via XLR Connector to power anything that accepts this voltage. This could be a camera via XLR to D-TAP cable or any other electrical equipment that runs on 14.8V. Fxlion offers different types of cables.

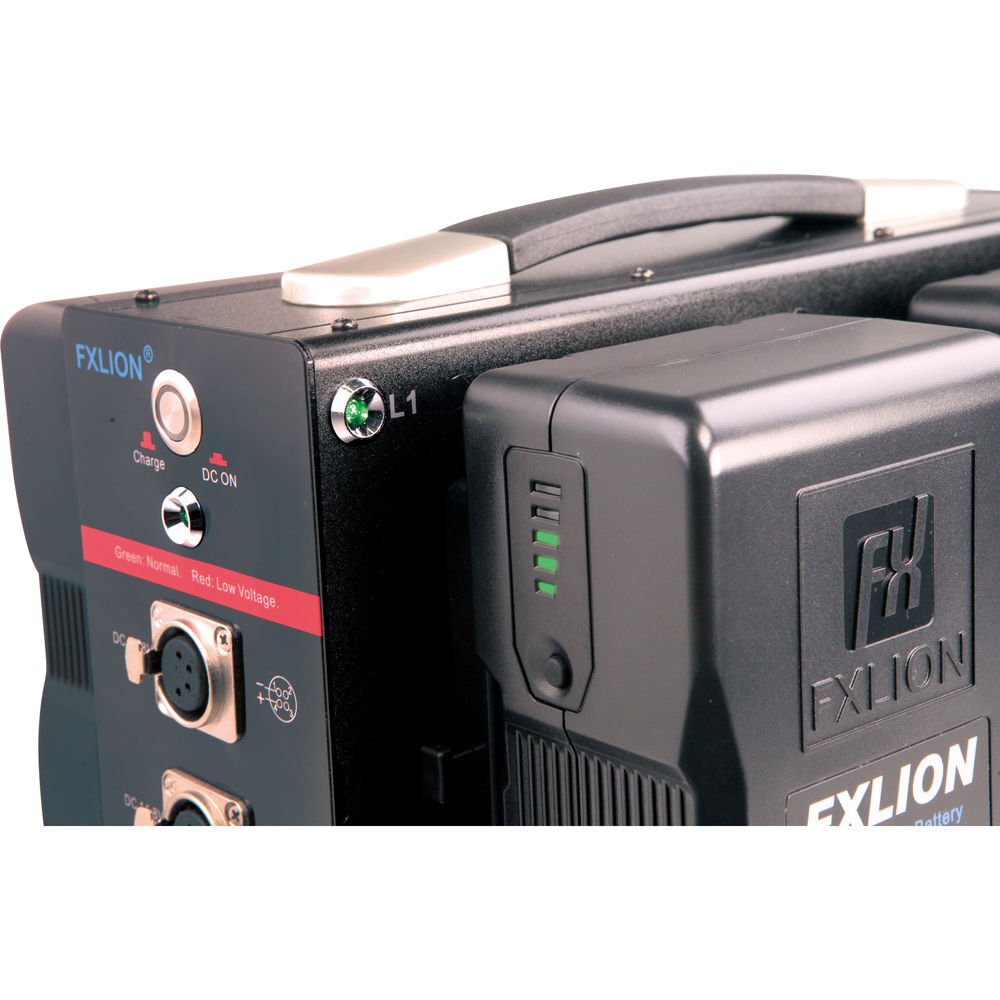

The power station and charger can’t work together at the same time. To switch to the DC Output (transformer) there’s a switch on the upper side of the front panel. On the back you’ll find a status indicator for each of the four channels.

WHAT'S IN THE BOX

1 × PL-4DCS - 24V Skypower VM

1 x Power Cable

SPECIFICATIONS

DC OUTPUT ADAPTER

DC Input:

14.8V x 4 (Battery)

DC Outputs:

1 x 24V / 15A (max.)

2 x 14.8V / 10A (max.)

Power: 360W

Features:

14.8V and 24V work simultaneously

CHARGER

Input:

100-240V 47-63Hz

Output:

16.8V/2.0A*4

Features:

Charges four pieces battery simultaneously

Dimensions:

304(L)mm*134(W)mm*207(H)mm

Weight:

2900g
