Description
Hollyland Pyro S 4K Dual HDMI/SDI Transmission Kit with Pyro 7 7-inch Monitoring Kit
FEATURES
- 1TX And 4RX
- 1300ft (400m) & 0.06s Latency
- 2.4GHz & 5GHz Dual Band
- Auto Frequency Hopping
- TX, RX, and Monitor – All in One
- Dual-View Quick Monitoring Switch
- 7 Inch & 1200 nits
- Precise Image Analysis (icon HollyOS)
- SDI And HDMI Loopout
- RTMP Streaming
Pyro S is a groundbreaking addition to the Hollyland Pyro series lineup, which redefines wireless video transmission. Pyro S supports HDMI and SDI input/output and can transmit to up to four receivers simultaneously, with a range of up to 1,300ft (400m) and minimal latency of just 50ms.
Pyro S uses advanced Auto Dual-Band Hopping (ADH) technology to ensure reliable transmission and features selectable modes for your real-world shooting needs. Lighter and more durable than traditional models, Pyro S's magnesium alloy shell makes it easier to carry and handle. It's ideal for multi-user monitoring in dynamic shooting scenarios, such as film production, live events, and ENG/EFP applications.

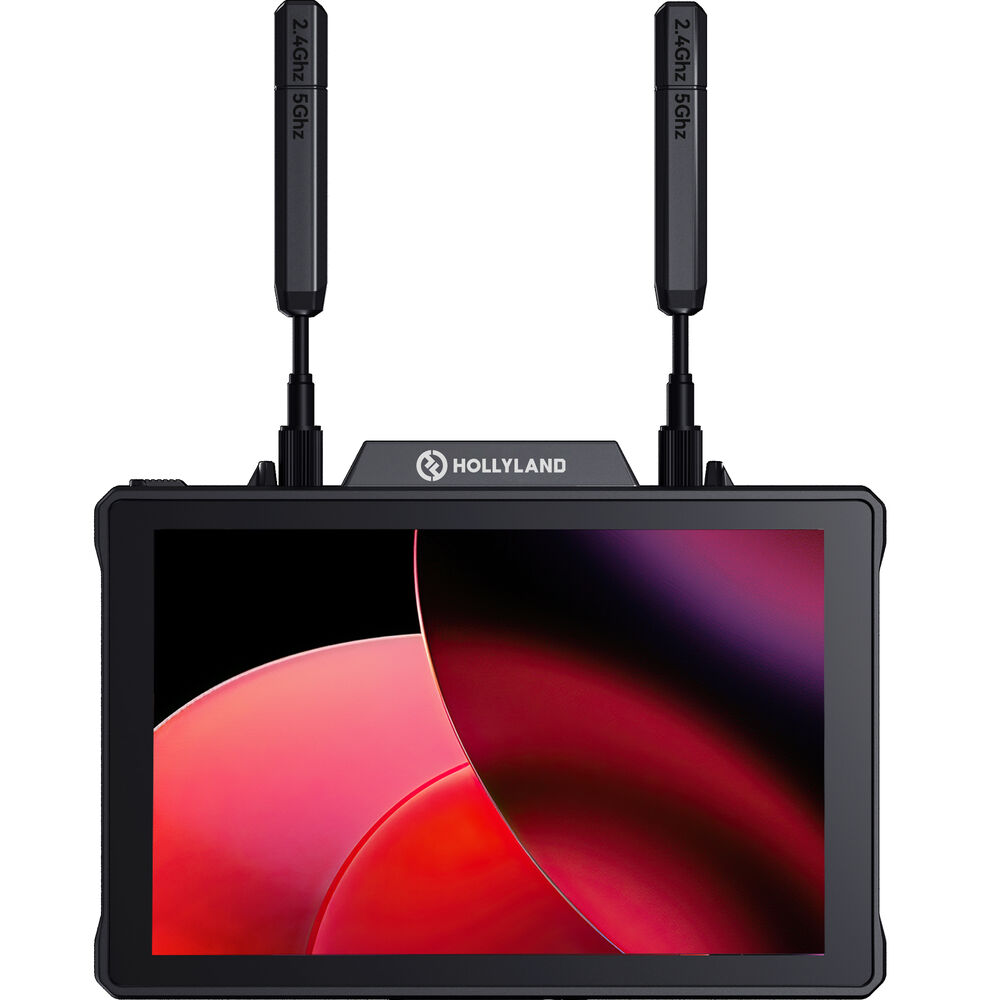

Pyro 7 is a 7-inch wireless monitor that integrates the functionalities of TX, RX, and monitor, all in one. It utilizes Auto Dual-Band Hopping (ADH) technology. With 1,300ft (400m) and an incredibly low latency of only 60ms, Pyro 7 supports 2.4GHz/5GHz dual-band transmission and automatic frequency hopping. Its exceptional hardware design enables Pyro 7 to simultaneously connect one transmitter to four receivers, and the convenience of dual-camera monitoring is achieved through customizable shortcut keys. Additionally, the upgraded HollyOS system provides enhanced image analysis capabilities and allows for video file export via an external SD card. Pyro 7 is compatible with Pyro H and Pyro S, which means you can easily pair Pyro 7 with either Pyro H or Pyro S. This provides you with greater flexibility and scalability to meet various monitoring needs.

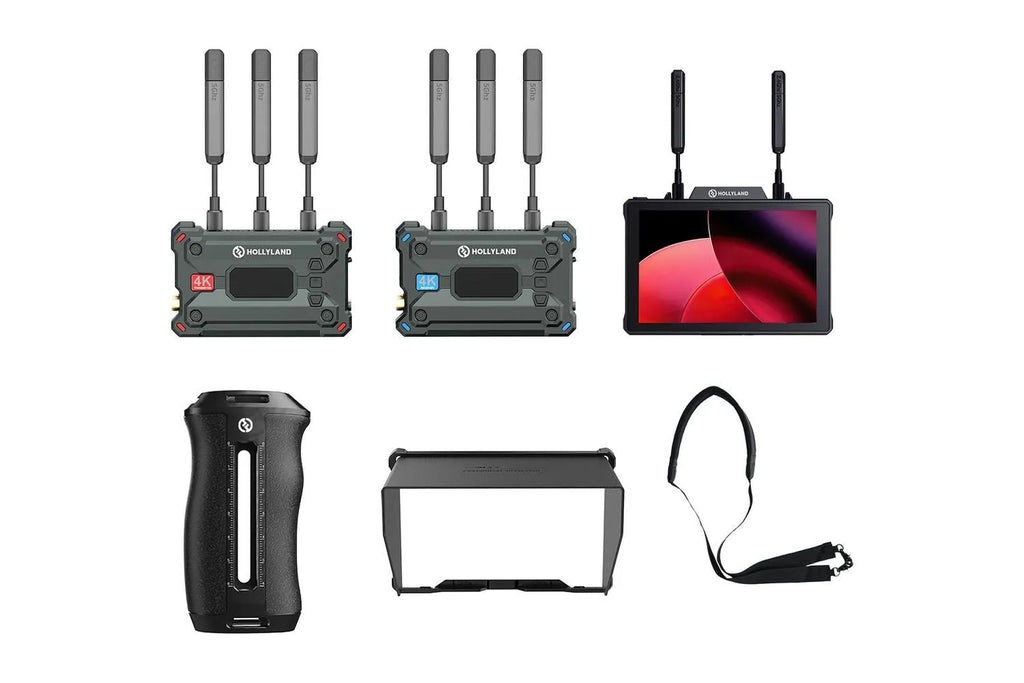

WHAT'S IN THE BOX
- 1x Pyro 7 Wireless Transceiving Monitor
- 1x Pyro S Wireless Video Transmitter
- 1x Pyro S Wireless Video Receiver
- 9x Paddle Antenna (2.4 GHz & 5 GHz)
- 2x Side & Bottom Mounted Aluminum Handle
- 1x Monitor Hood (7-Inch)
- 1x Secure Digital Memory Card (32G)
- 1x Shoulder Strap
- 1x Rotatable Cold Shoe Mount
- 1x USB-C OTG Adapter
- 1x 12V 2A DC 2.1 Power Adapter
- 1x Pyro S User Manual
- 1x Pyro 7 User Manual
- 1x Warranty Card
- 1x Hollyland Ecosystem Leaflet
- 1x D-Tap to Locking DC Power Adapter Cable
- 1x Pyro Ecosystem Hard-Shell Case
SPECIFICATIONS
| Input Port | HDMI 1.4b + 3G SDI |
|---|---|
| Output Port | HDMI 1.4b + 3G SDI |
| Antenna | RP-SMA Male*2 |
| Power Input | DC Input (2.0mm core socket) |
| Headphone Jack | 3.5mm |
| Upgrade Port | USB-C (USB 2.0 OTG) |
| Screen Size | 7" Touchscreen |
| Screen Resolution | 1920 × 1200 pixels |
| Pixel Density | 323 PPI |
| Aspect Ratio | 16:09 |
| Screen Brightness | 1200 nits |
| Contrast Ratio | 1000:01:00 |
| Power Input Voltage | 10 - 18V/2.5A DC Input (nominal 12V) |
| POWER CONSUMPTION | |
| Net Weight | 545g (19.2oz) with battery plate included and external antennas excluded |
| Dimensions (L × W × H) | 180 × 127 × 31.8mm (7.1" × 5" × 1.25") with battery plate and external antennas excluded |
| Operating Frequency | 5.1 - 5.8 GHz; 2.412 - 2.484 GHz |
| Transmit Power | ≤ 23 dBm |
| Receiver Sensitivity | -80 dBm |
| DISPLAY LATENCY | |
| Transmission Latency | 60ms (test data when 1080p60 signals are transmitted in a laboratory) |
| LOS Range | 1,300ft (400m)* (Connection to the monitoring app may affect the range); |
| 650ft (200m)* (in Broadcast mode) | |
| Bandwidth | 20 MHz; 40 MHz (in Broadcast mode) |
| Audio Format | HDMI 1.4b 8-Channel |
| Operating Temperature | -10°C - 45°C |
| Storage Temperature | -40°C - 60°C |
