Hollyland Solidcom Geo Central Station for H1 System

FEATURES

• Supports up to 80 Beltpacks
• 1640' Line-of-Sight Coverage Range
• Seamless Roaming Across Zones
• Up to 100 Independent Groups
• Cloud Communication Capability
• Remote Support and Management
• Dante and Other Interfaces
• No License Fees Required
• Includes Mic, Cables, Antenna, Power

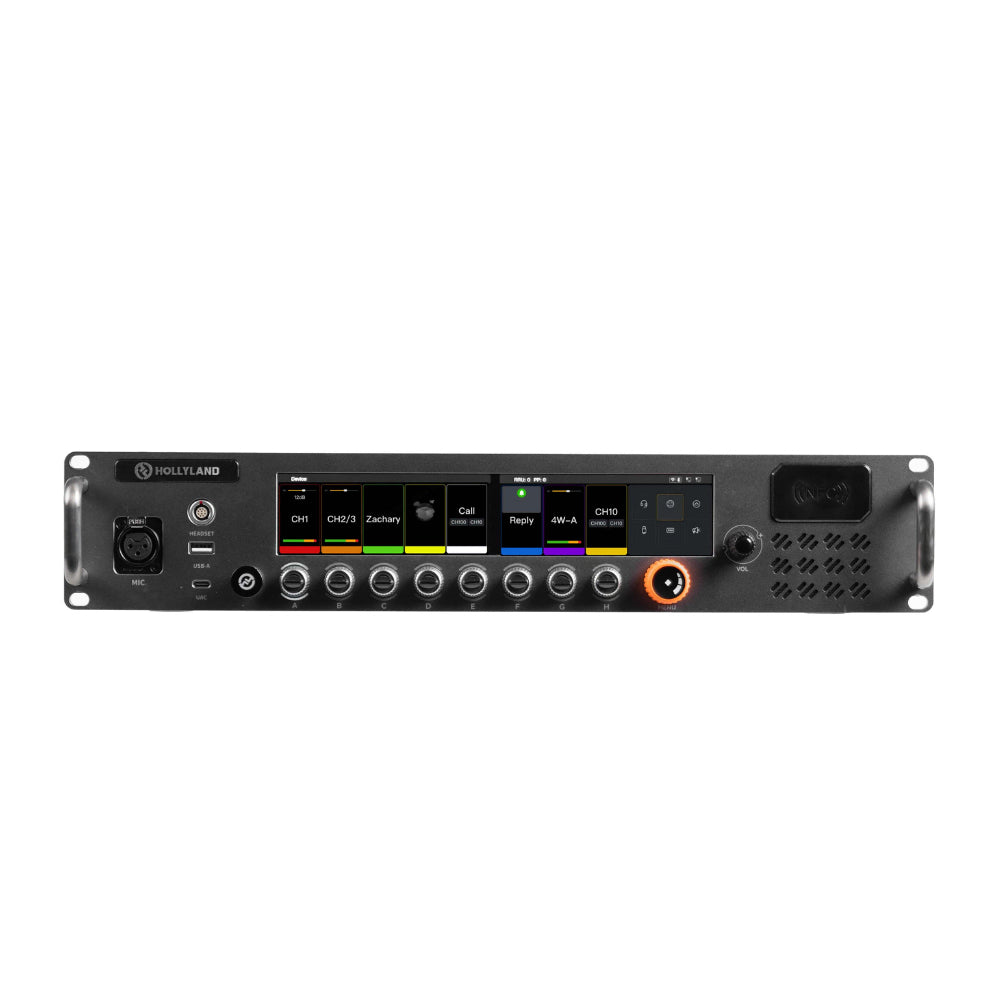

HOLLYLAND SOLIDCOM H1 GEO CENTRAL STATION

The Hollyland Solidcom H1 Geo Central Station is a powerful hub designed for professional communication setups, offering unparalleled flexibility and control. It acts as the core of a scalable and robust intercom network, seamlessly integrating with other components to provide crystal-clear, reliable communication across large and complex environments.

Seamless Integration & Scalability

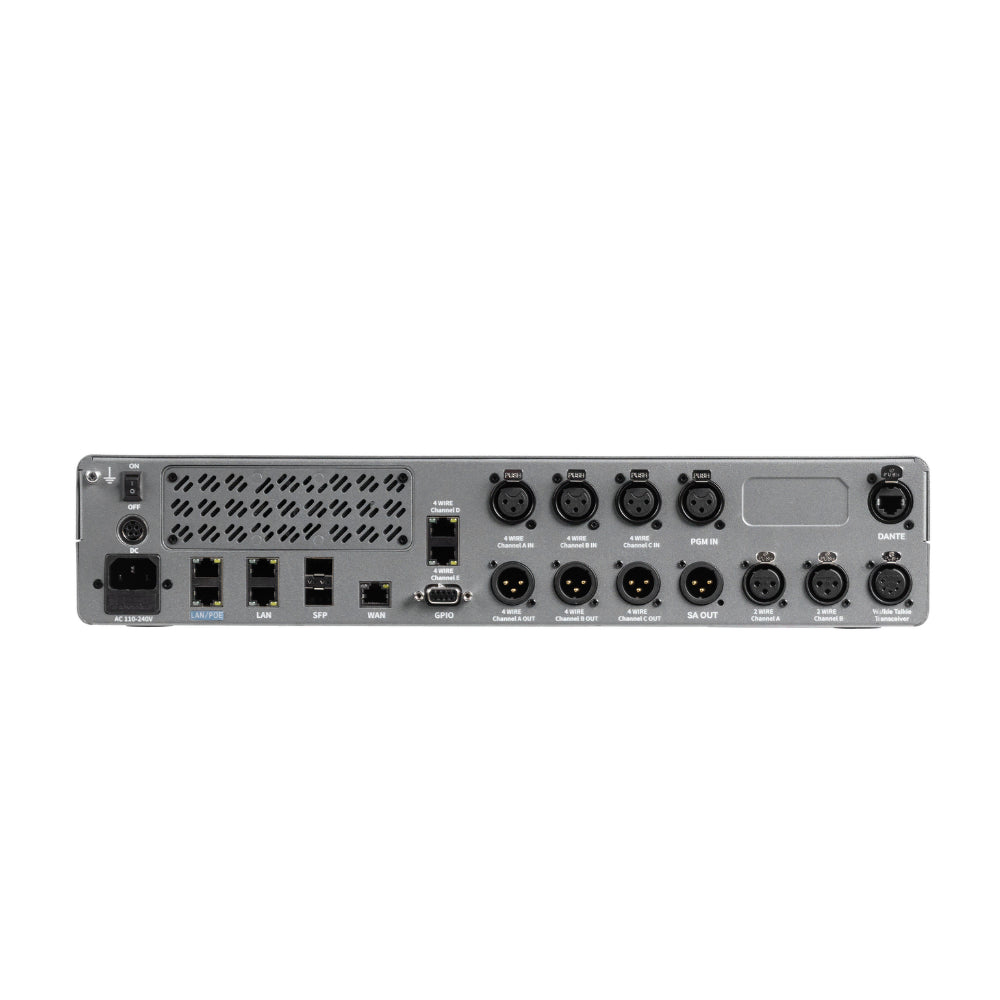

The central station features a built-in 4×4 DANTE port, allowing for direct integration into your existing DANTE/AES67 audio network. Its modular design allows it to support up to 8 cascaded antennas, enabling full-duplex communication for up to 80 beltpacks. This flexibility makes it ideal for everything from small-scale productions to large-scale events.

Expansive & Uninterrupted Coverage
When connected to the central station, each antenna provides a 500-meter wireless coverage radius. By cascading 8 antennas, the system can cover a vast area without signal dropout, thanks to seamless roaming between zones.

Advanced Remote Control & Configuration
The Hollyland Solidcom H1 Geo Central Station supports cloud-based virtual configuration and remote access via a web interface and dedicated app. This allows you to design your system remotely, save configurations, and upload them on-site. It also enables technical support to provide real-time assistance over the internet. The station supports up to 8 cloud-based app users, providing global, real-time access to system parameters.

Effortless Setup
With Auto-Cascade functionality, the GEO Central Station offers plug-and-play connectivity with Solidcom ANT01 antennas, requiring zero IP configuration. When a charging base is cascaded into the network, it enables fast, automatic pairing and one-click system deployment, drastically improving efficiency for large-scale setups.

Customisation & Efficiency
The system can store up to 100 group configurations, 100 role presets, and 80 beltpack profiles, allowing you to save customised communication setups and eliminate repetitive configuration tasks.

WHAT'S IN THE BOX

• 1 x Geo Central Station
• 1 x Gooseneck Microphone
• 1 x 10-pin to 4-pin XLR Adapter Cable
• 1 x Geo Central Station WIFI & Bluetooth Antenna
• 1 x Geo Central Station AC Power Cable
• 1 x User Manual
• 1 x Warranty Card

SPECIFICATIONS
